EPC450-HA Hydraulic crimping head
Product number:
76501100
detail.ic_hyk_sicher
detail.ic_hyk_pumpe
detail.PE_zylinder_gross_hb

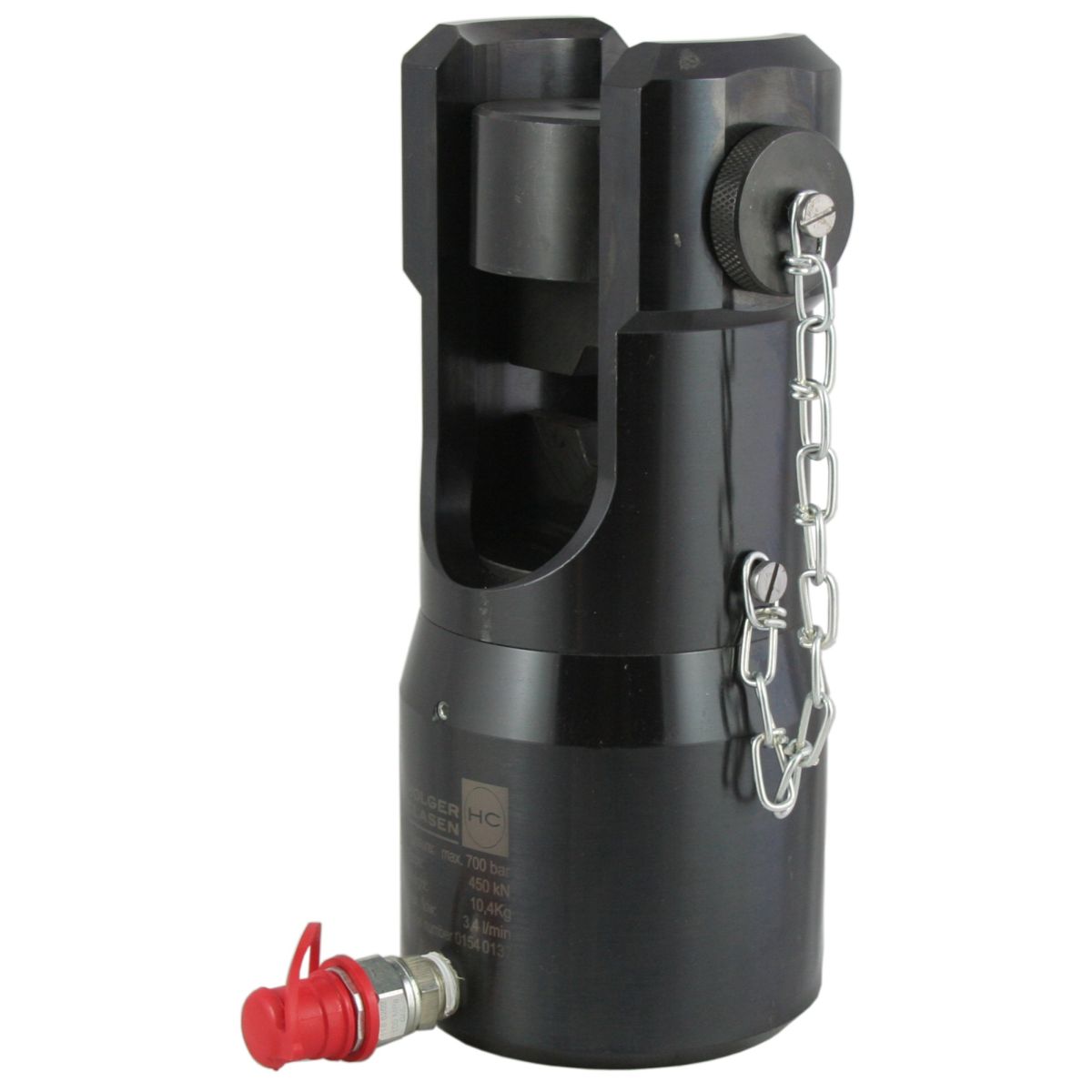

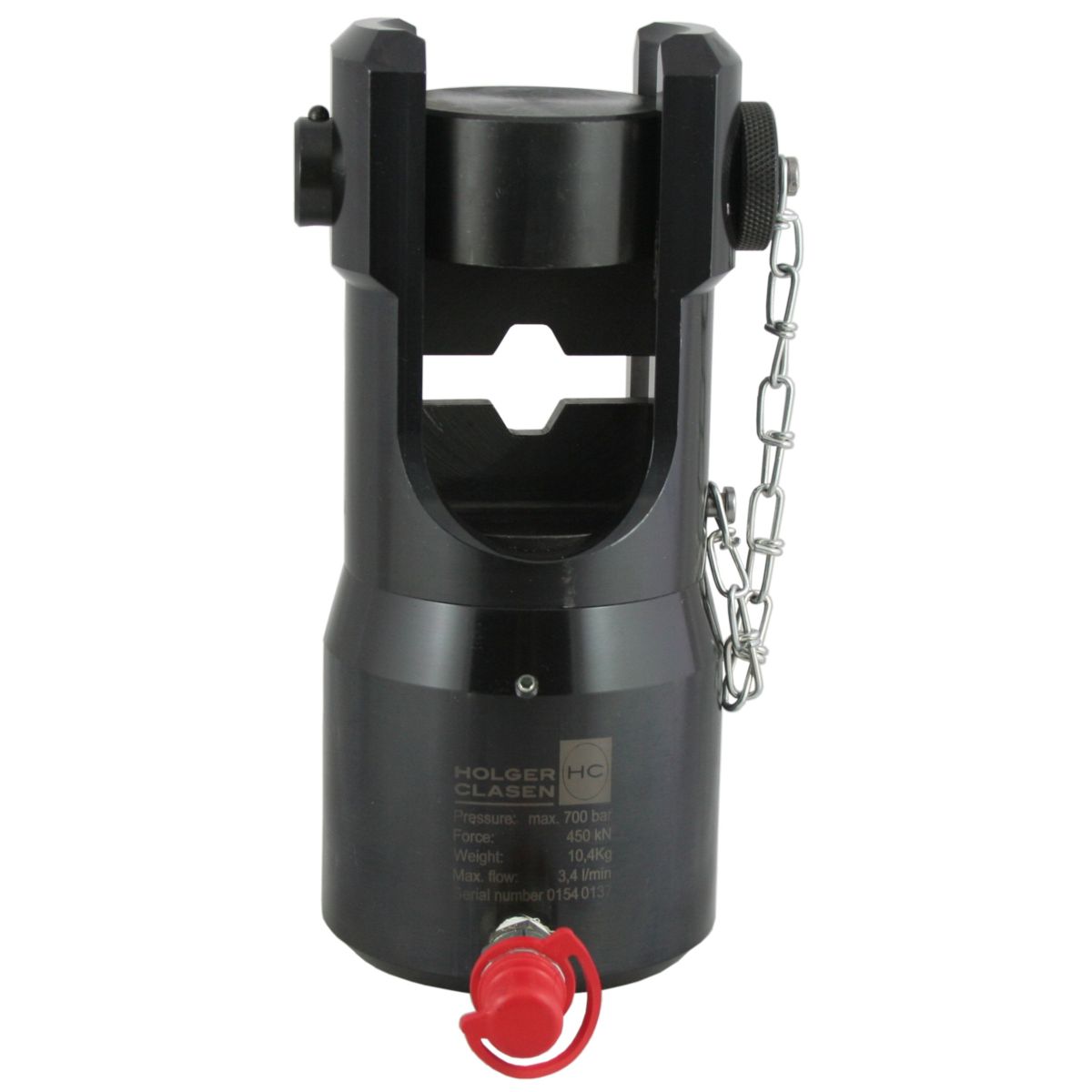

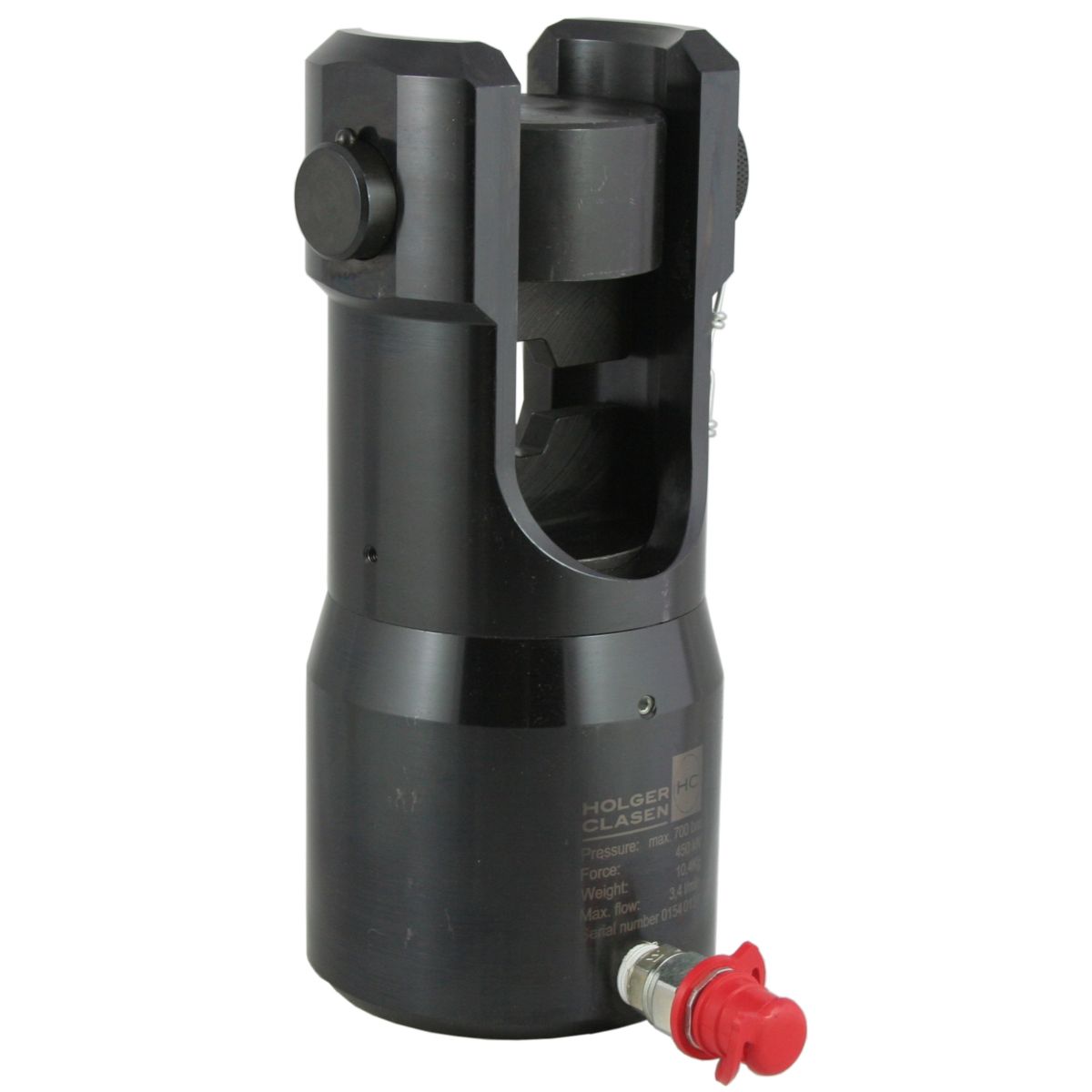

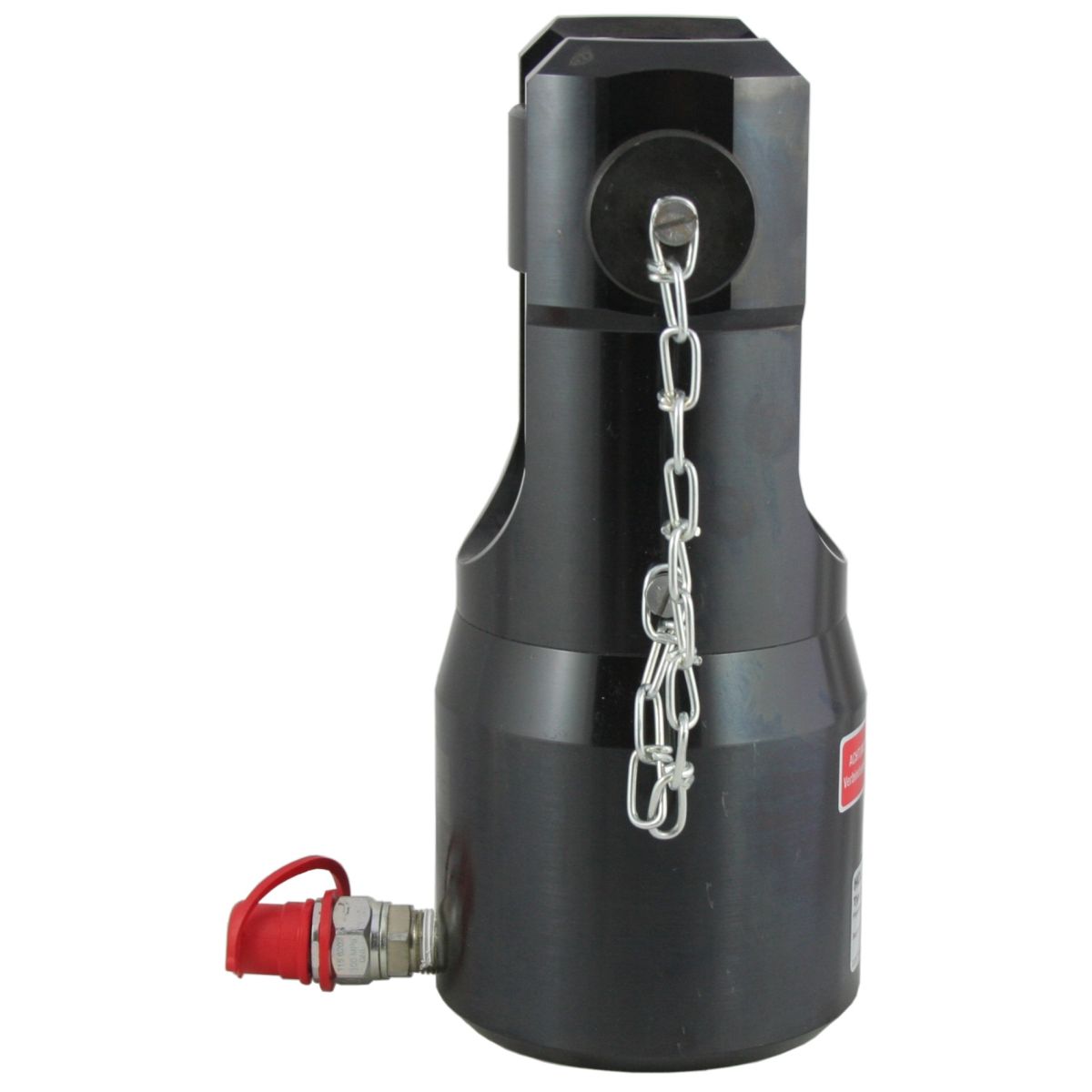

EPC450-HA Hydraulic crimping head
Applications
The hydraulic crimping head EPC450-HA is for crimping cable lugs and connectors of up to 1,000 mm2 according to DIN and is a changeable tool for connecting to a separate hydraulic pump. It is used by transportation companies, overhead lines, power stations and their service providers, in the wind energy industry as well as in industrial cable assembly.
Particularly robust and low-maintenance design.
The hydraulic crimping head is useable for large cross-sections of up to 1,000 mm2.
Can be combined with usual hydraulic pumps.
Technical specifications
The hydraulic crimping head is useable for large cross-sections of up to 1,000 mm2.
Can be combined with usual hydraulic pumps.

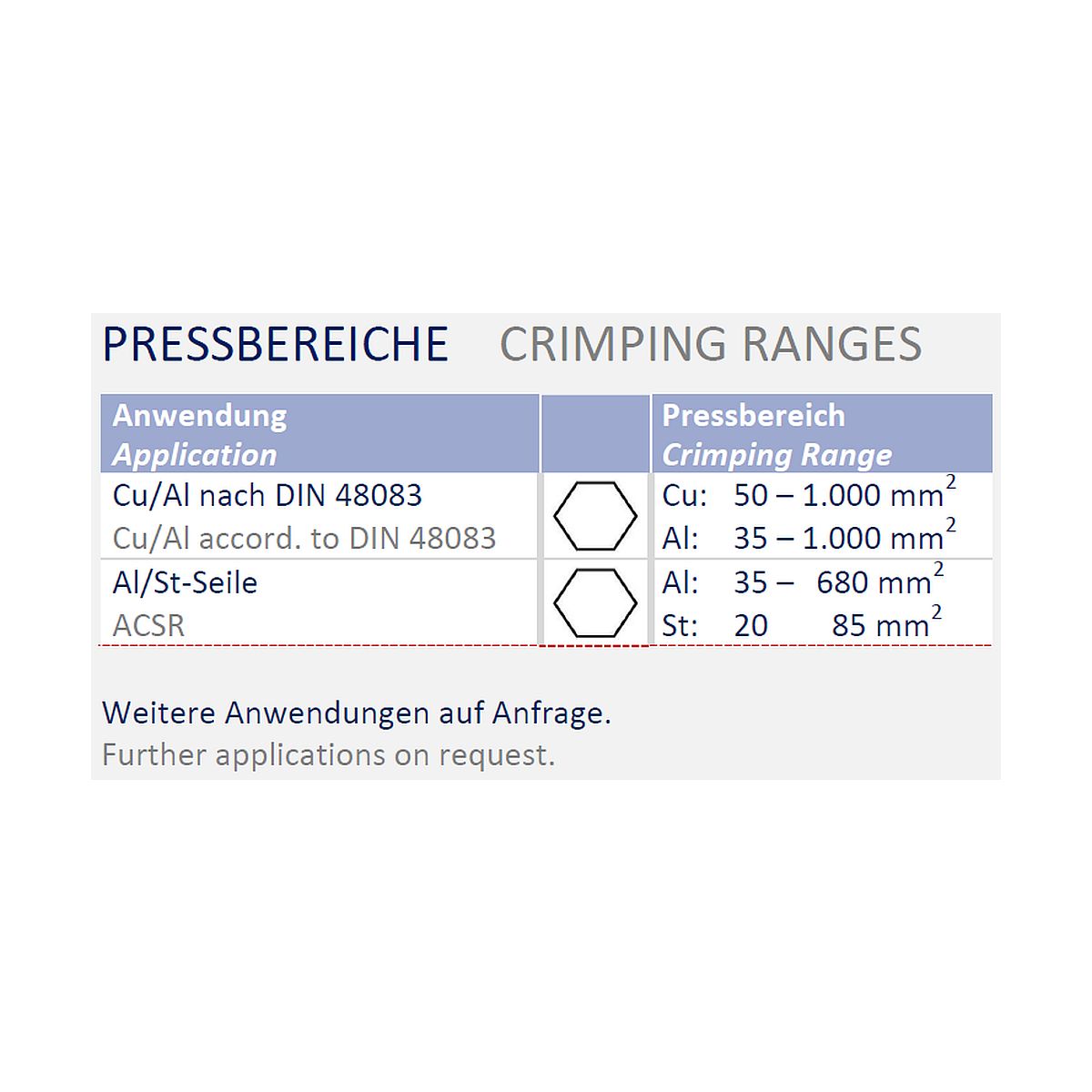

| Pressbereich DIN Al: | 35 - 1000 |
|---|---|
| Pressbereich DIN Cu: | 50 - 1000 |
| Presskraft: | 450 |
| Hydraulikanschluss: | Nippel CEJN Serie 115 |
| Verschluss-Art: | Bolzenverschluss |
| Kopf: | geschlossen |
| Arbeitsdruck: | 700 |
| Gehäuse Ø: | 175 |
| Höhe: | 260 |
| Gewicht: | 10.5 |
| Presseinsatz-Serie: | Zylindrisch groß (ZG) |
| Crimping dies Series: | Cylindrical large (ZG) |
| Crimping force: | 450 kN |
| Crimping range DIN Al: | 35 - 1000 mm2 |
| Crimping range DIN Cu: | 50 - 1000 mm2 |
| Head: | closed |
| Height: | 260 mm |
| Housing Ø: | 175 mm |
| Hydraulic connection: | Nipple CEJN series 115 |
| Lock type: | Retainer pin |
| Weight: | 10.5 kg |
| Working pressure: | 700 bar |
