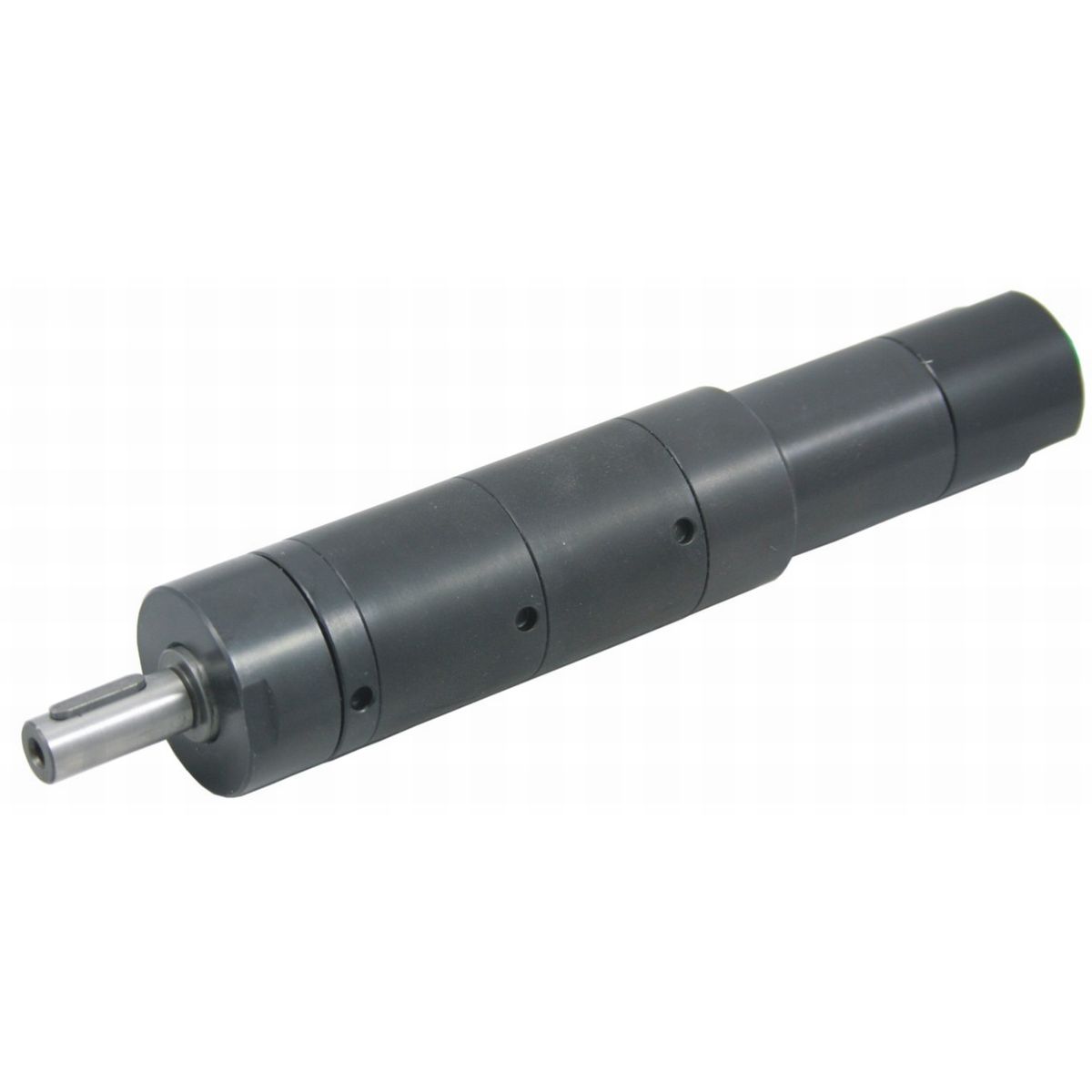

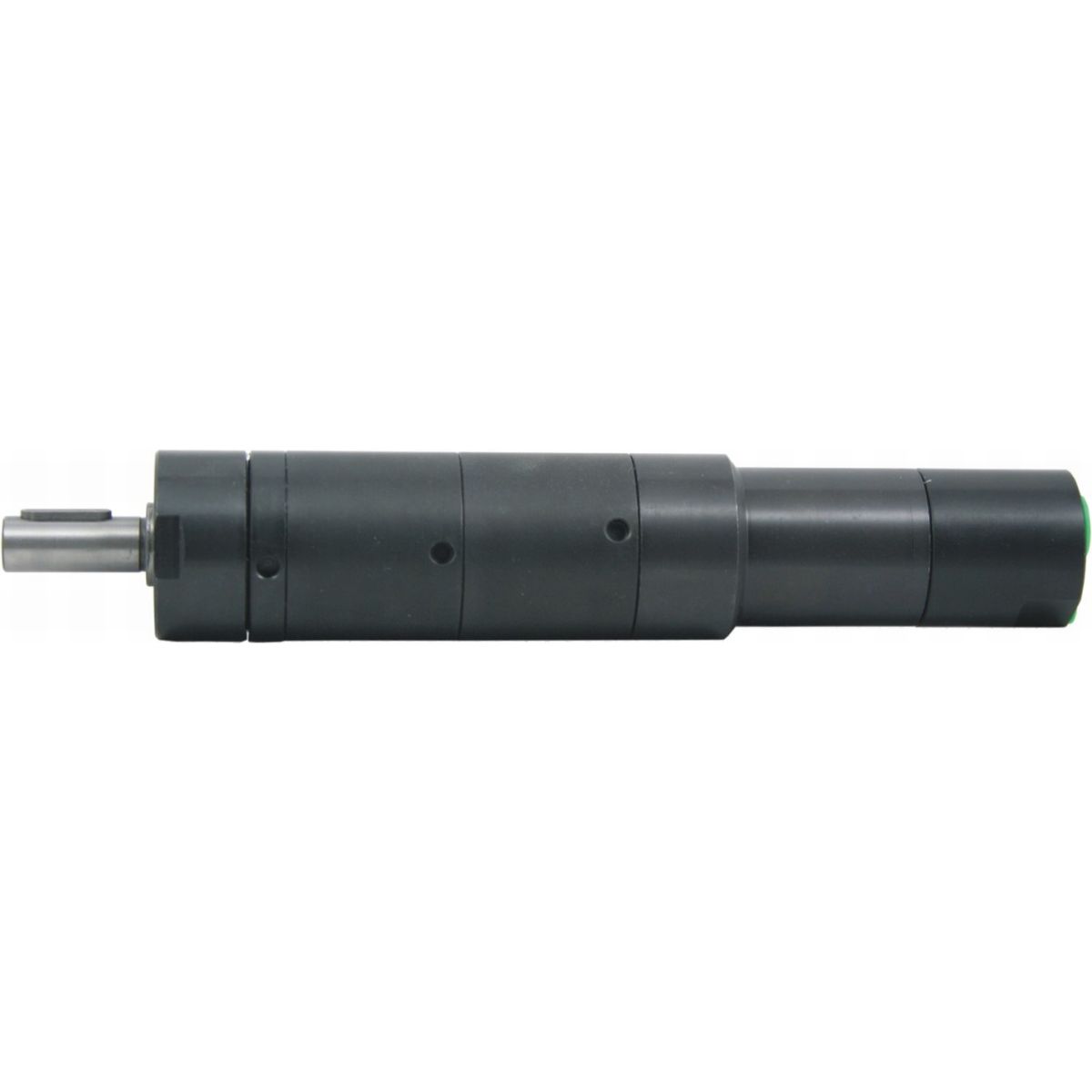

ME20 A/430-SP Air vane motor
Product number:
53144100
Ölfreier Betrieb möglich
Low-vibration type
ME20 A/430-SP Air vane motor
Applications
This air motor with vane drive is intended for installation in machines, e.g. as drive units on conveyor belts, in machine tools, feed or entrainment devices, in the food or packaging industry, on production lines or for installation in hand-guided special machines.
Power: 200 W
Free Speed: 4300 min-1
Chuck: collet chuck ER11
The air vane motor has low-noise and low-vibration values, starts precisely and it runs in right drive.
They are equipped with a collet chuck ER11.
The durable air vane motors are low-maintenance, and wear parts can be changed fast and easily.
On request specific types are available: ceramic, stainless steel or motors with ATEX-certification; for high requirements to atmosphere, hygiene or safety.
Technical specifications
Free Speed: 4300 min-1
Chuck: collet chuck ER11
Air vane motor with Collet ME20A/430-SP - power unit for professionals
The 0.2 kW air motor can be operated oilfree.The air vane motor has low-noise and low-vibration values, starts precisely and it runs in right drive.
They are equipped with a collet chuck ER11.
The durable air vane motors are low-maintenance, and wear parts can be changed fast and easily.
On request specific types are available: ceramic, stainless steel or motors with ATEX-certification; for high requirements to atmosphere, hygiene or safety.
| Antrieb: | Druckluft |
|---|---|
| Aufnahme: | Spannzangenaufnahme ER11 |
| Drehrichtung: | Rechts |
| Leerlaufdrehzahl: | 4300 |
| Leistung: | 0.20 |
| Information: | Die Leistungsangaben beziehen sich auf einen empfohlenen Betriebsdruck von 6,3 bar (ISO 2787). |
| Max. Betriebsdruck: | 7.0 |
| Betriebsdruck: | 6.3 |
| Luftverbrauch: | 5.3 |
| Empf. Schlauch-Ø: | 6 |

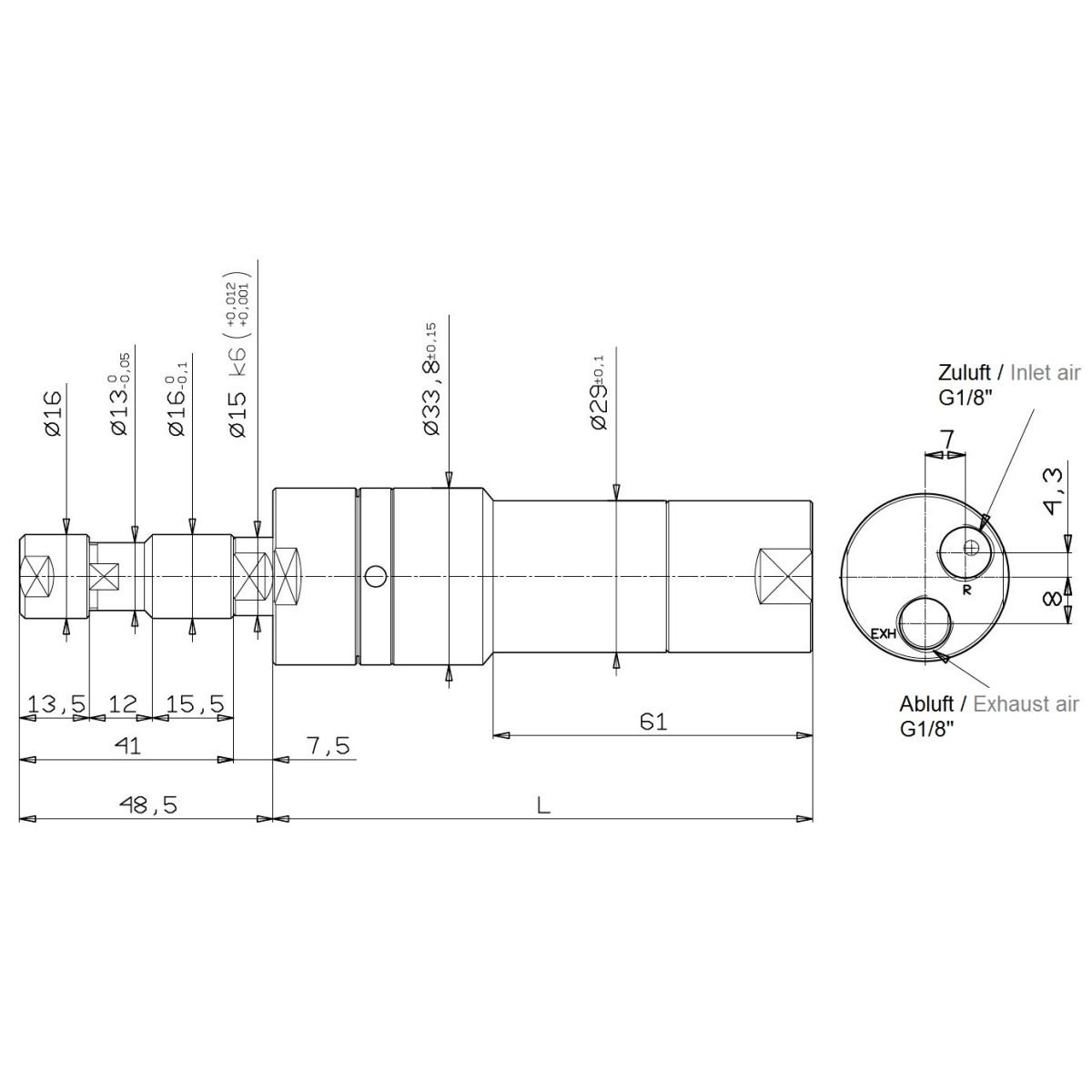

| Wellenlänge: | 48.5 |
| Gehäuse Ø: | 33.8 / 29 |
| Länge: | 152 |
| Gewicht: | 0.40 |
| Werkzeugform: | Gerade |
| Spannbereich Ø: | 0.5 - 7.0 |

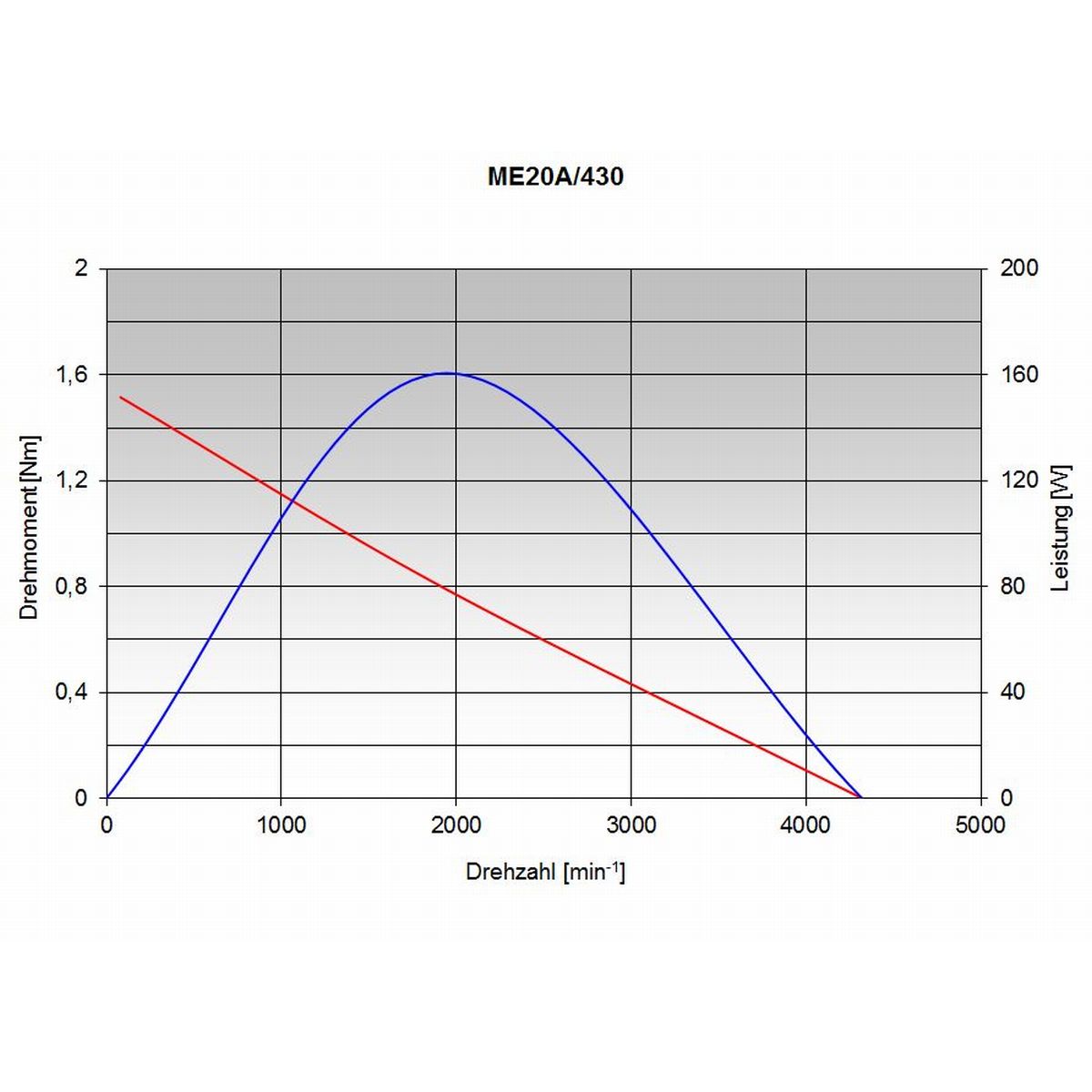

| Lastmoment: | 0.80 |
| Anlaufmoment: | 1.35 |
| Lastdrehzahl: | 1950 |
| Air consumption: | 5.3 l/s |

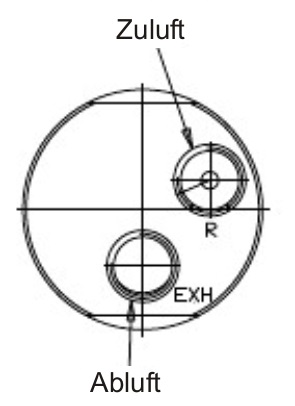

| Anschluss Abluft: | G 1/8" |
| Anschluss Zuluft: | G 1/8" |
| Chuck: | Collet chuck ER11 |
| Clamping Range Ø: | 0.5 - 7.0 mm |
| Construction form: | Straight |
| Current: | Pneumatic |
| Direction of rotation: | Right |
| Exhaust air connection: | G 1/8" |
| Free speed: | 4300 min-1 |
| Housing Ø: | 33.8 / 29 mm |
| Information: | Die Leistungsangaben beziehen sich auf einen empfohlenen Betriebsdruck von 6,3 bar (ISO 2787). |
| Inlet air connection: | G 1/8" |
| Length: | 152 mm |
| Max. Working pressure: | 7.0 bar |
| P_Max. Betriebsdruck: | 6.3 bar |
| Power: | 0.20 kW |
| Recommended hose Ø: | 6 mm |
| Shaft length: | 48.5 mm |
| Speed under Load: | 1950 min-1 |
| Starting Torque: | 1.35 Nm |
| Torque at max. Power: | 0.80 Nm |
| Weight: | 0.40 kg |
