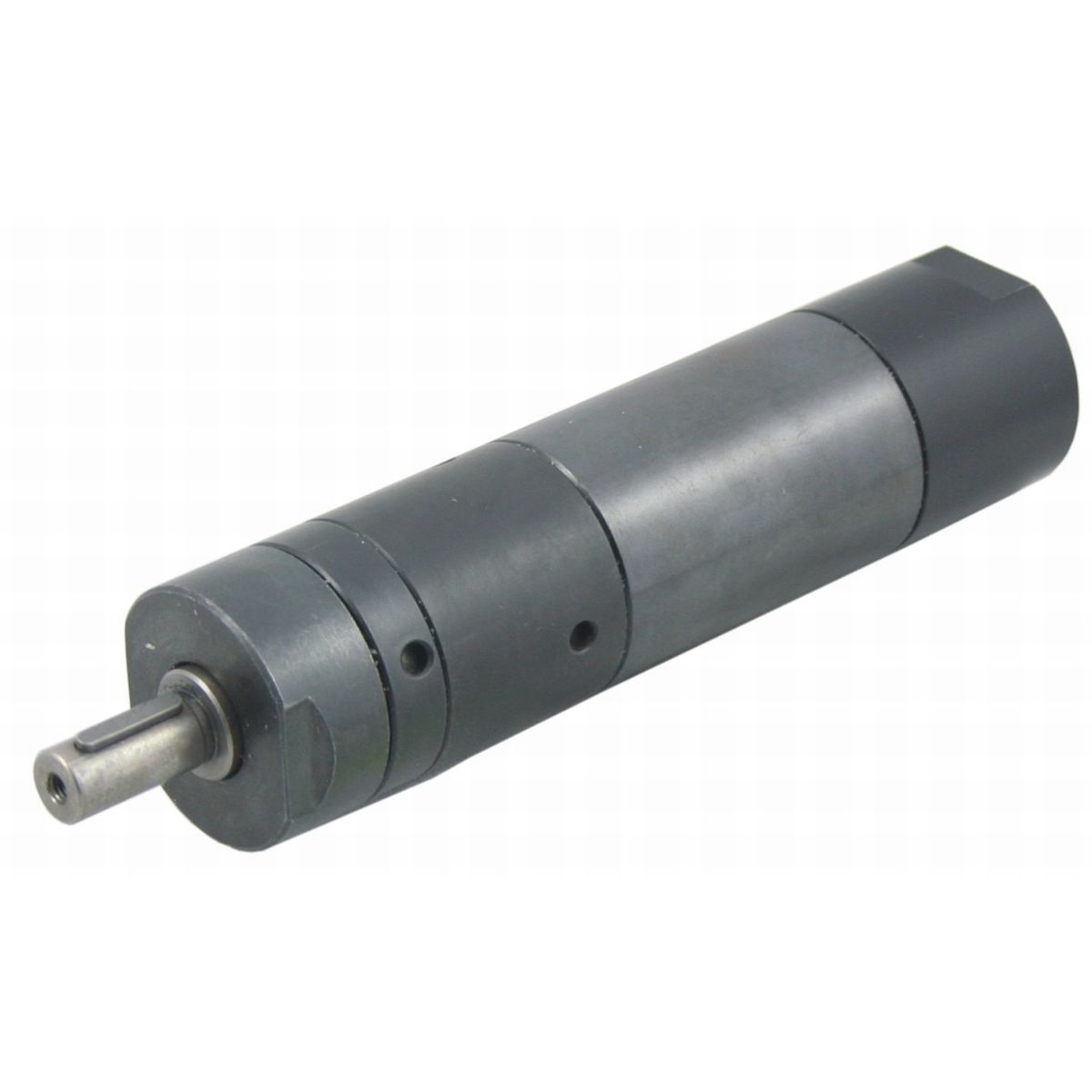

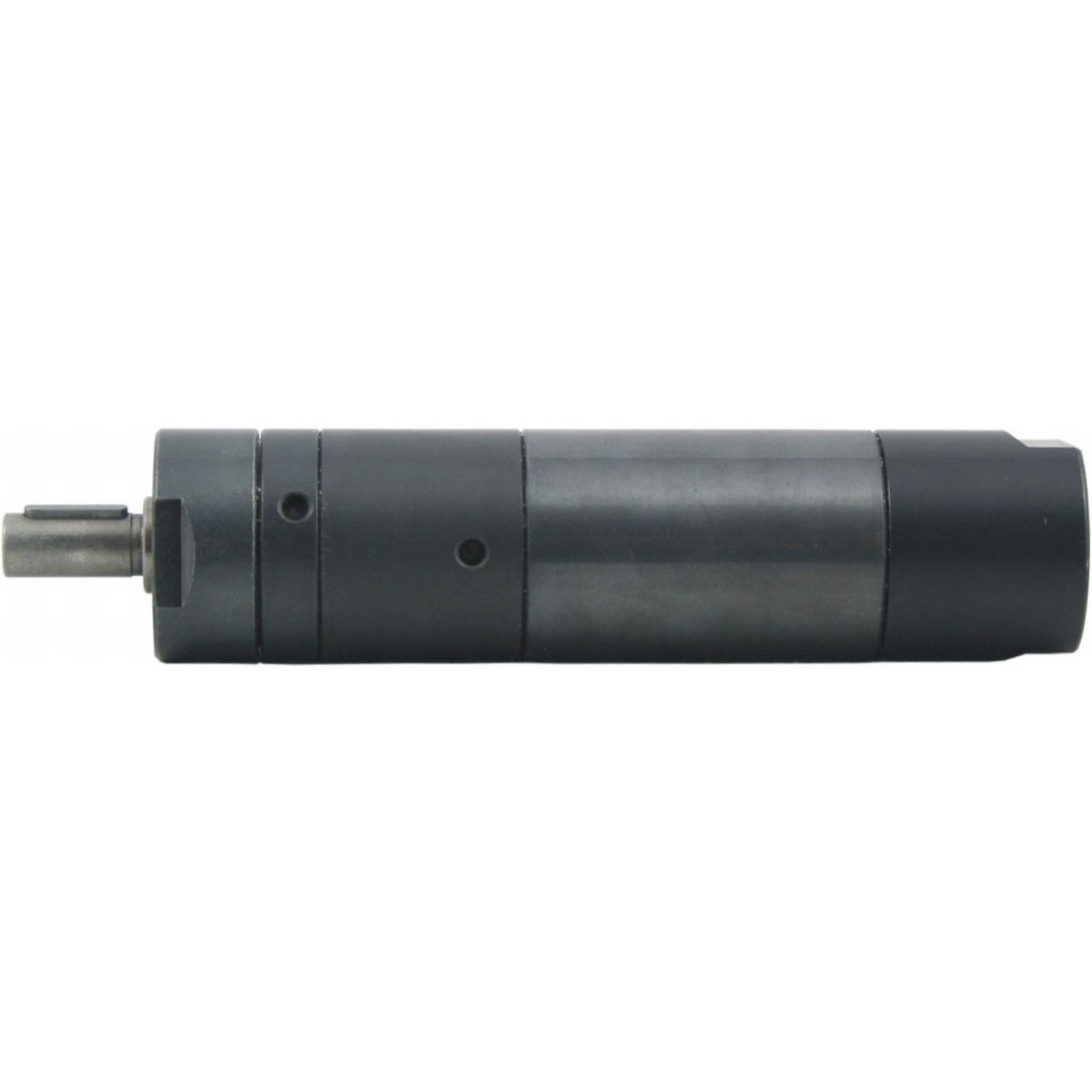

ME28 A/480-3/8 Air vane motor
Product number:
53173200
Ölfreier Betrieb möglich
Low-vibration type
ME28 A/480-3/8 Air vane motor
Applications
This air motor with vane drive is intended for installation in machines, e.g. as drive units on conveyor belts, in machine tools, feed or entrainment devices, in the food or packaging industry, on production lines or for installation in hand-guided special machines.
Power: 280 W
Free Speed: 4800 min-1
The air vane motors have low-noise and low-vibration values, start precisely and they run in right drive.

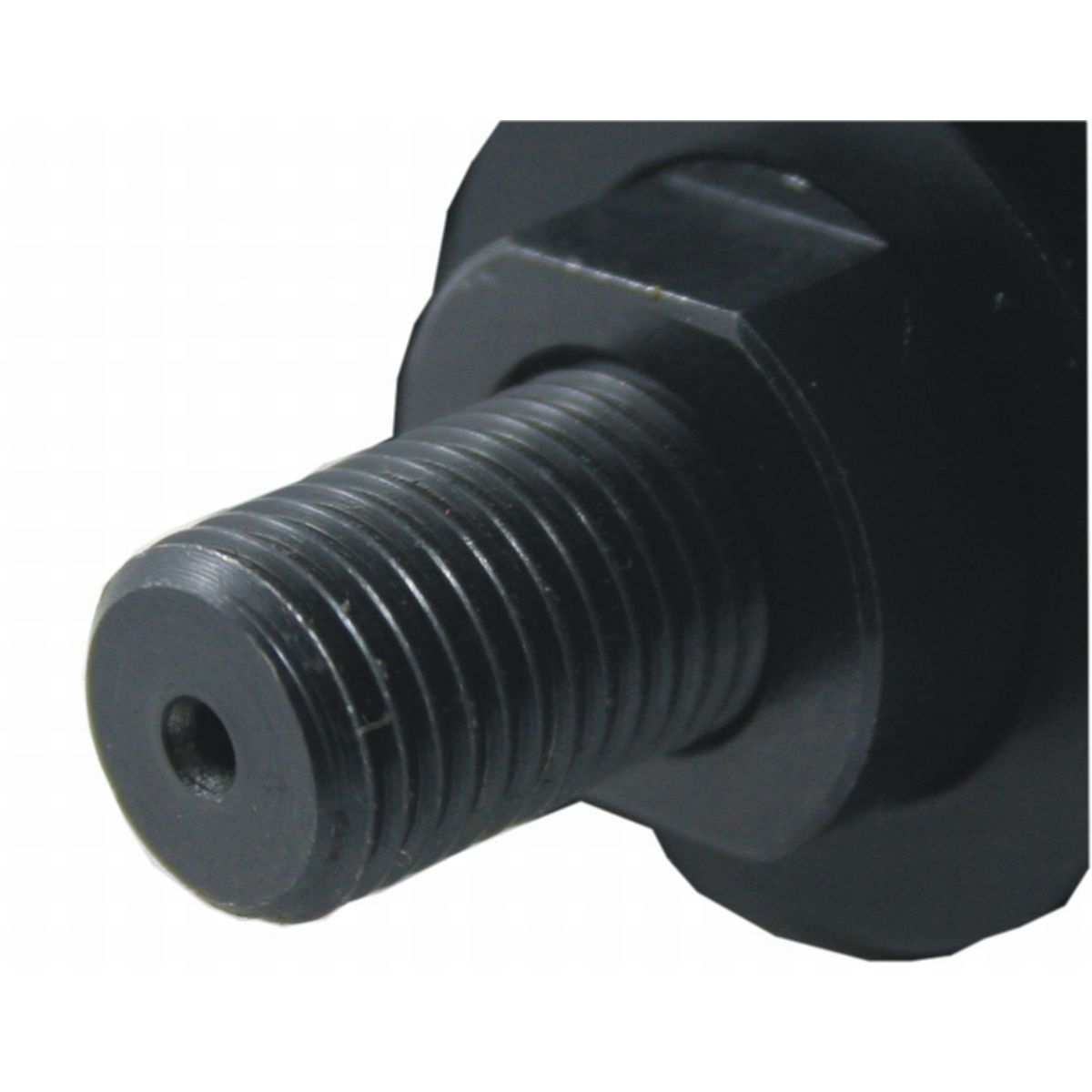

They are equipped with a thread 3/8" connection.
The durable air vane motors are low-maintenance, and wear parts can be changed fast and easily.
On request specific types are available: ceramic, stainless steel or motors with ATEX-certification; for high requirements to atmosphere, hygiene or safety.
Technical specifications
Free Speed: 4800 min-1
Air vane motor with thread 3/8" ME28A/480-3/8 - power unit for professionals
The 0.28 kW air motors can be operated oilfree.The air vane motors have low-noise and low-vibration values, start precisely and they run in right drive.
They are equipped with a thread 3/8" connection.
The durable air vane motors are low-maintenance, and wear parts can be changed fast and easily.
On request specific types are available: ceramic, stainless steel or motors with ATEX-certification; for high requirements to atmosphere, hygiene or safety.
| Antrieb: | Druckluft |
|---|---|
| Drehrichtung: | Rechts |
| Leerlaufdrehzahl: | 4800 |
| Leistung: | 0.28 |
| Information: | Die Leistungsangaben beziehen sich auf einen empfohlenen Betriebsdruck von 6,3 bar (ISO 2787). |
| Max. Betriebsdruck: | 7.0 |
| Betriebsdruck: | 6.3 |
| Luftverbrauch: | 6.3 |
| Empf. Schlauch-Ø: | 6 |
| Wellenlänge: | 19.5 |
| Gehäuse Ø: | 36 |
| Länge: | 127 |
| Gewicht: | 0.58 |
| Werkzeugform: | Gerade |
| Lastmoment: | 1.31 |
| Anlaufmoment: | 2.00 |
| Lastdrehzahl: | 2040 |
| Air consumption: | 6.3 l/s |

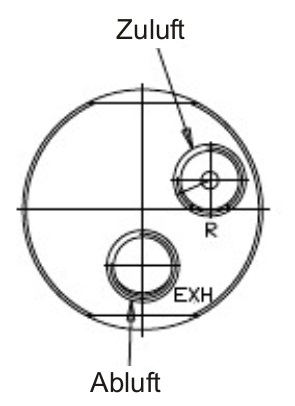

| Anschluss Abluft: | G 1/8" |
| Anschluss Zuluft: | G 1/8" |
| Aufnahme: | Gewinde 3/8" x 24 UNF |
| Chuck: | Thread 3/8" x 24 UNF |
| Construction form: | Straight |
| Current: | Pneumatic |
| Direction of rotation: | Right |
| Exhaust air connection: | G 1/8" |
| Free speed: | 4800 min-1 |

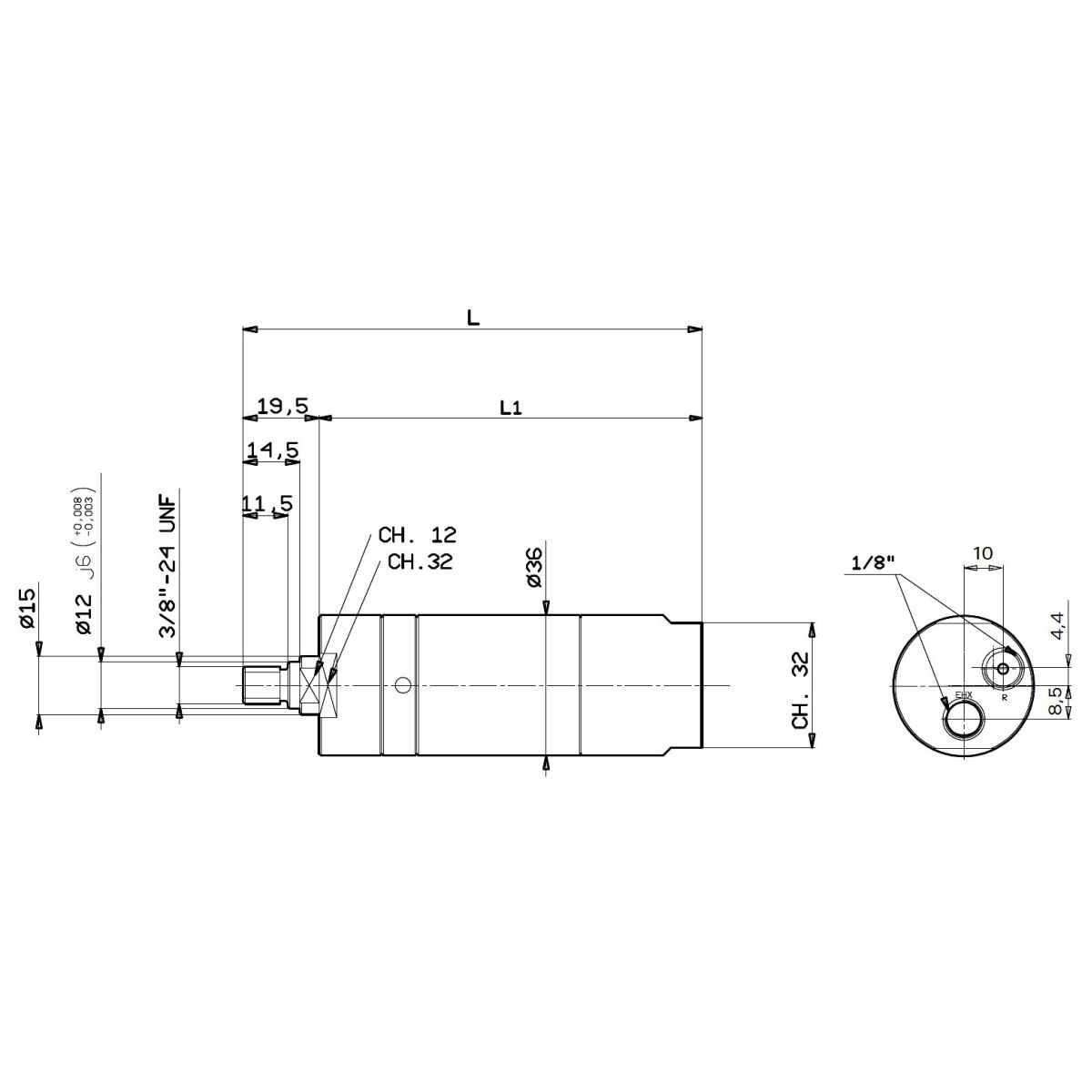

| Housing Ø: | 36 mm |
| Information: | Die Leistungsangaben beziehen sich auf einen empfohlenen Betriebsdruck von 6,3 bar (ISO 2787). |
| Inlet air connection: | G 1/8" |
| Length: | 127 mm |
| Max. Working pressure: | 7.0 bar |
| P_Max. Betriebsdruck: | 6.3 bar |
| Power: | 0.28 kW |
| Recommended hose Ø: | 6 mm |
| Shaft length: | 19.5 mm |

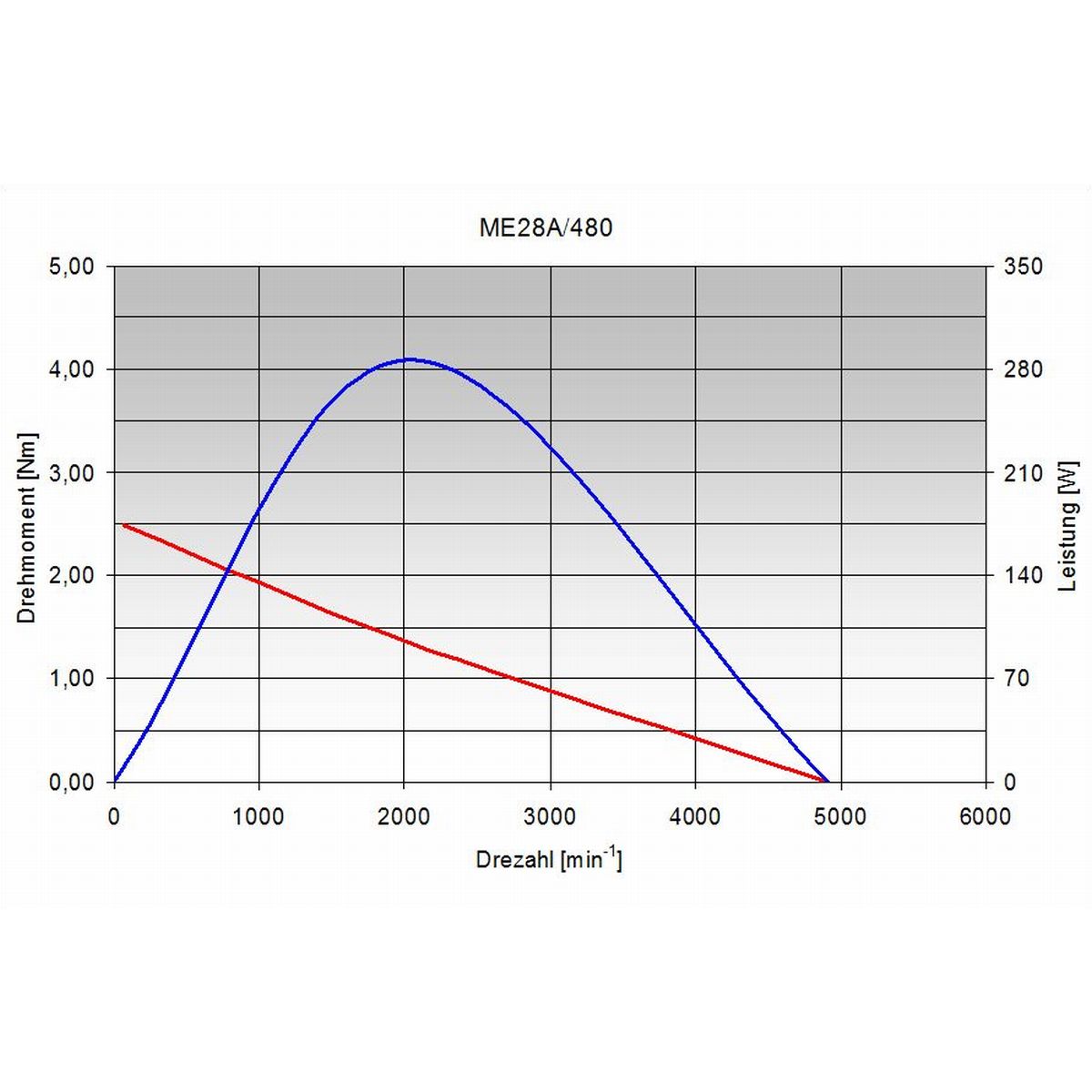

| Speed under Load: | 2040 min-1 |
| Starting Torque: | 2.00 Nm |
| Torque at max. Power: | 1.31 Nm |
| Weight: | 0.58 kg |
