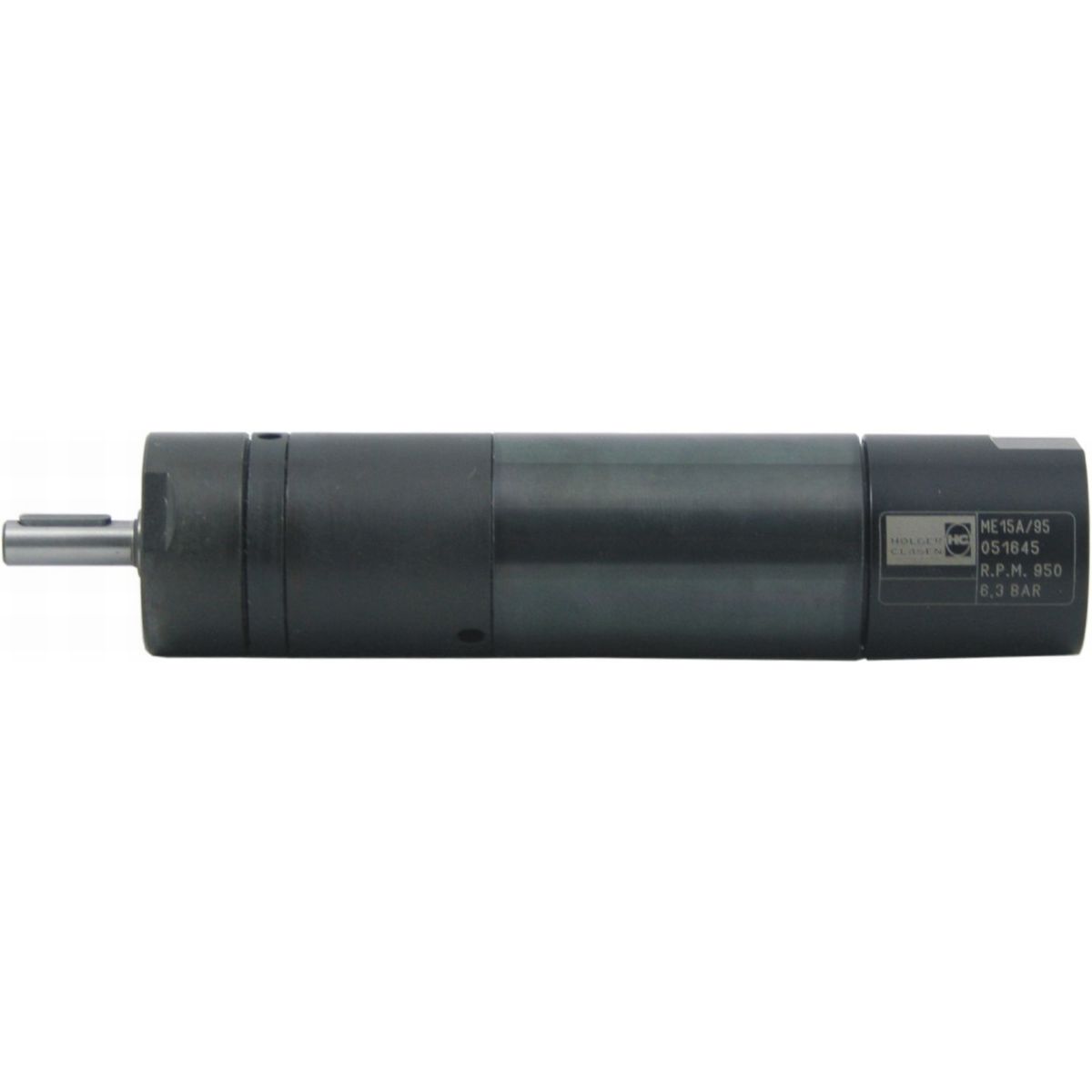

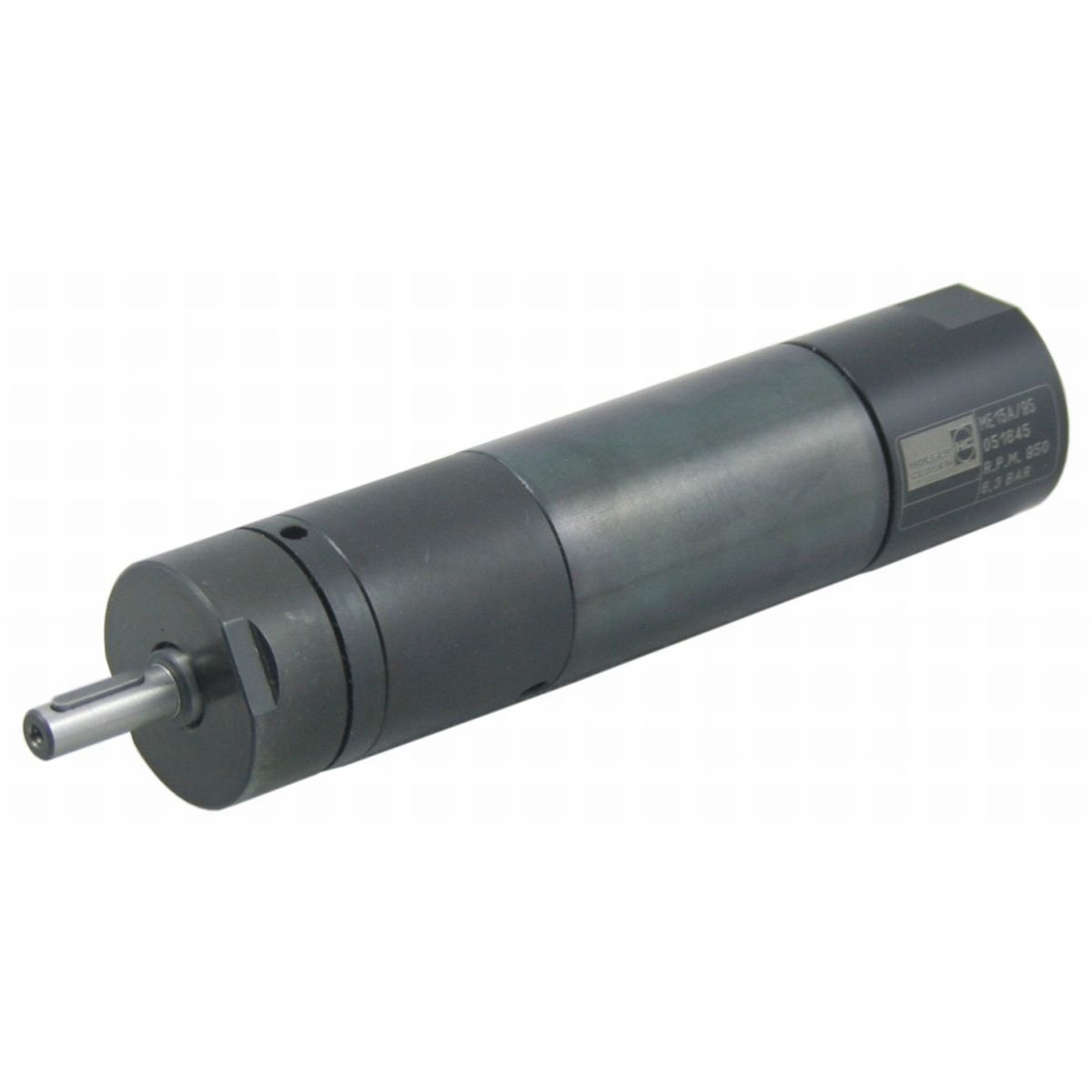

ME12 A/58 U Air vane motor
Product number:
53101600
Ölfreier Betrieb möglich
Low-vibration type
ME12 A/58 U Air vane motor
Applications
This air motor with vane drive is intended for installation in machines, e.g. as drive units on conveyor belts, in machine tools, feed or entrainment devices, in the food or packaging industry, on production lines or for installation in hand-guided special machines.
Air vane motor with 0.12 kW power
Speed under load: 300 min-1The 0.12 kW air motors can be operated oilfree.
The air vane motors have low-noise and low-vibration values, start precisely and they are reversible.

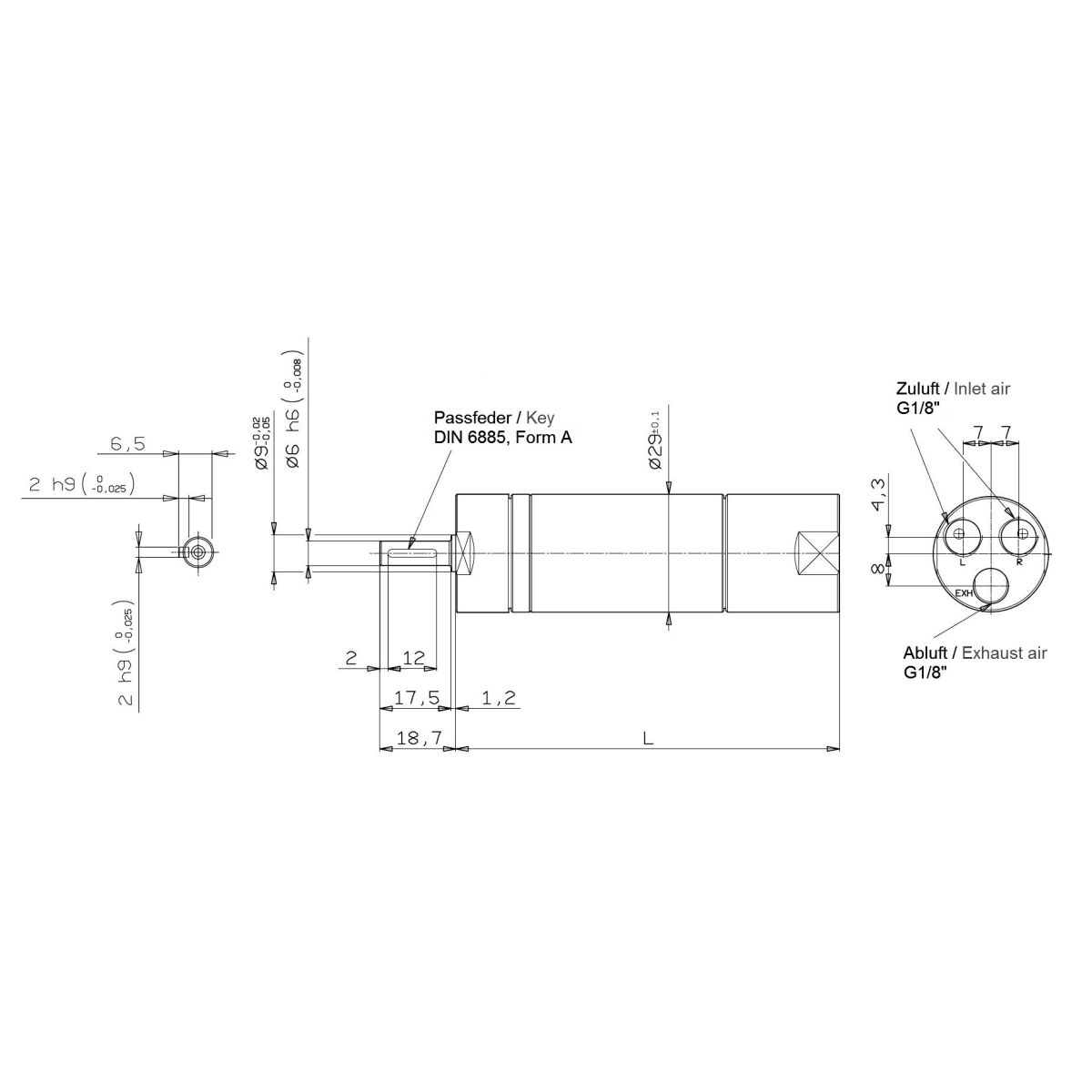

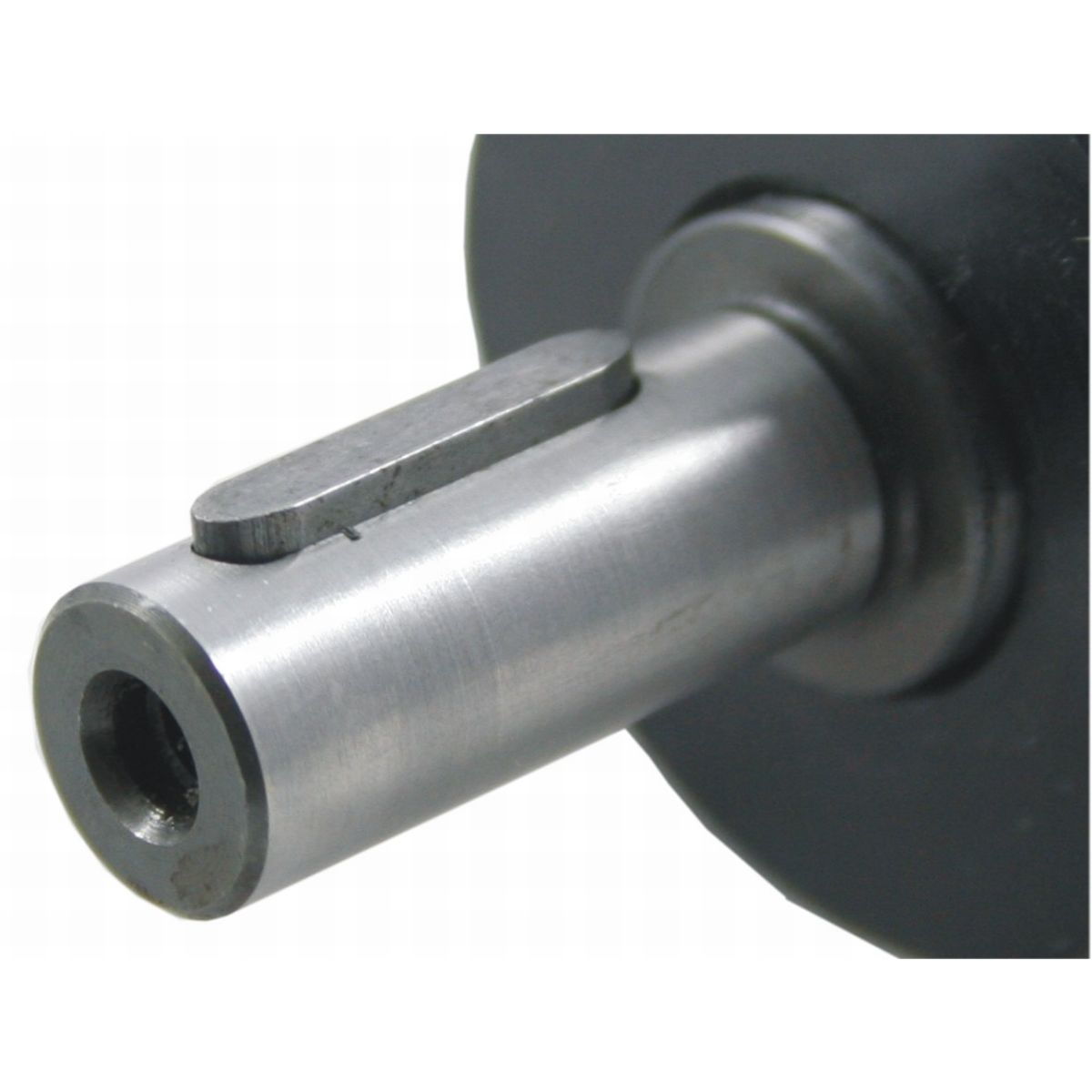

They are equipped with a shaft-hub connection according to DIN 6885 form A.
The durable air vane motors are low-maintenance, and wear parts can be changed fast and easily.
On request specific types are available: ceramic, stainless steel or motors with ATEX-certification; for high requirements to atmosphere, hygiene or safety.
| Antrieb: | Druckluft |
|---|---|
| Aufnahme: | Welle-Naben-Verbindung Ø 6 h6 |
| Drehrichtung: | Umsteuerbar |
| Leerlaufdrehzahl: | 580 |
| Leistung: | 0.12 |
| Information: | Die Leistungsangaben beziehen sich auf einen empfohlenen Betriebsdruck von 6,3 bar (ISO 2787). |
| Max. Betriebsdruck: | 7.0 |
| Betriebsdruck: | 6.3 |
| Luftverbrauch: | 4.3 |
| Empf. Schlauch-Ø: | 6 |
| Wellenlänge: | 17.5 |
| Gehäuse Ø: | 29 |
| Länge: | 139 |
| Gewicht: | 0.43 |
| Werkzeugform: | Gerade |

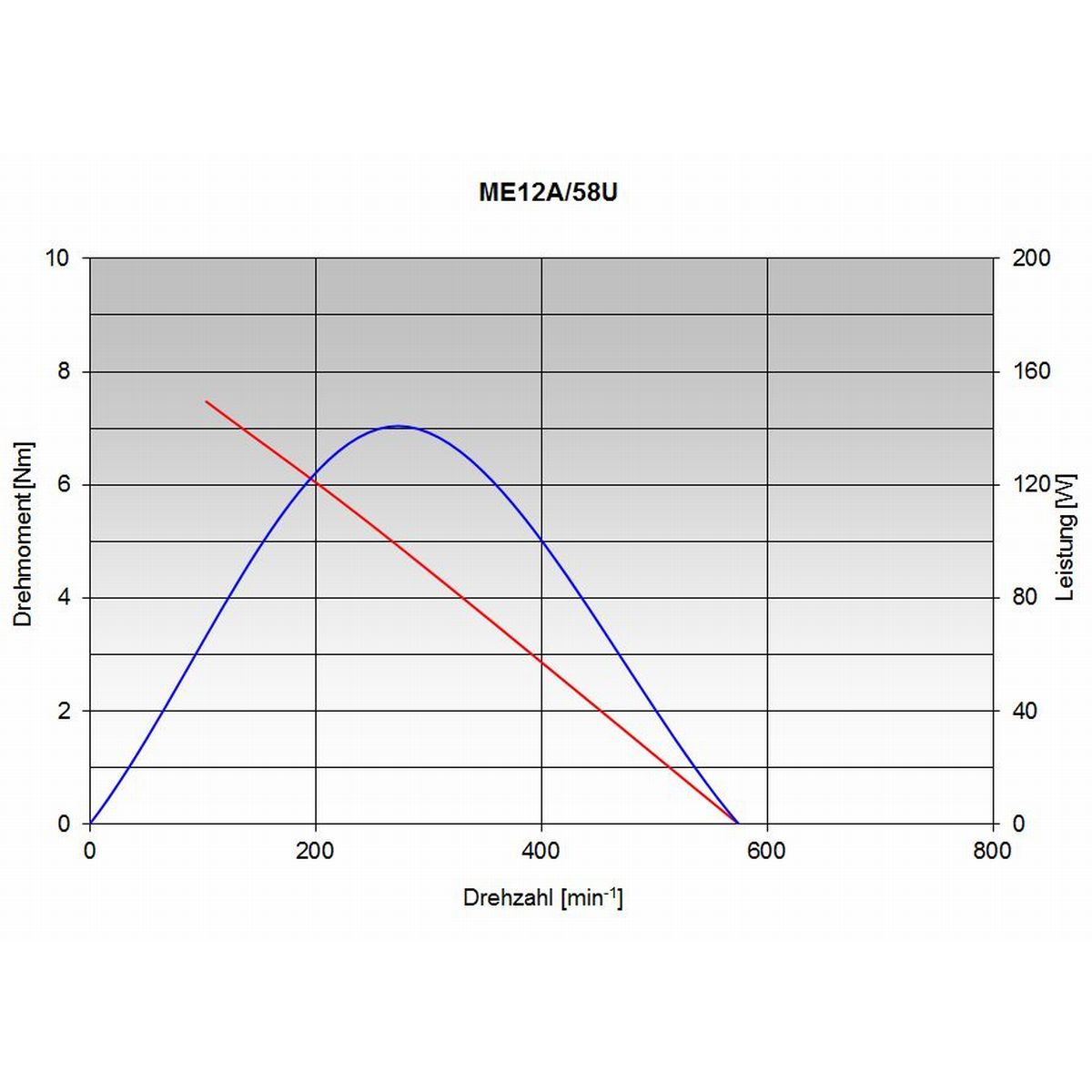

| Lastmoment: | 4.00 |
| Anlaufmoment: | 5.50* |
| Lastdrehzahl: | 300 |
| Air consumption: | 4.3 l/s |

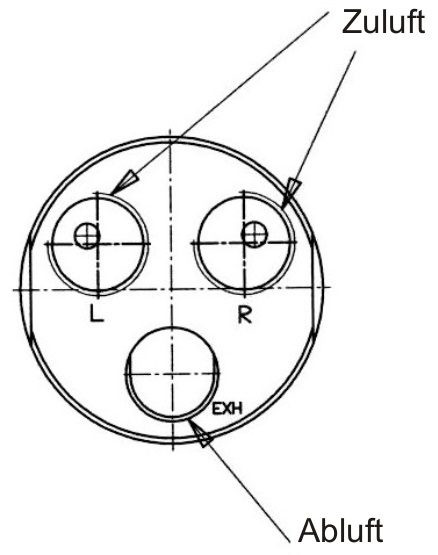

| Anschluss Abluft: | G 1/8" |
| Anschluss Zuluft: | G 1/8" |
| Chuck: | Shaft-hub-connection Ø 6 h6 |
| Construction form: | Straight |
| Current: | Pneumatic |
| Direction of rotation: | Reversible |
| Exhaust air connection: | G 1/8" |
| Free speed: | 580 min-1 |
| Housing Ø: | 29 mm |
| Information: | Die Leistungsangaben beziehen sich auf einen empfohlenen Betriebsdruck von 6,3 bar (ISO 2787). |
| Inlet air connection: | G 1/8" |
| Length: | 139 mm |
| Max. Working pressure: | 7.0 bar |
| P_Max. Betriebsdruck: | 6.3 bar |
| Power: | 0.12 kW |
| Recommended hose Ø: | 6 mm |
| Shaft length: | 17.5 mm |
| Speed under Load: | 300 min-1 |
| Starting Torque: | 5.50* Nm |
| Torque at max. Power: | 4.00 Nm |
| Weight: | 0.43 kg |
