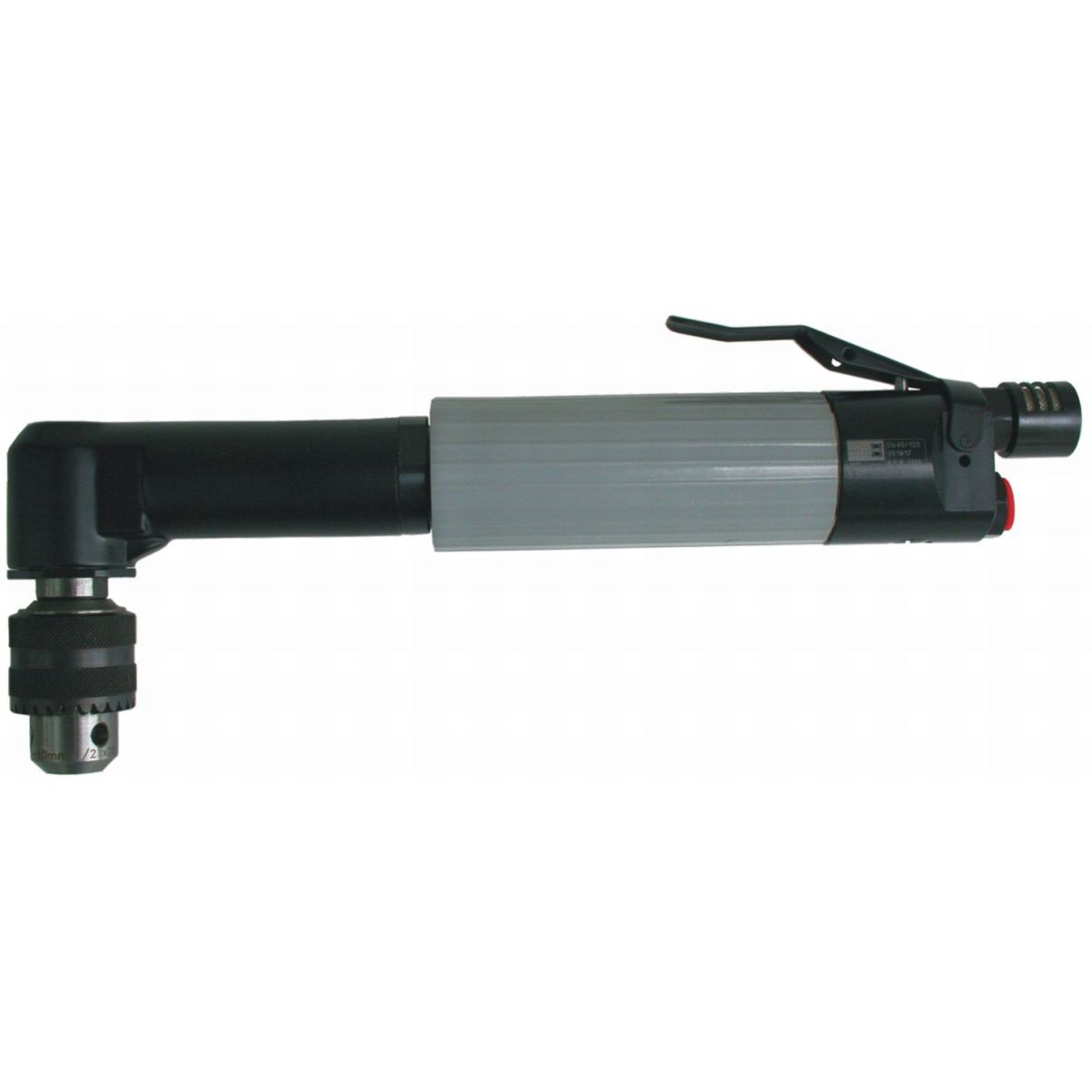

DW40/160 Angle drilling machine
Product number:
44107000
Ölfreier Betrieb möglich
DW40/160 Angle drilling machine
Applications
Pneumatic angle drilling machine for work in hard-to-reach places. The angle drilling machine is used in all industrial areas as well as workshops and plant repairs.
Air angle drilling machine for industrial applications
Reliable pneumatic drilling machine with excellent power to weight ratio.Small head dimension allows working in narrow spaces.
Special chuck for pneumatic tools and high-precise collet chucks provide efficient use.
Long tool life at high power.
The angle drilling machine has a 90 degree angle head, suitable for your application.
| Antrieb: | Druckluft |
|---|---|
| Drehzahl: | 1200 |
| Leistung: | 400 |
| Betriebsdruck: | 6.3 |
| Schalldruckpegel: | 80 |
| Luftverbrauch: | 10 |
| Empf. Schlauch-Ø: | 9 |
| Höhe: | 103 |
| Länge: | 320 |
| Gehäuse Ø: | 46 |
| Gewicht: | 1.7 |
| Drehrichtung: | Rechts |
| Start: | Ventilhebel |
| Spannbereich Ø: | 1 - 10 |
| Air consumption: | 10 l/s |
| Anschluss Zuluft: | G 1/4" |
| Aufnahme: | Zahnkranzfutter (1/2" x 20 UNF) |
| Chuck: | Keyed chuck (1/2" x 20 UNF) |
| Clamping Range Ø: | 1 - 10 mm |
| Construction form: | 90° angle head |
| Current: | Pneumatic |
| Direction of rotation: | Right |
| Height: | 103 mm |
| Housing Ø: | 46 mm |
| Inlet air connection: | G 1/4" |
| Length: | 320 mm |
| P_Max. Betriebsdruck: | 6.3 bar |
| Power: | 400 W |
| Recommended hose Ø: | 9 mm |
| Sound pressure level: | 80 dB(A) |
| Speed: | 1200 min-1 |
| Start: | Valve lever |
| Vibration: | < 2.5 m/s2 |
| Vibration: | < 2.5 |
| Weight: | 1.7 kg |
| Werkzeugform: | 90° Winkelkopf |
