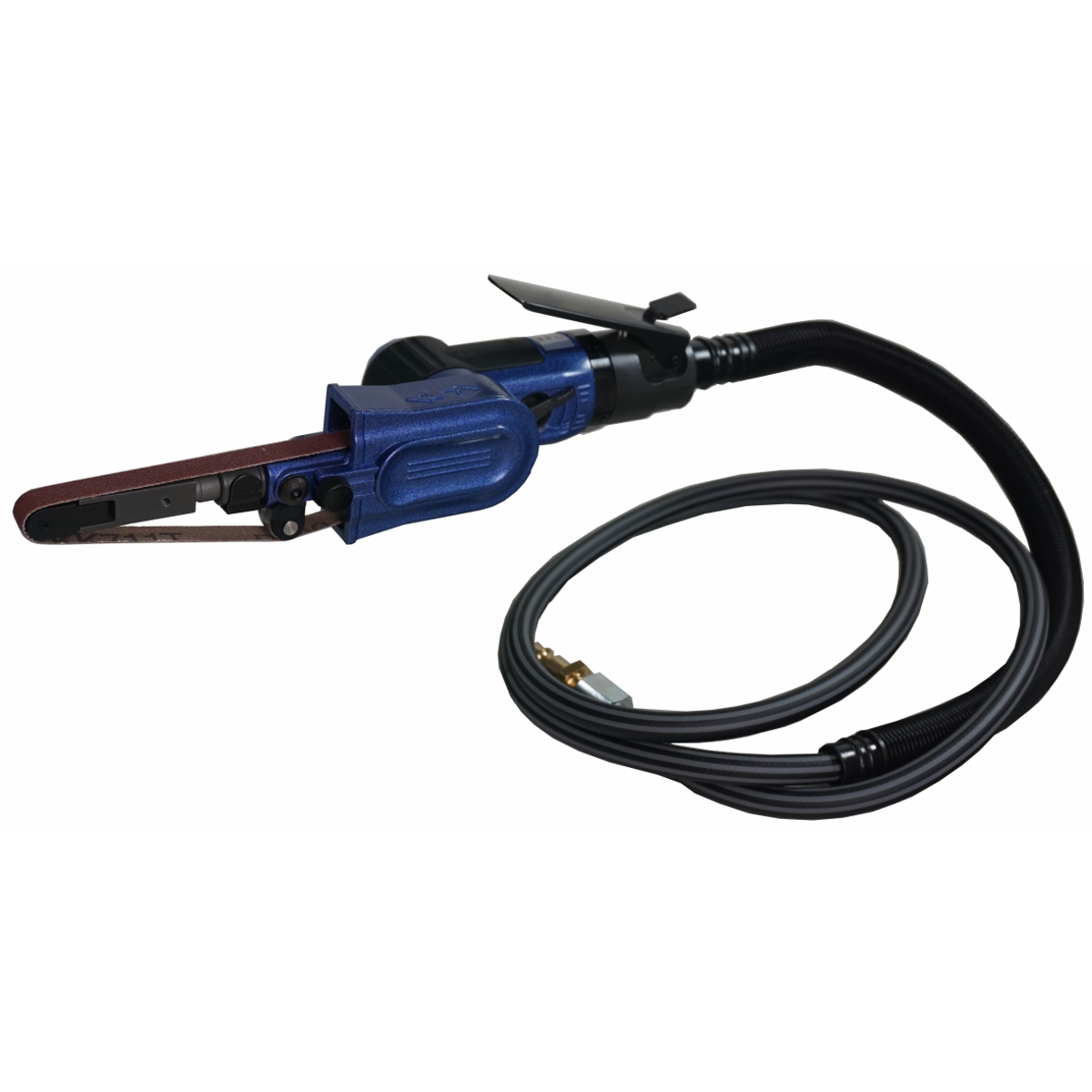

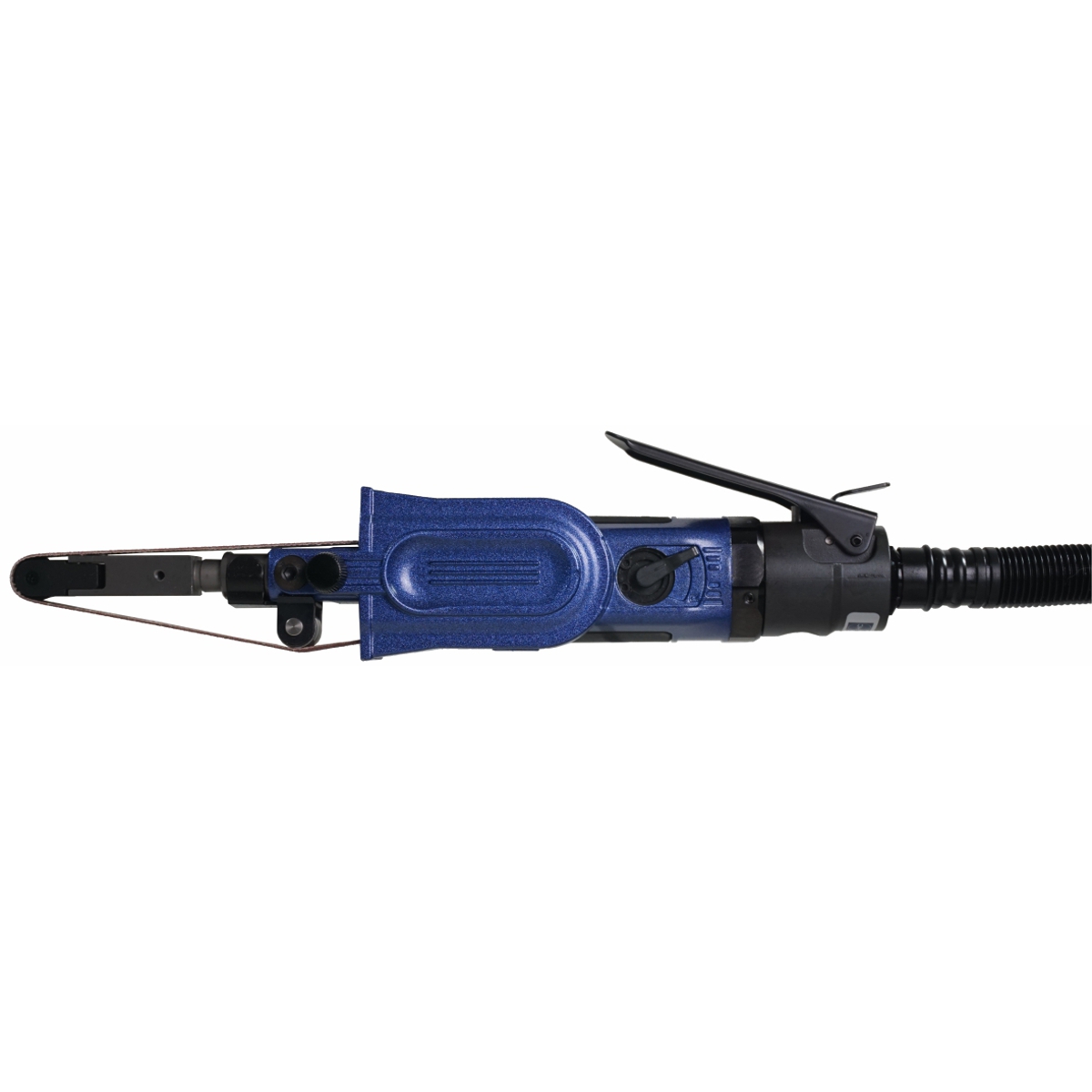

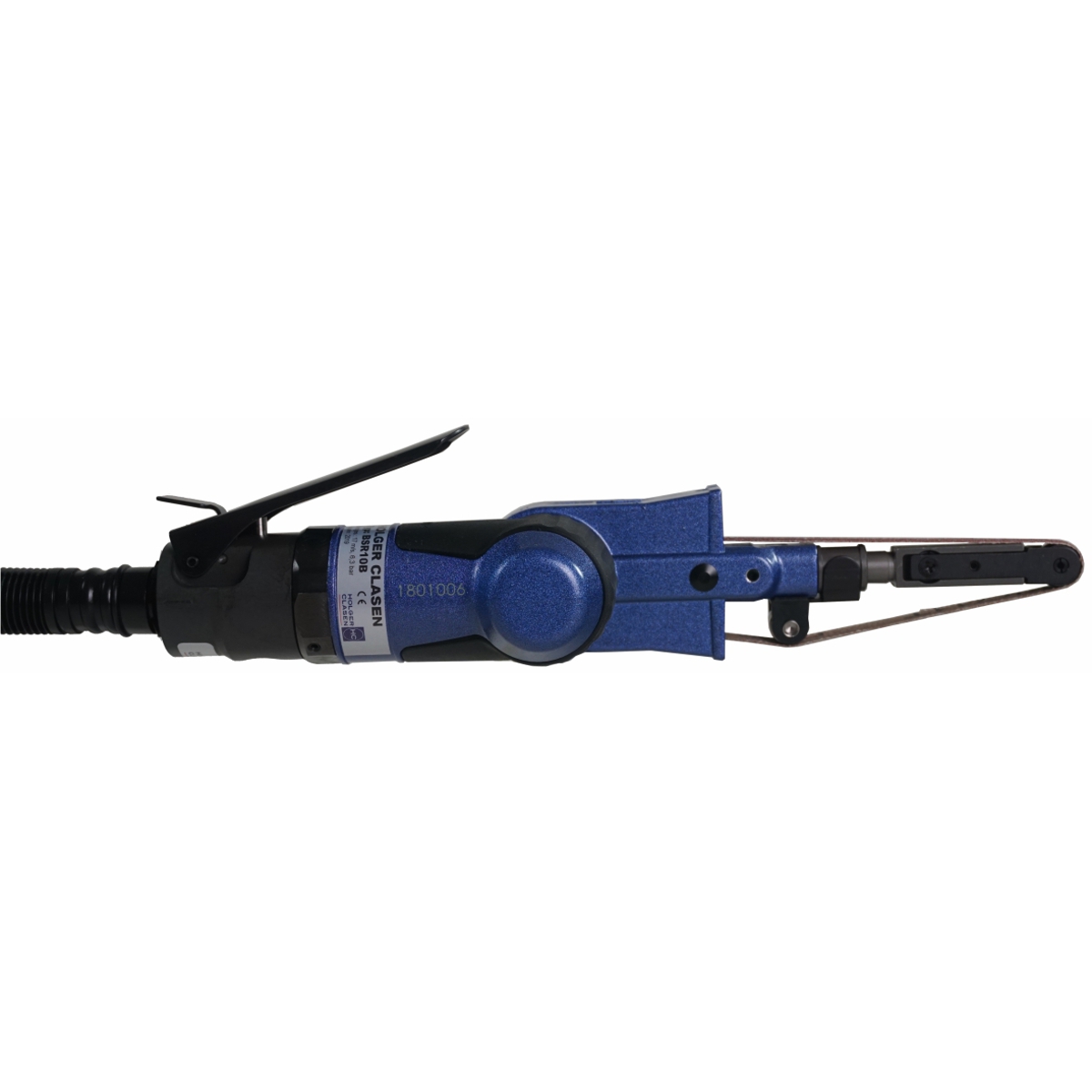

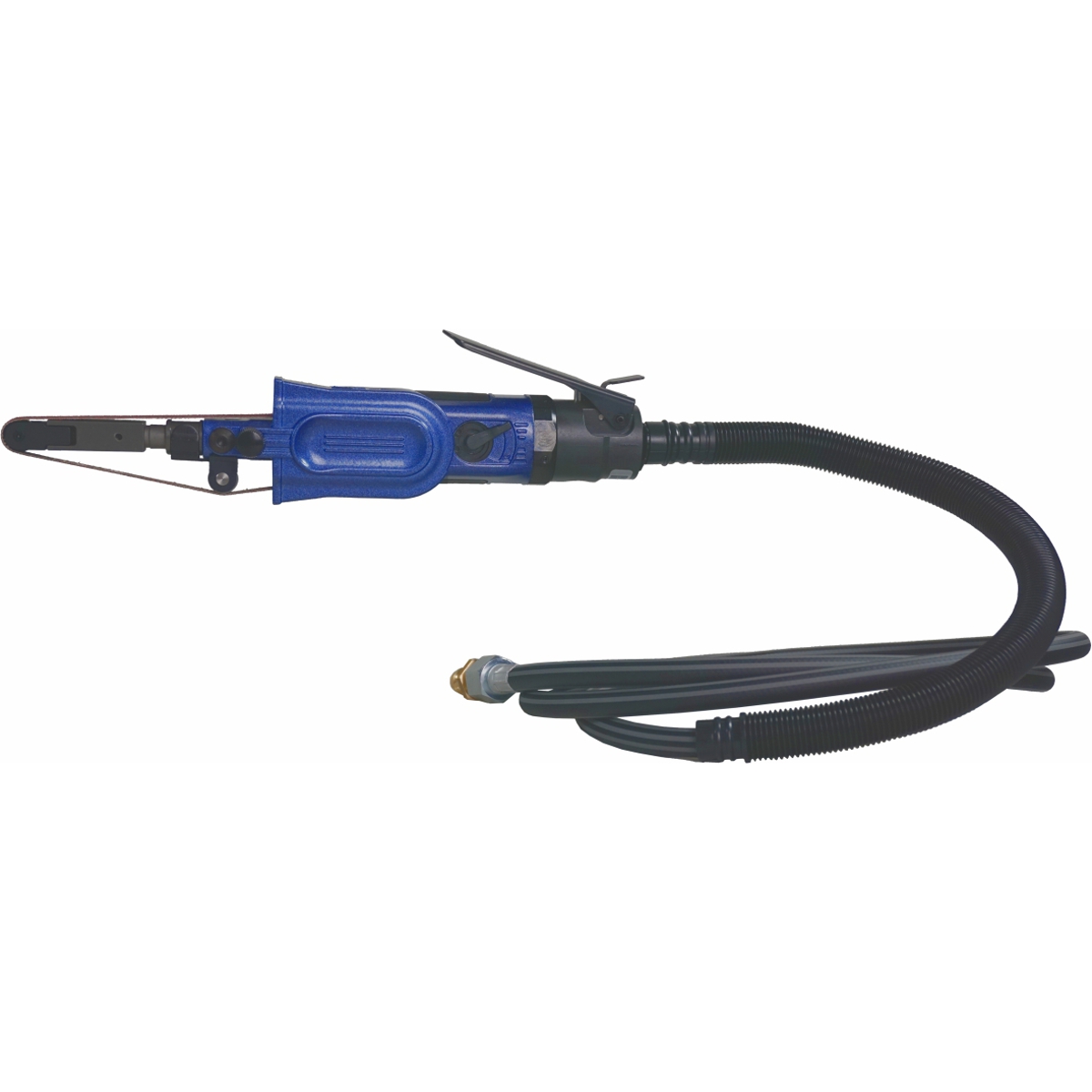

BSR10B Belt Sander
Product number:
13117100
Ergonomic
Light-weight/small
Quick change of accessory
BSR10B Belt Sander
Applications
The reversible pneumatic belt grinder BSR10B with 10 mm grinding belt width is suitable for grinding, deburring and rounding of workpieces in industry and handicraft.
Small and light
Fast grinding belt change thanks to grinding arm locking
Suitable for right-handed and left-handed
Reversible from right to left rotation
Hose to hose exhaust air guide to protect the worker.
With additional guide roller for the grinder of round surfaces
In addition to the standard corundum abrasive belt, you can also equip it with a zirconium corundum abrasive belt. The abrasive belt is guided by an additional guide roller, which gives the abrasive belt more clearance for processing round surfaces or edges. The belt grinder is therefore ideal for rounding edges, e.g. in furniture construction or interior finishing in the automotive industry or yacht construction.
Technical specifications
Fast grinding belt change thanks to grinding arm locking
Suitable for right-handed and left-handed
Reversible from right to left rotation
Hose to hose exhaust air guide to protect the worker.
With additional guide roller for the grinder of round surfaces
Reversible belt grinder - work with right or left hand possible
This reversible, small and light belt grinder impresses with its handy handling. The reversing is done very quickly via a rotary valve. A further advantage of a changed running direction is the control of the spark flight, so you can optimally adapt the grinding tool to the conditions. Thanks to its small dimensions, this belt grinder is also ideally suited for work in confined spaces. The belt grinder is equipped with a 10 x 330 mm grinding belt. The grinding arm lock ensures short changeover times when changing the grinding belt, no additional tools are required.In addition to the standard corundum abrasive belt, you can also equip it with a zirconium corundum abrasive belt. The abrasive belt is guided by an additional guide roller, which gives the abrasive belt more clearance for processing round surfaces or edges. The belt grinder is therefore ideal for rounding edges, e.g. in furniture construction or interior finishing in the automotive industry or yacht construction.
| Antrieb: | Druckluft |
|---|---|
| Ausstattung: | Beidseitig gelagerte vordere Rolle |
| Drehrichtung: | Umsteuerbar |
| Schleifband B x L: | 10 x 330 |
| Betriebsdruck: | 6.3 |
| Vibration: | 0.46 |
| Schallleistungspegel: | 90 |
| Schalldruckpegel: | 79 |
| Luftverbrauch: | 3.3 |
| Empf. Schlauch-Ø: | 9 |
| Gewicht: | 0.6 |
| Abmessungen L x B x H: | 242 x 76.5 x 65 |
| Start: | Ventilhebel |
| Bandgeschwindigkeit: | 18.7 |
| Drehzahl: | 17000 |
| Air consumption: | 3.3 l/s |
| Anschluss Zuluft: | G 1/4" |
| Belt size W x L: | 10 x 330 mm |
| Belt speed: | 18.7 m/s |
| Current: | Pneumatic |
| Dimensions L x W x H: | 242 x 76.5 x 65 mm |
| Direction of rotation: | Reversible |
| Equipment: | both-sided idle pulley |
| Inlet air connection: | G 1/4" |
| P_Max. Betriebsdruck: | 6.3 bar |
| Recommended hose Ø: | 9 mm |
| Sound power level: | 90 dB(A) |
| Sound pressure level: | 79 dB(A) |
| Speed: | 17000 min-1 |
| Start: | Valve lever |
| Vibration: | 0.64 m/s2 |
| Weight: | 0.6 kg |

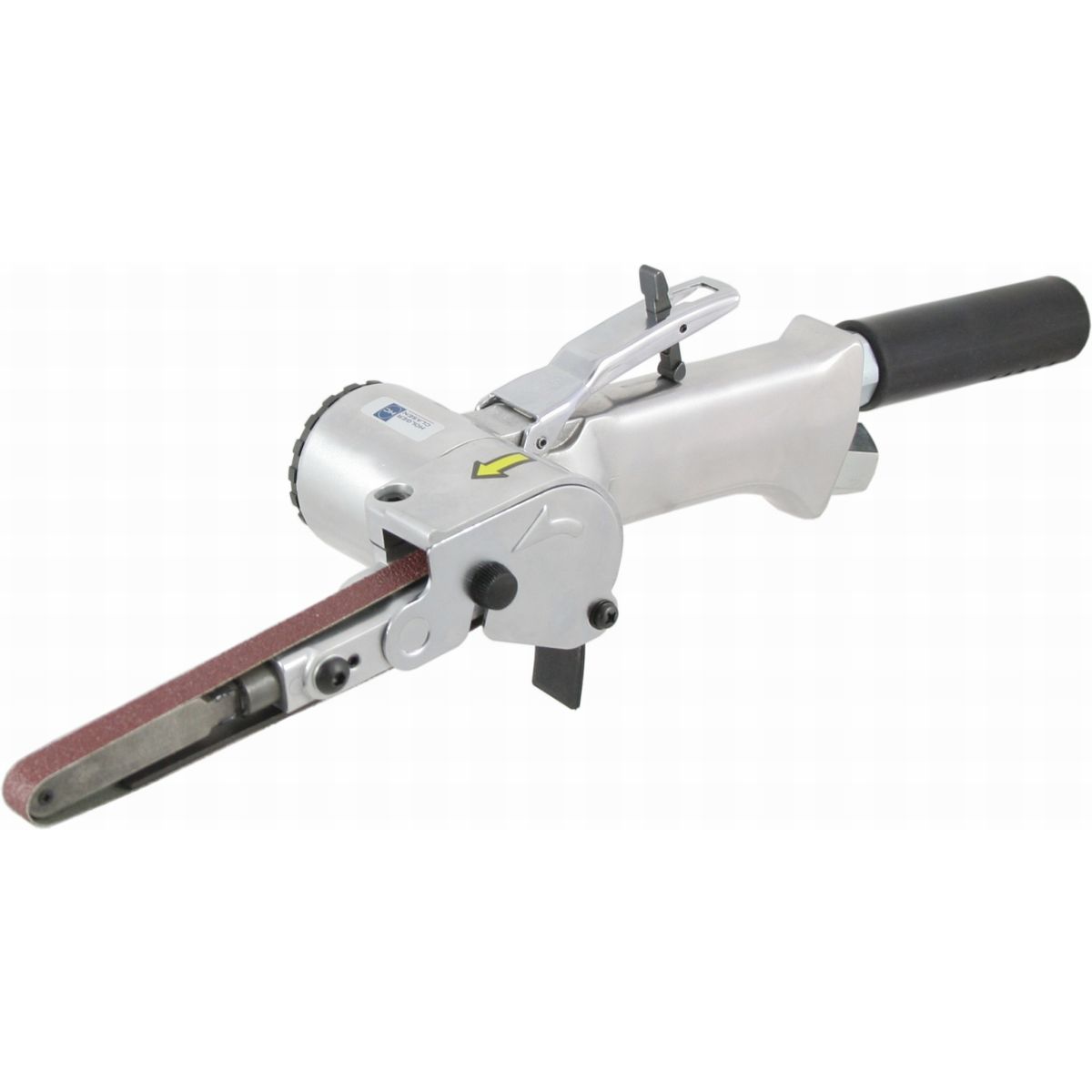

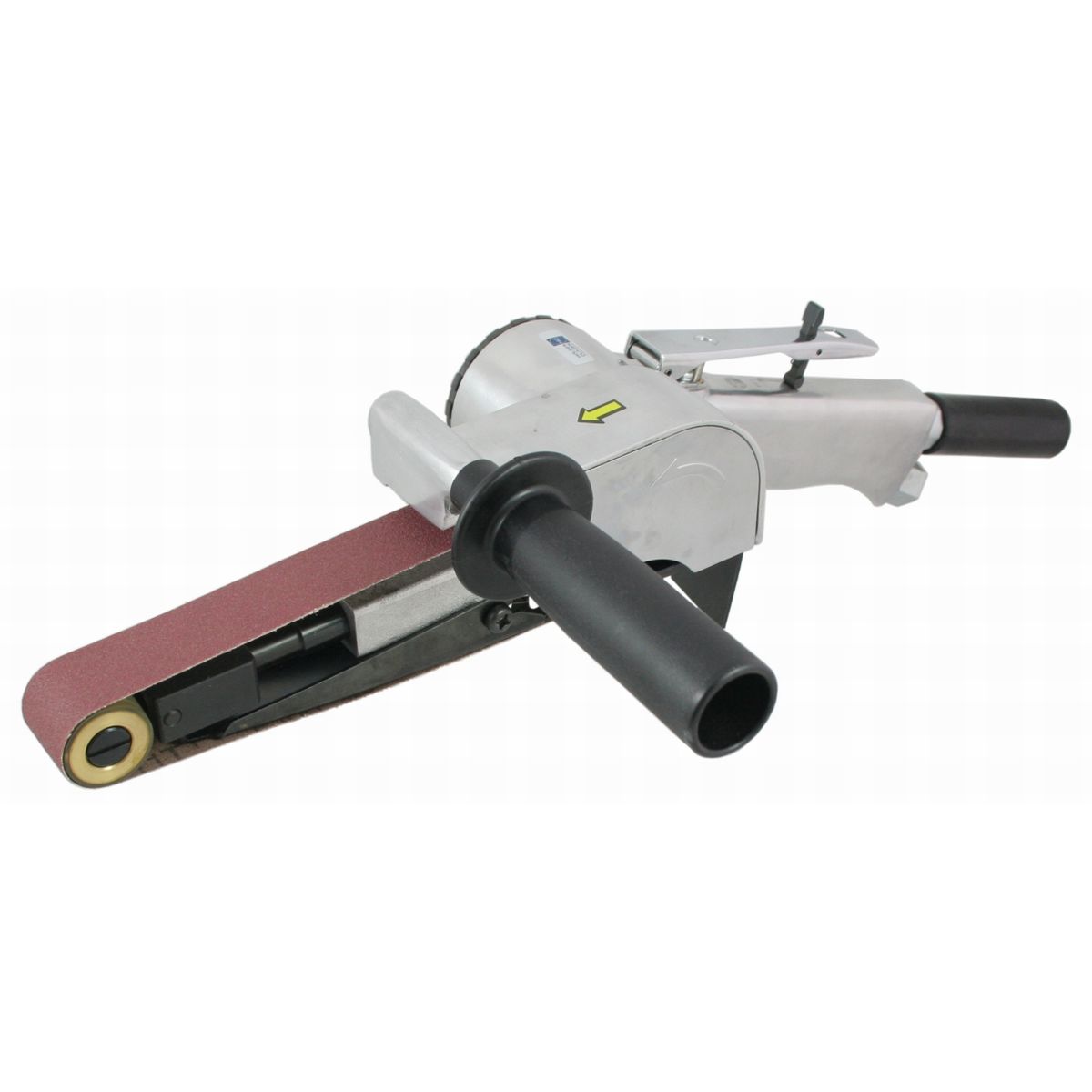

Similar Items
