GEV30 Orbital sander
Product number:
17171000
Ergonomic
Ölfreier Betrieb möglich
Low-vibration type
GEV30 Orbital sander
Applications
The pneumatic orbital sander GEV30 is a nib removal sander for removing and working imperfections in varnish works, spot repair and surface processing.
The daisy disc grinder is used in automobile industry, body construction, pressing plants and paint shops.
The nib removal sander is optimized for removing imperfections in varnish works such as craters, inclusions, paint runs, dimpling, scratches or welding seams.
Light-weight and handy pneumatic sander for fatigue free working.

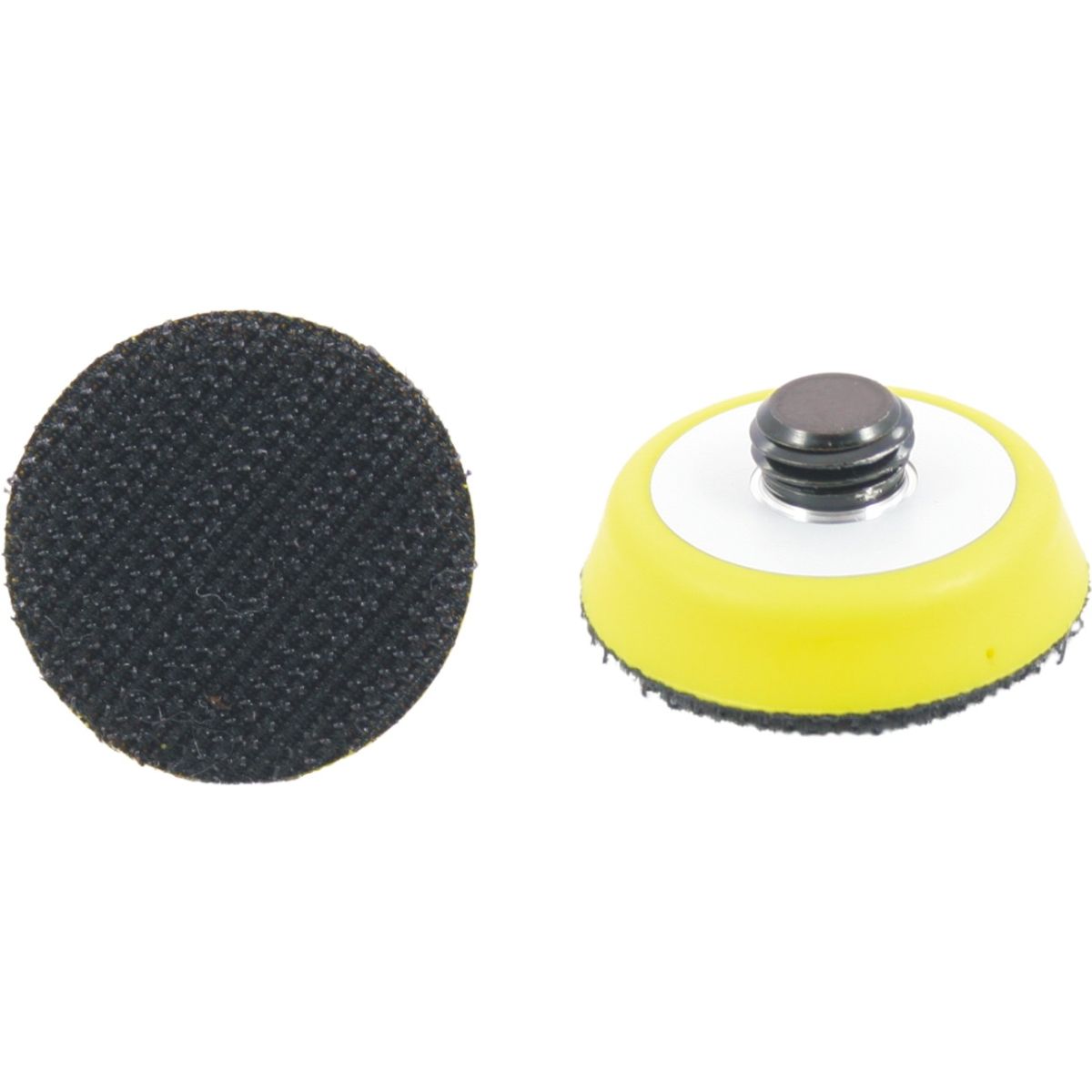

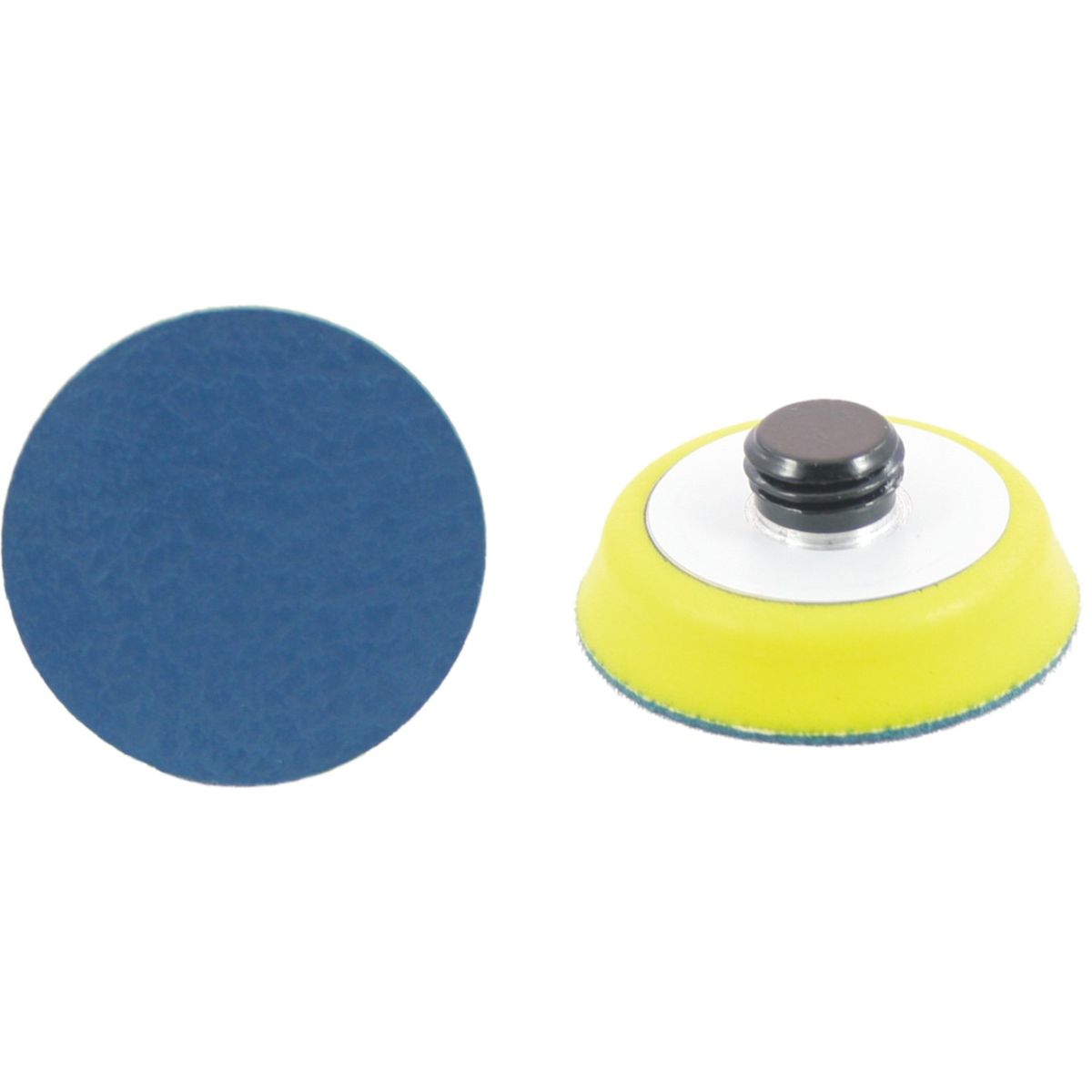

The daisy disc grinder includes a 30 mm diameter velcro grinding plate, a grinding plate with vinyl surface for self-adhesive daisy abrasives is available on request.
The tool is ideal for working convex and concave surfaces.
On request the valve lever can be assembled upside.
Technical specifications
| Antrieb: | Druckluft |
|---|---|
| Hub-Ø: | 3 |
| Drehzahl: | 7500 |
| Leistung: | 220 |
| Betriebsdruck: | 6.3 |
| Vibration: | 2.8 |
| Schallleistungspegel: | 87 |
| Schalldruckpegel: | 76 |
| Luftverbrauch: | 0.3 |
| Höhe: | 88 |
| Länge: | 168 |
| Gewicht: | 0.6 |
| Start: | Ventilhebel |
| Aufnahme: | M10 x 1.25 mm |
| Scheiben-Ø: | 30 |
| Teller-Ø: | 30 |
| Air consumption: | 0.3 l/s |
| Anschluss Zuluft: | G 1/4" |
| Chuck: | M10 x 1.25 mm |
| Current: | Pneumatic |
| Height: | 88 mm |
| Inlet air connection: | G 1/4" |
| Length: | 168 mm |
| P_Max. Betriebsdruck: | 6.3 bar |
| Plate Ø: | 30 mm |
| Power: | 220 W |
| Sound power level: | 87 dB(A) |
| Sound pressure level: | 76 dB(A) |
| Speed: | 7500 min-1 |
| Start: | Valve lever |
| Stroke Ø: | 3 mm |
| Vibration: | 2.8 m/s2 |
| Weight: | 0.6 kg |
| Wheel Ø: | 30 mm |
