GG28/370 Straight grinder
Product number:
10153000
Ergonomic
Low-vibration type

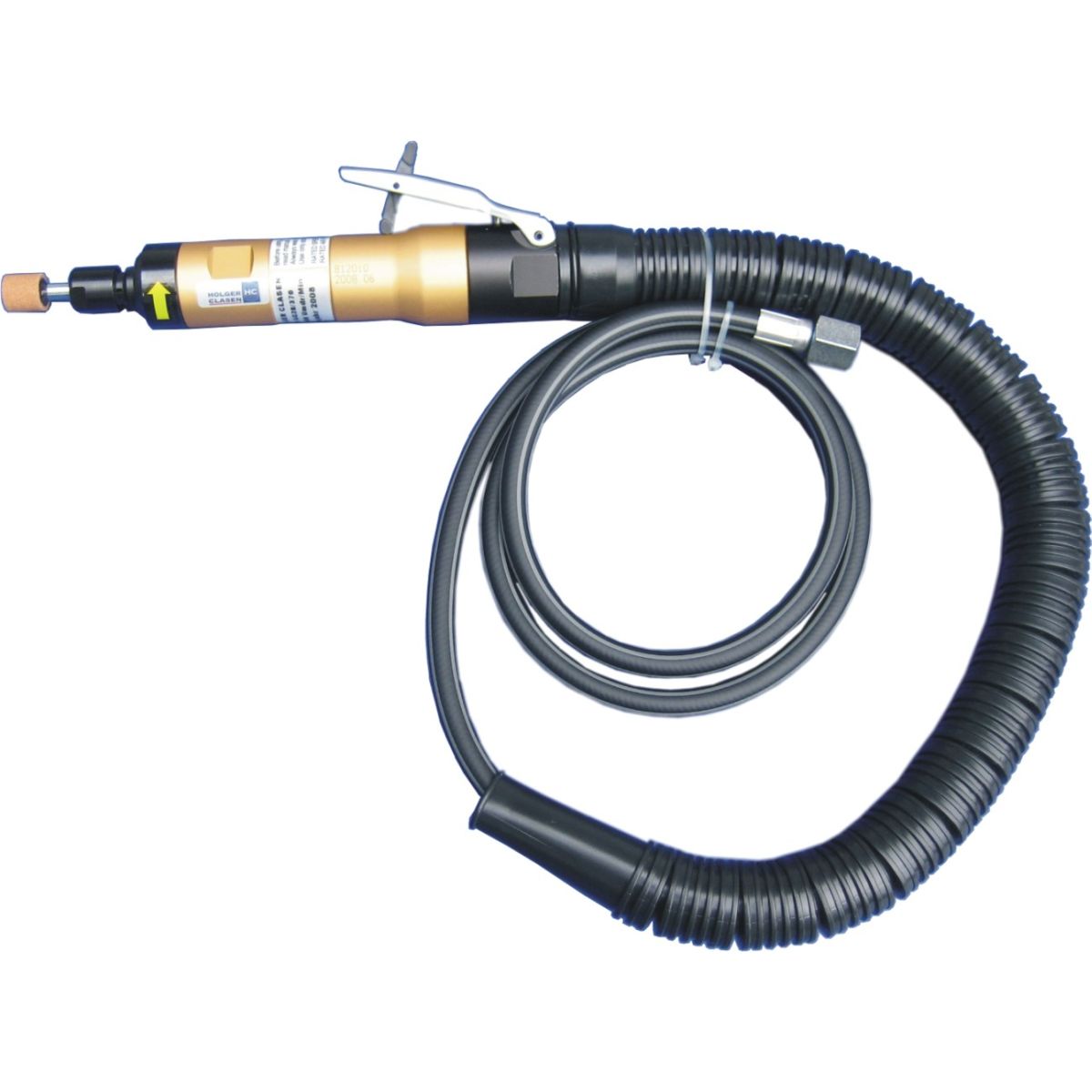

GG28/370 Straight grinder
Applications

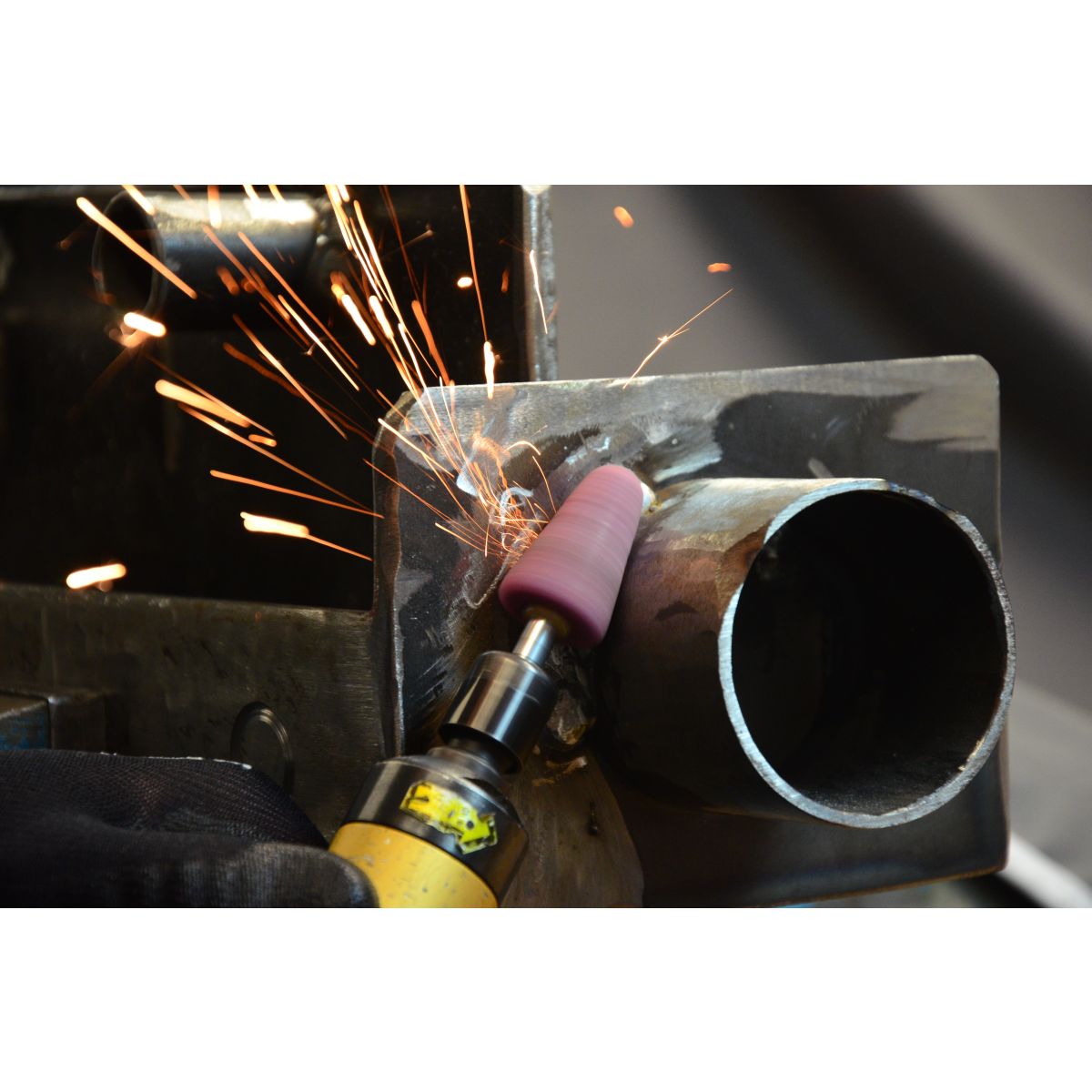

The air powered die grinder GG28/370 is suited for use of burrs. The small, compact design of the grinder is ideally for use in confined spaces. Area of applications are milling, grinding and deburring in modul making, machine building, container building, in foundries and in the plastics industry.
Air powered die grinder - small for narrow spaces
Short (171 mm) and compact air powered die grinder with standard collet chuck Ø 6 mm.The pneumatic straight grinder is equipped with an exhaust guide for workers protection.
Low-vibration (0.6 m/s2) and low-noise type.
The speed is optimized for burr/rotary bar usage.
| IMPA: | 592093 |
|---|---|
| Antrieb: | Druckluft |
| Aufnahme: | Spannzangenaufnahme (Ø 6 mm) |
| Drehzahl: | 37500 |
| Leistung: | 280 |
| Betriebsdruck: | 6.3 |
| Vibration: | 0.6 |
| Schalldruckpegel: | 76 |
| Luftverbrauch: | 5.8 |
| Gewicht: | 0.5 |
| Länge: | 171 |
| Gehäuse Ø: | 35 |
| Zubehör max. Ø: | 16 |
| Abluft: | hinten |
| Werkzeugform: | Gerade |
| Start: | Ventilhebel |
| Spannbereich Ø: | 6 |
| Accessory max. Ø: | 16 mm |
| Air consumption: | 5.8 l/s |
| Anschluss Zuluft: | G 1/4" |
| Chuck: | Collet chuck (Ø 6 mm) |
| Clamping Range Ø: | 6 mm |
| Construction form: | Straight |
| Current: | Pneumatic |
| Exhaust air: | back side |
| Housing Ø: | 35 mm |
| IMPA: | 592093 |
| Inlet air connection: | G 1/4" |
| Length: | 171 mm |
| P_Max. Betriebsdruck: | 6.3 bar |
| Power: | 280 W |
| Sound pressure level: | 76 dB(A) |
| Speed: | 37500 min-1 |
| Start: | Valve lever |
| Vibration: | 0.6 m/s2 |
| Weight: | 0.5 kg |
