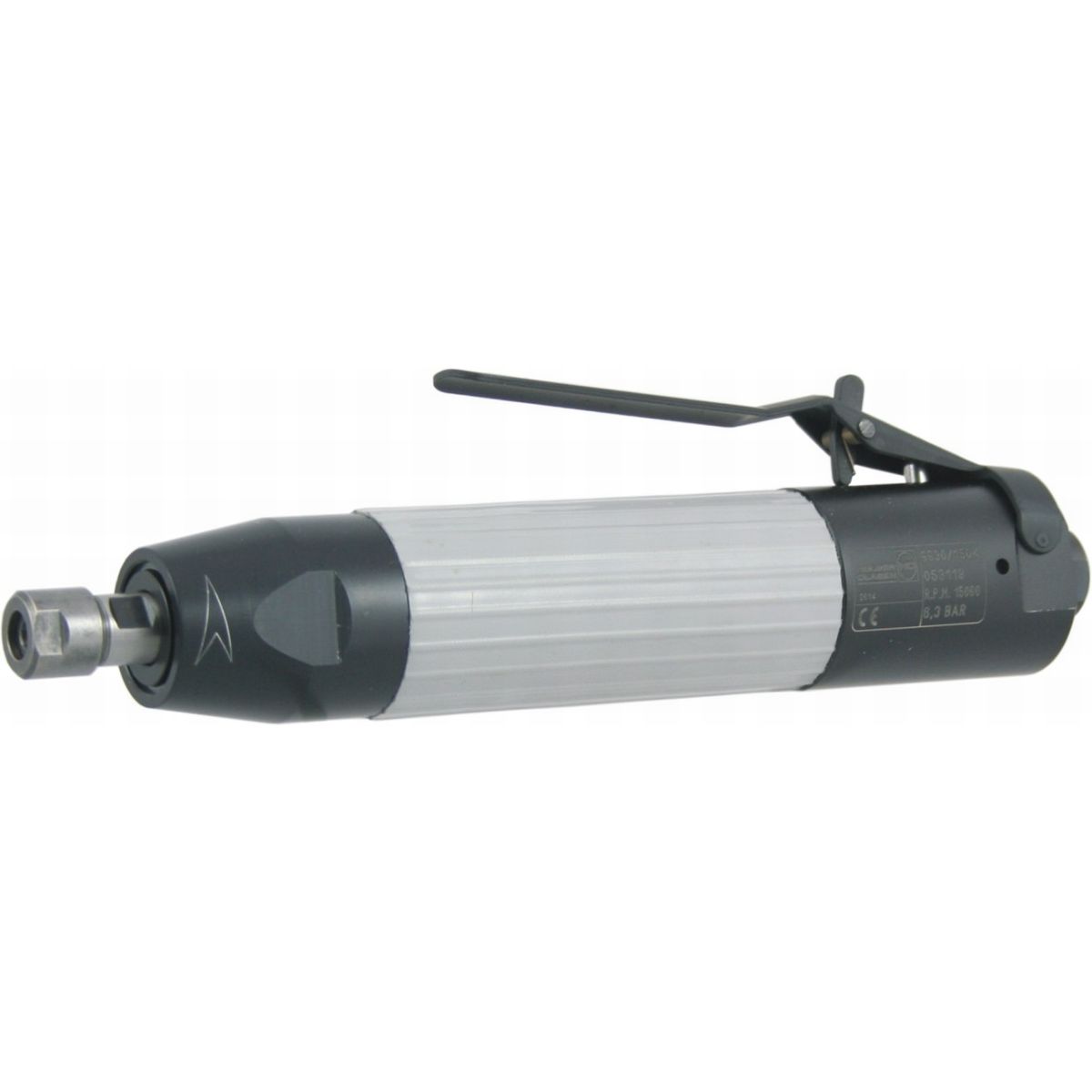

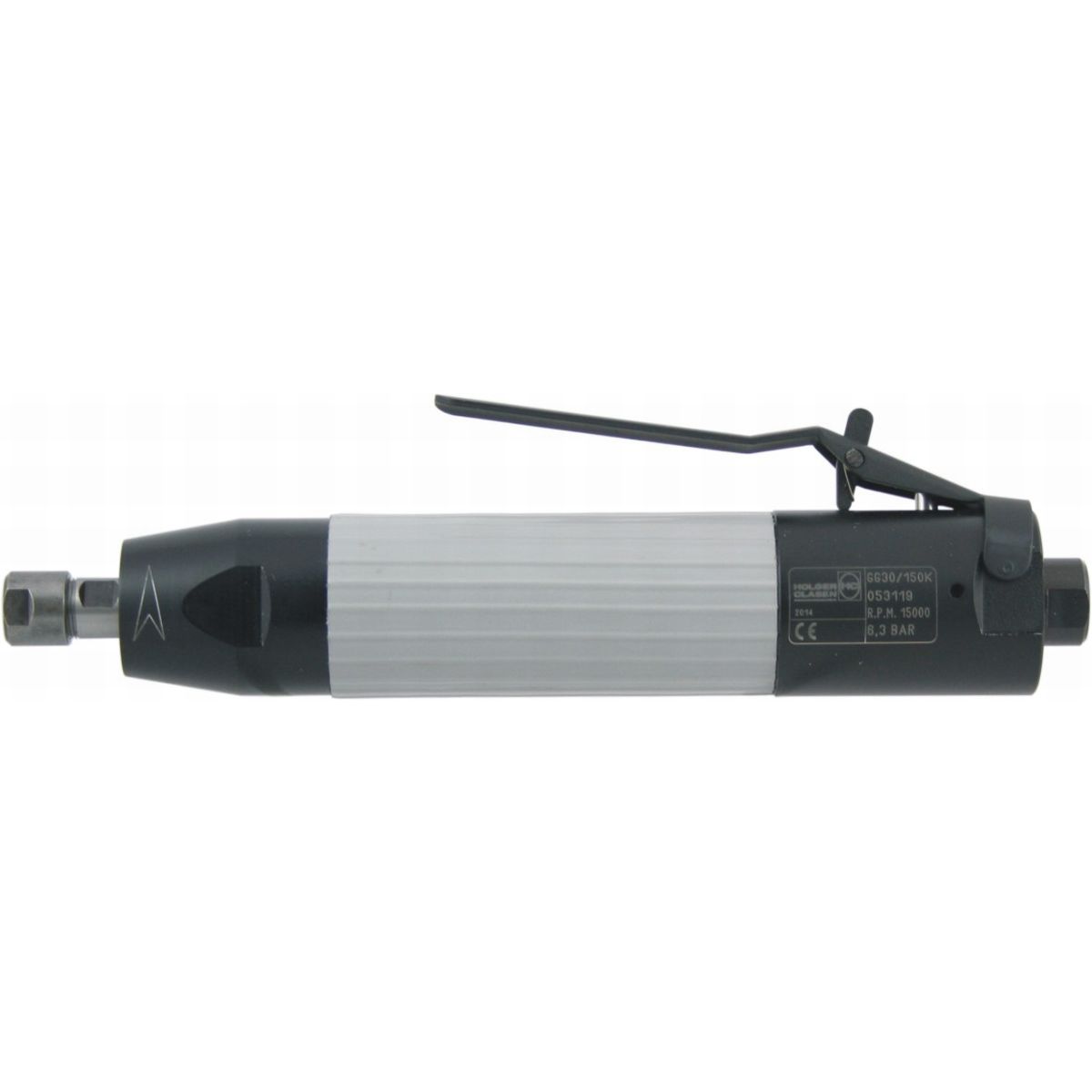

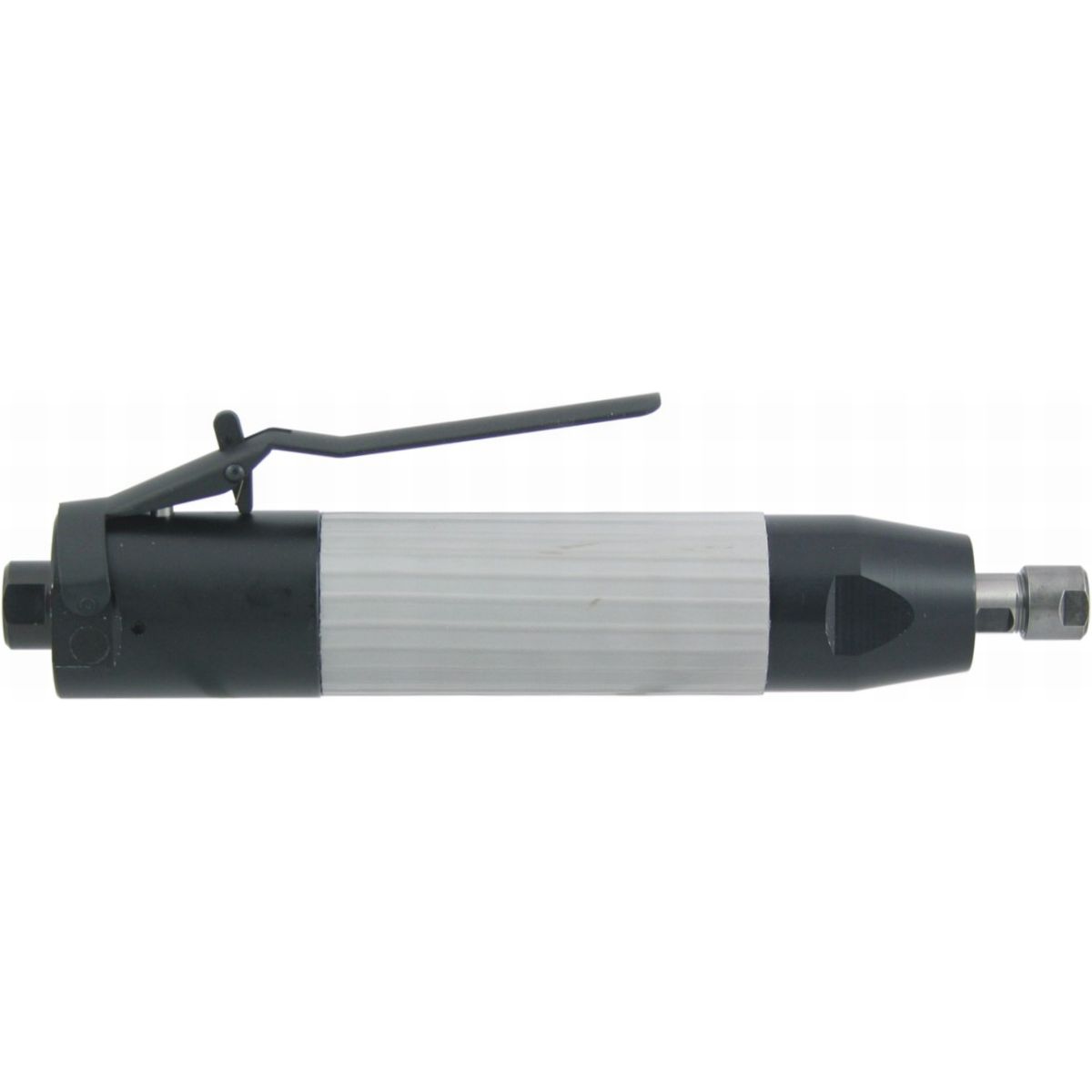

GGX30/70 K Straight grinder
Product number:
15105000
Low-vibration type
GGX30/70 K Straight grinder
Applications
The pneumatic straight grinder GGX30/70K with centrifugal governo is powerful, durable and designed for various milling and grinding jobs.
The air powered straight grinder is popular for use in many industries: modul making, machine building, container building, in foundries and in the plastics industry.
Smooth running and low vibration.
The air straight grinder is equipped with a standardized collet chuck Ø 6 mm.
The pneumatic straight grinder is optimized for absorption of radial and axial forces
The centrifugal governor provides consistent speed under load.
Long service-life and low maintenance make it your first choice for industrial applications.
The long valve lever is optimal for comfortable starting.
Technical specifications
| Antrieb: | Druckluft |
|---|---|
| Aufnahme: | Spannzangenaufnahme ER11 (Ø 6 mm) |
| Drehzahl: | 7000 |
| Leistung: | 300 |
| Betriebsdruck: | 6.3 |
| Schalldruckpegel: | 78 |
| Luftverbrauch: | 9.0 |
| Gewicht: | 0.6 |
| Länge: | 230 |
| Gehäuse Ø: | 40 |
| Zubehör max. Ø: | 50 |
| Abluft: | hinten |
| Werkzeugform: | Gerade |
| Start: | Ventilhebel |
| Spannbereich Ø: | 0.5 - 7.0 |
| Accessory max. Ø: | 50 mm |
| Air consumption: | 9.0 l/s |
| Anschluss Zuluft: | G 1/4" |
| Chuck: | Collet chuck ER11 (Ø 6 mm) |
| Clamping Range Ø: | 0.5 - 7.0 mm |
| Construction form: | Straight |
| Current: | Pneumatic |
| Exhaust air: | back side |
| Housing Ø: | 40 mm |
| Inlet air connection: | G 1/4" |
| Length: | 230 mm |
| P_Max. Betriebsdruck: | 6.3 bar |
| Power: | 300 W |
| Sound pressure level: | 78 dB(A) |
| Speed: | 7000 min-1 |
| Start: | Valve lever |
| Weight: | 0.6 kg |
