AP550-05-850 Battery-operated hydraulic pump 850 bar
| Oil delivery: | 0.55 l/min |
|---|---|
| Oil fill: | 0.5 (0.45) l |
| Battery voltage: | 2x Makita 18 V |
| Working pressure: | 850 bar |
| Information: | 100 - 850 bar factory adjustable |
Product number:
74338500
Tool control
Battery Control
18 V Makita-kompatibel

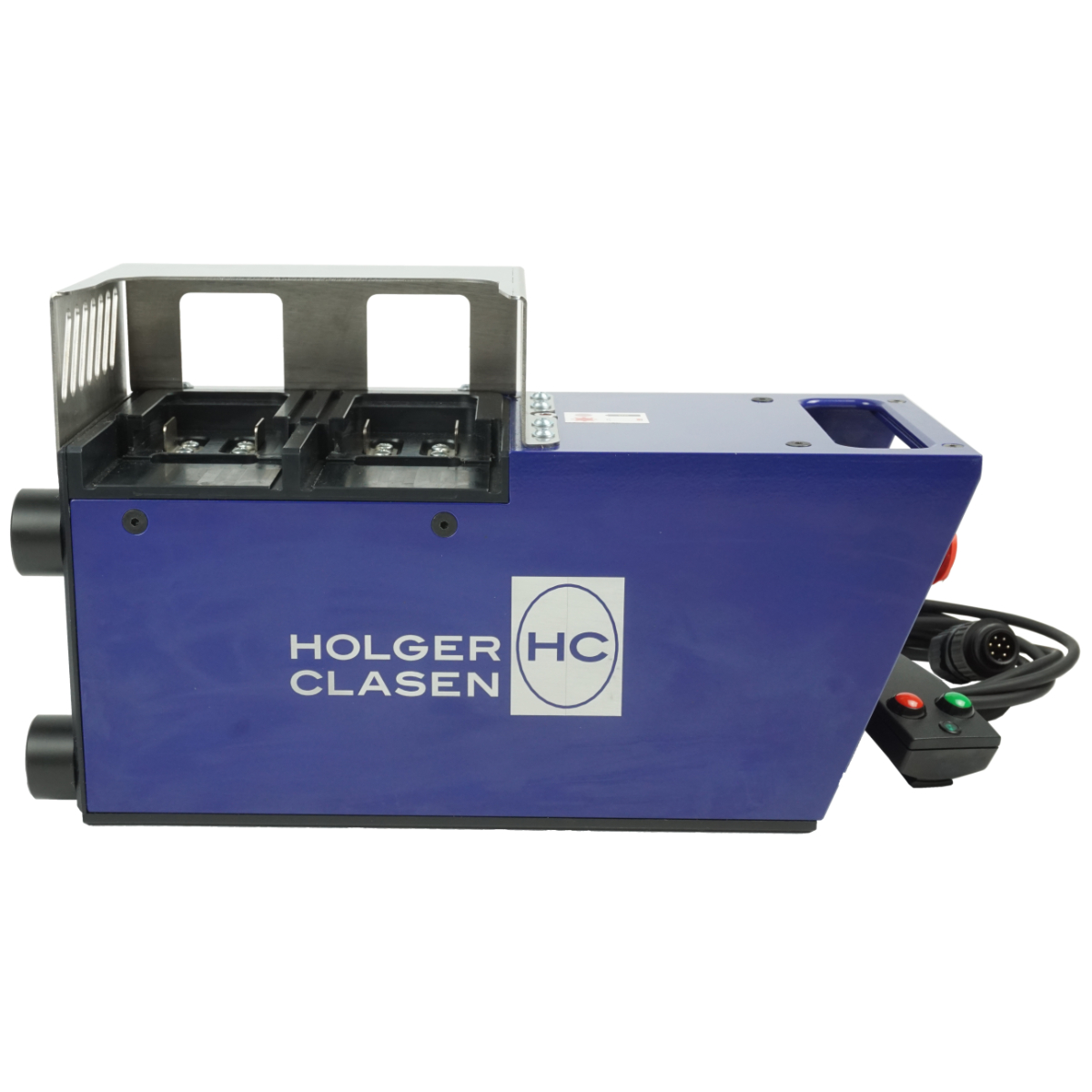

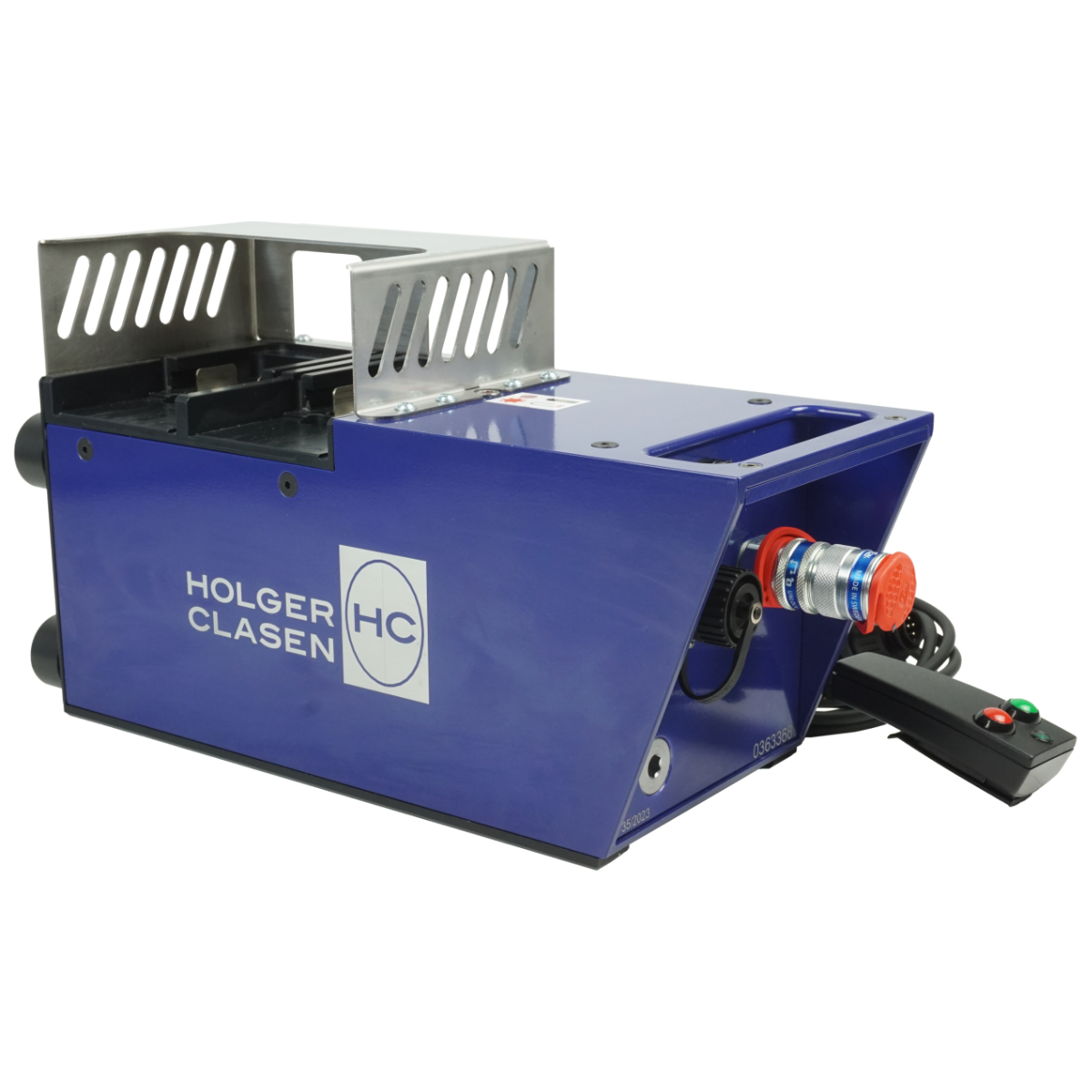

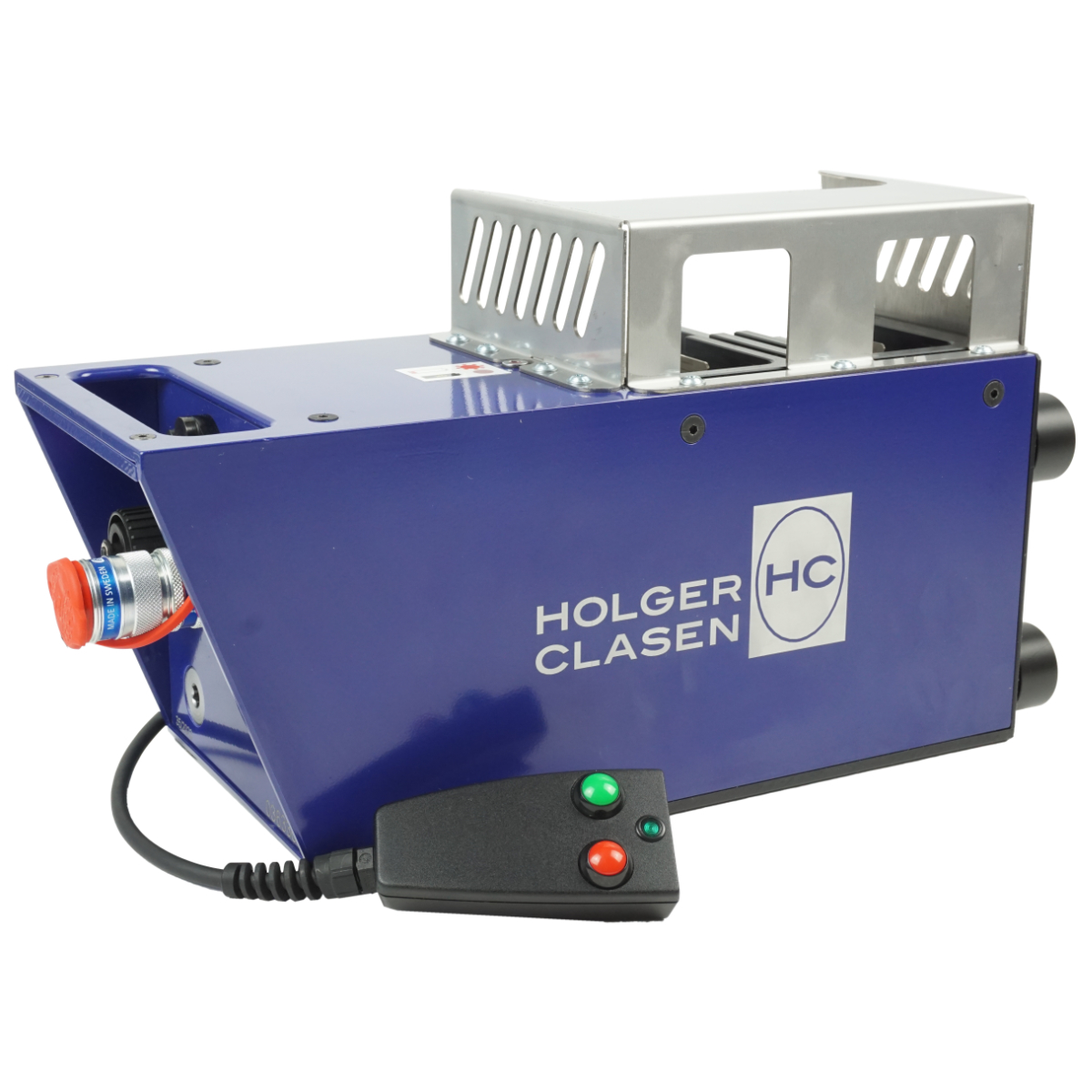

AP550-05-850 Battery-operated hydraulic pump 850 bar
Applications
Mobile battery-operated hydraulic pump for connecting cutting, crimping and punching heads; it is used by transportation companies (Deutsche Bahn) and applications with 850 bar working pressure.
Battery-operated Hydraulic Pump AP550-05-850 - convinces with speed, efficiency and stability
Can be operated with two 18 V Makita batteries.0,5 l (0.45 l) oil filling (useable), 850 bar working pressure, suitable for applications in the Deutsche Bahn area.
Pressure can be set at the factory between 100 and 850 bar; also, subsequent.
Robust hydraulic pump with sturdy aluminum housing, battery protection grid and plastic scraperbars.
Fast working due to high delivery volume in the high-pressure range.
Process reliability due to position-independent working as well as an indicator light signaling pending maintenance.
Easily accessible oil tank screw for refilling hydraulic oil.
Readout of the last 100 pressure histories (date and time stamp; exportable in PDF format).
Readout of total cycles as well as pending maintenance.
| Oil delivery: | 0.55 l/min |
|---|---|
| Oil fill: | 0.5 (0.45) l |
| Current: | Elektromotor 36V, mit Wechselakku |
| Battery voltage: | 2x Makita 18 V |
| Weight without battery: | 10 kg |
| Dimensions LxWxH: | 375 x 150 x 215 mm |
| Working pressure: | 850 bar |
| Information: | 100 - 850 bar factory adjustable |
| Start: | Handfernbedienung |
| Hydraulic connection: | Coupling CEJN series 115 |
Battery and charger must be ordered separately.
