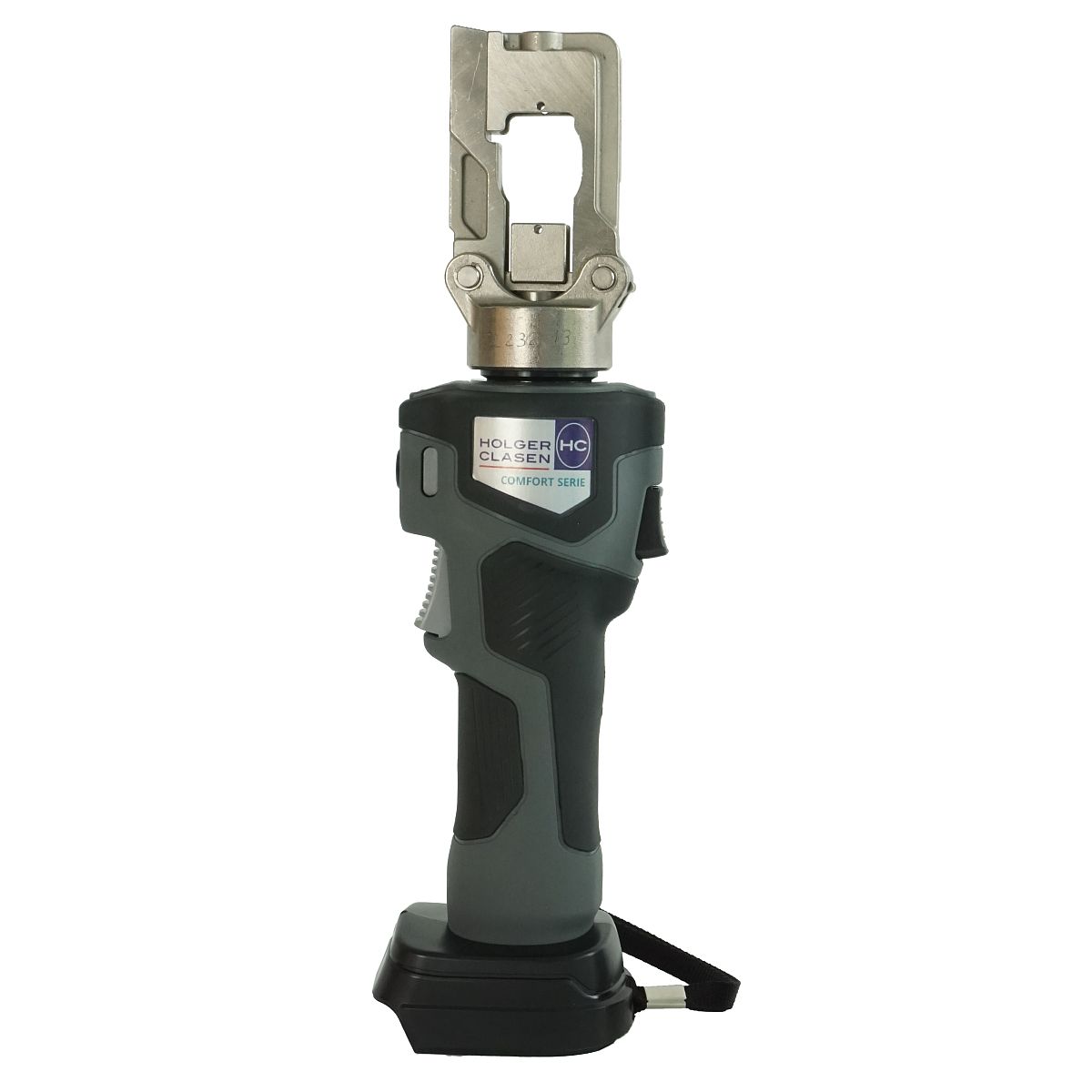

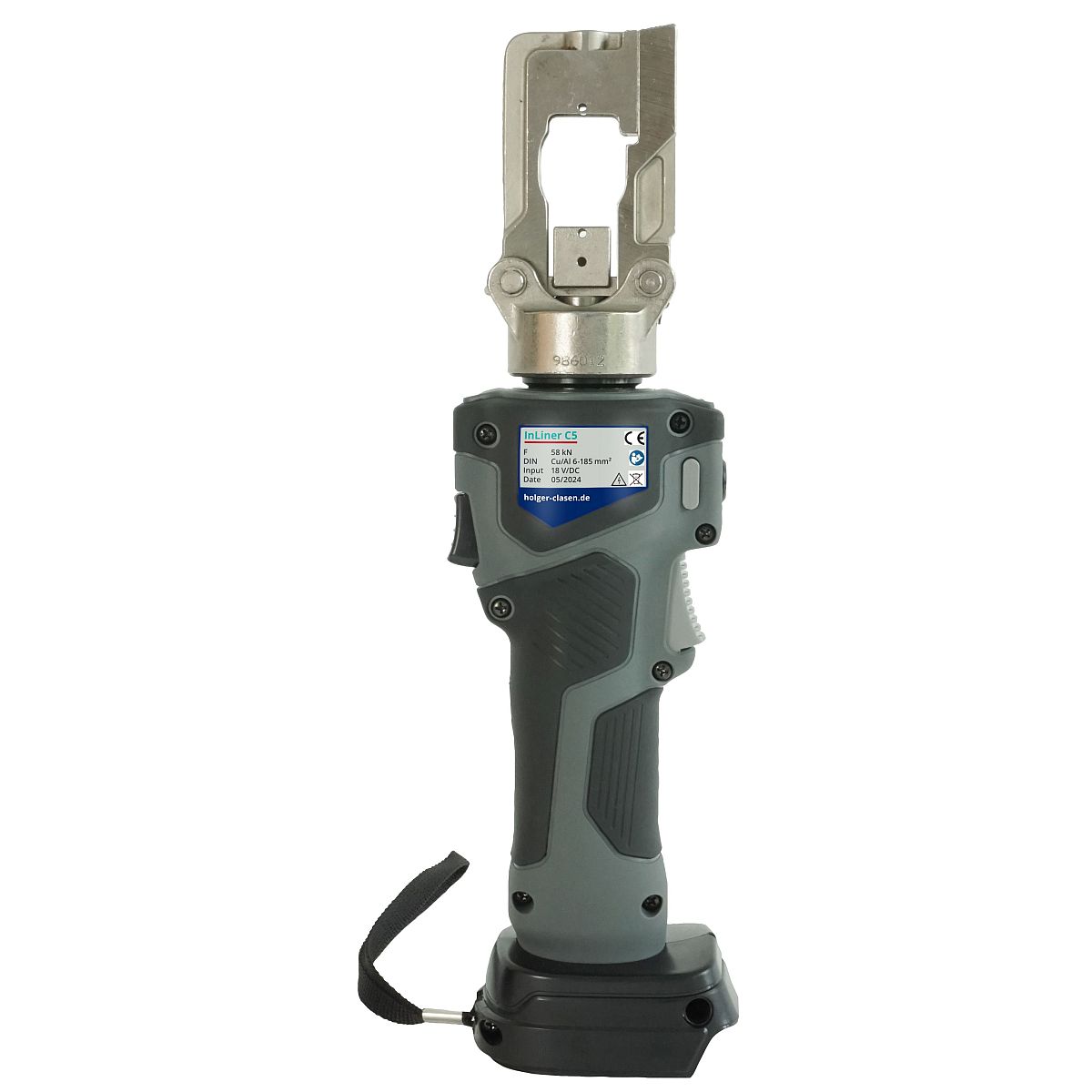

InLiner® C5 Ma Battery-Operated Hydraulic Crimper with MasterBase technology
| Crimping force: | 58 kN |
|---|---|
| Crimping range DIN Cu: | 6 - 185 mm² |
| Crimping range DIN Al: | 10 - 150 mm² |
| Information: | Compatible with 18 V Makita Batteries |
The MasterBase technology offers the following battery options:
Product number:
76000100
MasterBase-Technologie
Ergonomic
LED lightend
Rotating Head
Narrow design
Tool control
Battery Control
18 V Makita-kompatibel
Block press inserts
InLiner® C5 Ma Battery-Operated Hydraulic Crimper with MasterBase technology
Applications
This tool enables crimping cable lugs or connectors with block crimping dies (B) up to 185 mm2 to DIN. Preferable used in switch cabinet construction or electrical installation.
Equipped with MasterBase technology for flexible selection of the battery
InLiner® C5 Ma - compatible with 18 V Makita Batteries
Suitable for block crimping dies (B), DIN up to 185 mm2
Selectable automatic return simplifies the work process
Design ideally for working in narrow areas
Selectable automatic return for efficient work
Fatigue-free working through ergonomic, lightweight construction
Short crimping times due to double-piston hydraulics
LED working field illumination
You have full tool control via the feed and return buttons, which you can use at any time to control the crimping process. New is the possibility to change the tool from manual to automatic return. When the maximum force is reached, the piston automatically returns to its starting position. However, you can stop the piston at the desired position by tapping the feed button - you always have full control over your tool.
Thanks to the double-piston hydraulics, you can easily crimp DIN hexagonal Cu/Al cross-sections up to 185 mm2, and the tool works even faster under load. The tool is compatible with 18 V lithium ion batteries from Makita.
Areas of application are subject to change. A sample processing is recommended.
Technical specifications
InLiner® C5 Ma - compatible with 18 V Makita Batteries
Suitable for block crimping dies (B), DIN up to 185 mm2
Selectable automatic return simplifies the work process
Design ideally for working in narrow areas
Selectable automatic return for efficient work
Fatigue-free working through ergonomic, lightweight construction
Short crimping times due to double-piston hydraulics
LED working field illumination
InLiner® C5 Ma - compact design
The tool with 58 kN is a powerful, light-weight and small crimping tool. Thanks to its balanced, ergonomic design, it can be easily handled with one hand. The crimping head is fitted with commercially available block crimping inserts (shape B). The closed crimping head with bracket and latch offers a high level of safety when crimping. Thanks to the compact design and the 180° rotatable crimping head, the tool can be easily positioned on the workpiece. It can therefore be used very well in confined spaces, such as in switch cabinet construction. The LED for illuminating the work area provides additional support.You have full tool control via the feed and return buttons, which you can use at any time to control the crimping process. New is the possibility to change the tool from manual to automatic return. When the maximum force is reached, the piston automatically returns to its starting position. However, you can stop the piston at the desired position by tapping the feed button - you always have full control over your tool.
Thanks to the double-piston hydraulics, you can easily crimp DIN hexagonal Cu/Al cross-sections up to 185 mm2, and the tool works even faster under load. The tool is compatible with 18 V lithium ion batteries from Makita.
Areas of application are subject to change. A sample processing is recommended.
| Crimping force: | 58 kN |
|---|---|
| Crimping dies Series: | Block (B) |
| Crimping range DIN Cu: | 6 - 185 mm² |
| Crimping range DIN Al: | 10 - 150 mm² |
| Battery voltage: | Makita 18 V |
| Information: | Compatible with 18 V Makita Batteries |
| Stroke: | 15 mm |
| Weight without battery: | 2.2 kg |
| Dimensions LxWxH: | 365 x 75 x 95 mm |
| Construction form: | Bar-shaped Tool |
| Head: | closed |
| Lock type: | Latch / yoke |
