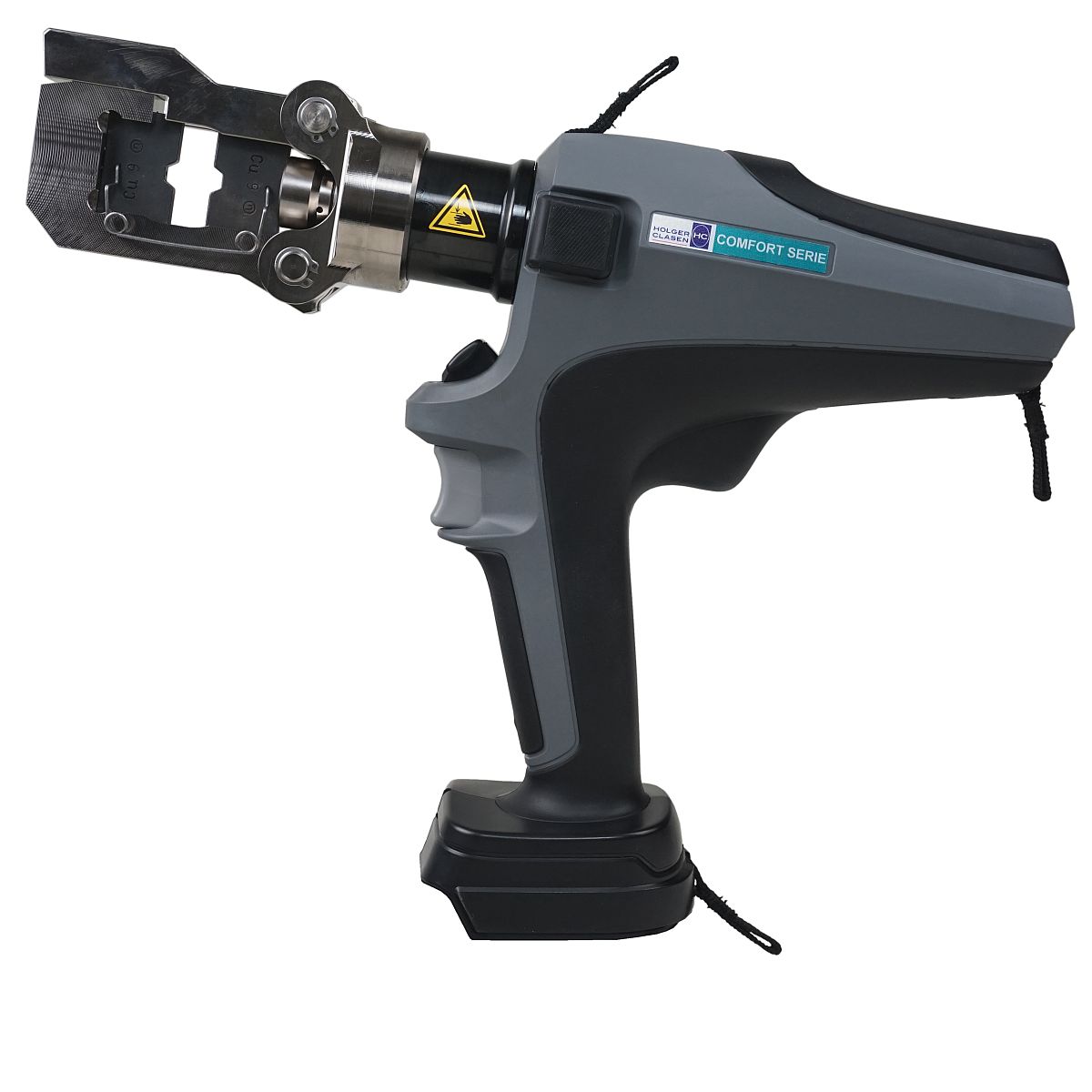

PressMax-C6 Bo Battery-Operated Hydraulic Crimper with MasterBase technology

PressMax-C6 Bo Battery-Operated Hydraulic Crimper with MasterBase technology

Applications Battery-operated hydraulic crimper PressMax-C6 Bo - This tool enables crimping cable lugs or connectors with spring (F) or pin crimping dies (Z) up to 240 mm2 to DIN. The optimum power-to-weight ratio and slimline design are ideal for use in switch cabinet construction, electrical assembly and by energy suppliers.
Equipped with MasterBase technology for flexible selection of the battery
PressMax-C6 Bo - compatible with 18 V Bosch Batteries
For spring (F) or pin (Z) crimping dies, DIN up to 240 mm2
Narrow, rotatable head for working in narrow areas
Selectable automatic return simplifies the work process
Fatigue-free working through ergonomic, lightweight construction
LED working field illumination

Battery crimping tool PressMax-C6 Bo - small, light, compact

The battery-operated hydraulic crimper with 60 kN is a light-weight, small and powerful crimping tool. Thanks to its improved, balanced, ergonomic design, it can be easily handled with one hand. The crimper is equipped with standard spring (Form F) or pin crimping dies (Form Z). The closed crimping head with clamp and latch offers a high degree of crimping safety. Thanks to the compact design and the 180° rotatable crimping head, the tool can be easily positioned on the workpiece. The tool is therefore very well suited for use in confined spaces, such as in switch cabinet construction. The LED for illumination of the working area supports this.
You have full tool control via the feed and return buttons, which you can use at any time to control the crimping process. New is the possibility to change the tool from manual to automatic return. When the maximum force is reached, the piston automatically returns to its starting position. However, you can stop the piston at the desired position by tapping the feed button - you always have full control over your tool.
Thanks to the optimally matched 2-step hydraulic system, you can also crimp DIN hexagonal Cu/Al cross-sections up to 240 mm 2 with this powerful battery crimper. In addition, this tool is even faster under load thanks to improved technology. The tool is compatible with 18 V lithium ion batteries from Bosch.








Areas of application are subject to change.
Technical specifications
Crimping force: 60 kN
Crimping dies Series: Feder (F) und Zapfen (ZA)

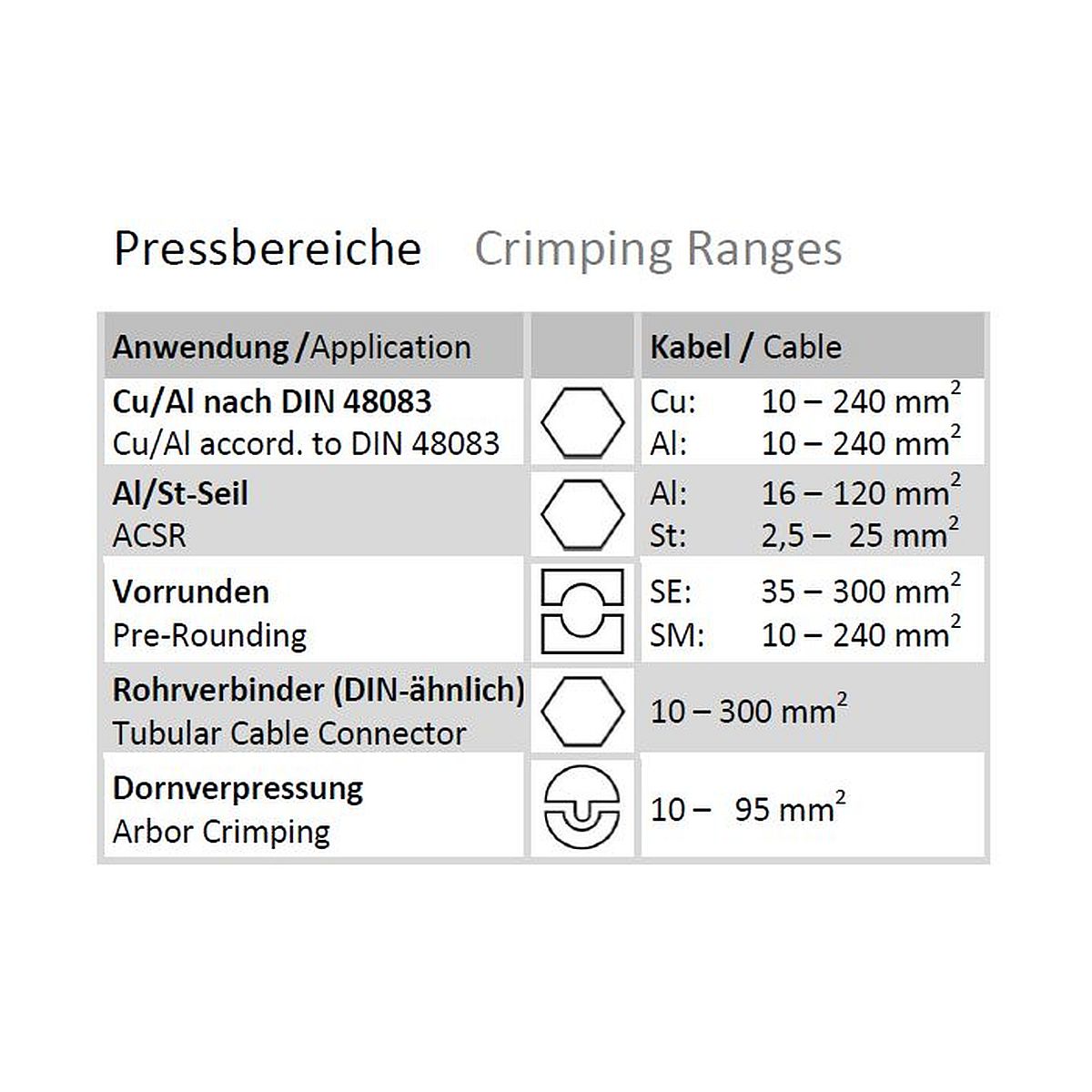

Crimping range DIN Cu: 10 - 240 mm²
Crimping range DIN Al: 10 - 240 mm²
Battery voltage: Bosch 18 V
Information: Compatible with 18 V Bosch Batteries
Stroke: 15 mm
Weight without battery: 3.2 kg
Dimensions LxWxH: 334 x 82 x 296 mm
Construction form: Pistol
Head: closed
Lock type: Latch / yoke
Included in delivery:

> Tool without further accessories.
