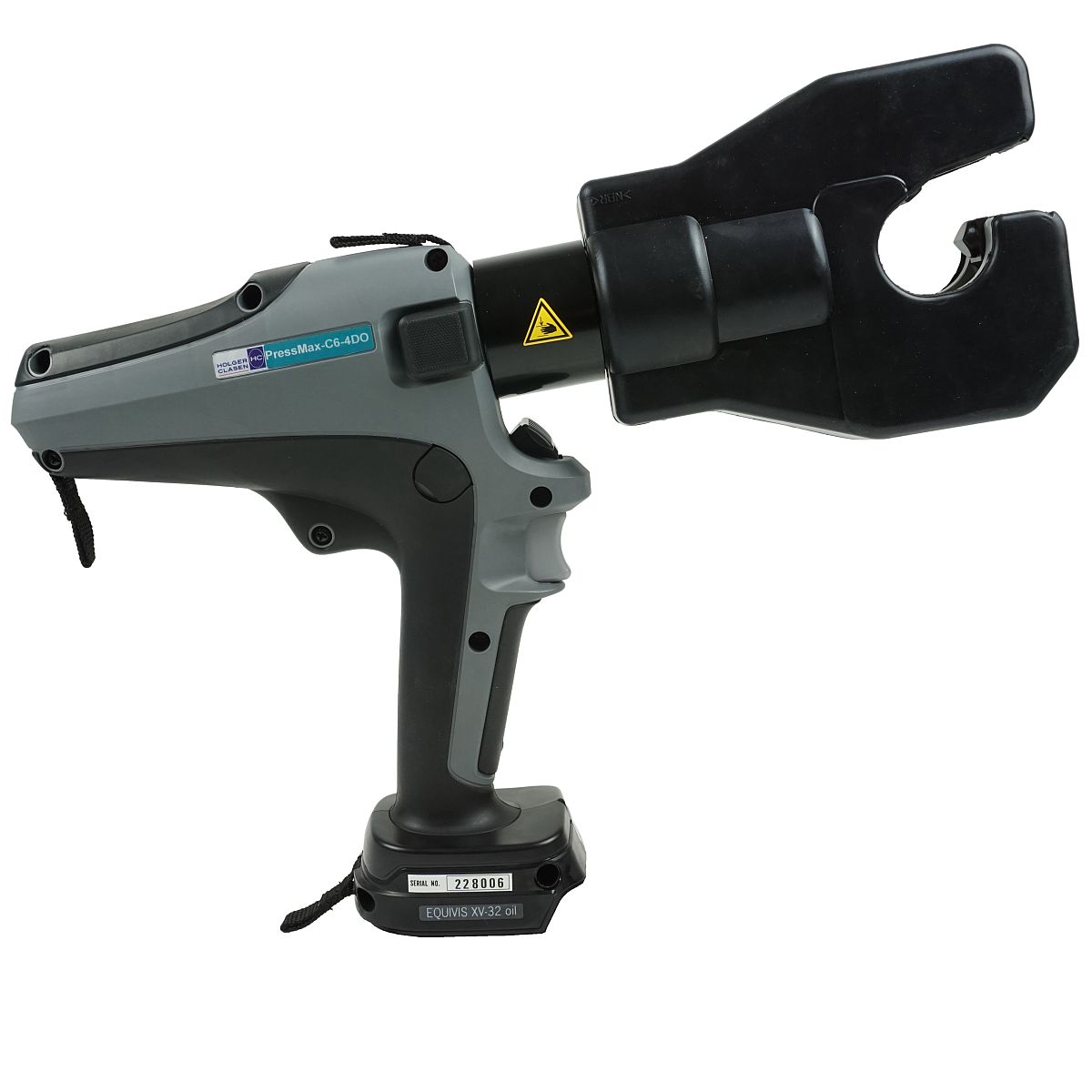

PressMax-C6-4DO Bo Battery-Operated Hydraulic Crimper with MasterBase technology
| Crimping force: | 60 kN |
|---|---|
| Opening width: | 32 mm |
| Crimping range DIN 60228 Cu: | 10 - 240 mm² |
| Information: | Compatible with 18 V Bosch Batteries |
The MasterBase technology offers the following battery options:
Product number:
76762100
MasterBase-Technologie
Ergonomic
LED lightend
Rotating Head
Tool control
2-step hydraulic
Battery Control
PressMax-C6-4DO Bo Battery-Operated Hydraulic Crimper with MasterBase technology
Applications
4-arbor Battery crimping tool PressMax 6-4DO Bo - The battery-hydraulic crimping tool crimps with a self-centering, integrated 4-arbor system non-insulated, fine-stranded Cu conductors according to DIN 60228, class 2, 5 and 6 in ranges 10 - 240 mm2 and is used in switch gear construction as well as for aggregate connections. No crimping dies are required.
Equipped with MasterBase technology for flexible selection of the battery
PressMax-C6-4DO Bo - compatible with 18 V Bosch Batteries

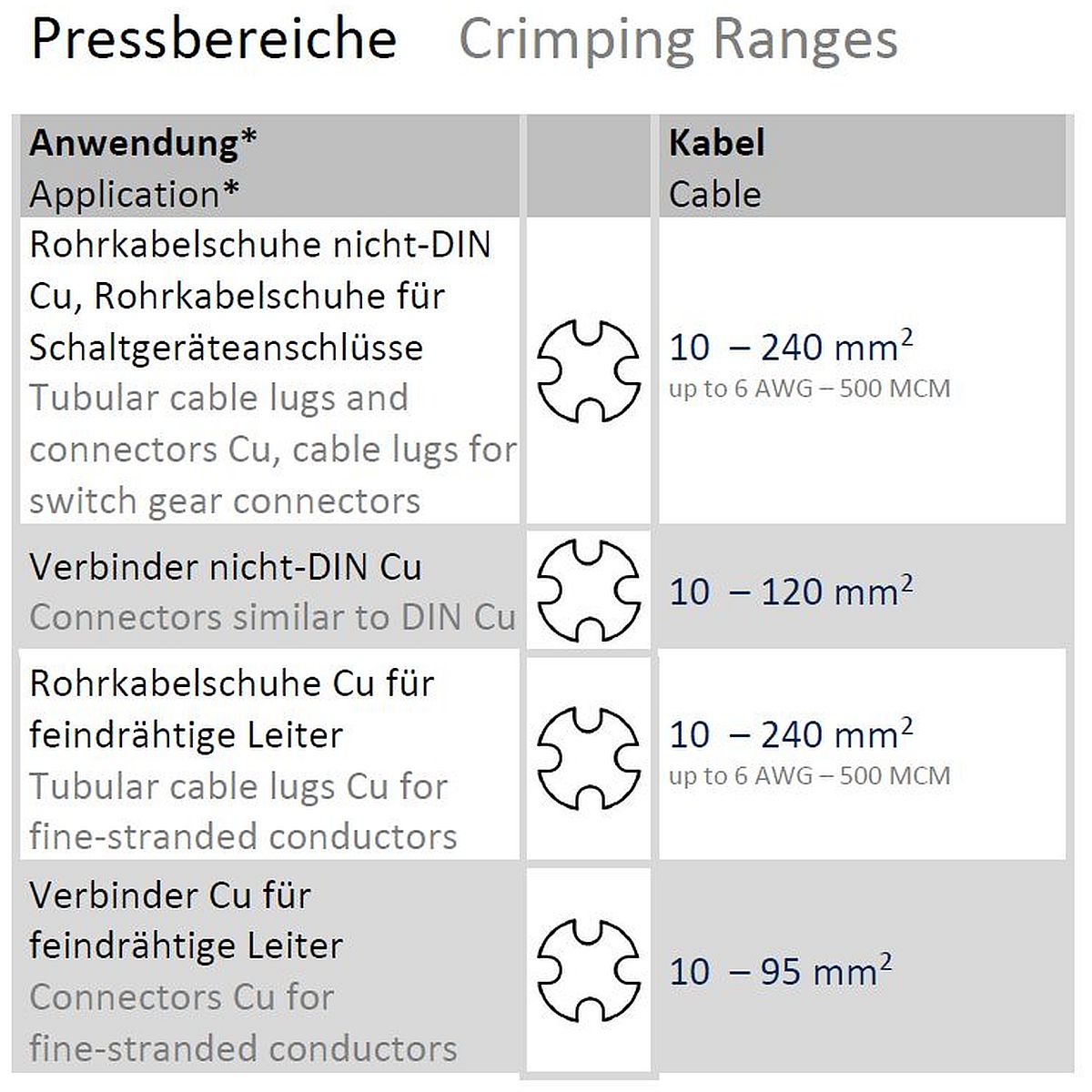

for fine / very fine stranded conductors Cu to DIN 60228 class 2, 5 and 6 up to 240 mm2
Flexible and safe working by free rotatable, open crimping head with 32 mm opening width
Selectable automatic return simplifies the work process
LED working field illumination
You have full tool control via the forward and reverse buttons, which you can use to control the crimping process at any time. A new feature is the option to switch the tool from manual to automatic return. After reaching the maximum crimping force, the piston automatically returns to the starting position. But you can stop the piston at the desired position by tapping the forward button - you always have full tool control.
In addition, thanks to improved technology, this tool is even faster, especially under load. The tool is compatible with 18 V lithium ion batteries from Boscha.
Areas of application are subject to change.
Technical specifications
PressMax-C6-4DO Bo - compatible with 18 V Bosch Batteries
for fine / very fine stranded conductors Cu to DIN 60228 class 2, 5 and 6 up to 240 mm2
Flexible and safe working by free rotatable, open crimping head with 32 mm opening width
Selectable automatic return simplifies the work process
LED working field illumination
4-Arbor Battery Crimping Tool PressMax-C6-4DO Bo - for high flexible conductors
With 60 kN, the cordless crimper is a very powerful and compact battery-powered hydraulic crimping tool that crimps uninsulated, fine-stranded copper conductors. It does not require any additional crimping dies.The integrated, self-centering 4-arbor crimping unit works reliably and works non-DIN Cu tubular cable lugs up to 240mm2.Thanks to the improved, balanced and ergonomic housing, it can also be handled comfortably with one hand. The open head has an opening width of 32 mm. The compact design and the open head, which can be rotated by 180°, enable the tool to be positioned securely on the workpiece. The head is narrow for this performance class and can therefore also be used in hard-to-reach places. The LED for illuminating the work area is supportive.You have full tool control via the forward and reverse buttons, which you can use to control the crimping process at any time. A new feature is the option to switch the tool from manual to automatic return. After reaching the maximum crimping force, the piston automatically returns to the starting position. But you can stop the piston at the desired position by tapping the forward button - you always have full tool control.
In addition, thanks to improved technology, this tool is even faster, especially under load. The tool is compatible with 18 V lithium ion batteries from Boscha.
Areas of application are subject to change.
| Crimping force: | 60 kN |
|---|---|
| Opening width: | 32 mm |
| Crimping range DIN 60228 Cu: | 10 - 240 mm² |
| Crimping dies Series: | 4 Arbor |
| Battery voltage: | Bosch 18 V |
| Information: | Compatible with 18 V Bosch Batteries |
| Weight without battery: | 5.0 kg |
| Dimensions LxWxH: | 401 x 82 x 298 mm |
| Construction form: | Pistol |
| Head: | open |
