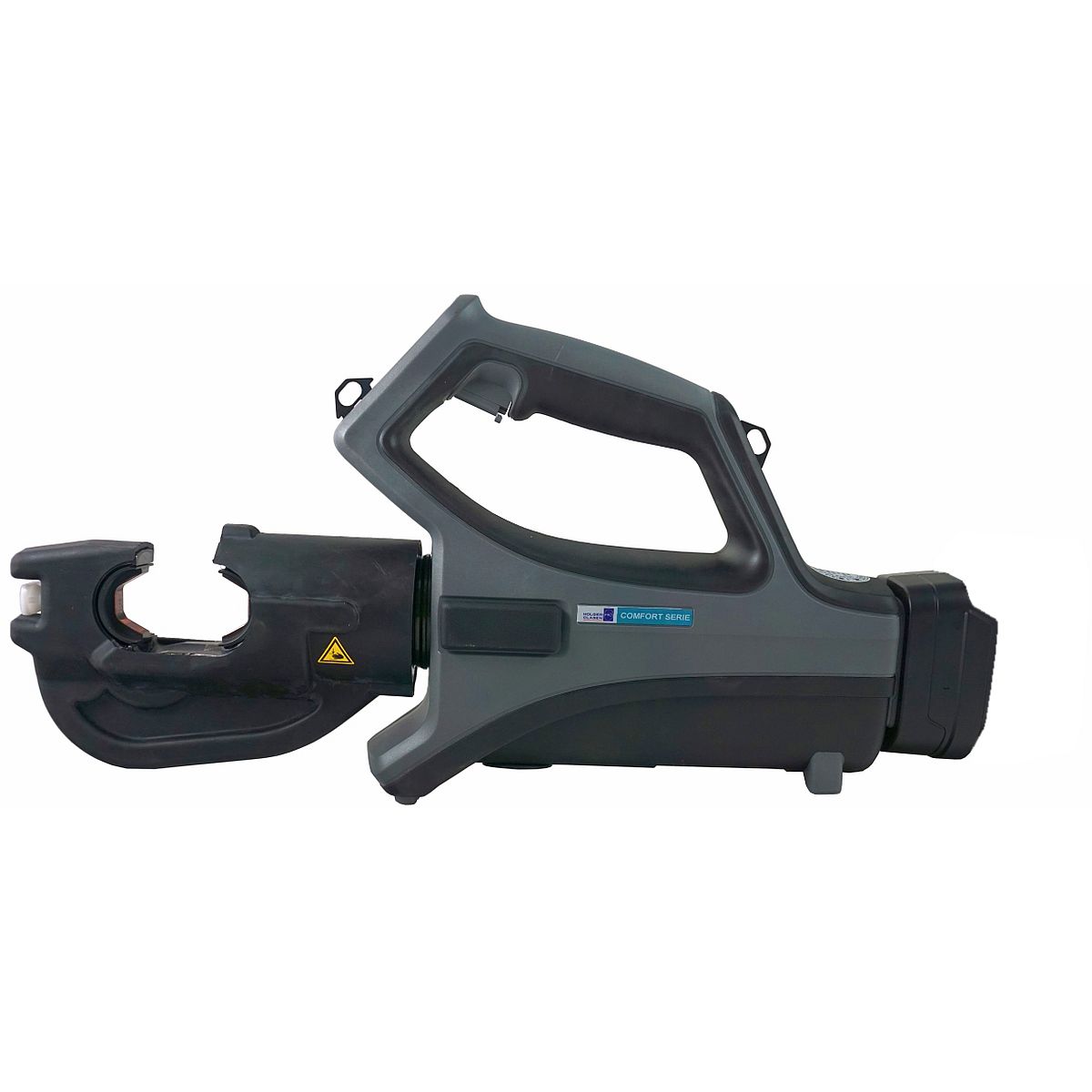

InLineBox-C12 Ma Battery-Operated Hydraulic Crimper with MasterBase technology
| Crimping force: | 120 kN |
|---|---|
| Crimping range DIN Cu: | 10 - 300 mm² |
| Crimping range DIN Al: | 10 - 300 mm² |
| Information: | Compatible with 18 V Makita Batteries |
The MasterBase technology offers the following battery options:
Product number:
76772000
MasterBase-Technologie
LED lightend
Rotating Head
Tool control
2-step hydraulic
Battery Control
18 V Makita-kompatibel
C-shaped crimping dies
InLineBox-C12 Ma Battery-Operated Hydraulic Crimper with MasterBase technology
Applications
The InLineBox-C12 with compatible 18 V Makita battery is the performance upgrade for your tool park. The battery-powered hydraulic on-ground crimper processes cable lugs and connectors up to 300 mm2 with standard C-shaped crimping dies. The ergonomic design with low center of gravity brings high stability. It can be positioned well and safely both as an on-ground tool and as a hand-held tool.
Equipped with MasterBase technology for flexible selection of the battery
InLineBox-C12 Ma - compatible with 18 V Makita rechargeable batteries
Crimping force: 120 kN
Outstanding due to the large stroke (42 mm)
Low-lying center of gravity allows ergonomic use - as an on-ground or hand-held crimping tool
Optionally, you can also punch holes with this tool. The necessary hole punching adapter LSA12 can punch holes with diameters from 6.5 mm to 17 mm via interchangeable inserts.
The automatic return increases your work efficiency - after reaching the maximum crimping force, the piston automatically return to the starting position. However, you can stop the piston at the desired position by tapping the advance button and still have full tool control.
With 42 mm stroke and the corresponding power in optimally matched 2-stage hydraulics, this on-ground crimper is even more powerful and versatile. The open crimping head and large stroke allow many different applications, from DIN hexagonal crimping to H-clamps to mandrel crimping and much more. Thanks to improved technology, this tool is even faster, especially under load. You can crimp cross sections DIN hexagon Cu/Al up to 300 mm2. The tool is compatible with 18 V lithium-ion batteries from Makita.
Areas of application are subject to change. A sample processing is recommended.
Technical specifications
InLineBox-C12 Ma - compatible with 18 V Makita rechargeable batteries
Crimping force: 120 kN
Outstanding due to the large stroke (42 mm)
Low-lying center of gravity allows ergonomic use - as an on-ground or hand-held crimping tool
InLineBox-C12 Ma - Battery hydraulic on-ground crimper
At 120 kN, this tool is a powerful, versatile battery-powered on-ground crimper. The narrow, 270° rotatable, open press head makes pressing possible even in hard-to-reach places. Supporting this are the LEDs for work area illumination. The crimping tool can be equipped with commercially available C-shaped crimping dies (form C), which are firmly locked in the crimping head via crimping die locks for greater safety on the construction site.Optionally, you can also punch holes with this tool. The necessary hole punching adapter LSA12 can punch holes with diameters from 6.5 mm to 17 mm via interchangeable inserts.
The automatic return increases your work efficiency - after reaching the maximum crimping force, the piston automatically return to the starting position. However, you can stop the piston at the desired position by tapping the advance button and still have full tool control.
With 42 mm stroke and the corresponding power in optimally matched 2-stage hydraulics, this on-ground crimper is even more powerful and versatile. The open crimping head and large stroke allow many different applications, from DIN hexagonal crimping to H-clamps to mandrel crimping and much more. Thanks to improved technology, this tool is even faster, especially under load. You can crimp cross sections DIN hexagon Cu/Al up to 300 mm2. The tool is compatible with 18 V lithium-ion batteries from Makita.
Areas of application are subject to change. A sample processing is recommended.
| Crimping force: | 120 kN |
|---|---|
| Crimping dies Series: | C-shaped (C) |
| Crimping range DIN Cu: | 10 - 300 mm² |
| Crimping range DIN Al: | 10 - 300 mm² |
| Battery voltage: | Makita 18 V |
| Information: | Compatible with 18 V Makita Batteries |
| Stroke: | 42 mm |
| Weight without battery: | 7.6 kg |
| Dimensions LxWxH: | 508 x 92 x 263 mm |
| Construction form: | On-ground Tool |
| Head: | open |
