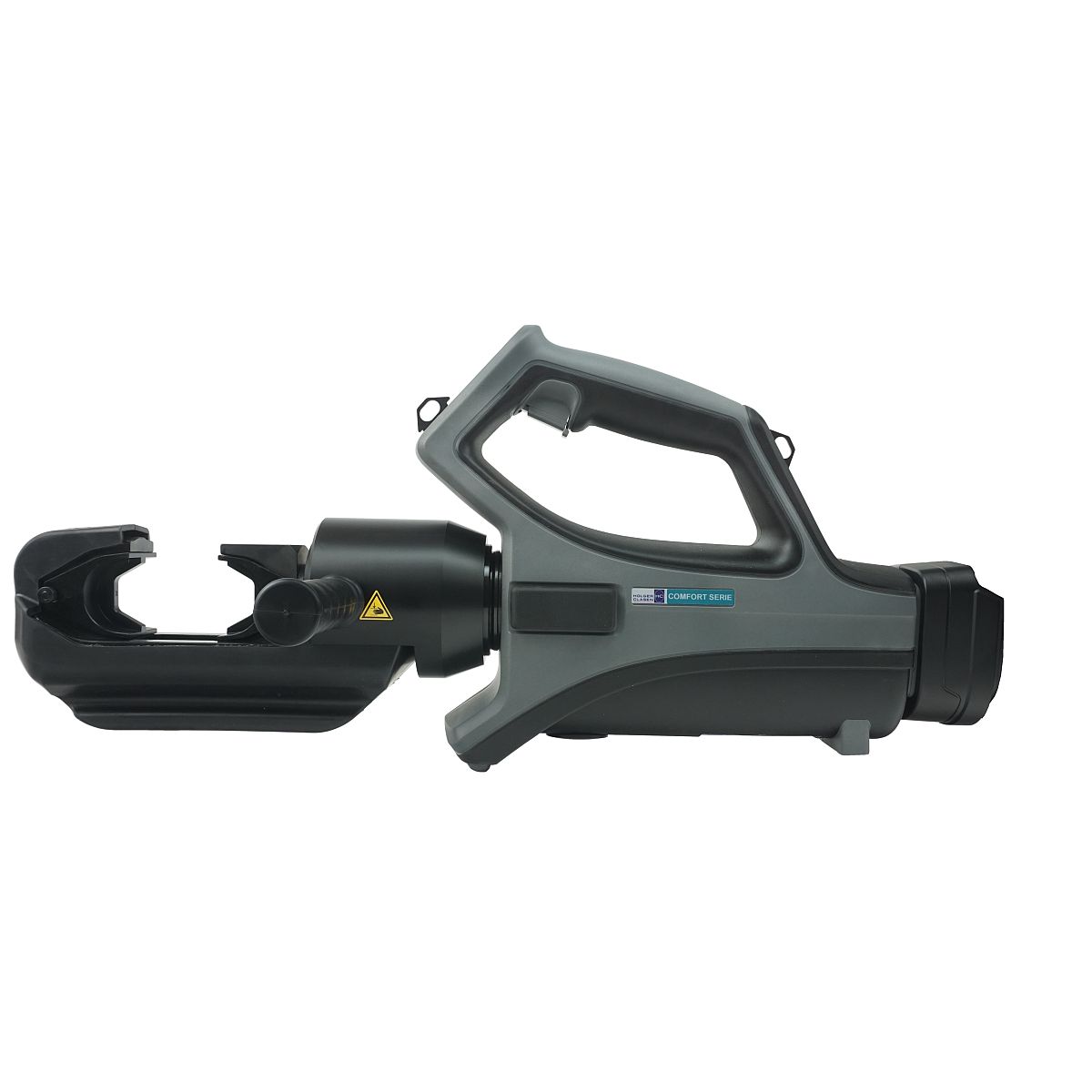

InLineBox-C15-O Ma Battery-Operated Hydraulic Crimper with MasterBase technology
| Crimping force: | 134 kN |
|---|---|
| Crimping range DIN Cu: | 10 - 630 mm² |
| Crimping range DIN Al: | 10 - 630 mm² |
| Information: | Compatible with 18 V Makita Batteries |
The MasterBase technology offers the following battery options:
Product number:
76775500
MasterBase-Technologie
LED lightend
Rotating Head
Tool control
2-step hydraulic
Battery Control
18 V Makita-kompatibel
Pin Lock
C-shaped crimping dies
InLineBox-C15-O Ma Battery-Operated Hydraulic Crimper with MasterBase technology
Applications
The InLineBox-C15-O with compatible 18 V Makita battery is the performance upgrade for your tool park. The battery-powered hydraulic on-ground crimping tool processes cable lugs and connectors up to 630 mm2 via adapter with standard C-shaped crimping dies or with pin-lock-crimping dies. The ergonomic design with low center of gravity brings high stability. It can be positioned well and safely both as an on-ground tool and as a hand-held tool.
Equipped with MasterBase technology for flexible selection of the battery
InLineBox-C15-O Ma - compatible with 18 V Makita rechargeable batteries
Crimping force: 134 kN
Outstanding due to the large stroke (50 mm)
Low-lying center of gravity allows ergonomic use - as an on-ground or hand-held crimping tool
The automatic return increases your work efficiency - after reaching the maximum crimping force, the piston automatically return to the starting position. However, you can stop the piston at the desired position by tapping the advance button and still have full tool control.
With 50 mm stroke and the corresponding power in optimally matched 2-stage hydraulics, this on-ground crimping tool is even more powerful and versatile. The closed crimping head and large stroke allow many different applications, from DIN hexagonal crimping to H-clamps to arbor crimping and much more. Thanks to improved technology, this tool is even faster, especially under load. You can crimp cross sections DIN hexagon Cu/Al up to 630 mm2. The tool is compatible with 18 V lithium-ion batteries from Makita.
Areas of application are subject to change. A sample processing is recommended.
Technical specifications
InLineBox-C15-O Ma - compatible with 18 V Makita rechargeable batteries
Crimping force: 134 kN
Outstanding due to the large stroke (50 mm)
Low-lying center of gravity allows ergonomic use - as an on-ground or hand-held crimping tool
InLineBox-C15-O Ma - Battery hydraulic on-ground crimping tool
At 134 kN, the InLineBox-C15-O is a powerful, versatile battery-powered on-ground crimping tool. The narrow, 270° rotatable, open crimping head makes pressing possible even in hard-to-reach places. Supporting this are the LEDs for work area illumination. The crimping tool can be equipped with commercially available C-shaped crimping dies (form C) via an adapter for c-shaped dies or pin-lock crimping dies (form p) - both are firmly locked in the crimping head via crimping die locks for greater safety on the construction site. The addditional handle enables ease handling and positioning.The automatic return increases your work efficiency - after reaching the maximum crimping force, the piston automatically return to the starting position. However, you can stop the piston at the desired position by tapping the advance button and still have full tool control.
With 50 mm stroke and the corresponding power in optimally matched 2-stage hydraulics, this on-ground crimping tool is even more powerful and versatile. The closed crimping head and large stroke allow many different applications, from DIN hexagonal crimping to H-clamps to arbor crimping and much more. Thanks to improved technology, this tool is even faster, especially under load. You can crimp cross sections DIN hexagon Cu/Al up to 630 mm2. The tool is compatible with 18 V lithium-ion batteries from Makita.
Areas of application are subject to change. A sample processing is recommended.
| Crimping force: | 134 kN |
|---|---|
| Crimping dies Series: | Pin Lock (P), C-shaped (C) |
| Crimping range DIN Cu: | 10 - 630 mm² |
| Crimping range DIN Al: | 10 - 630 mm² |
| Battery voltage: | Makita 18 V |
| Information: | Compatible with 18 V Makita Batteries |
| Stroke: | 50 mm |
| Weight without battery: | 9.9 kg |
| Dimensions LxWxH: | 574 x 108 x 263 mm |
| Construction form: | On-ground Tool |
| Head: | open |
