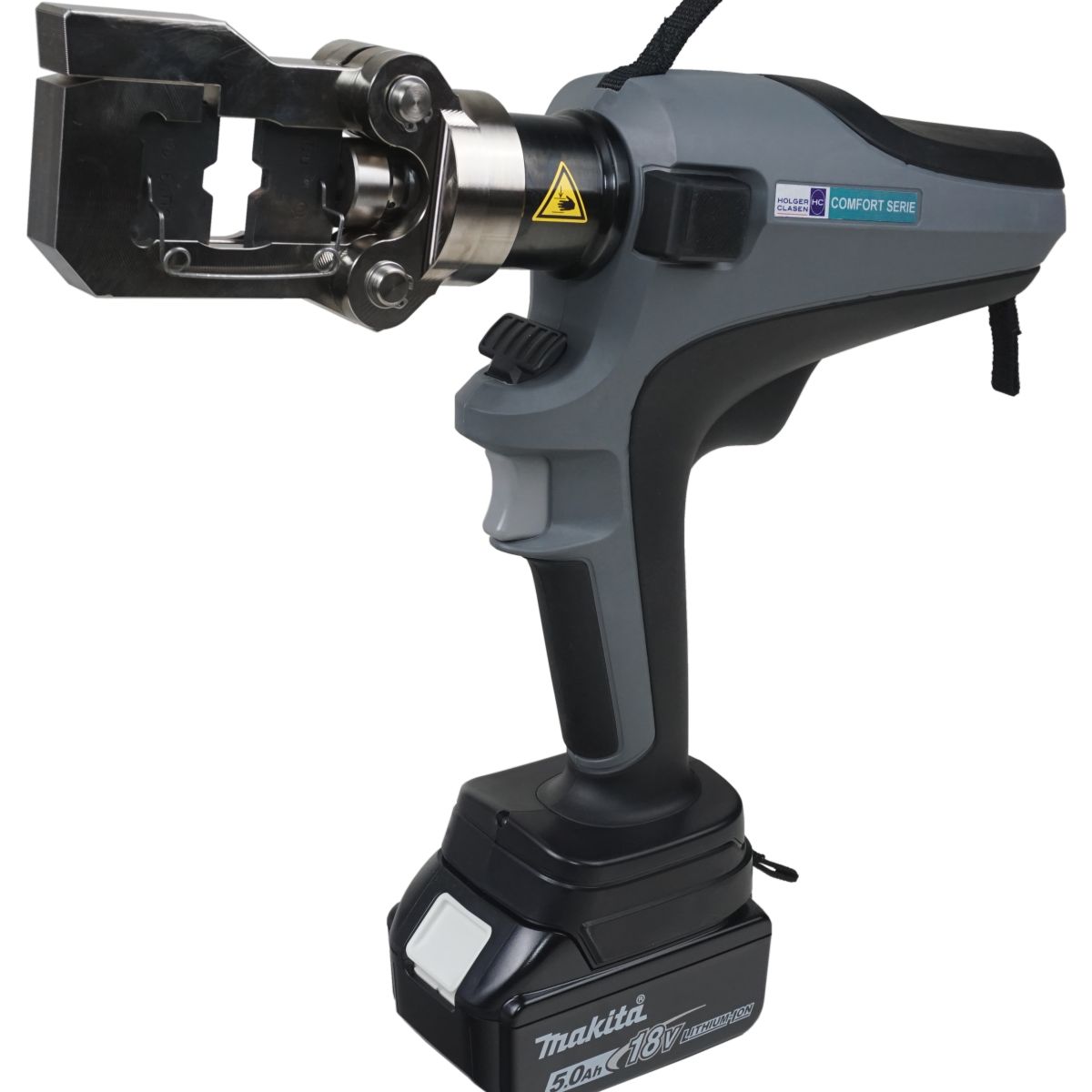

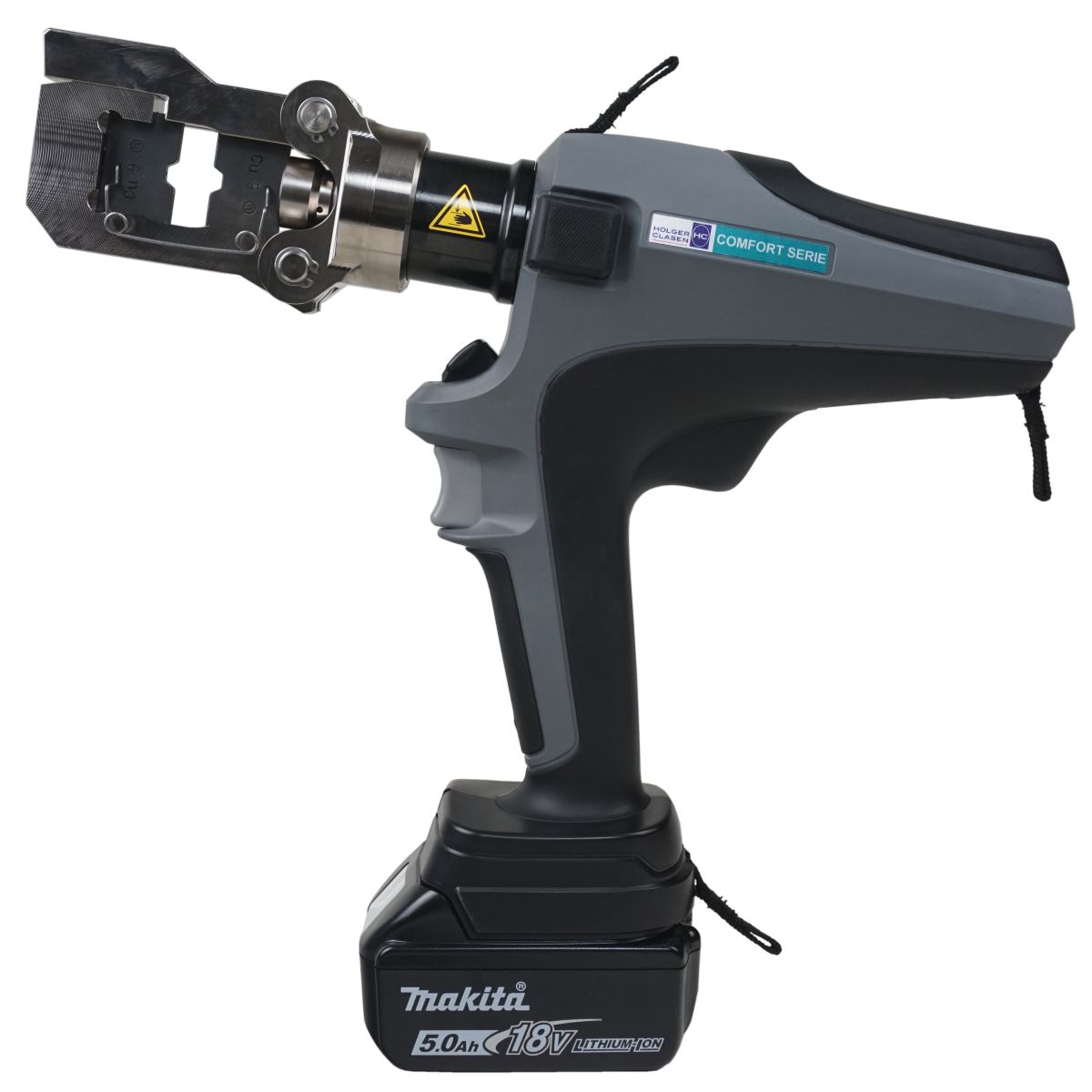

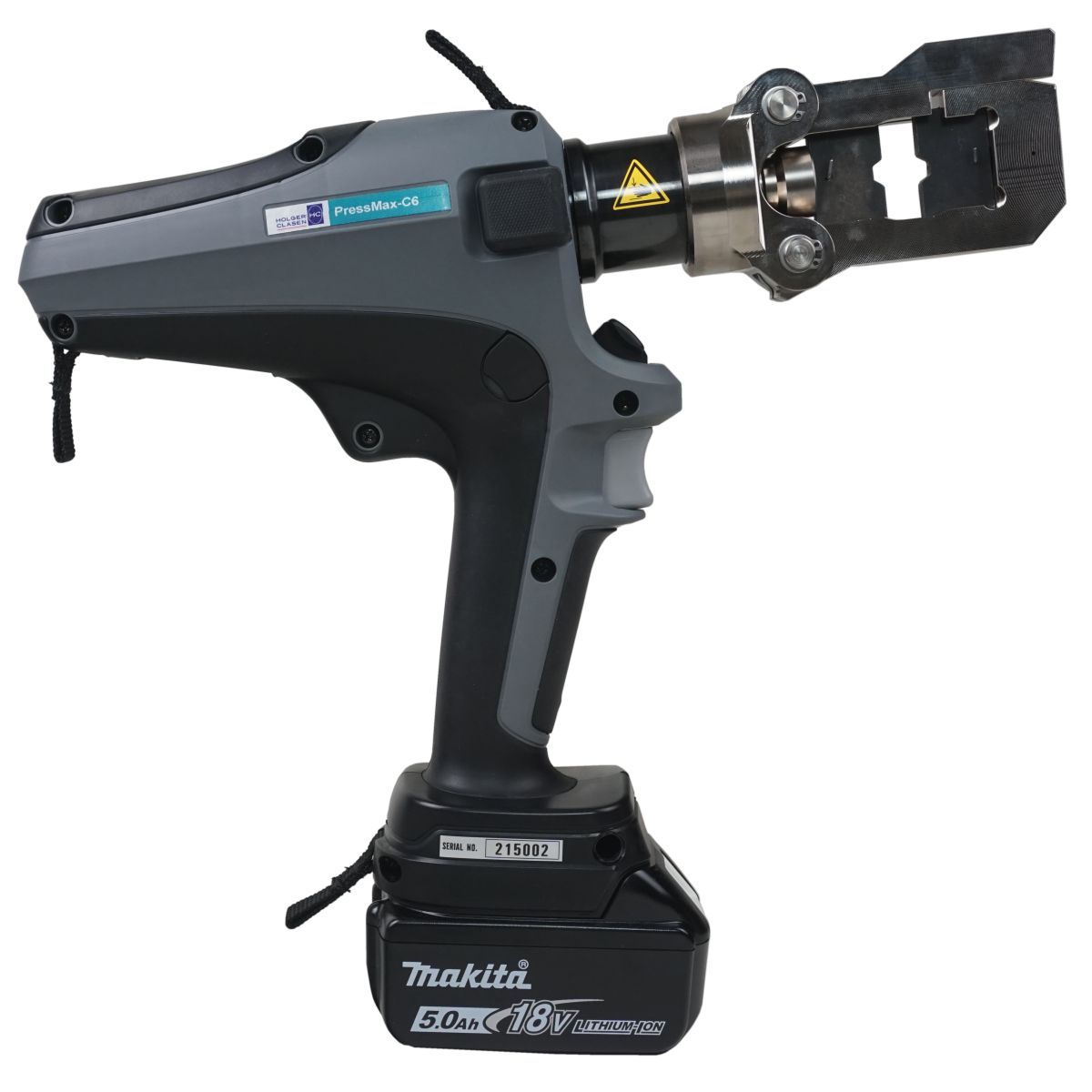

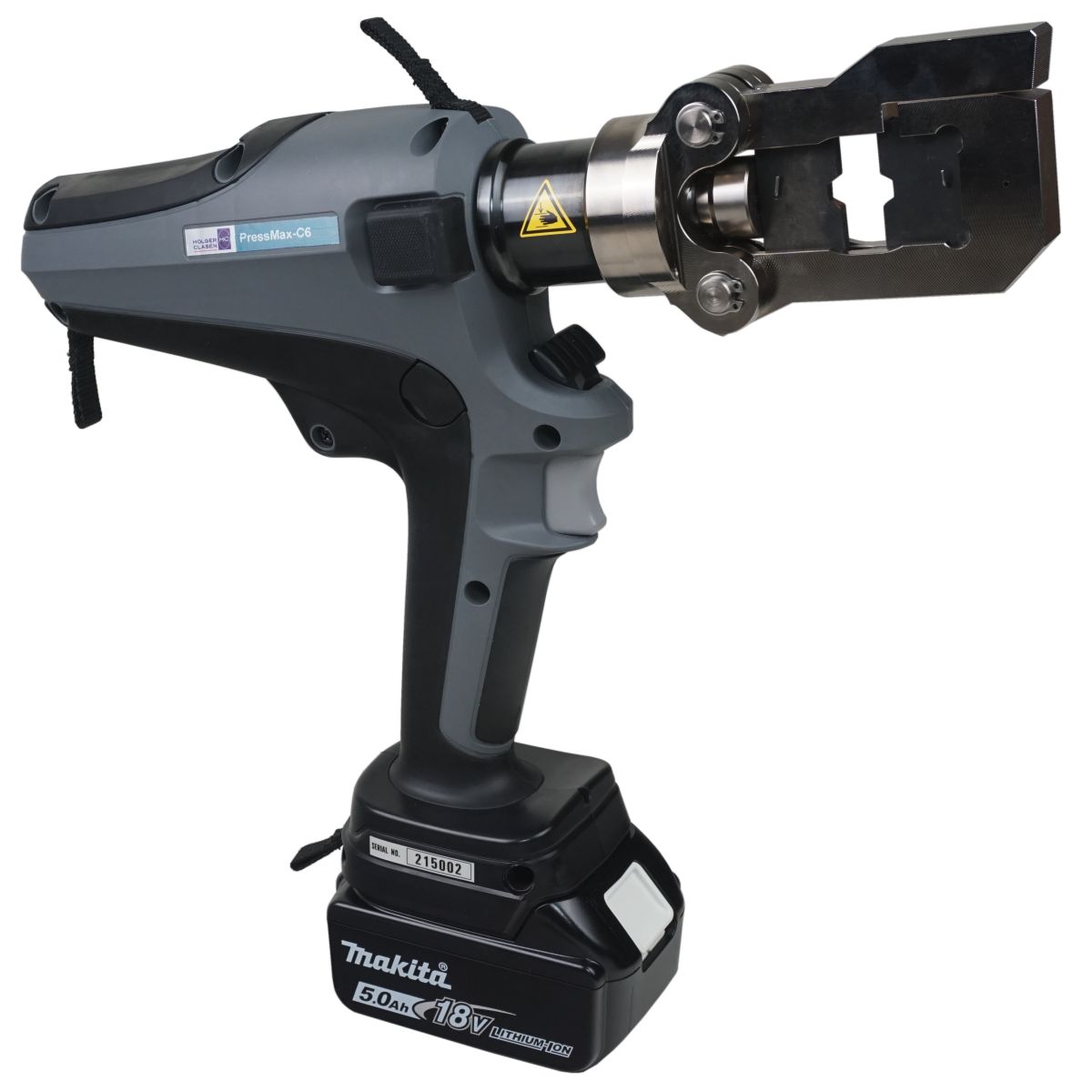

PressMax-C6-Set Ma Battery-Operated Hydraulic Crimper with MasterBase technology
| Crimping force: | 60 kN |
|---|---|

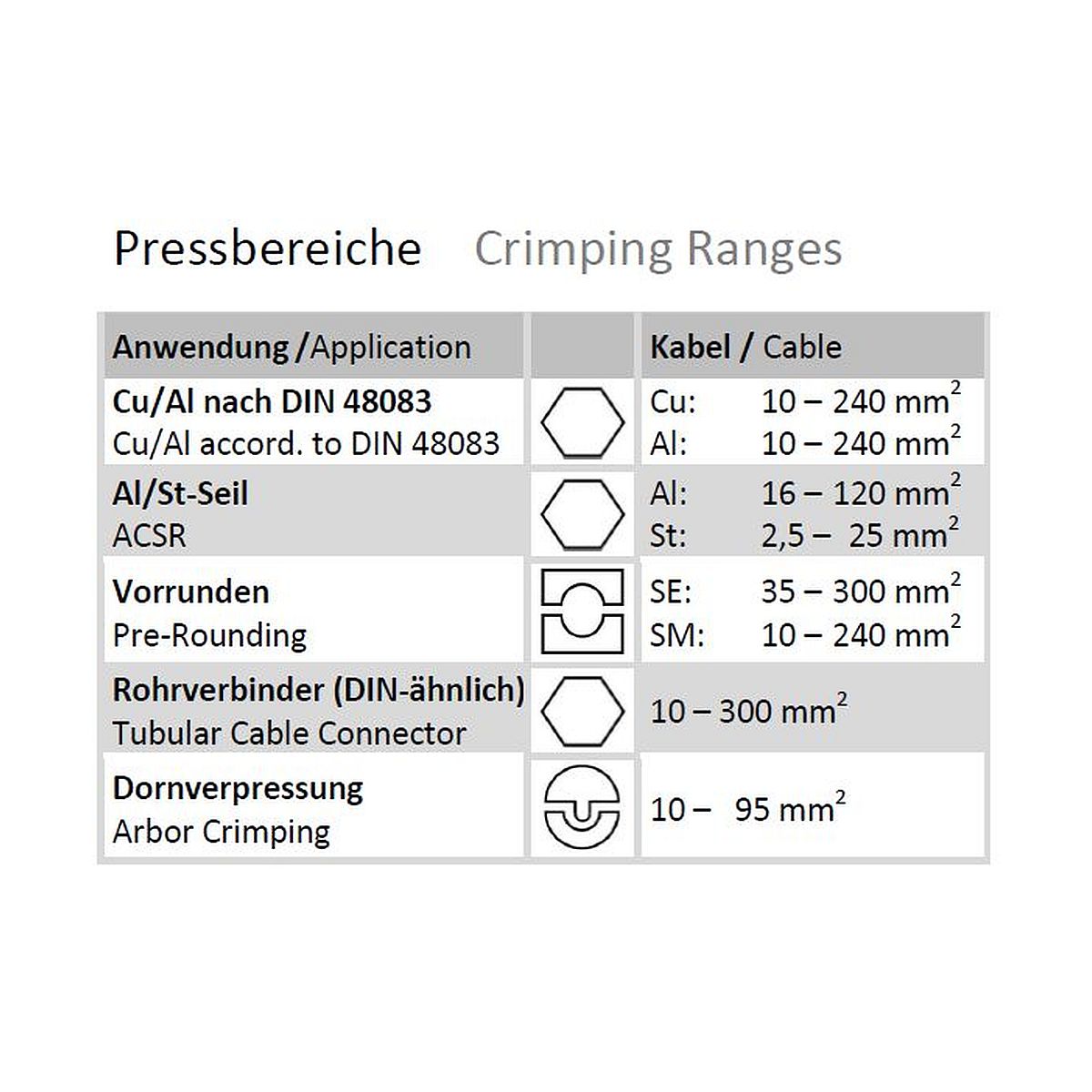

| Crimping range DIN Cu: | 10 - 240 mm² |
| Crimping range DIN Al: | 10 - 240 mm² |
| Information: | Compatible with 18 V Makita Batteries |
The MasterBase technology offers the following battery options:
Product number:
76846000
MasterBase-Technologie
Ergonomic
LED lightend
Rotating Head
Narrow design
Tool control
2-step hydraulic
Battery Control
With case
18 V Makita-kompatibel
Spring clip press inserts
Trunnion press inserts
PressMax-C6-Set Ma Battery-Operated Hydraulic Crimper with MasterBase technology
Applications
Battery-operated hydraulic crimper PressMax-C6-Set Ma - This tool enables crimping cable lugs or connectors with spring (F) or pin crimping dies (Z) up to 240 mm2 to DIN. The optimum power-to-weight ratio and slimline design are ideal for use in switch cabinet construction, electrical assembly and by energy suppliers.
Equipped with MasterBase technology for flexible selection of the battery
PressMax-C6 Ma - compatible with 18 V Makita Batteries
For spring (F) or pin (Z) crimping dies, DIN up to 240 mm2
Narrow, rotatable head for working in narrow areas
Selectable automatic return simplifies the work process
Fatigue-free working through ergonomic, lightweight construction
LED working field illumination
You have full tool control via the feed and return buttons, which you can use at any time to control the crimping process. New is the possibility to change the tool from manual to automatic return. When the maximum force is reached, the piston automatically returns to its starting position. However, you can stop the piston at the desired position by tapping the feed button - you always have full control over your tool.
Thanks to the optimally matched 2-step hydraulic system, you can also crimp DIN hexagonal Cu/Al cross-sections up to 240 mm 2 with this powerful battery crimper. In addition, this tool is even faster under load thanks to improved technology. The tool is compatible with 18 V lithium ion batteries from Makita.
Areas of application are subject to change.
Technical specifications
PressMax-C6 Ma - compatible with 18 V Makita Batteries
For spring (F) or pin (Z) crimping dies, DIN up to 240 mm2
Narrow, rotatable head for working in narrow areas
Selectable automatic return simplifies the work process
Fatigue-free working through ergonomic, lightweight construction
LED working field illumination
Battery crimping tool PressMax-C6-Set Ma - small, light, compact
The battery-operated hydraulic crimper with 60 kN is a light-weight, small and powerful crimping tool. Thanks to its improved, balanced, ergonomic design, it can be easily handled with one hand. The crimper is equipped with standard spring (Form F) or pin crimping dies (Form Z). The closed crimping head with clamp and latch offers a high degree of crimping safety. Thanks to the compact design and the 180° rotatable crimping head, the tool can be easily positioned on the workpiece. The tool is therefore very well suited for use in confined spaces, such as in switch cabinet construction. The LED for illumination of the working area supports this.You have full tool control via the feed and return buttons, which you can use at any time to control the crimping process. New is the possibility to change the tool from manual to automatic return. When the maximum force is reached, the piston automatically returns to its starting position. However, you can stop the piston at the desired position by tapping the feed button - you always have full control over your tool.
Thanks to the optimally matched 2-step hydraulic system, you can also crimp DIN hexagonal Cu/Al cross-sections up to 240 mm 2 with this powerful battery crimper. In addition, this tool is even faster under load thanks to improved technology. The tool is compatible with 18 V lithium ion batteries from Makita.
Areas of application are subject to change.
| Crimping force: | 60 kN |
|---|---|
| Crimping dies Series: | Feder (F) und Zapfen (ZA) |
| Crimping range DIN Cu: | 10 - 240 mm² |
| Crimping range DIN Al: | 10 - 240 mm² |
| Battery voltage: | Makita 18 V |
| Information: | Compatible with 18 V Makita Batteries |
| Stroke: | 15 mm |
| Weight without battery: | 3.2 kg |
| Dimensions LxWxH: | 334 x 82 x 296 mm |
| Construction form: | Pistol |
| Head: | closed |
| Lock type: | Latch / yoke |
