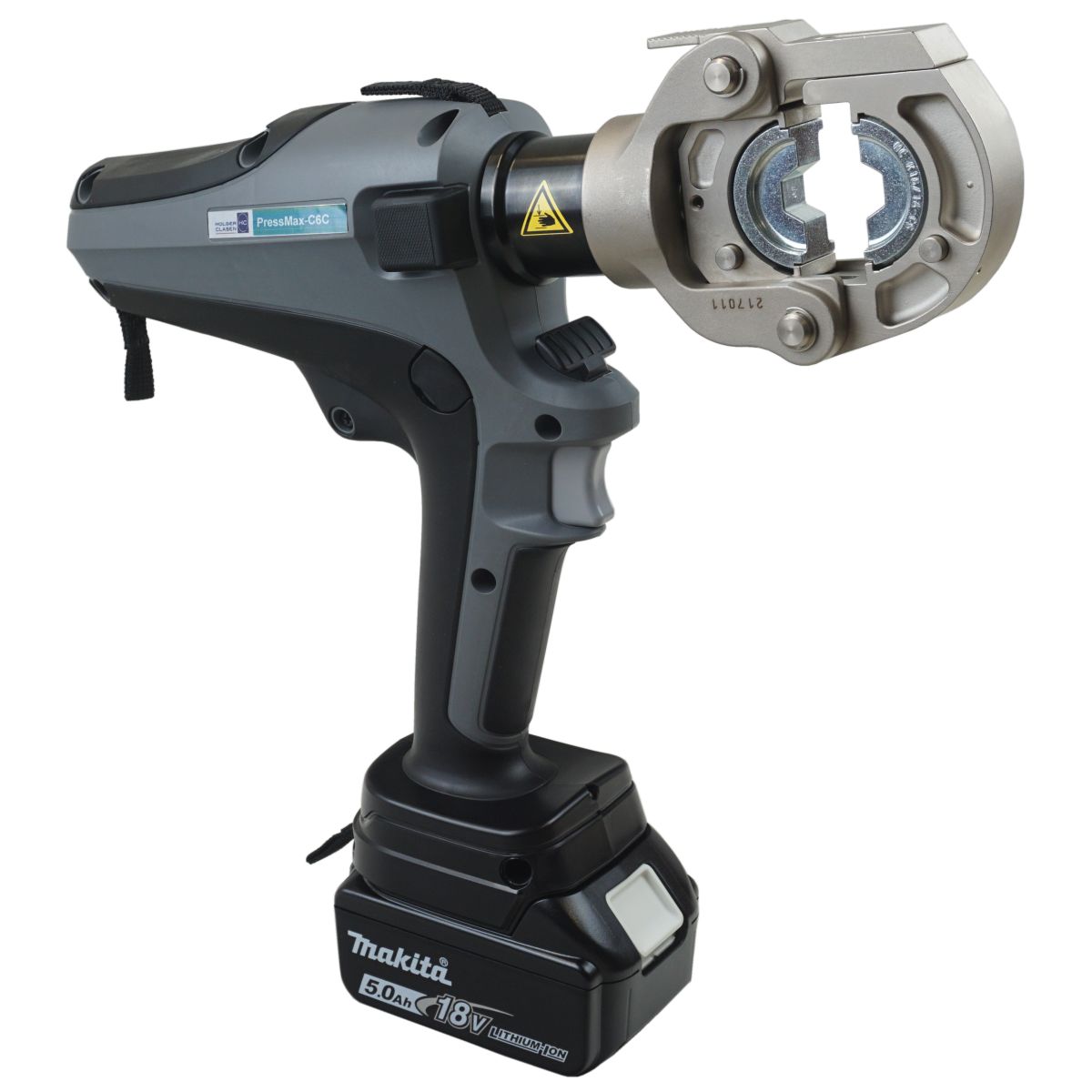

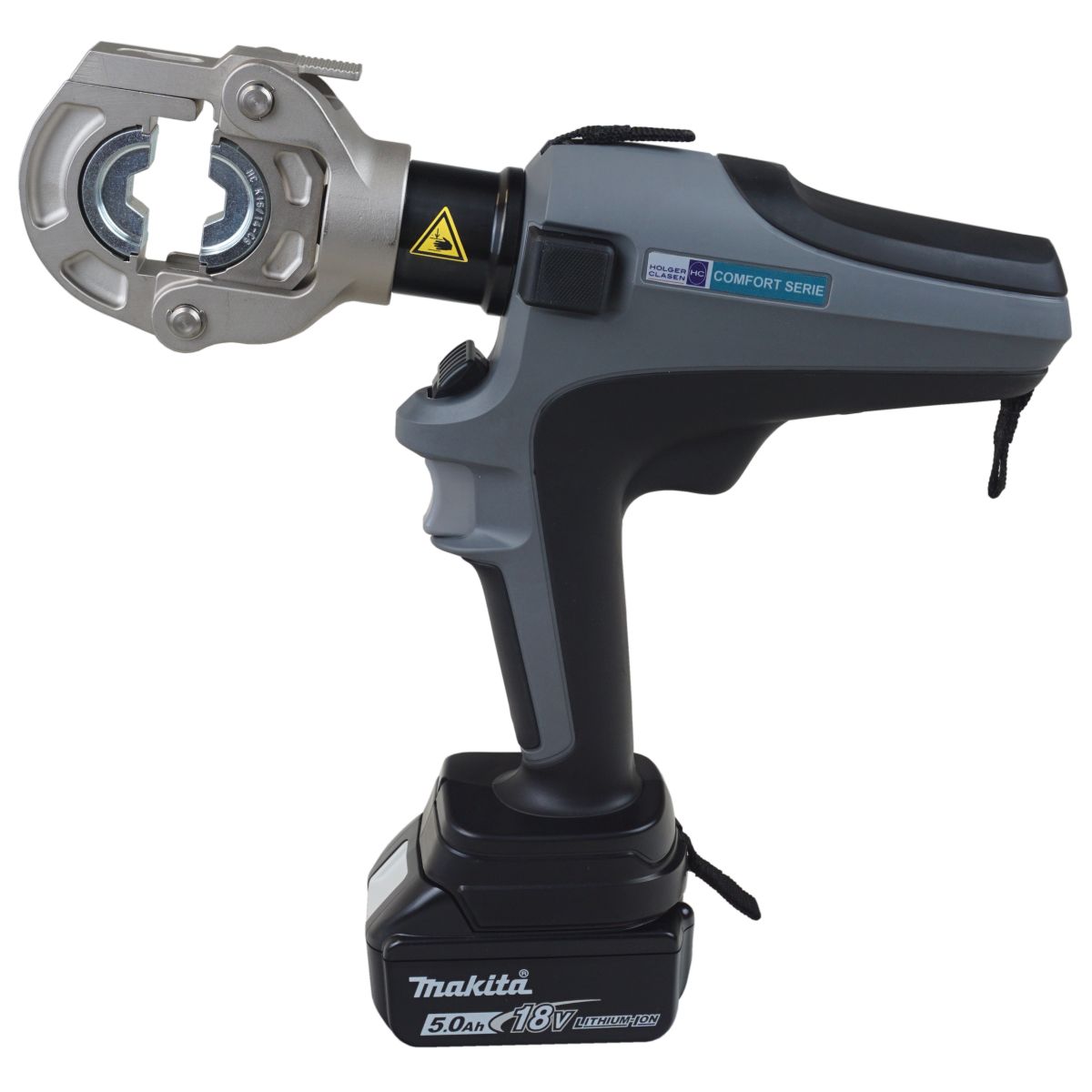

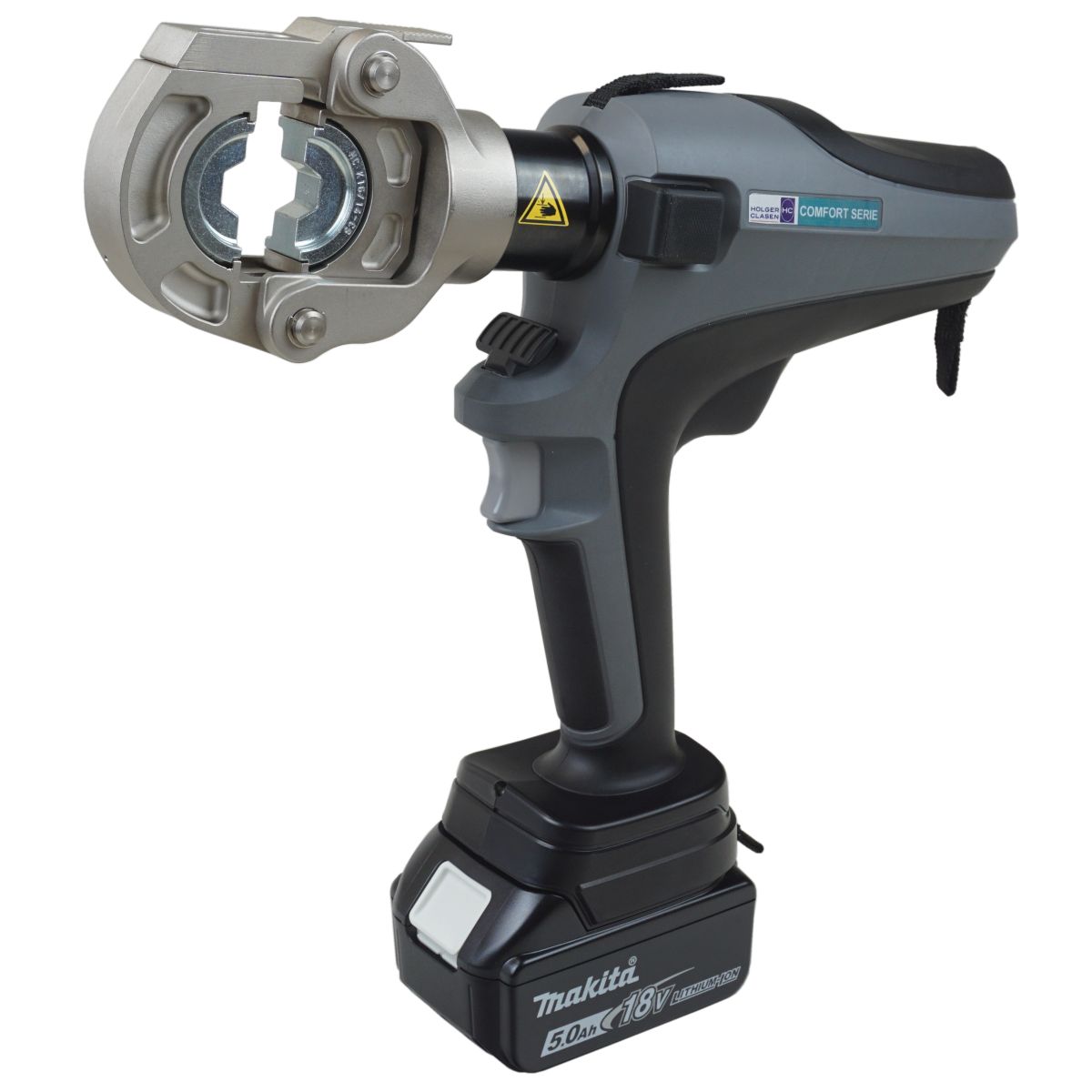

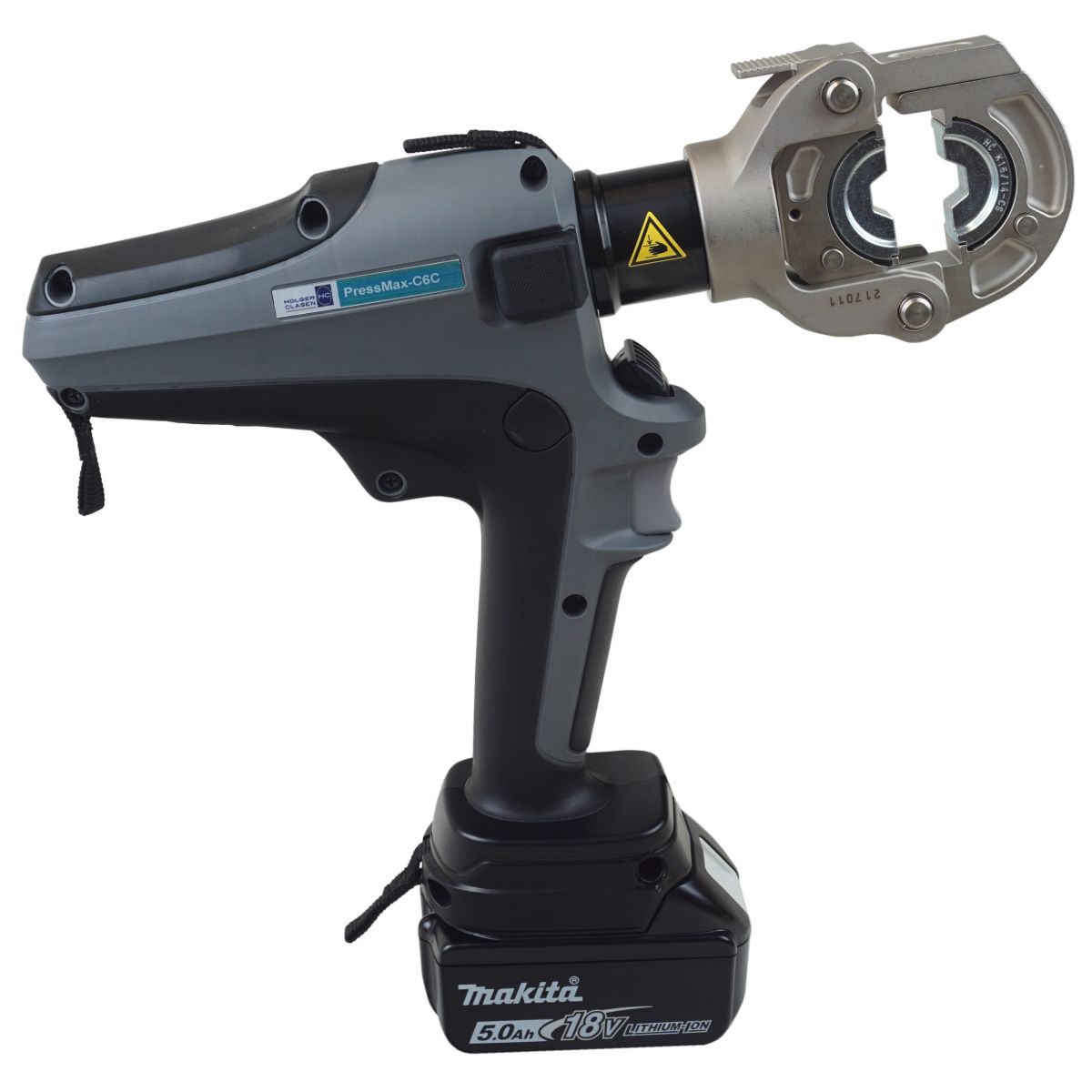

PressMax-C6-C-Set Ma Battery-Operated Hydraulic Crimper with MasterBase technology
| Crimping force: | 60 kN |
|---|---|
| Crimping range DIN Cu: | 6 - 300 mm² |
| Crimping range DIN Al: | 10 - 300 mm² |
| Information: | Compatible with 18 V Makita Batteries |
| IMPA: | 591150 |
The MasterBase technology offers the following battery options:
Product number:
76846500
MasterBase-Technologie
Ergonomic
LED lightend
Rotating Head
Narrow design
Tool control
2-step hydraulic
Battery Control
With case
18 V Makita-kompatibel
6 t C-shell press inserts
PressMax-C6-C-Set Ma Battery-Operated Hydraulic Crimper with MasterBase technology
Applications
PressMax-C6-C-Set Ma battery press - This tool enables crimping cable lugs or connectors with narrow C-shaped crimping dies (CS) up to 300 mm2 to DIN. This powerful crimping tool is ideal for applications in switch cabinet construction, electrical assembly and for energy suppliers.
Equipped with MasterBase technology for flexible selection of the battery
PressMax-C6-Set Ma - compatible with 18 V Makita Batteries
Suitable for narrow C-shaped crimping dies (CS), DIN to 300 mm2
Narrow, rotatable head for working in narrow areas
Selectable automatic return simplifies the work process
Fatigue-free working through ergonomic, lightweight construction
LED working field illumination
Areas of application are subject to change. A sample processing is recommended.
Technical specifications
PressMax-C6-Set Ma - compatible with 18 V Makita Batteries
Suitable for narrow C-shaped crimping dies (CS), DIN to 300 mm2
Narrow, rotatable head for working in narrow areas
Selectable automatic return simplifies the work process
Fatigue-free working through ergonomic, lightweight construction
LED working field illumination
Battery Press PressMax-C6-C-Set Ma - compact and powerful

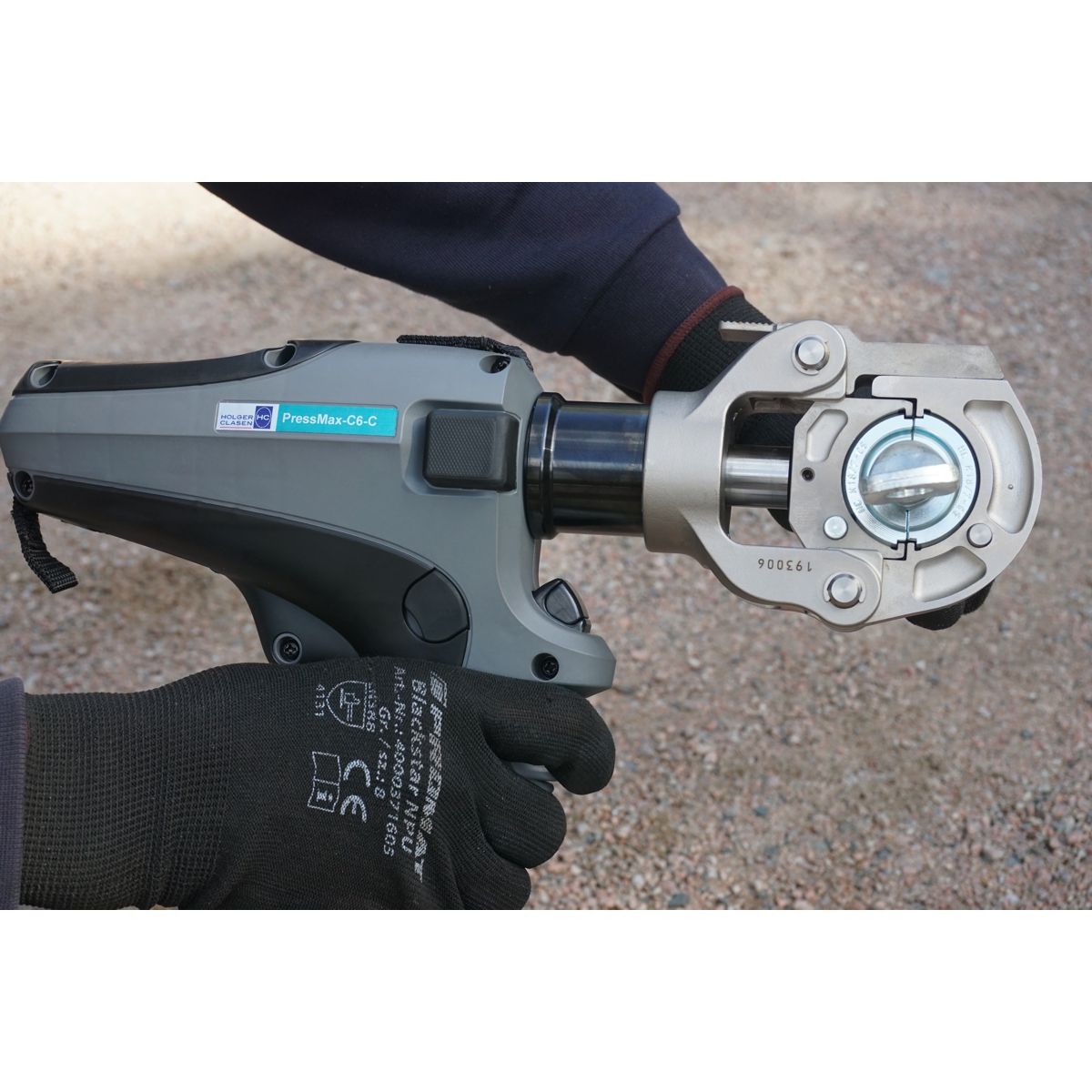

The hydraulic crimper with 60 kN crimping force is a powerful tool with excellent power weight ratio. Thanks to its improved, balanced and ergonomic design, it can be handled with one hand and ensures fatigue-free working. The narrow 180° rotating crimping head also allows crimping in hard-to-reach places. The LED support illumination of the working area. The crimping head is equipped with commercially available narrow C-shaped crimping dies (Form CS), which are firmly locked in the crimping head by a crimping die safety pin for more safety on the construction site. You have full tool control via the feed and return buttons, with which you can control the crimping process at any time. New is the possibility to change the tool to automatic return. When the maximum press force is reached, the piston automatically returns to its starting position. However, you can stop the piston at the desired position by tapping the release button - you always have full control over your tool. With 18 mm stroke and the corresponding force in optimally coordinated 2-step hydraulics, this battery press is even more powerful, especially under load, this tool is even faster. You can crimp with the battery press cross-sections DIN hexagon Cu/Al up to 300 mm2. The tool is compatible with 18 V lithium ion batteries from Makita.Areas of application are subject to change. A sample processing is recommended.
| Crimping force: | 60 kN |
|---|---|
| Crimping dies Series: | C-shaped slim (CS) |
| Crimping range DIN Cu: | 6 - 300 mm² |
| Crimping range DIN Al: | 10 - 300 mm² |
| Battery voltage: | Makita 18 V |
| Information: | Compatible with 18 V Makita Batteries |
| Stroke: | 18 mm |
| Weight without battery: | 3.4 kg |
| Dimensions LxWxH: | 340 x 82 x 277 mm |
| Construction form: | Pistol |
| Head: | closed |
| Lock type: | Snap fit |
| IMPA: | 591150 |
