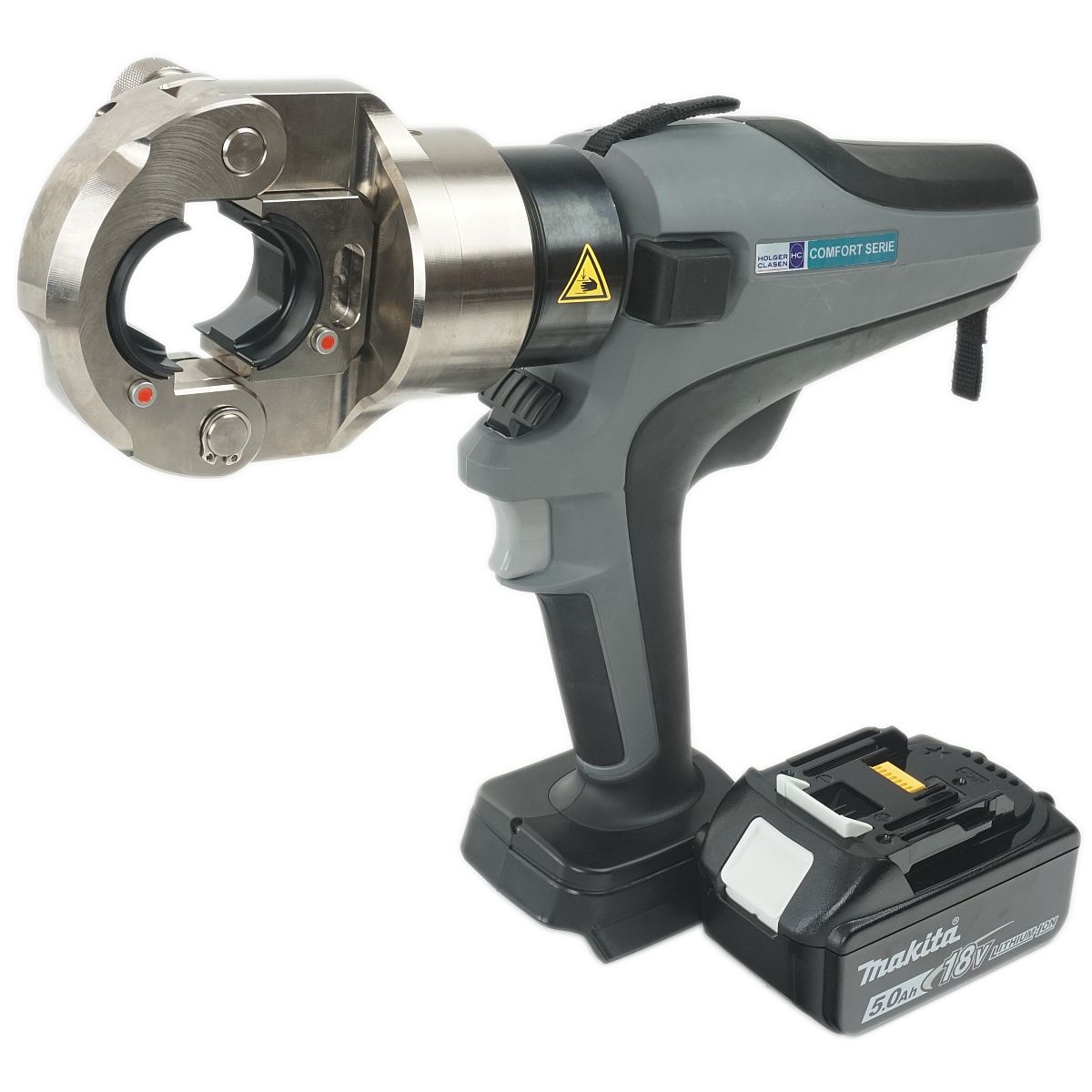

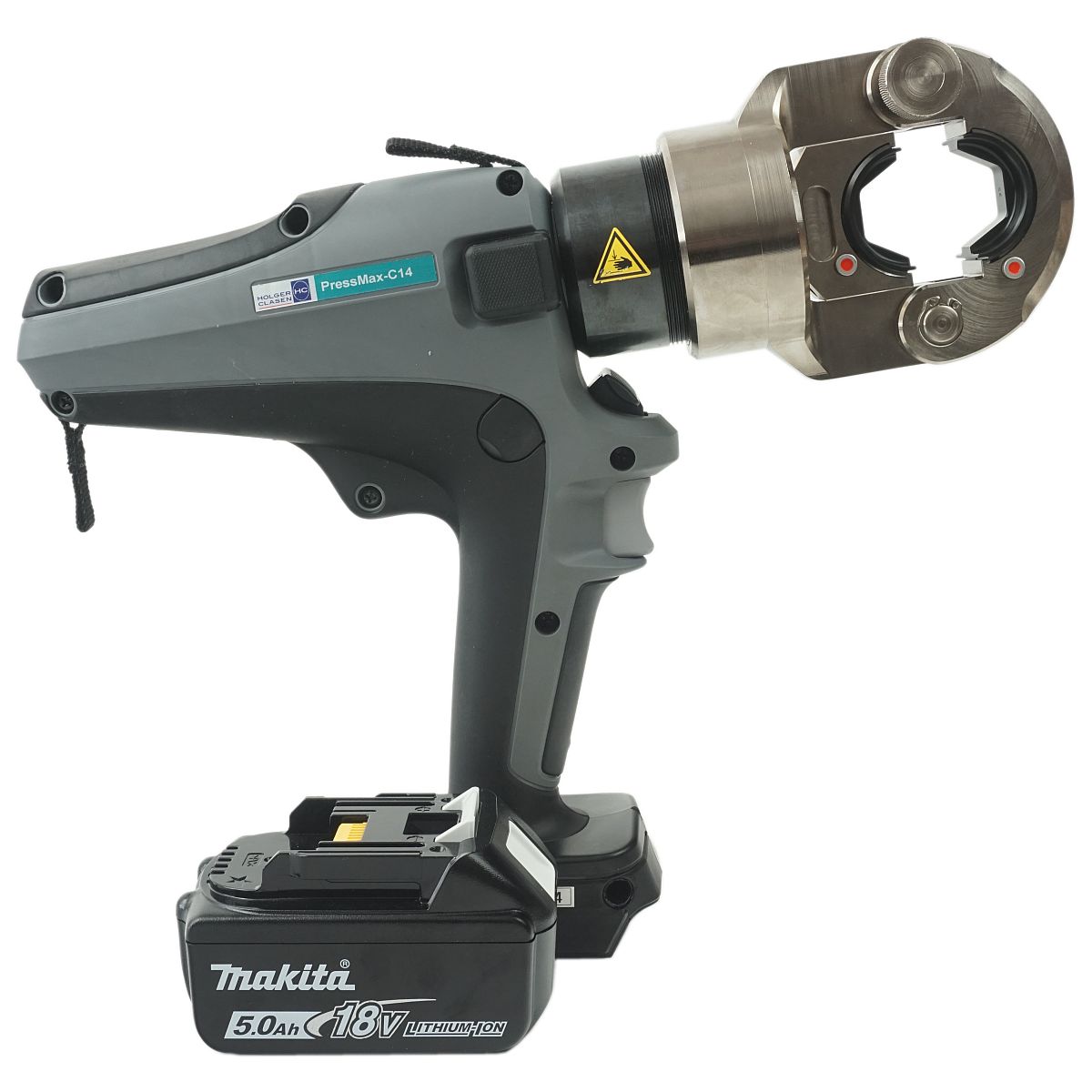

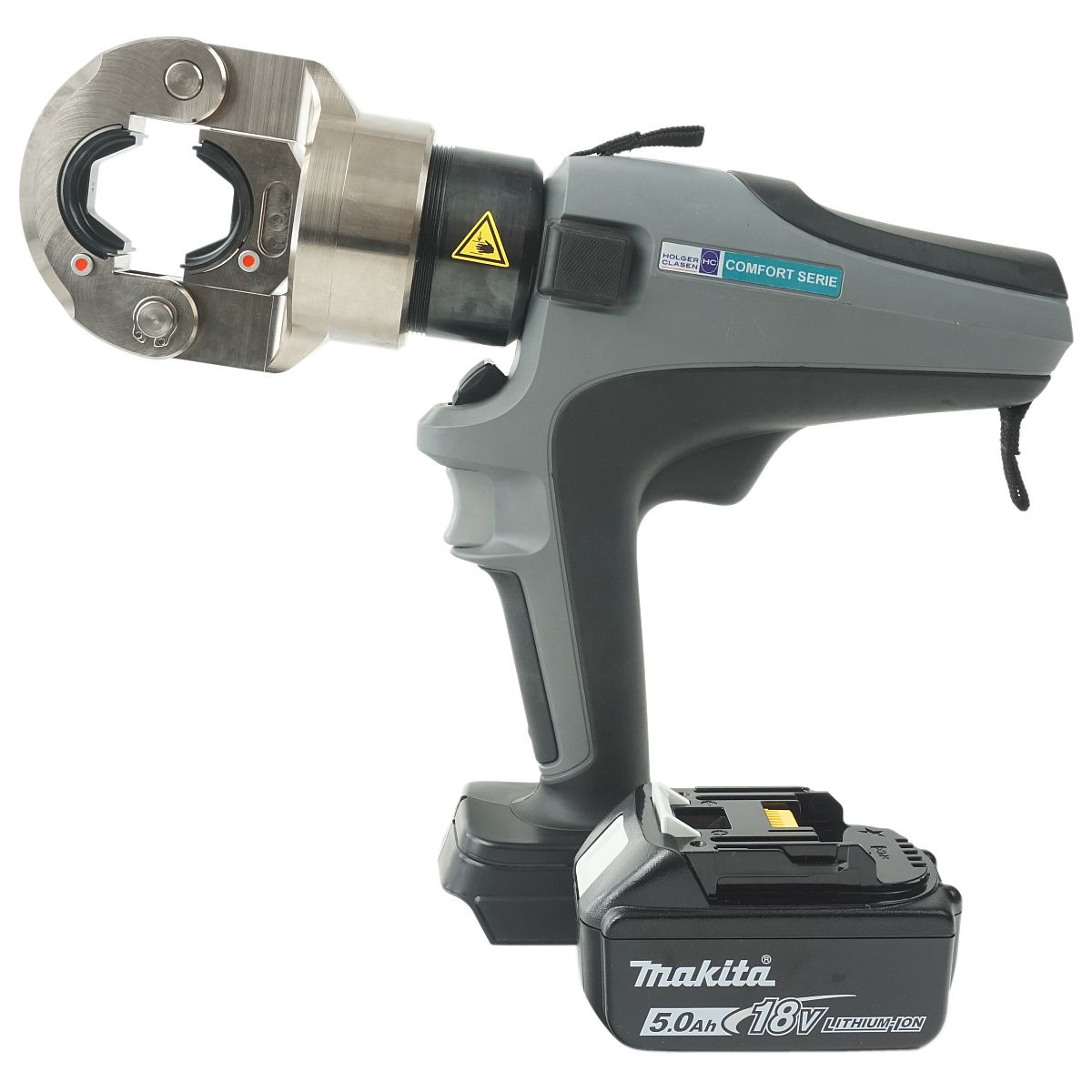

PressMax-C14-Set Ma Battery-Operated Hydraulic Crimper with MasterBase technology
| Crimping force: | 140 kN |
|---|---|
| Crimping range DIN Cu: | 10 - 400 mm² |
| Crimping range DIN Al: | 10 - 400 mm² |
| Information: | Compatible with 18 V Makita Batteries |
The MasterBase technology offers the following battery options:
Product number:
76854000
MasterBase-Technologie
LED lightend
Rotating Head
Tool control
2-step hydraulic
Battery Control
With case
18 V Makita-kompatibel
C-shaped crimping dies
PressMax-C14-Set Ma Battery-Operated Hydraulic Crimper with MasterBase technology
Applications
Battery-powered hydraulic crimping tool PressMax-C14-Set Ma - This powerful battery-hydraulic crimping tool processes cable lugs and connectors up to 400 mm2 according to DIN with standard C-shaped crimping dies, even wide crimps facilitate the crimping process. Its versatility makes it suitable for use in power supply companies, municipal utilities, industrial cable assembly or wind energy.
Equipped with MasterBase technology for flexible selection of the battery
PressMax-C14 Ma - compatible with 18 V Makita Batteries
Suitable for C-shaped crimping dies (C), DIN to 400 mm2
Time saving due to wide crimps
Stroke enables crimping of H-clamps
Selectable automatic return simplifies the work process
Fatigue-free working through ergonomic, balanced construction
LED working field illumination
You have full tool control via the feed and return buttons, which you can use at any time to control the crimping process. New is the possibility to change the tool from manual to automatic return. When the maximum force is reached, the piston automatically returns to its starting position. However, you can stop the piston at the desired position by tapping the feed button - you always have full control over your tool.
With 22 mm stroke and the corresponding force in optimally matched 2-step hydraulics, the battery-operated crimping tool can also be used to crimp cross-sections DIN hexagon Cu/Al up to 400 mm2. The possibility of wide crimping saves valuable working time, fewer crimping cycles are necessary. In addition, this tool is even faster under load thanks to improved technology. The tool is compatible with 18 V lithium ion batteries from Makita.
Areas of application are subject to change.
Technical specifications
PressMax-C14 Ma - compatible with 18 V Makita Batteries
Suitable for C-shaped crimping dies (C), DIN to 400 mm2
Time saving due to wide crimps
Stroke enables crimping of H-clamps
Selectable automatic return simplifies the work process
Fatigue-free working through ergonomic, balanced construction
LED working field illumination
Battery-powered hydraulic crimping tool PressMax-C14-Set Ma - most powerful crimper in this range

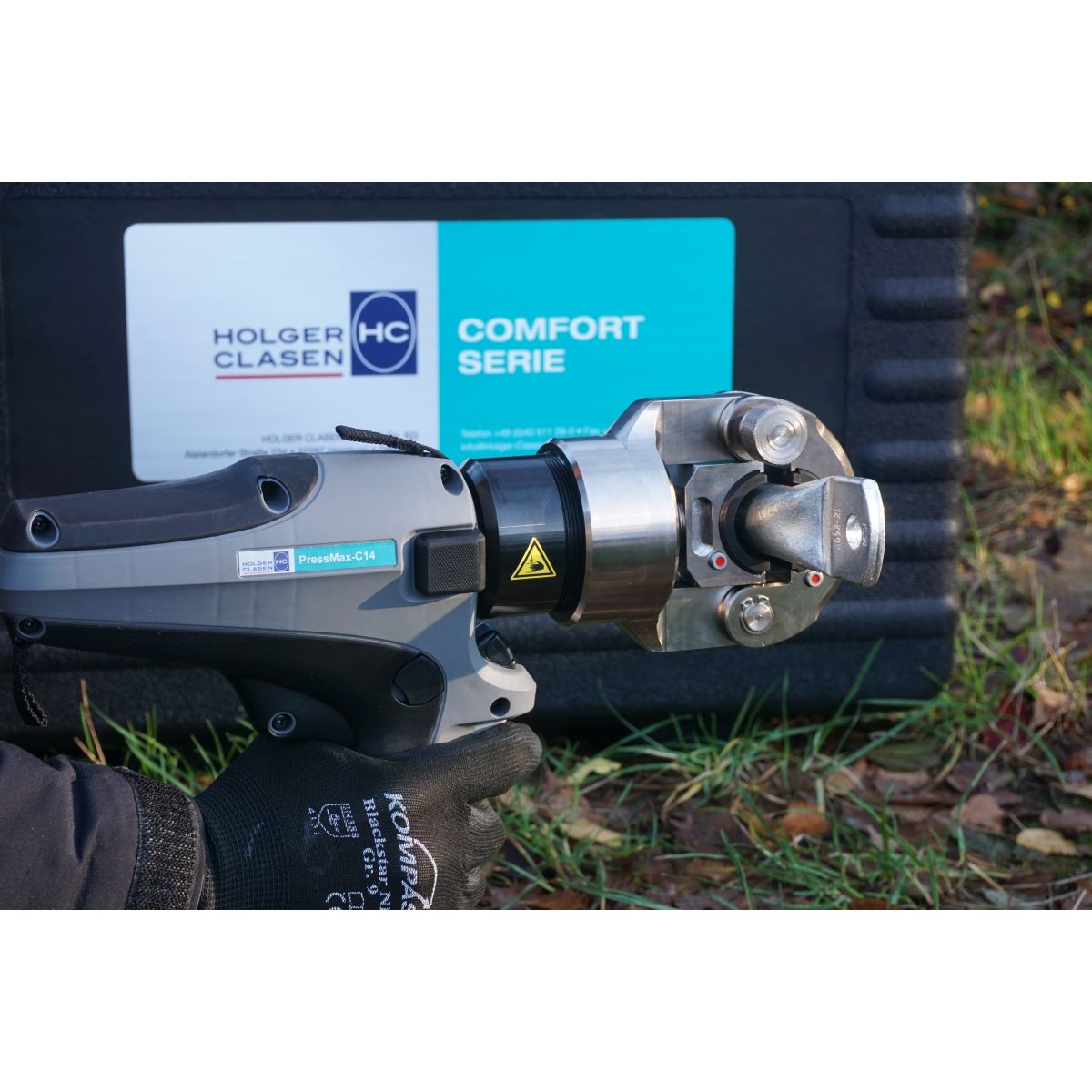

With 140 kN, the hydraulic crimping tool is a very powerful, compact and versatile crimping tool. Thanks to its improved, balanced and ergonomic housing, it can also be easily handled with one hand. The crimping tool is equipped with standard C-shaped crimping dies (C shaped). The patented safety lock and the crimping die safety pins offer double safety. Damage caused by incorrectly inserted dies or an insufficiently closed crimping head is now a thing of the past. Thanks to the compact design and the 180° rotatable crimping head, the tool can be easily positioned on the workpiece. The head is narrowly designed for this performance class and can therefore also be used in confined spaces. The LED for illumination of the working area supports this.You have full tool control via the feed and return buttons, which you can use at any time to control the crimping process. New is the possibility to change the tool from manual to automatic return. When the maximum force is reached, the piston automatically returns to its starting position. However, you can stop the piston at the desired position by tapping the feed button - you always have full control over your tool.
With 22 mm stroke and the corresponding force in optimally matched 2-step hydraulics, the battery-operated crimping tool can also be used to crimp cross-sections DIN hexagon Cu/Al up to 400 mm2. The possibility of wide crimping saves valuable working time, fewer crimping cycles are necessary. In addition, this tool is even faster under load thanks to improved technology. The tool is compatible with 18 V lithium ion batteries from Makita.
Areas of application are subject to change.
| Crimping force: | 140 kN |
|---|---|
| Crimping dies Series: | C-shaped (C) |

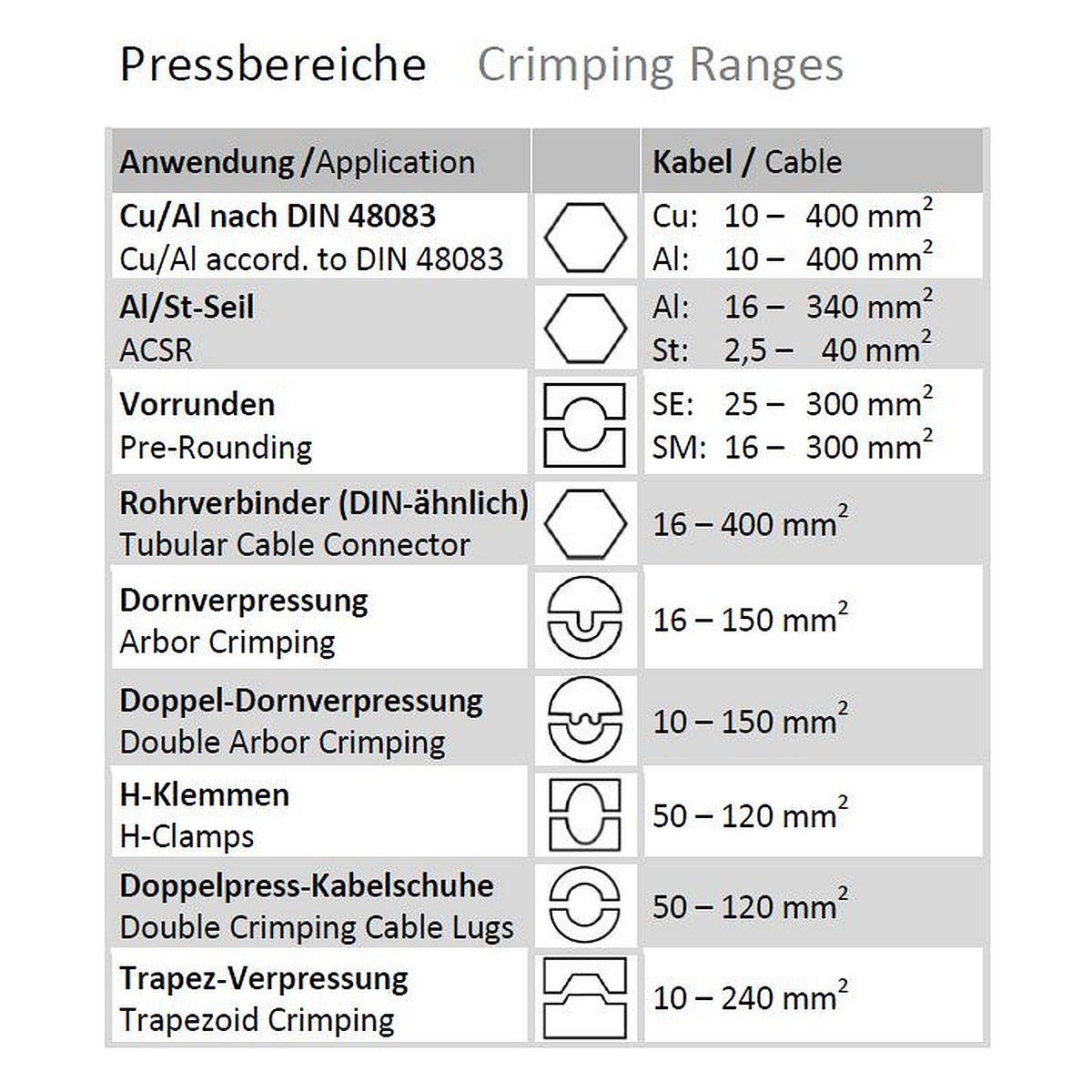

| Crimping range DIN Cu: | 10 - 400 mm² |
| Crimping range DIN Al: | 10 - 400 mm² |
| Battery voltage: | Makita 18 V |
| Information: | Compatible with 18 V Makita Batteries |
| Stroke: | 22 mm |
| Weight without battery: | 4.8 kg |
| Dimensions LxWxH: | 356 x 82 x 300 mm |
| Construction form: | Pistol |
| Head: | closed |
| Lock type: | Fork / safety lock pin |
