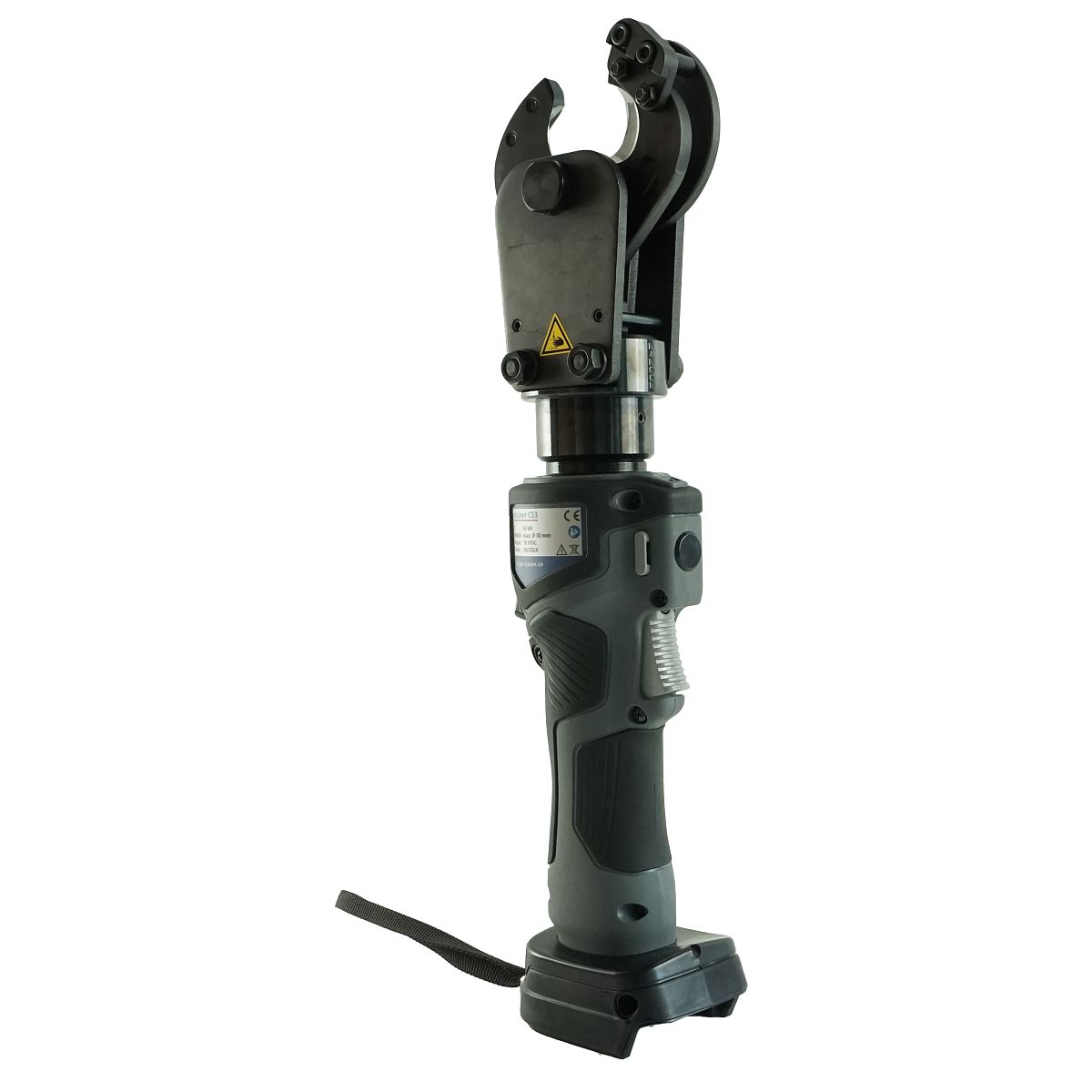

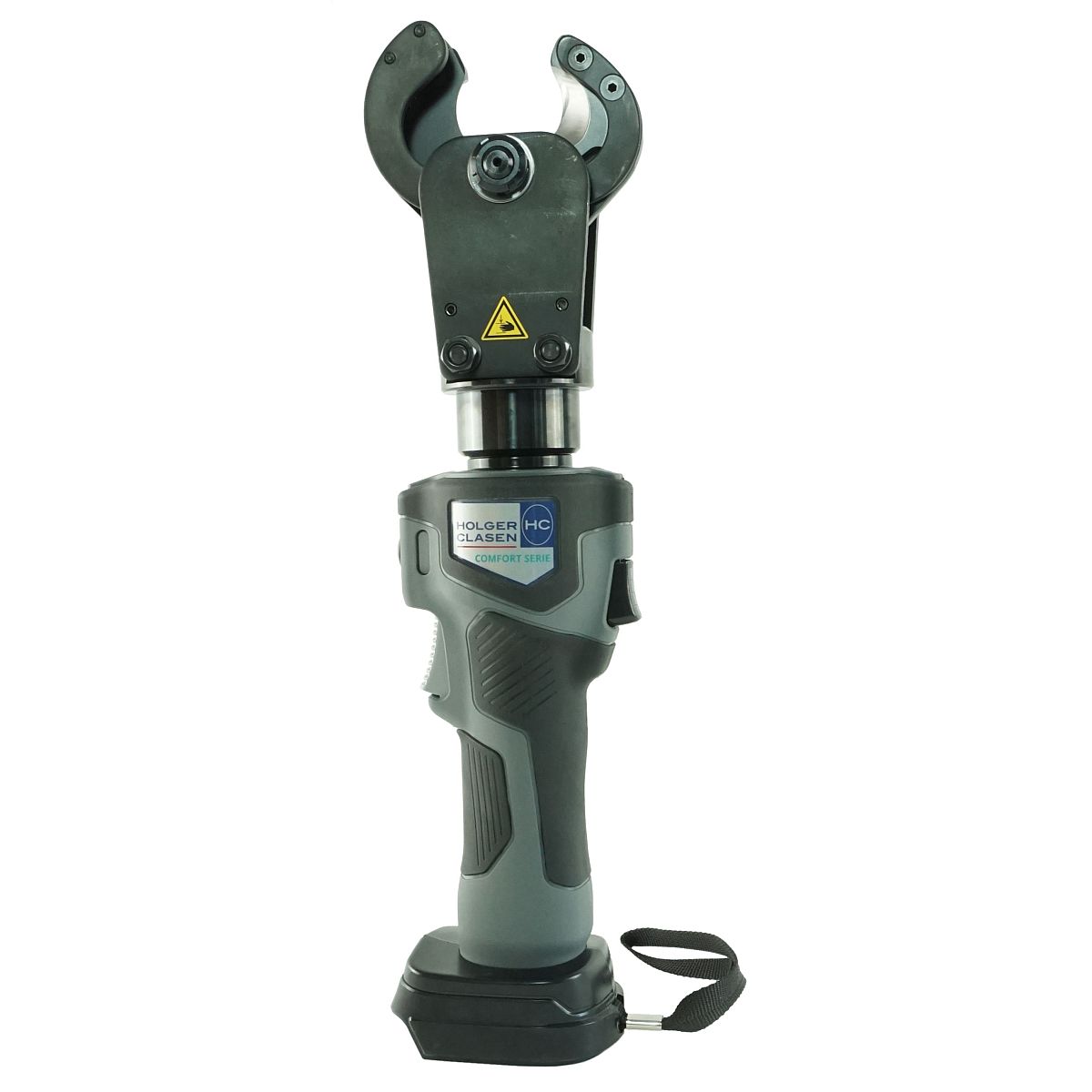

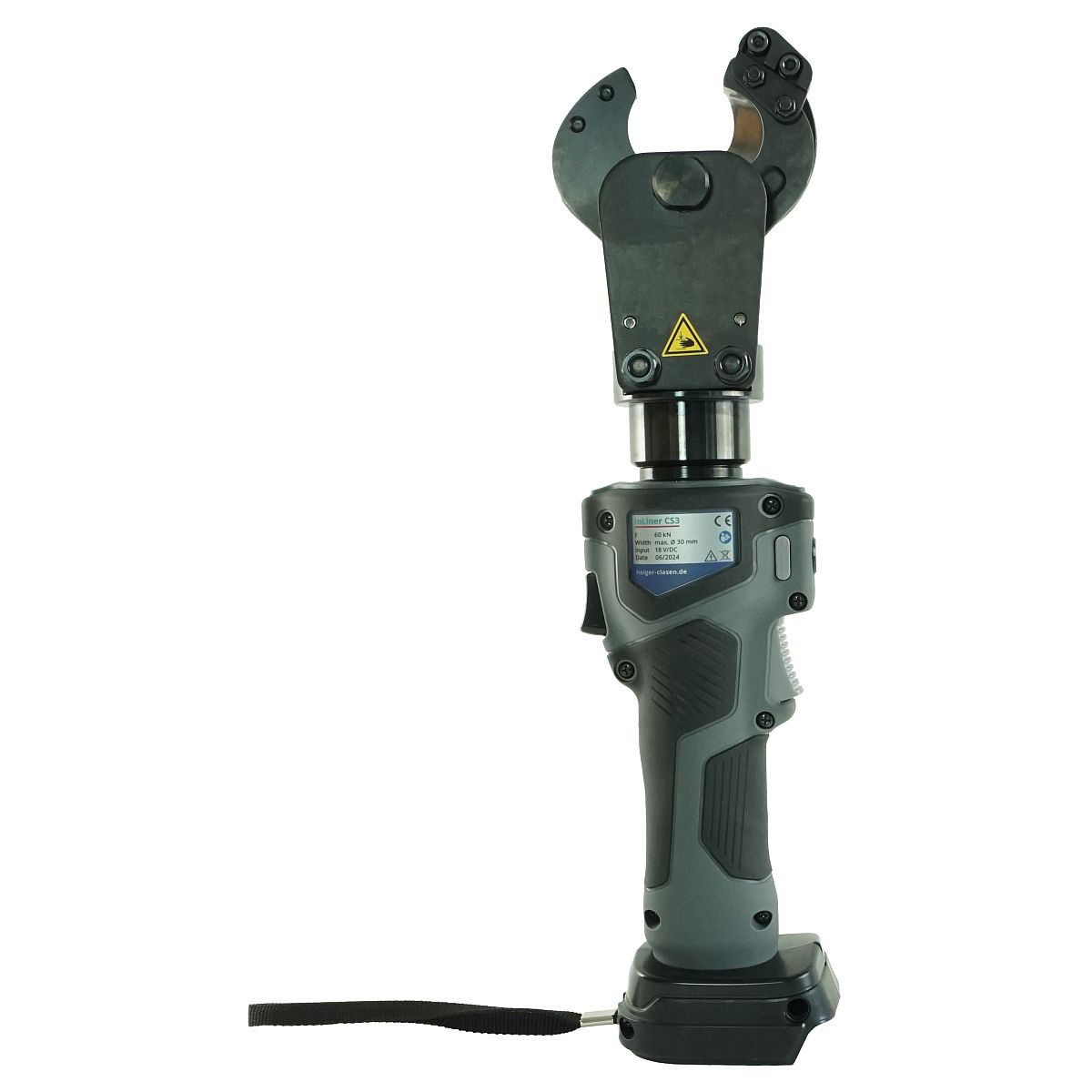

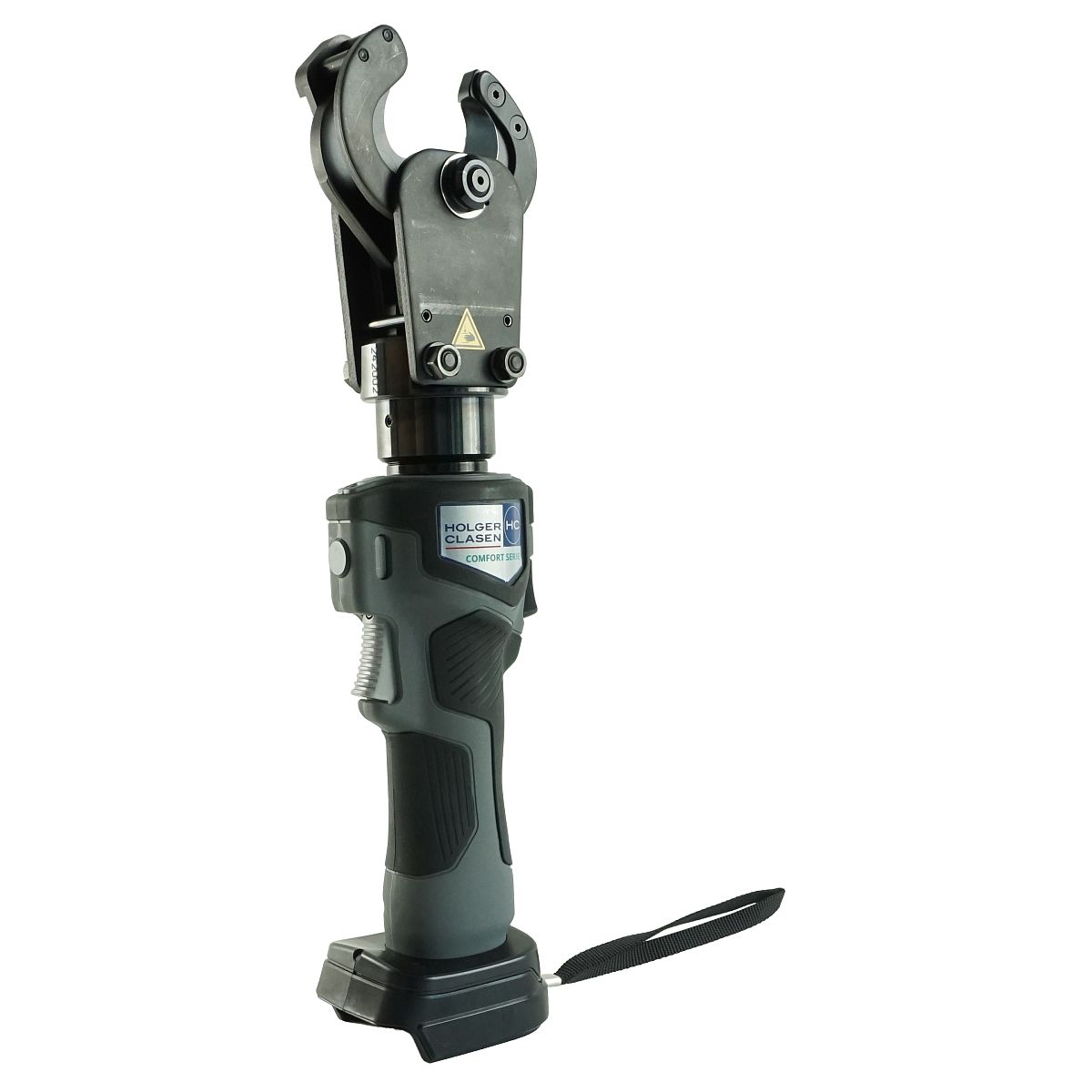

InLiner® CS3 Ma Battery-Operated Hydraulic Cutter with MasterBase technology
| Cutting force: | 60 kN |
|---|---|
| Opening width: | 30 mm |
| Information: | Compatible with 18 V Makita Batteries |
The MasterBase technology offers the following battery options:
Product number:
72000300
MasterBase-Technologie
Ergonomic
LED lightend
Rotating Head
Battery Control
18 V Makita-kompatibel
InLiner® CS3 Ma Battery-Operated Hydraulic Cutter with MasterBase technology
Applications
This tool allows particularly good positioning on the cable or rope to its open cutting blade. Optionally available with a fine-ground blade for class 5 and 6 conductors.
Equipped with MasterBase technology for flexible selection of the battery
InLiner® CS3 Ma - compatible with 18 V Makita Batteries
Open cutting head for easy positioning on the cable
Selectable automatic return simplifies the work process
Design ideally for working in narrow areas
Selectable automatic return for efficient work
Fatigue-free working through ergonomic, lightweight construction
Short cutting times due to double-piston hydraulics
LED working field illumination
You have full tool control via the forward and reverse buttons, which you can use to control the cutting process at any time. A new feature is the option to switch the tool from manual to automatic return. Once the maximum force has been reached, the piston automatically returns to the starting position. However, you can stop the piston at the desired position by tapping the forward button - you always have full control over your tool.
Thanks to the double piston hydraulics, you can easily cut diameters up to 30 mm, and the tool works even faster under load. The tool is compatible with 18 V lithium ion batteries from Makita.
Areas of application are subject to change. A sample processing is recommended.
Technical specifications
InLiner® CS3 Ma - compatible with 18 V Makita Batteries
Open cutting head for easy positioning on the cable
Selectable automatic return simplifies the work process
Design ideally for working in narrow areas
Selectable automatic return for efficient work
Fatigue-free working through ergonomic, lightweight construction
Short cutting times due to double-piston hydraulics
LED working field illumination
InLiner® CS3 Ma - safe, ergonomic cutting
At 60 kN, the tool is a powerful, lightweight and handy cutting tool. Thanks to its balanced, ergonomic design, it can be easily handled with one hand. The compact design and the 180° rotatable head allow the tool to be easily positioned on the workpiece. The cutting head with its open geometry is ideal for confined spaces. It can be used very well in confined spaces, such as in switch cabinet construction. The LED for illuminating the work area provides support.You have full tool control via the forward and reverse buttons, which you can use to control the cutting process at any time. A new feature is the option to switch the tool from manual to automatic return. Once the maximum force has been reached, the piston automatically returns to the starting position. However, you can stop the piston at the desired position by tapping the forward button - you always have full control over your tool.
Thanks to the double piston hydraulics, you can easily cut diameters up to 30 mm, and the tool works even faster under load. The tool is compatible with 18 V lithium ion batteries from Makita.
Areas of application are subject to change. A sample processing is recommended.
| Cutting force: | 60 kN |
|---|---|
| Opening width: | 30 mm |
| Battery voltage: | Makita 18 V |
| Information: | Compatible with 18 V Makita Batteries |
| Weight without battery: | 3.6 kg |
| Dimensions LxWxH: | 412 x 76 x 109 mm |
| Construction form: | Bar-shaped Tool |
| Head: | open |
