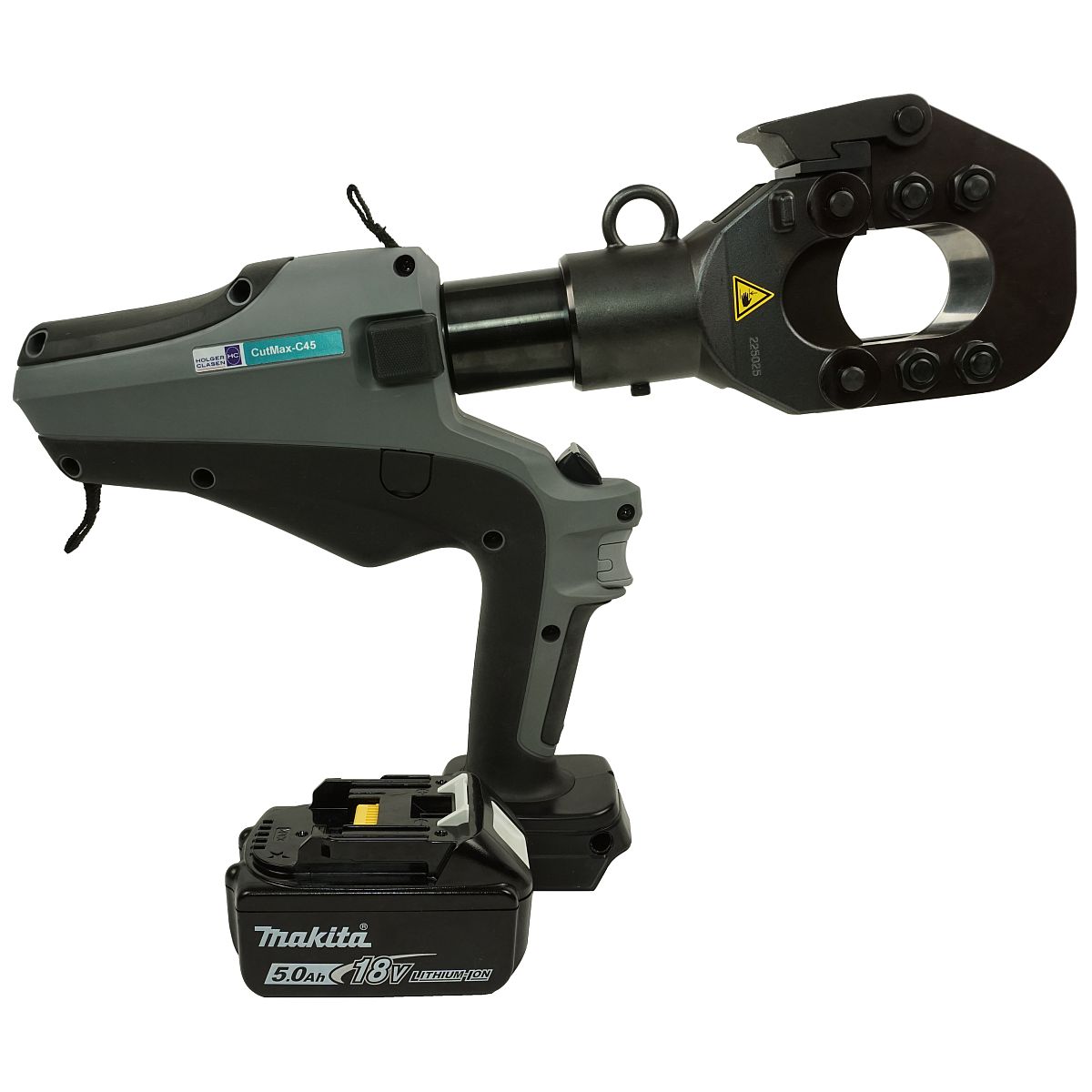

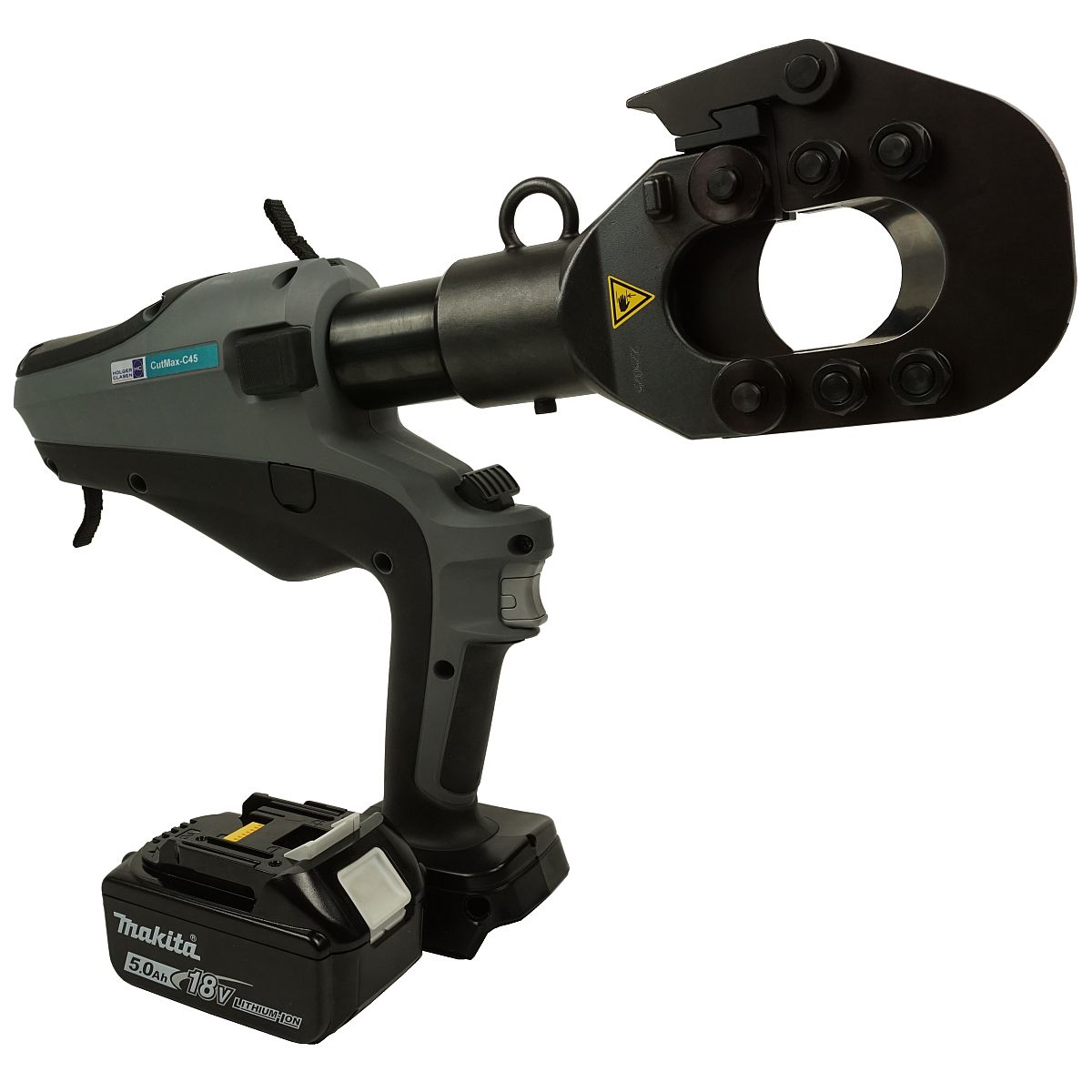

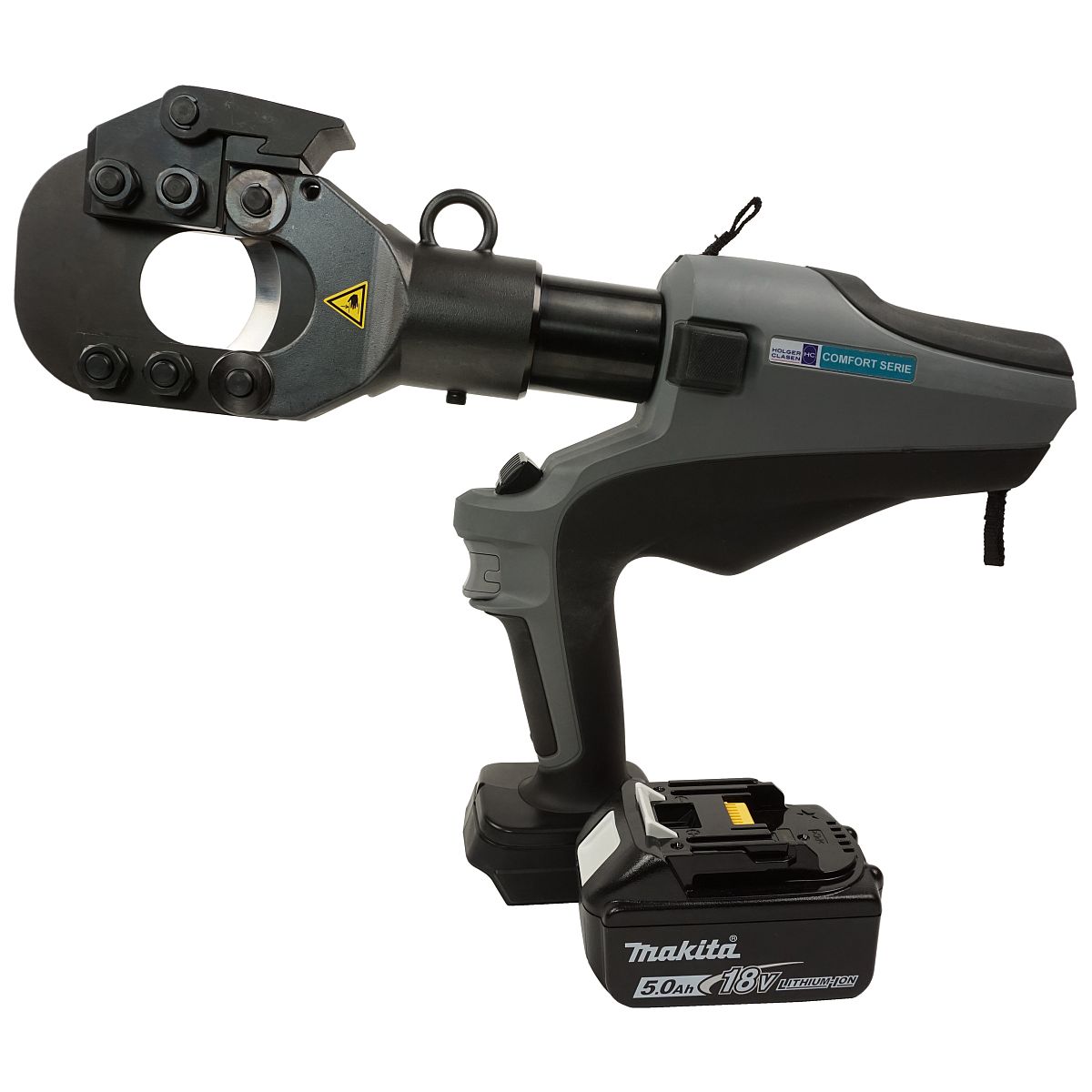

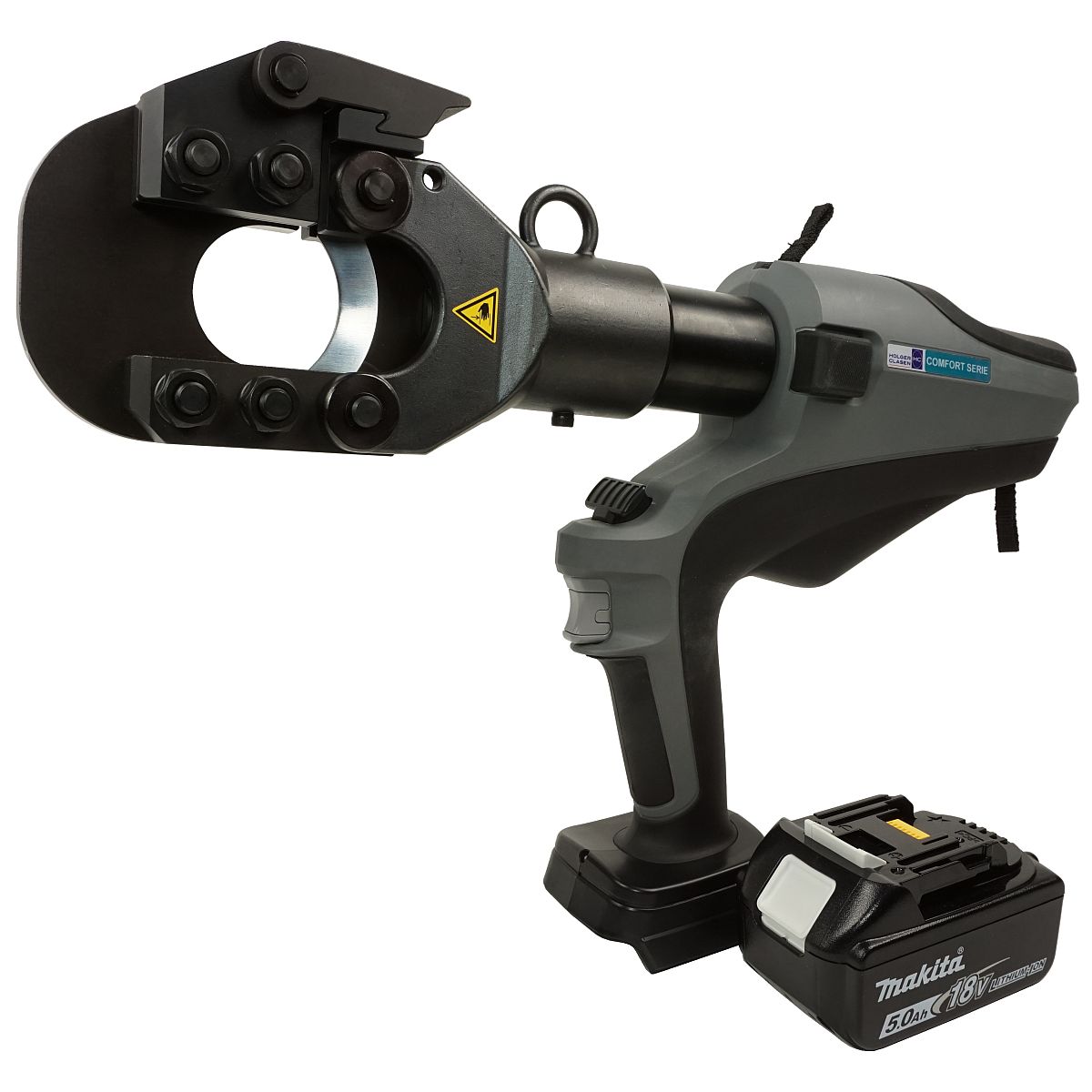

CutMax-C45-Set Ma Battery-Operated Hydraulic Cutter with MasterBase technology
| Cutting force: | 70 kN |
|---|---|
| Opening width: | 45 mm |
| Suitable for: | overhead lines |
| Information: | Compatible with 18 V Makita Batteries |
The MasterBase technology offers the following battery options:
Product number:
72644500
MasterBase-Technologie
Ergonomic
LED lightend
Rotating Head
2-step hydraulic
Battery Control
18 V Makita-kompatibel
CutMax-C45-Set Ma Battery-Operated Hydraulic Cutter with MasterBase technology
Applications
Battery hydraulic wire rope cutter CutMax-C45-Set Ma - You can cover many applications with this battery-operated hydraulic all-round cutting tool - it cuts steel and wire rope, cables and overhead lines (ACSR 1045/45) powerfully and quickly. The closed, rotatable cutting head ensures safety and inspires users from the electrical industry, the energy sector or elevator construction.
Equipped with MasterBase technology for flexible selection of the battery
CutMax-C45 Ma - compatible with 18 V Makita Batteries
Selective Automatic and snap lock return simplify the work process
Fatigue-free working through balanced ergonomics
Lockable start button ensures work safety
LED working field illumination
Closed cutting head ensures process reliability
The wire rope cutter cuts Cu- and Al-strand as well as round material and even round steel up to a diameter of 20 mm. In overhead line construction you can cut ropes such as 1045/45, the power industry uses the cutter for power cables up to 45 mm in diameter. With the appropriate power in optimally coordinated 2-stage hydraulics, improved technology allows you to work even faster under load. You have full tool control via the feed and return buttons, with which you can control the cutting process at any time. A new feature is the option of switching the tool to automatic return. After reaching the maximum cutting force, the cutting blades automatically return to their starting position. However, you can stop the knives at the desired position by tapping the feed button - you always have full control over your tool. The tool is compatible with 18 V lithium-ion batteries from Makita.
Areas of application are subject to change.
Technical specifications
CutMax-C45 Ma - compatible with 18 V Makita Batteries
Selective Automatic and snap lock return simplify the work process
Fatigue-free working through balanced ergonomics
Lockable start button ensures work safety
LED working field illumination
Closed cutting head ensures process reliability
Battery-operated hydraulic cutting tool CutMax-C45-Set Ma - powerful and versatile
The battery cutter CutMax-C45 with 70 kN and 45 mm opening width is a universally applicable, powerful battery hydraulic cutting tool, which you can safely position on the cable even in confined spaces. The LED for illumination of the working area supports this. The snap lock makes handling easier.The wire rope cutter cuts Cu- and Al-strand as well as round material and even round steel up to a diameter of 20 mm. In overhead line construction you can cut ropes such as 1045/45, the power industry uses the cutter for power cables up to 45 mm in diameter. With the appropriate power in optimally coordinated 2-stage hydraulics, improved technology allows you to work even faster under load. You have full tool control via the feed and return buttons, with which you can control the cutting process at any time. A new feature is the option of switching the tool to automatic return. After reaching the maximum cutting force, the cutting blades automatically return to their starting position. However, you can stop the knives at the desired position by tapping the feed button - you always have full control over your tool. The tool is compatible with 18 V lithium-ion batteries from Makita.
Areas of application are subject to change.
| Cutting force: | 70 kN |
|---|---|
| Opening width: | 45 mm |
| Suitable for: | overhead lines |
| Battery voltage: | Makita 18 V |
| Information: | Compatible with 18 V Makita Batteries |
| Weight without battery: | 6.1 kg |
| Dimensions LxWxH: | 444 x 92 x 307 mm |
| Construction form: | Pistol |
| Head: | closed |
| Lock type: | Snap fit |
