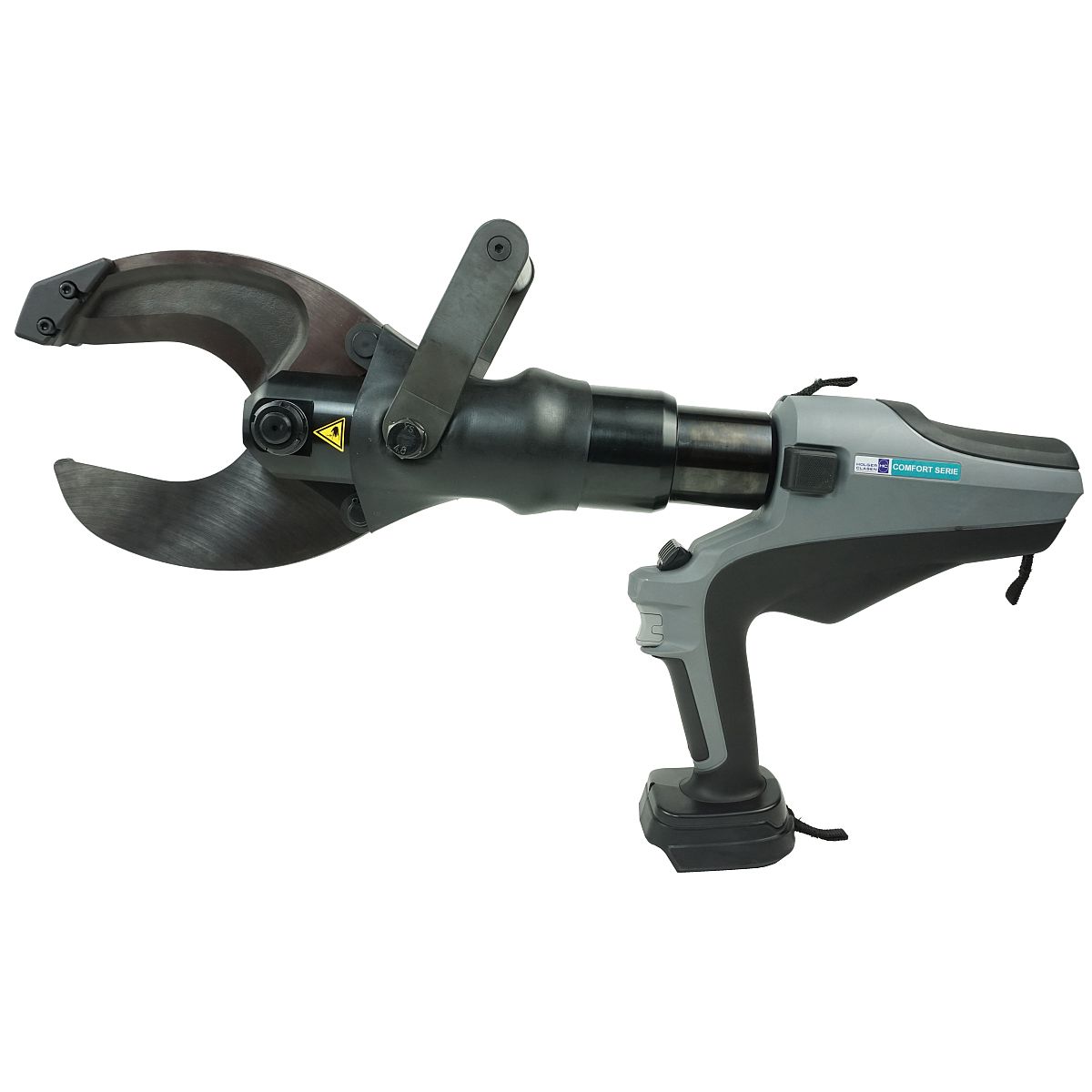

CutMax-C11 Bo Battery-Operated Hydraulic Cutter with MasterBase technology
| Cutting force: | 124 kN |
|---|---|
| Opening width: | 105 mm |
| Information: | Compatible with 18 V Bosch Batteries |
The MasterBase technology offers the following battery options:
Product number:
72672500
MasterBase-Technologie
LED lightend
Rotating Head
2-step hydraulic
Battery Control
CutMax-C11 Bo Battery-Operated Hydraulic Cutter with MasterBase technology
Applications
Battery-operated cutting tool CutMax-C11 Bo - with this battery-operated hydraulic cutting tool, you can cut armored cables up to Ø 105 mm, submarine cables up to Ø 80 mm or underground cables such as NYY 4 x 240 mm2. This tool therefore covers typical applications in municipal utilities, the electrical industry and energy suppliers.
Equipped with MasterBase technology for flexible selection of the battery
CutMax-C11 Bo - compatible with 18 V Bosch Batteries
Selective Automatic and snap lock return simplify the work process
Fatigue-free working through balanced ergonomics
Also cuts armored cables (Ground cable NYY 4x240mm2)
2-step hydraulic for faster cuts
Lockable start button ensures work safety
LED working field illumination
Closed cutting head ensures process reliability
Areas of application are subject to change.
Technical specifications
CutMax-C11 Bo - compatible with 18 V Bosch Batteries
Selective Automatic and snap lock return simplify the work process
Fatigue-free working through balanced ergonomics
Also cuts armored cables (Ground cable NYY 4x240mm2)
2-step hydraulic for faster cuts
Lockable start button ensures work safety
LED working field illumination
Closed cutting head ensures process reliability
Battery-operated hydraulic cutting tool CutMax-C11 Bo - powerful and reliable
The battery cutter with 124 kN is a powerful cordless hydraulic cutting tool, which can also be positioned well on the cable in confined spaces with the open cutting geometry. The LED for illumination of the working area and the additional handle support this. With the handle that can be used on both sides, you have the 8.5 kg weight well under control and can also position the cordless cutting tool securely in the field. With 105 mm opening width and the corresponding force in optimally matched 2-step hydraulics, you can now cut even large cross-sections even more efficiently, e.g. Cu or Al stranded conductors, round material and power cables Al up to 4 x 300 mm2. Thanks to improved technology, this tool is even faster under load. You have full tool control via the feed and return buttons, with which you can control the cutting process at any time. New is the possibility to change the tool to automatic return. After reaching the maximum cutting force, the cutting blades automatically return to their starting position. However, you can stop the blades at the desired position by tapping the feed button - you always have full control over your tool. The tool is compatible with 18 V lithium ion batteries from Bosch.Areas of application are subject to change.
| Cutting force: | 124 kN |
|---|---|
| Opening width: | 105 mm |
| Battery voltage: | Bosch 18 V |
| Information: | Compatible with 18 V Bosch Batteries |
| Weight without battery: | 8.5 kg |
| Dimensions LxWxH: | 601 x 92 x 346 mm |
| Construction form: | Pistol |
| Head: | open |
