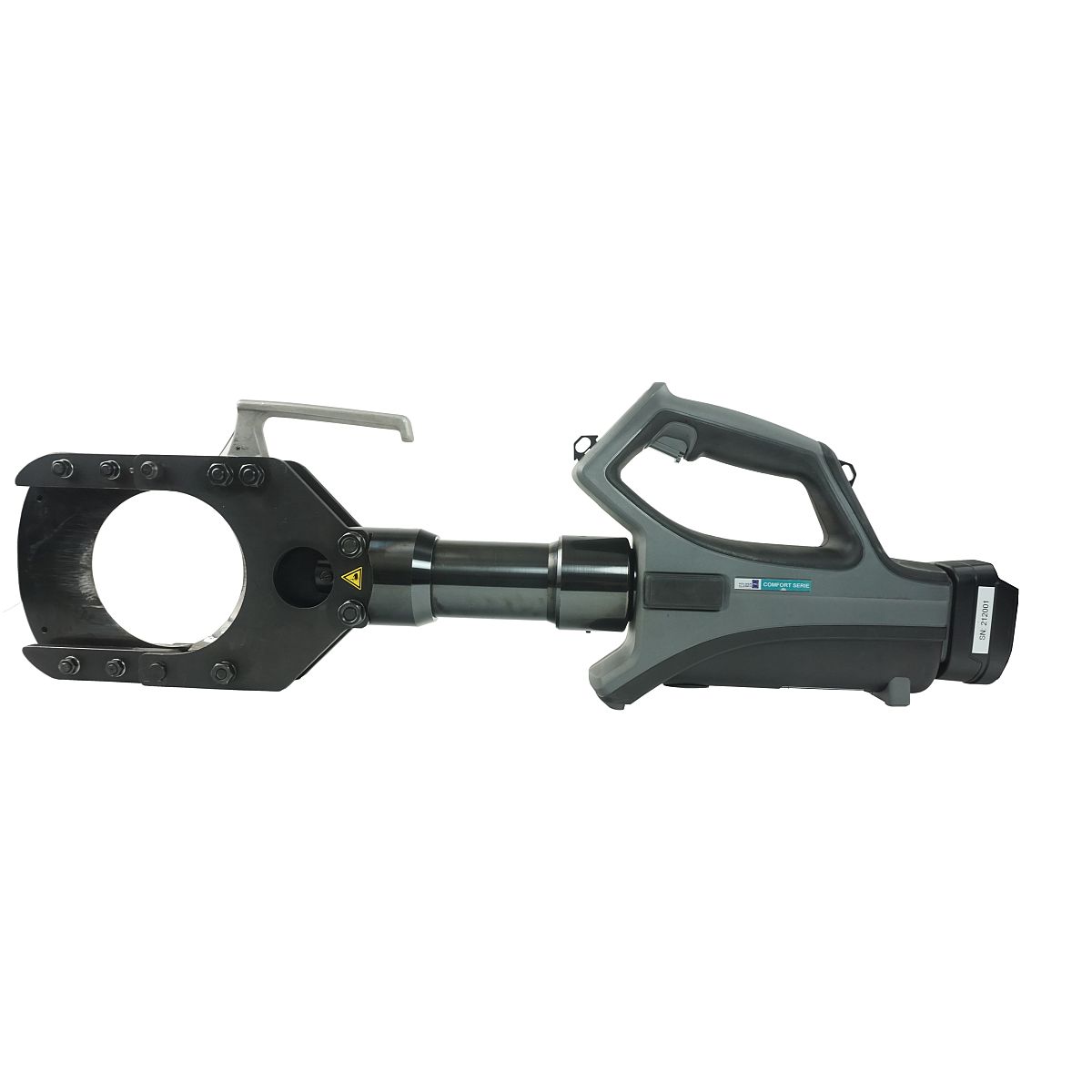

InLineBox-CS13 Ma Battery-Operated Hydraulic Cutter with MasterBase technology
| Cutting force: | 134 kN |
|---|---|
| Opening width: | 132 mm |
| Information: | Compatible with 18 V Makita Batteries |
The MasterBase technology offers the following battery options:
Product number:
72713000
MasterBase-Technologie
LED lightend
Rotating Head
2-step hydraulic
Battery Control
18 V Makita-kompatibel
InLineBox-CS13 Ma Battery-Operated Hydraulic Cutter with MasterBase technology
Applications
The InLineBox-CS13 with compatible 18V Makita battery is the performance upgrade for your tool park. With an opening width of 132 mm, the battery-operated hydraulic on-ground cutting tool severs cable up to Ø 132 mm (telephone cable), Cu- and Al-cable as well as energy cable up to Ø 132 mm without any problems. The ergonomic design with low center of gravity provides a high degree of stability. It can thus be positioned well and safely as an on-ground tool as well as a hand-held device.
Equipped with MasterBase technology for flexible selection of the battery
InLineBox-CS13 Ma - compatible with 18 V Makita rechargeable batteries
Cutting force: 134 kN

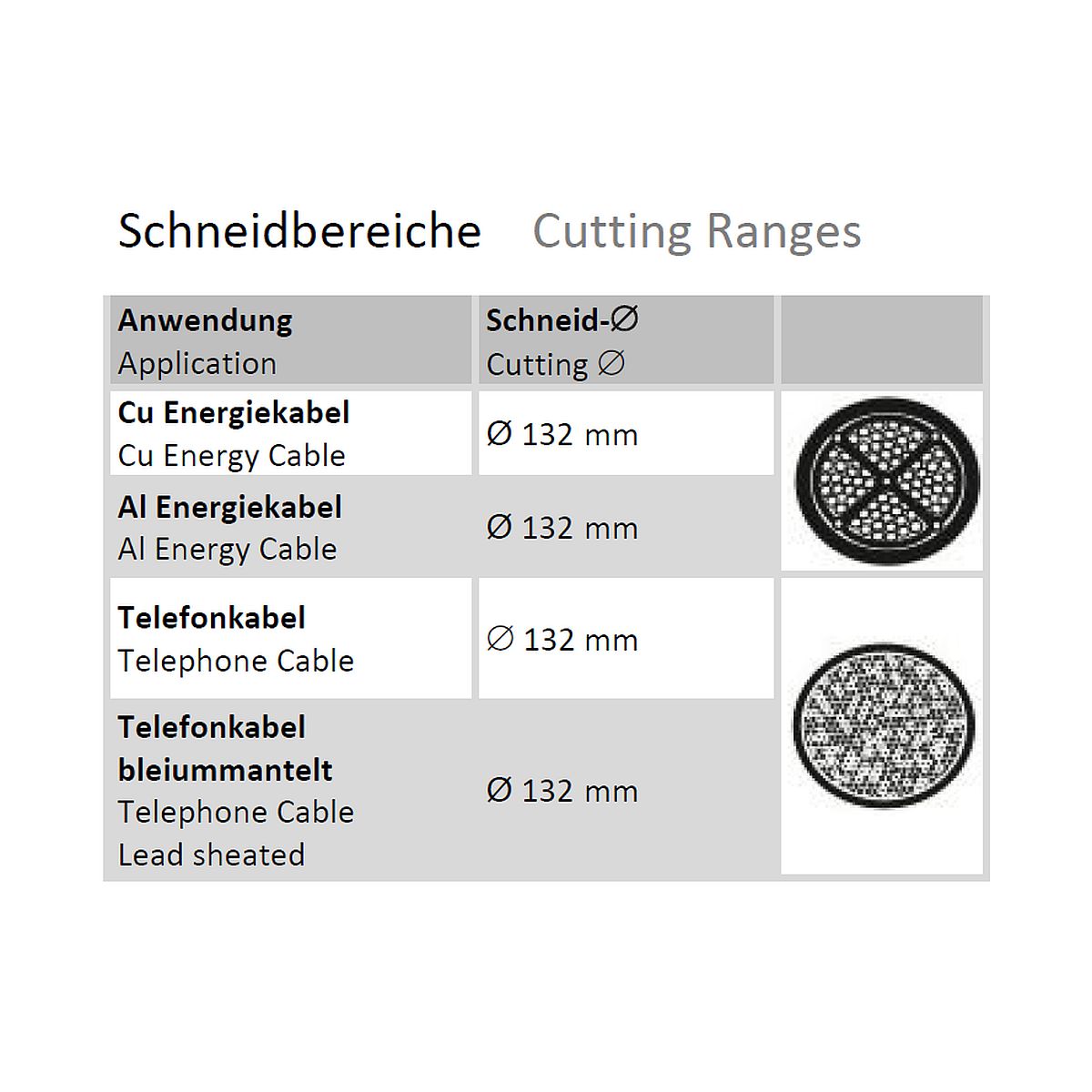

Cuts Cu-/Al-cable, energy cable and telephone cable
Low-lying center of gravity allows ergonomic use - as an on-ground or hand-held crimping tool
With 132 mm opening width and the corresponding power in optimally matched 2-step hydraulics, you can now cut even more efficiently. The tool is compatible with 18 V lithium-ion batteries from Makita.
Areas of application are subject to change. A sample processing is recommended.
Technical specifications
InLineBox-CS13 Ma - compatible with 18 V Makita rechargeable batteries
Cutting force: 134 kN
Cuts Cu-/Al-cable, energy cable and telephone cable
Low-lying center of gravity allows ergonomic use - as an on-ground or hand-held crimping tool
InLineBox-CS13 Ma - Battery-operated hydraulic on-ground cutting tool
With 134 kN and 132 mm opening width, the tool is a versatile, powerful battery hydraulic on-ground cutting tool, which you can position safely on the cable even in tight spaces. The cutting head can be rotated 270°. Supporting are the LEDs for illumination of the working area. You have the 16.1 kg weight well under control and can position the on-ground cutting tool stable in the field.With 132 mm opening width and the corresponding power in optimally matched 2-step hydraulics, you can now cut even more efficiently. The tool is compatible with 18 V lithium-ion batteries from Makita.
Areas of application are subject to change. A sample processing is recommended.
| Cutting force: | 134 kN |
|---|---|
| Opening width: | 132 mm |
| Battery voltage: | Makita 18 V |
| Information: | Compatible with 18 V Makita Batteries |
| Weight without battery: | 16.1 kg |
| Dimensions LxWxH: | 825 x 96 x 263 mm |
| Construction form: | On-ground Tool |
| Head: | closed |
| Lock type: | Bolt safety |
