Cutting force: | 124 kN |
---|---|
Opening width: | 105 mm |
Information: | Compatible with 18 V Makita Batteries |
The MasterBase technology offers the following battery options:
Product number:
72811000

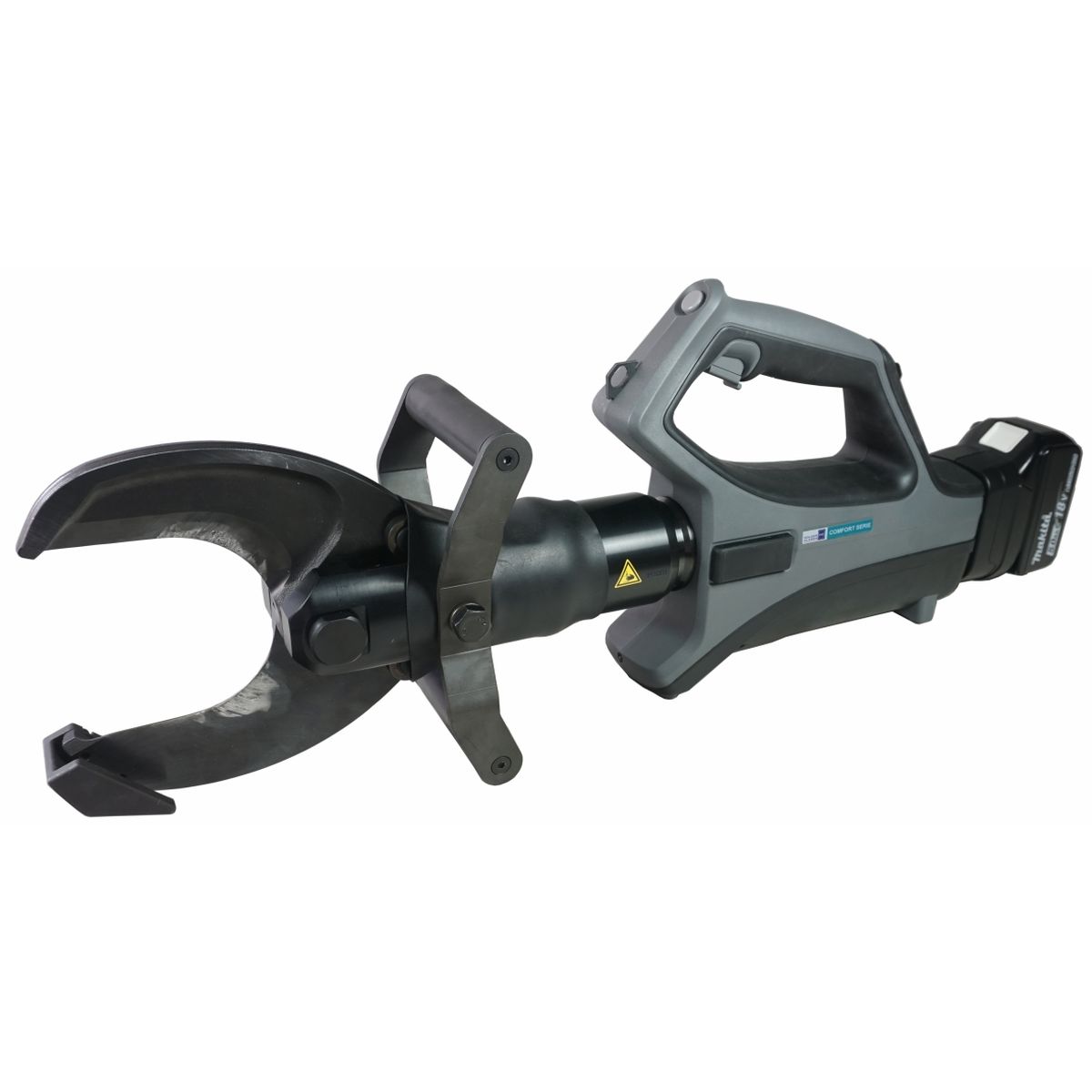

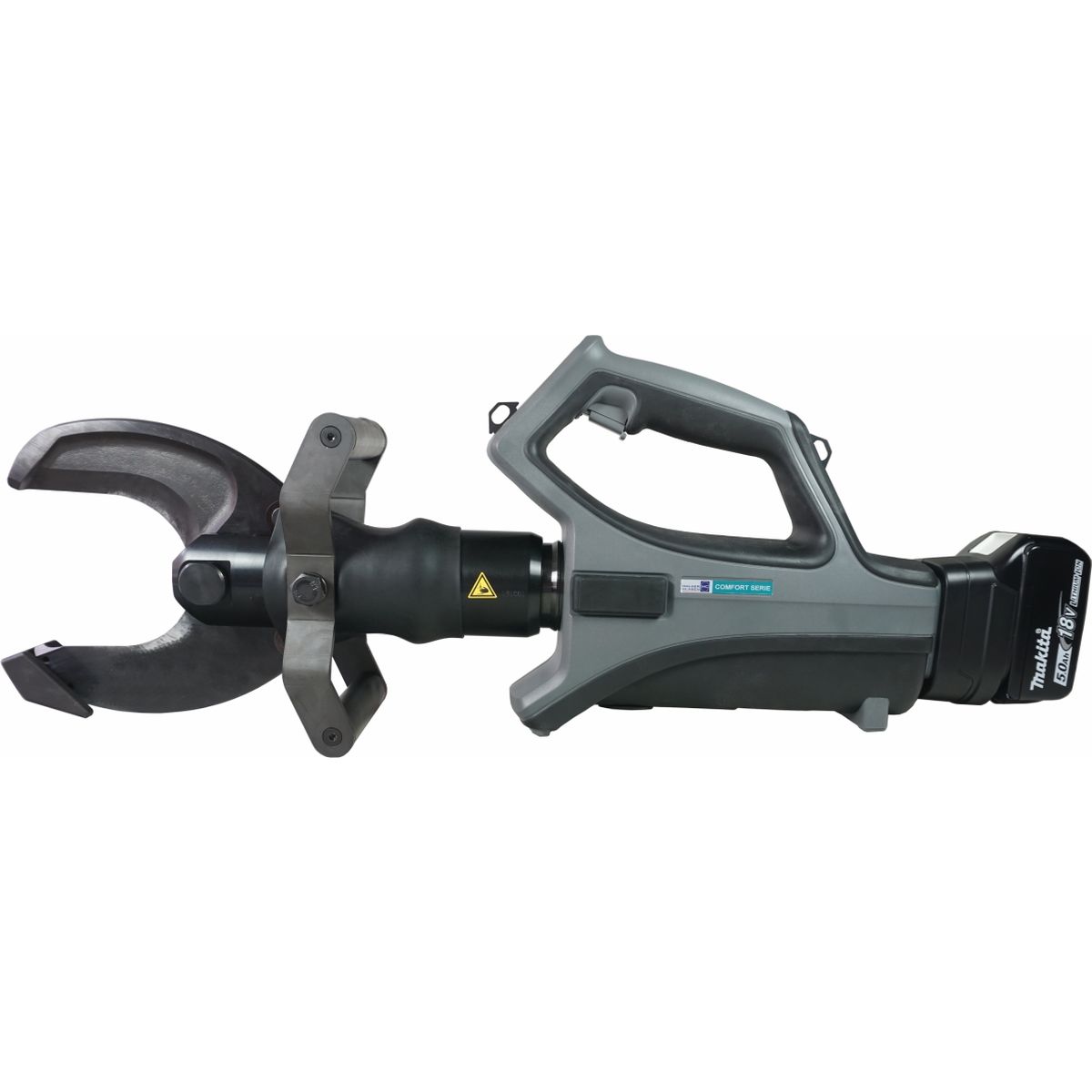

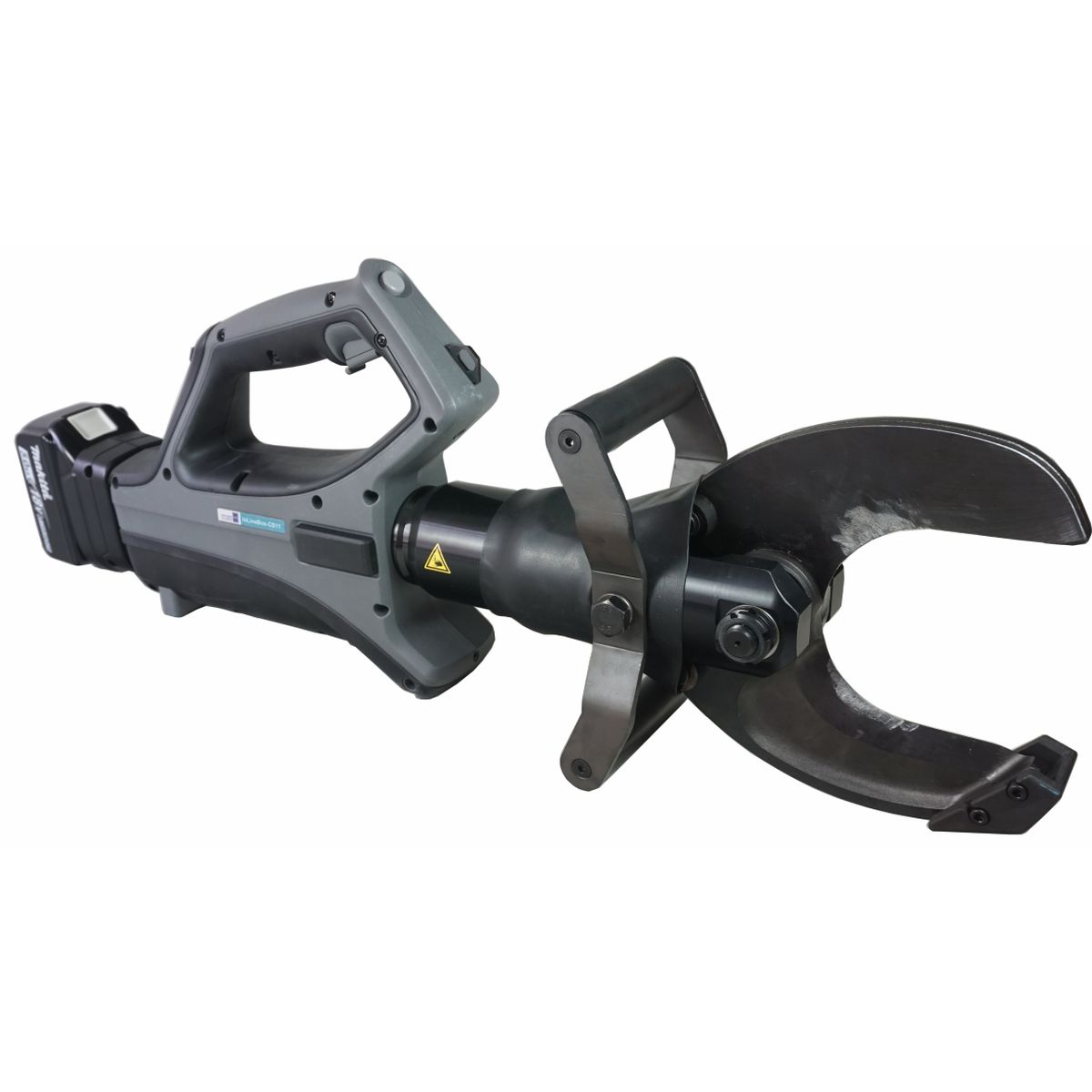

InLineBox-CS11-Set Ma Battery-Operated Hydraulic Cutter with MasterBase technology
Applications

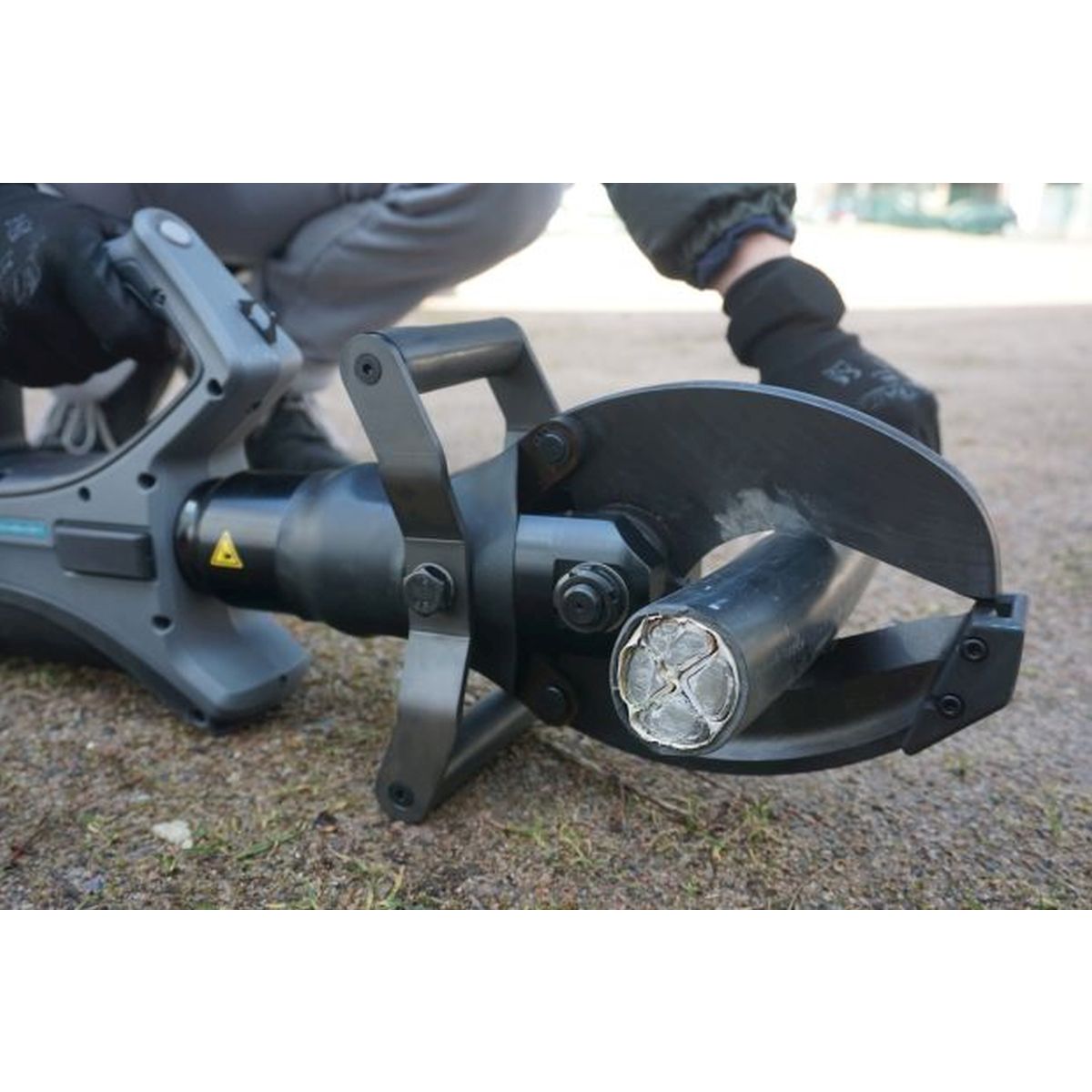

The InLineBox-CS11 with compatible 18 V Makita battery is the performance upgrade for your tool park. With an opening width of 105 mm, the battery-operated hydraulic on-ground cutting tool severs armored cables up to Ø 105 mm, underground cables such as NYY 4 x 240 mm2 and even submarine cables up to Ø 80 mm without any problems. The ergonomic design with low center of gravity provides a high degree of stability. It can thus be positioned well and safely as an on-ground tool as well as a hand-held device.
Equipped with MasterBase technology for flexible selection of the battery
InLineBox-CS11 Ma - compatible with 18 V Makita rechargeable batteries
Cutting force: 124 kN
Also cuts armored cables (underground cable NYY 4x240mm2)

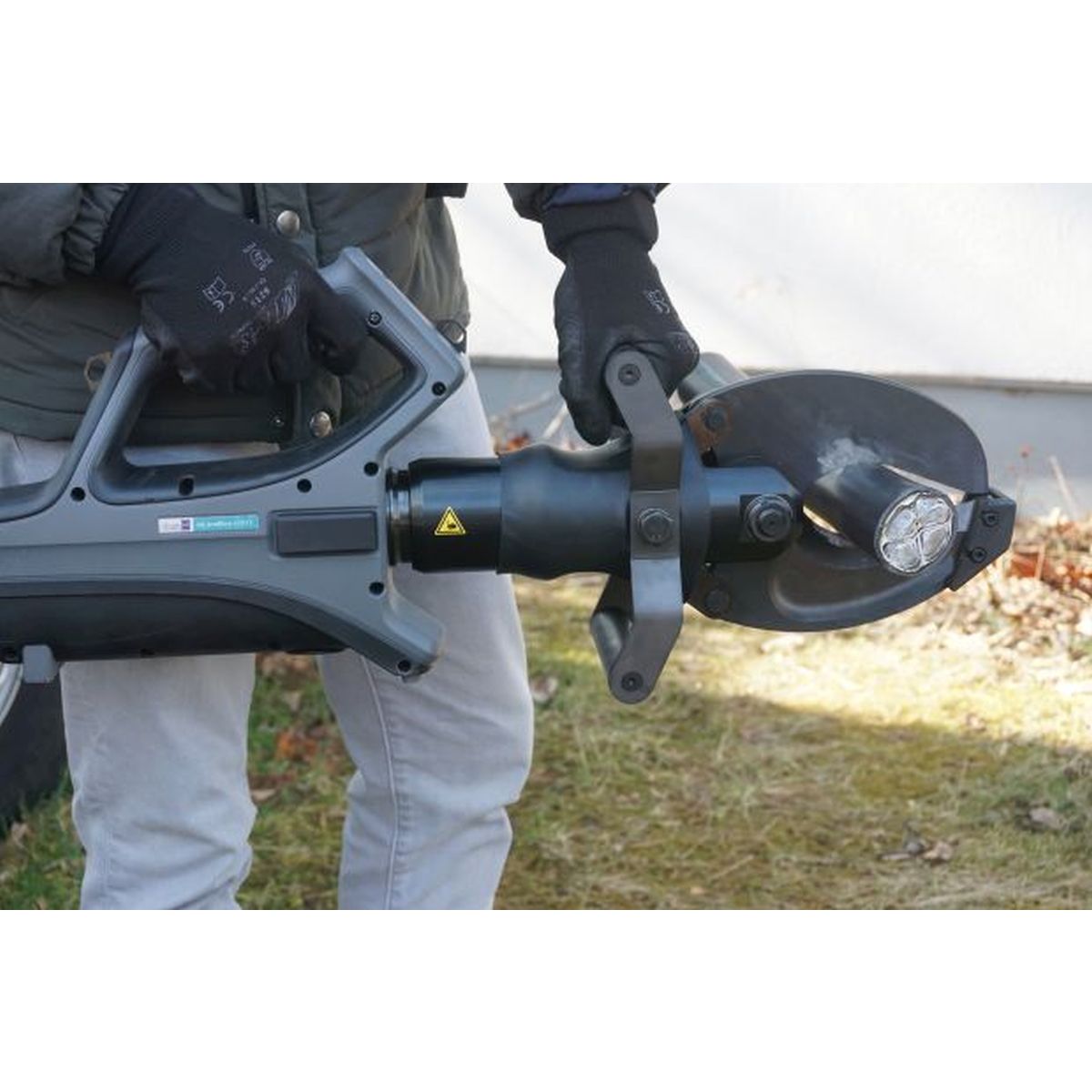

Low-lying center of gravity allows ergonomic use - as an on-ground or hand-held cutting tool

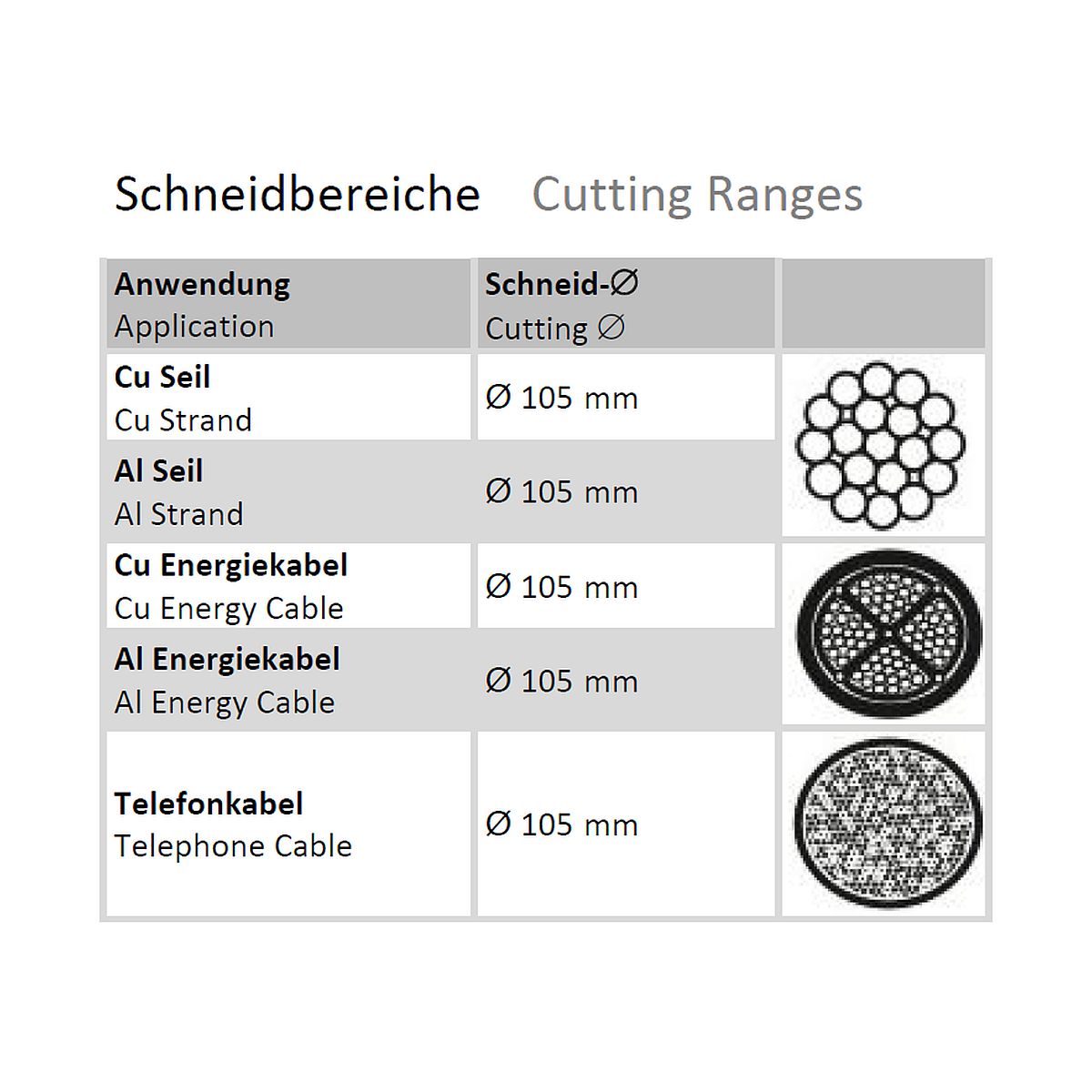

It also cuts through large cross-sections, e.g. Cu or Al stranded conductors, round material and power cables Al up to 4 x 300 mm2. With the appropriate power in optimally tuned 2-step hydraulics, you can work even faster, especially under load, thanks to improved technology. The tool is compatible with 18 V lithium-ion batteries from Makita.
Areas of application are subject to change. A sample processing is recommended.
Technical specifications
InLineBox-CS11 Ma - compatible with 18 V Makita rechargeable batteries
Cutting force: 124 kN
Also cuts armored cables (underground cable NYY 4x240mm2)
Low-lying center of gravity allows ergonomic use - as an on-ground or hand-held cutting tool
InLineBox-CS11-Set Ma - Battery-operated hydraulic on-ground cutting tool
With 124 kN and 105 mm opening width, the InLineBox-CS11 is a versatile, powerful battery hydraulic on-ground cutting tool, which you can position safely on the cable even in tight spaces. The cutting head can be rotated 270°. Supporting are the LEDs for illumination of the working area. With the handle, which can be used on both sides, you have the 9.8 kg weight well under control and can position the on-ground cutting tool stable in the field.It also cuts through large cross-sections, e.g. Cu or Al stranded conductors, round material and power cables Al up to 4 x 300 mm2. With the appropriate power in optimally tuned 2-step hydraulics, you can work even faster, especially under load, thanks to improved technology. The tool is compatible with 18 V lithium-ion batteries from Makita.
Areas of application are subject to change. A sample processing is recommended.
Cutting force: | 124 kN |
---|---|
Opening width: | 105 mm |
Battery voltage: | Makita 18 V |
Information: | Compatible with 18 V Makita Batteries |
Weight without battery: | 9.8 kg |
Dimensions LxWxH: | 670 x 120 x 267 mm |
Construction form: | On-ground Tool |
Head: | open |
