CutMax4 Battery-operated hydraulic cutting tool % Action %
€980.00 *
| Cutting force: | 70 kN |
|---|---|
| Opening width: | 42 mm |
| Suitable for: | overhead lines |
| Battery voltage: | 14.4 V |
Product number:
72614000
In stock:
7 ( * while supplies last )
Ergonomic
LED lightend
Rotating Head
2-step hydraulic
Battery Control
CutMax4 Battery-operated hydraulic cutting tool % Action %
Applications

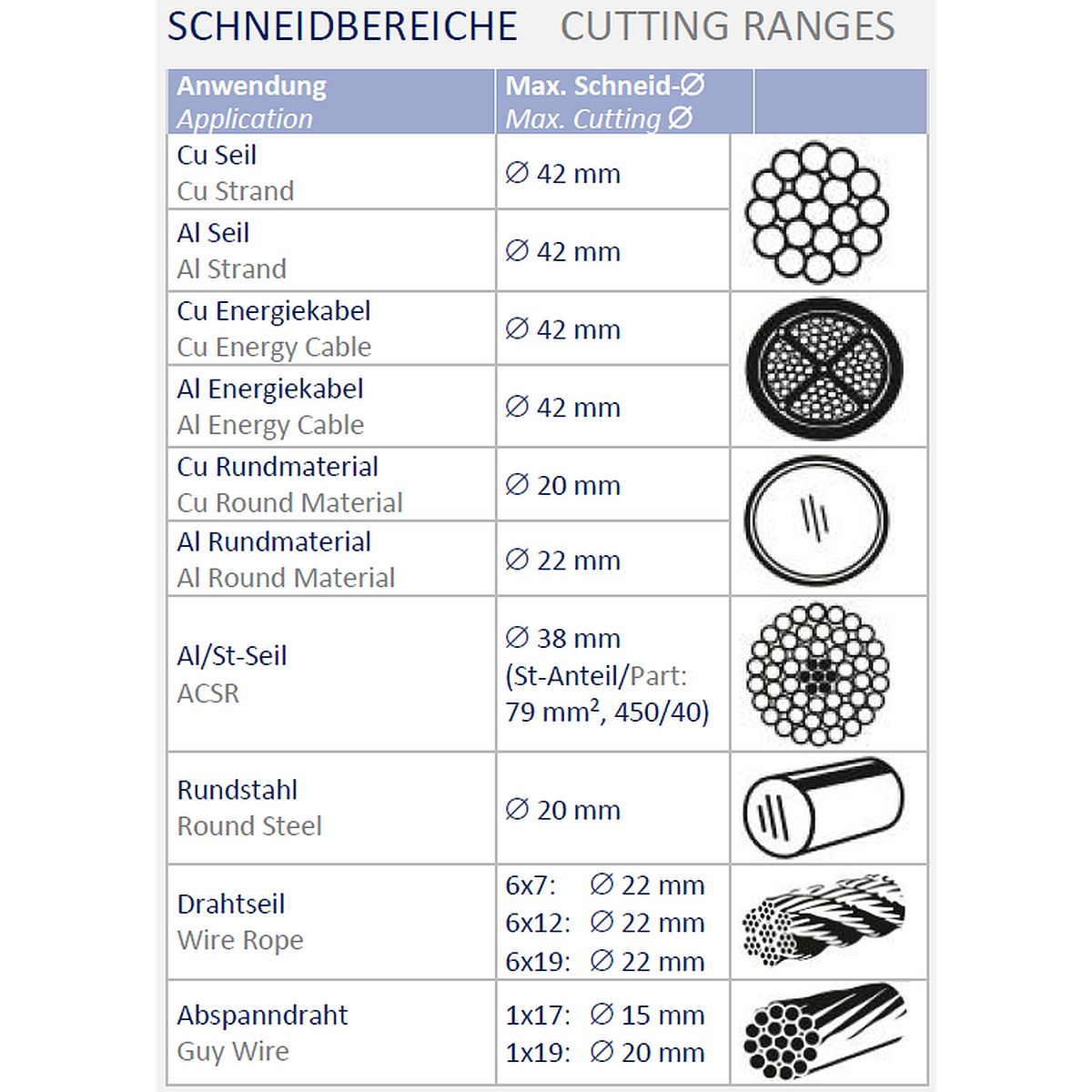

The battery-operated hydraulic rope cutter CutMax 4 cuts round material with a diameter of up to 40 mm, e.g. overhead lines ACSR (Al/St) up to 450/40. The battery-operated hydraulic rope cutter is used in the areas of power supply companies and service providers, elevator and conveyor technology as well as in industrial applications.
Opening width: 42 mm
Cutting Force: 70 kN
Quicker: 30 % higher cutting speed.
Easier: Tool weight is reduced by 8 %.
More efficient: 10 % more cuts.
Safer: non-slip housing and well-balanced design.
More enduring: 10 % higher work life thanks to optimized construction.
Brighter: Equipped with LED for lighting the working area.
Interchangeable: Batteries, battery charger and power supply units still can be used.
The battery-operated hydraulic rope cutter offers all features of the former model RS4, e.g. the rotatable cutting head, the two-step-hydraulic feed for quick cutting as well as optimized transmission of power thanks to guillotine principle to cut even hard material (e.g. ACSR).
Technical specifications
Cutting Force: 70 kN
Battery Hydraulic Rope Cutter CutMax 4 - lightweiht, powerfull, for hard material
Working with the rope cutter CutMax 4 is:Quicker: 30 % higher cutting speed.
Easier: Tool weight is reduced by 8 %.
More efficient: 10 % more cuts.
Safer: non-slip housing and well-balanced design.
More enduring: 10 % higher work life thanks to optimized construction.
Brighter: Equipped with LED for lighting the working area.
Interchangeable: Batteries, battery charger and power supply units still can be used.
The battery-operated hydraulic rope cutter offers all features of the former model RS4, e.g. the rotatable cutting head, the two-step-hydraulic feed for quick cutting as well as optimized transmission of power thanks to guillotine principle to cut even hard material (e.g. ACSR).
| Cutting force: | 70 kN |
|---|---|
| Opening width: | 42 mm |
| Suitable for: | overhead lines |
| Battery voltage: | 14.4 V |
| Weight without battery: | 5.6 kg |
| Dimensions LxWxH: | 460 x 80 x 292 mm |
| Construction form: | Pistol |
| Lock type: | Bolt safety |
| Head: | closed |
