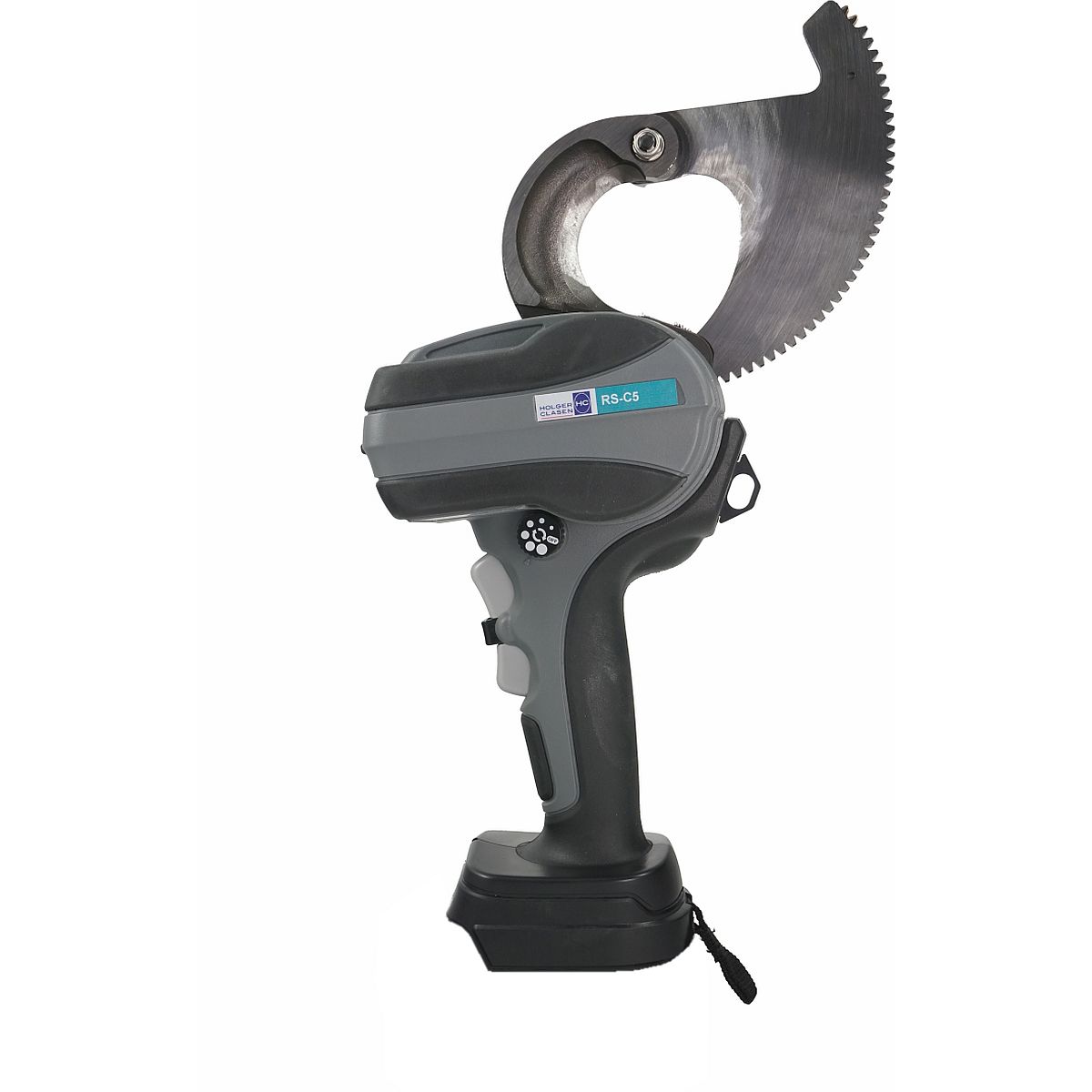

RS-C5-F Ma Battery-Operated Mechanical Cutter with MasterBase technology
| Opening width: | 50 mm |
|---|---|
| Suitable for: | fine and very fine stranded cable |
| Information: | Compatible with 18 V Makita Batteries |
The MasterBase technology offers the following battery options:
Product number:
72025100
MasterBase-Technologie
Ergonomic
Narrow design
Battery Control
18 V Makita-kompatibel
RS-C5-F Ma Battery-Operated Mechanical Cutter with MasterBase technology
Applications

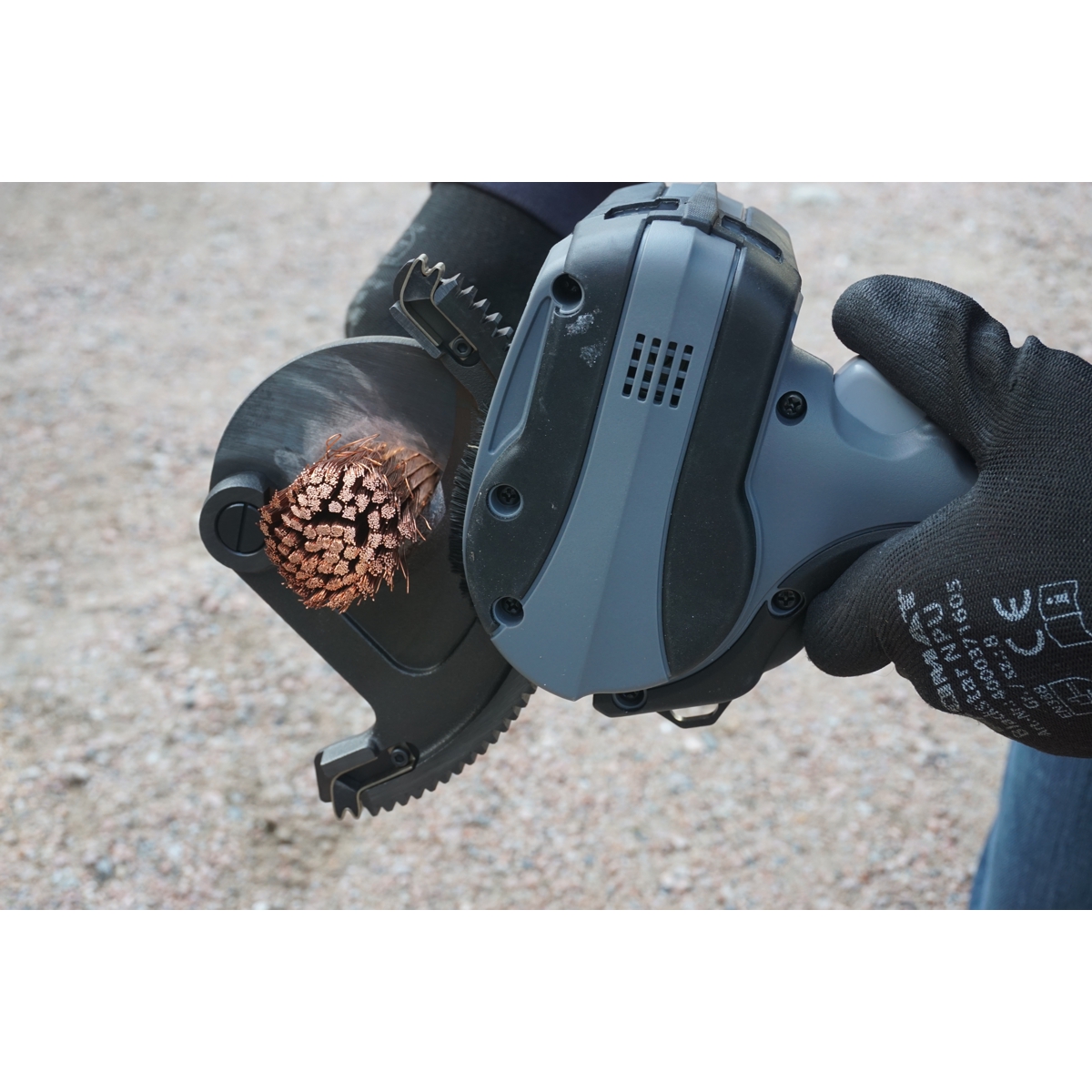

Cable cutter RS-C5-F Ma - The cable cutter with fine grinding precisely and quickly se-parates fine and very fine stranded conductors (class 5 and 6) to Ø 50 mm. This lightweight, ergonomic tool with its crescent-shaped cutting geometry is particularly convincing in power supply and telecommunications.
Equipped with MasterBase technology for flexible selection of the battery
RS-C5-F Ma - compatible with 18 V Makita Batteries
Selectable automatic return for efficient work

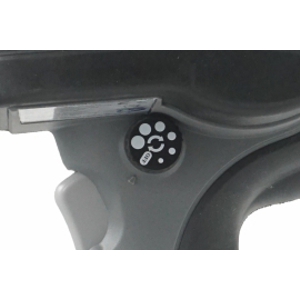

Comfort through freely definable opening width adjustment
Fast, clean cut with low cutting deformation
LED working field illumination
Opening width adjustment saves time with series cuts
Areas of application are subject to change.
Technical specifications
RS-C5-F Ma - compatible with 18 V Makita Batteries
Selectable automatic return for efficient work
Comfort through freely definable opening width adjustment
Fast, clean cut with low cutting deformation
LED working field illumination
Opening width adjustment saves time with series cuts
Battery cutter RS-C5-F Ma - basic tool for fine stranded cable

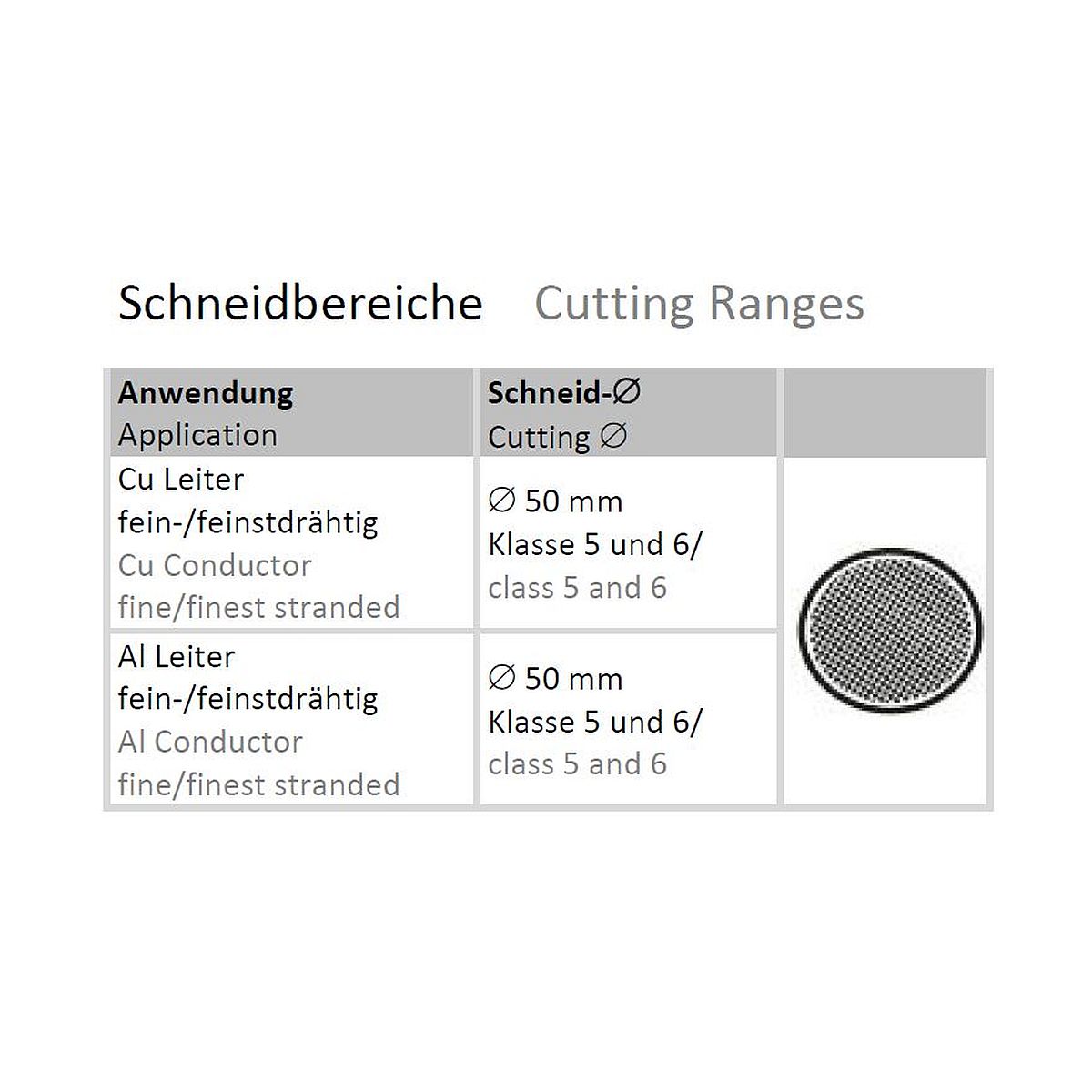

The battery cable cutter RS-C5-F for fine stranded cable with an opening width of 50 mm is a powerful cable cutter, which can safely be positioned on the cable even in confined spaces. The LED for illumination of the working area supports this. The tool cuts fine stranded and very fine stranded class 5 and 6 copper conductors up to a diameter of 50 mm. The sickle-shaped cutting geometry convinces with a clean cutting pattern. Thanks to the closed cutting head, the cut is also particularly safe. It would be possible to cut Cu-rope and Al-rope as well as power cables, but this would damage the fine grinding. A real plus is the balanced ergonomics and the low weight. With this lightweight you can work fatigue-free and in any position. You have full tool control via the feed and return knobs with lever lock, with which you can control the cutting process at any time. A new feature is the option of changing the tool to automatic return with integrated opening width adjustment. After reaching the maximum cutting force, the cutting blades return to their starting position with automatic return. You can use a rotary knob to determine how far the cutting blade should open, allowing you to work even more efficiently. You always have full control over your tool. The tool is compatible with 18 V lithium ion batteries from Makita.Areas of application are subject to change.
| Opening width: | 50 mm |
|---|---|
| Suitable for: | fine and very fine stranded cable |
| Battery voltage: | Makita 18 V |
| Information: | Compatible with 18 V Makita Batteries |
| Weight without battery: | 2.1 kg |
| Dimensions LxWxH: | 117 x 197 x 330 mm |
| Construction form: | Straight |
| Head: | closed |
