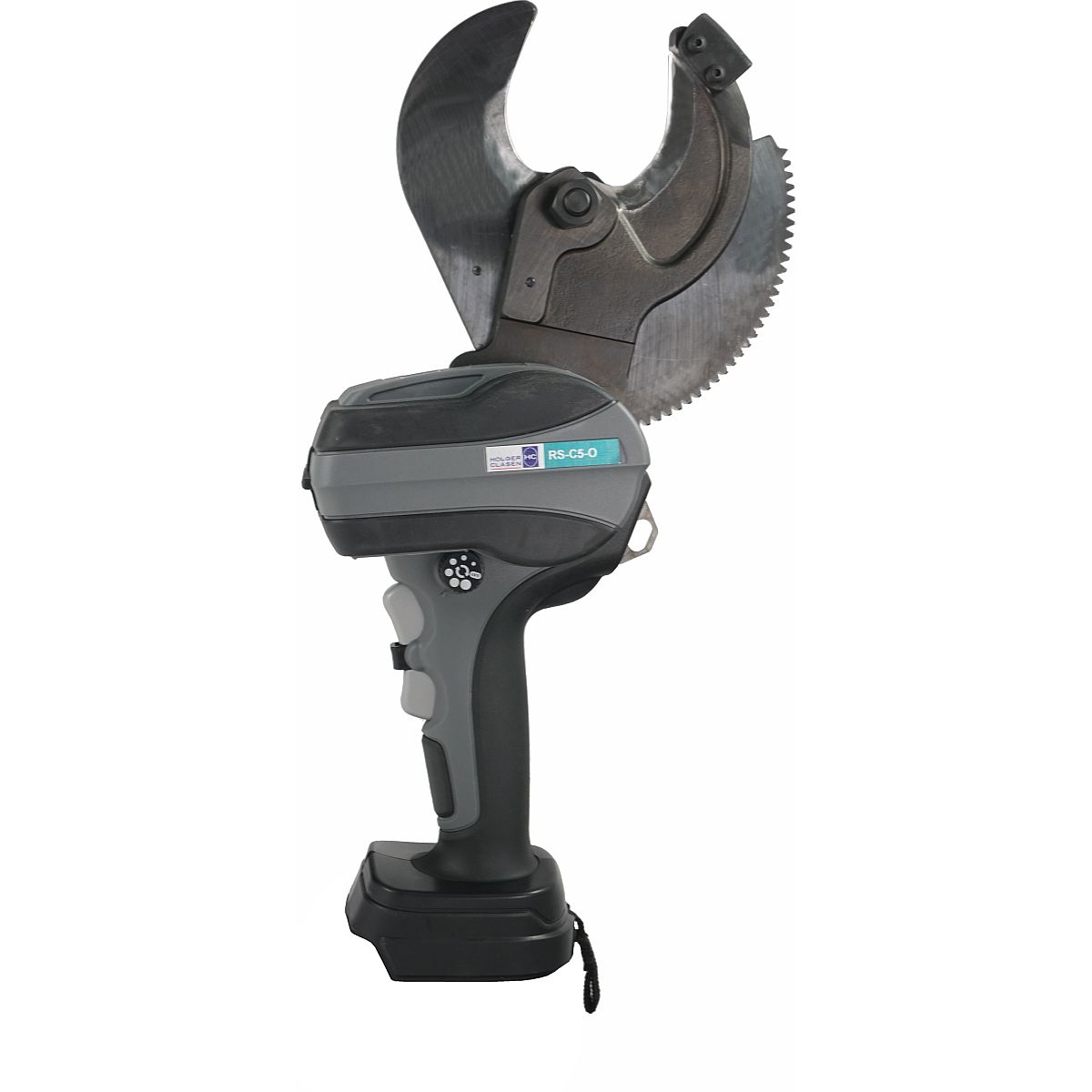

RS-C5-O Bo Battery-Operated Mechanical Cutter with MasterBase technology
| Opening width: | 50 mm |
|---|---|
| Information: | Compatible with 18 V Bosch Batteries |
The MasterBase technology offers the following battery options:
Product number:
72068300
MasterBase-Technologie
Ergonomic
Narrow design
Battery Control
RS-C5-O Bo Battery-Operated Mechanical Cutter with MasterBase technology
Applications

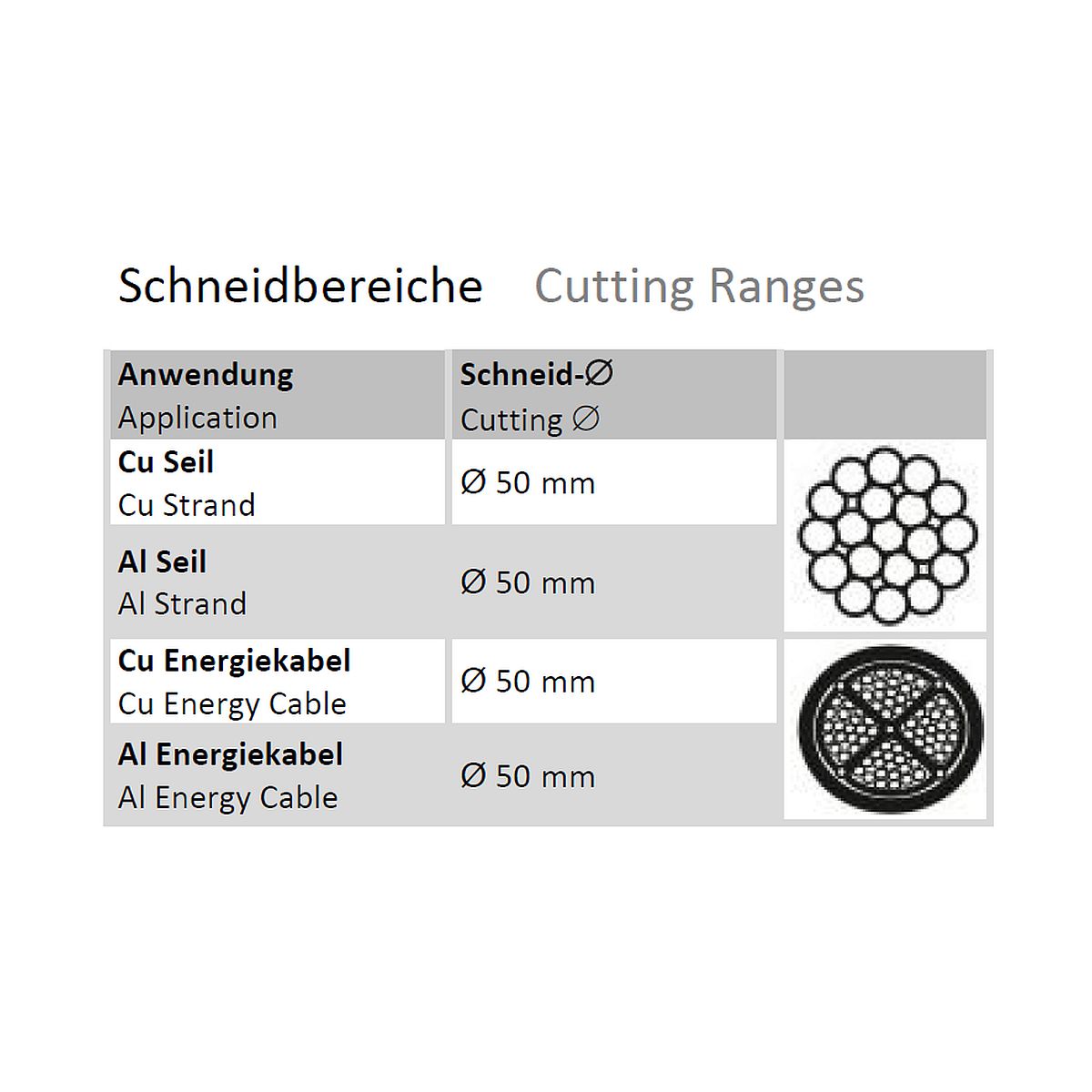

Electromechanical Ratchet Cutter RS-C5-O Bo - The cable cutter with its open cutting head cuts Cu and Al cables up to Ø 50 mm precisely and quickly - e.g. NAYY 4 x 150 mm2 and Cu single cores up to 500 mm2. In power supply and cable processing, this lightweight and ergonomic tool is convincing even in confined spaces, such as on construction sites in the cable trench.
Equipped with MasterBase technology for flexible selection of the battery
RS-C5-O Bo - compatible with 18 V Bosch Batteries
Selectable automatic return for efficient work
Comfort through freely definable opening width adjustment
Fast, clean cut with low cutting deformation
LED working field illumination
Opening width adjustment saves time with series cuts
Areas of application are subject to change.
Technical specifications
RS-C5-O Bo - compatible with 18 V Bosch Batteries
Selectable automatic return for efficient work
Comfort through freely definable opening width adjustment
Fast, clean cut with low cutting deformation
LED working field illumination
Opening width adjustment saves time with series cuts
Battery-Operated Electromechanical Ratchet Cutter RS-C5-O Bo - open basic cable cutter
The one-hand Ratchet Cutter with 50 mm opening width is a powerful battery cutter, which can be positioned well on the cable in confined spaces. The LED for illumination of the working area supports this. The open cable cutter cuts Cu and Al cables as well as power cables up to a diameter of 50 mm. The open cutting blades produce a clean cutting pattern with low conductor deformation. A real plus is the balanced ergonomics and the low weight. With this battery cutter you can work fatigue-free and in any position. You have full tool control via the feed and return knobs with lever lock, with which you can control the cutting process at any time. A new feature is the option of changing the tool to automatic return with integrated opening width adjustment. After reaching the maximum cutting force, the cutting blades return to their starting position with automatic return. You can use a rotary knob to determine how far the cutting blade should open, allowing you to work even more efficiently. You always have full control over your tool. The tool is compatible with 18 V lithium ion batteries from Bosch.Areas of application are subject to change.
| Opening width: | 50 mm |
|---|---|
| Battery voltage: | Bosch 18 V |
| Information: | Compatible with 18 V Bosch Batteries |
| Weight without battery: | 2.9 kg |
| Dimensions LxWxH: | 117 x 197 x 392 mm |
| Construction form: | Straight |
| Head: | open |
