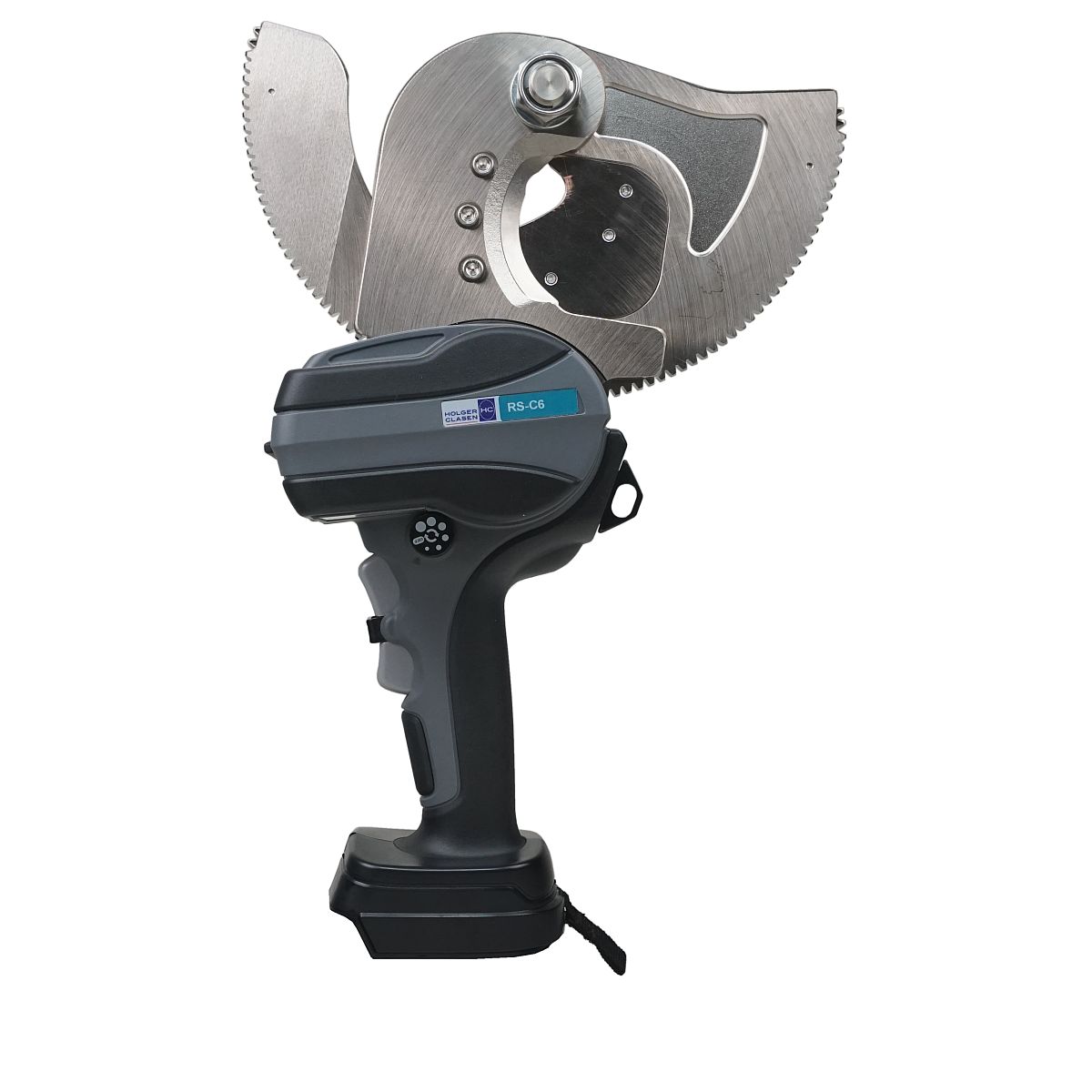

RS-C6 Bo Battery-Operated Mechanical Cutter with MasterBase technology
| Opening width: | 54 mm |
|---|---|
| Suitable for: | overhead lines |
| Information: | Compatible with 18 V Bosch Batteries |
The MasterBase technology offers the following battery options:
Product number:
72068400
MasterBase-Technologie
Ergonomic
LED lightend
Battery Control
RS-C6 Bo Battery-Operated Mechanical Cutter with MasterBase technology
Applications
Battery operated mechanical overleadline cutter RS-C6 Bo - The overhead line cutter quickly and powerful cuts ACSR up to Ø 54 mm with steel part up to 70 mm2, such as 550/70. In overhead line construction this lightweight and ergonomic tool convinces with its cutting pattern and high efficiency thanks to well matched drive unit.
Equipped with MasterBase technology for flexible selection of the battery
RS-C6 Bo - compatible with 18 V Bosch Batteries
Selectable automatic return for efficient work
Comfort through freely definable opening width adjustment
Cuts fast and clean overhead lines (ACSR) up to 54 mm (550/70, 435/55)
Good positioning thanks to open cutting geometry.
LED working field illumination
Opening width adjustment saves time with series cuts
Areas of application are subject to change.
Technical specifications
RS-C6 Bo - compatible with 18 V Bosch Batteries
Selectable automatic return for efficient work
Comfort through freely definable opening width adjustment
Cuts fast and clean overhead lines (ACSR) up to 54 mm (550/70, 435/55)
Good positioning thanks to open cutting geometry.
LED working field illumination
Opening width adjustment saves time with series cuts
Battery-operated Mechanical Overheadline Cutter RS-C6 Bo - clean cut of ACSR conductors
The overhead line cutter with 54 mm opening width is a powerful, sturdy cutting tool for ergonomic one-handed operation that you can safely position well on the cable even in confined spaces. This is supported by the LED for illumination of the working area. The operating buttons are ergonomically arranged. The unlocking button positioned in the middle ensures safety. The cordless cutter severes common ACSR ropes from overhead line construction up to a maximum steel core of 70 mm2. The tool is widely used in the energy industry. A new feature is the option to switch the tool to automatic return. After reaching the maximum cutting force, the blade automatically return to the starting position. But you can stop the blade at the desired position by tapping the release button - you always have full tool control. With the optionally free selectable opening width adjustment, you can quickly complete series cuts.The tool is compatible with 18 V lithium ion batteries from Bosch.Areas of application are subject to change.
| Opening width: | 54 mm |
|---|---|
| Suitable for: | overhead lines |
| Battery voltage: | Bosch 18 V |
| Information: | Compatible with 18 V Bosch Batteries |
| Weight without battery: | 4.8 kg |
| Dimensions LxWxH: | 117 x 240 x 356 mm |
| Construction form: | Straight |
| Head: | closed |
