RS-C3-O-Set Ma Battery-Operated Mechanical Cutter with MasterBase technology

Opening width:	33 mm
Information:	Compatible with 18 V Makita Batteries

The MasterBase technology offers the following battery options:

Type

RS-C3-O-Set Ma

RS-C3-O Bo

RS-C3-O Hi

RS-C3-O Ma

Product number: 72123500

RS-C3-O-Set Ma Battery-Operated Mechanical Cutter with MasterBase technology

Applications Cordless cable cutter RS-C3-O Ma-Set - The battery-operated cutting tool with its open cutting geometry cuts copper and aluminium strands and power cables up to Ø 33 mm, round material as well as ACSR up to Ø 18.6 mm (max. steel content 35 mm²).

Equipped with MasterBase technology for flexible selection of the battery
RS-C3-O Ma - compatible with 18 V Makita Batteries
Selectable automatic return for efficient work
Comfort through freely definable opening width adjustment
Fast, clean cut with low cutting deformation
Good positioning thanks to open cutting geometry.
LED working field illumination
Opening width adjustment saves time with series cuts

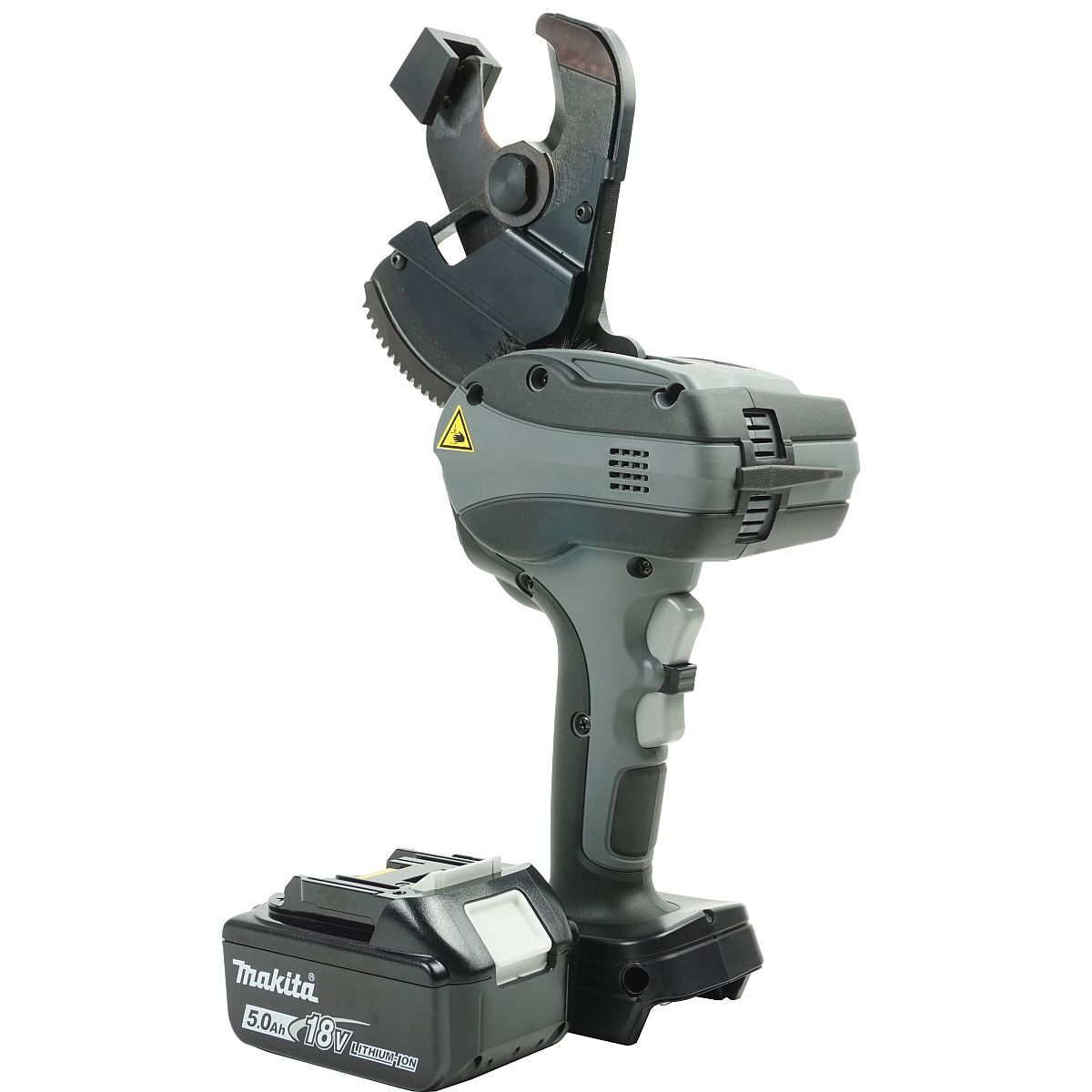

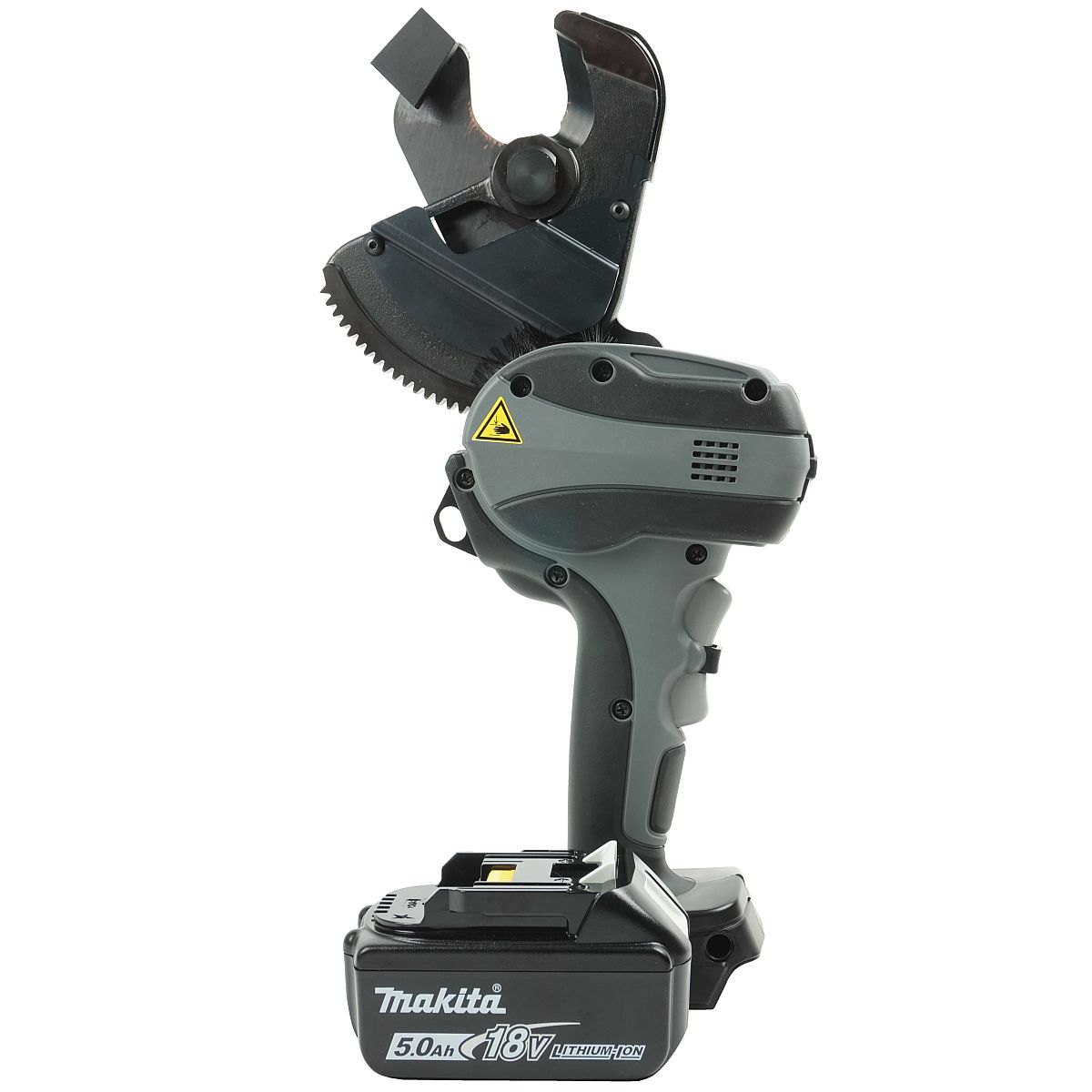

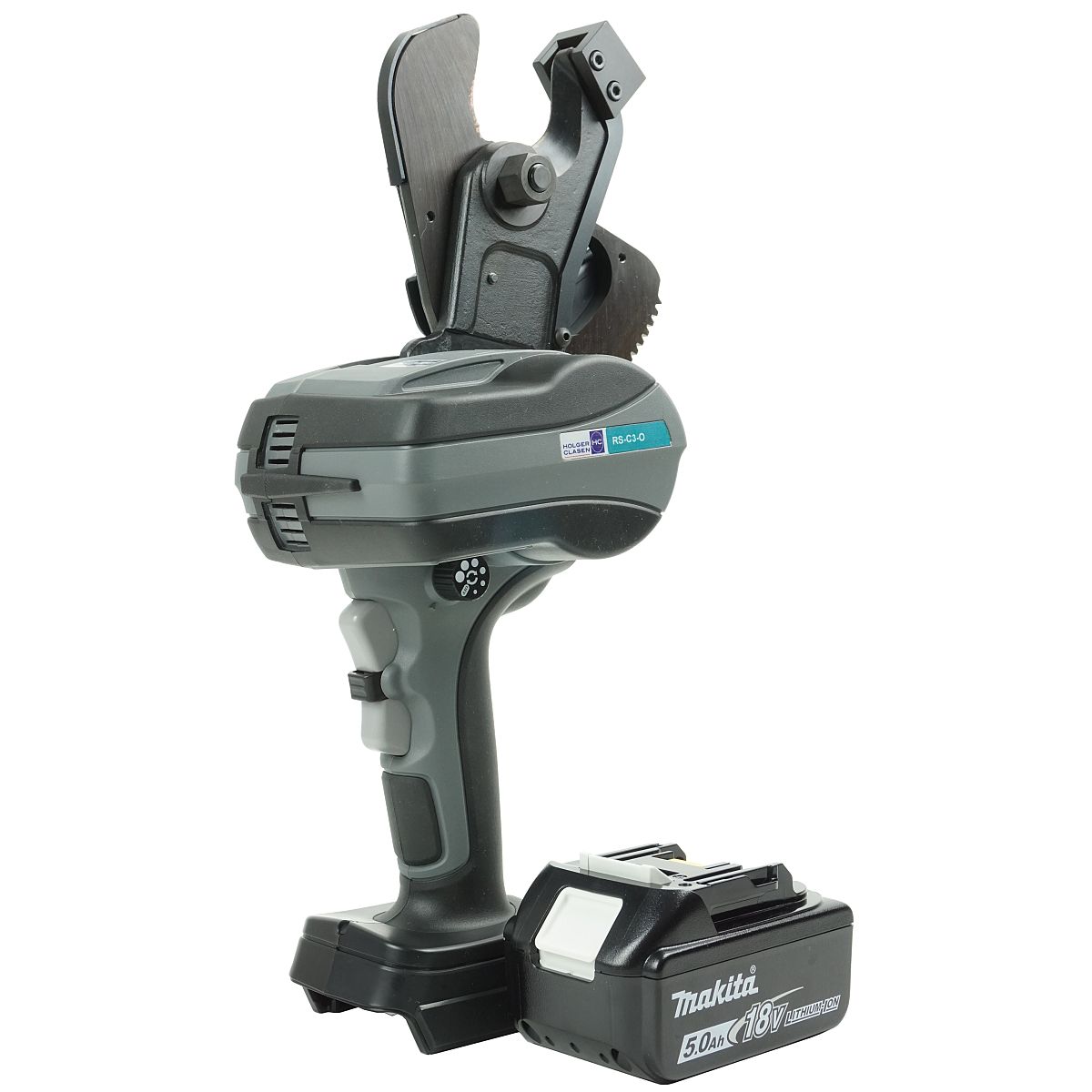

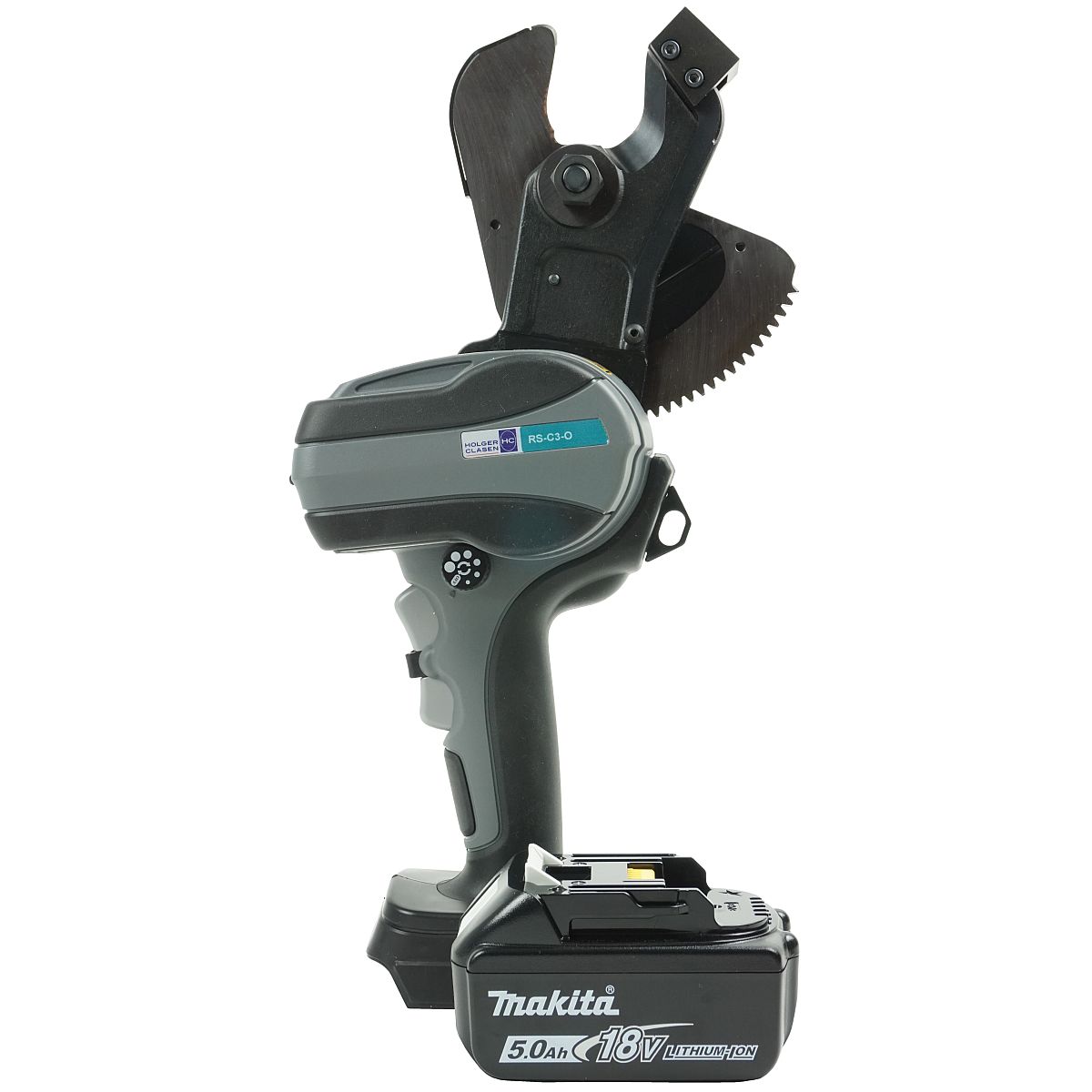

Open Cordless Cable Cutter Tool RS-C3-O-Set Ma - lightweight and handy

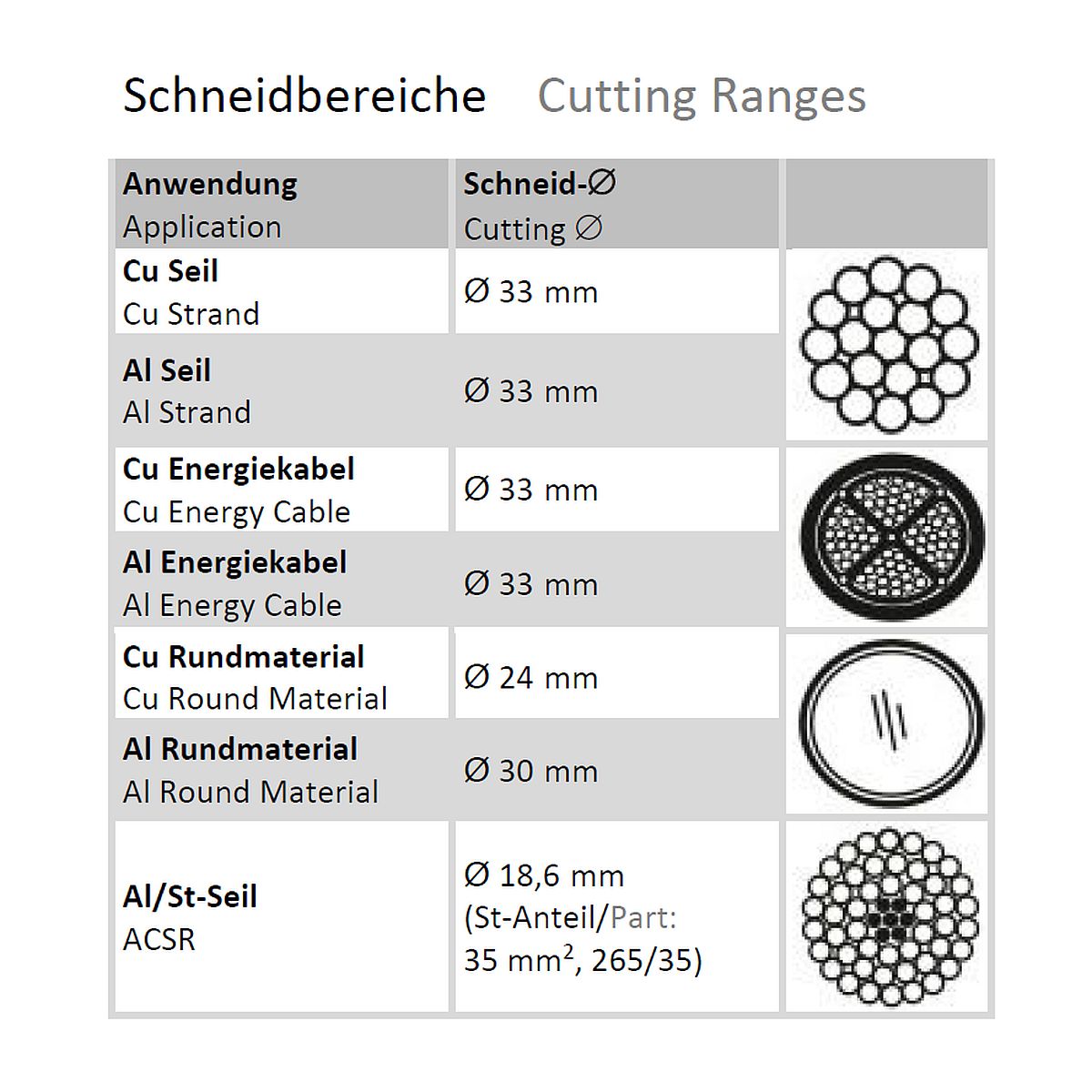

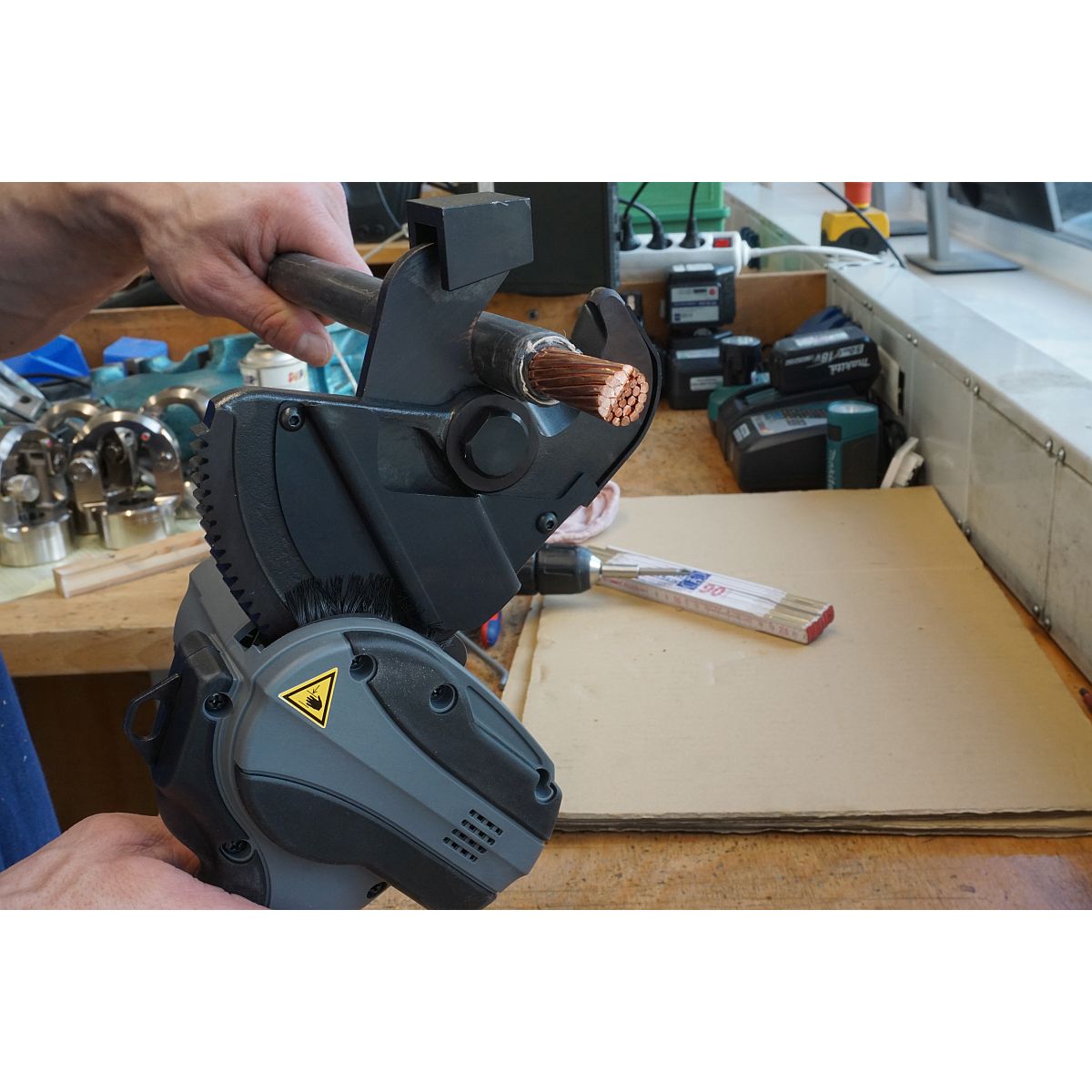

The mechanical battery cutting tool with 33 mm opening width is a powerful, versatile cutter, which can be positioned well on the cable in confined spaces. The LED for illumination of the working area supports this. The tool cuts Cu and Al cables as well as power cables up to a diameter of 33 mm, Cu round material up to 24 mm, Al round material up to 30 amm and ACSR up to a diameter of 18,6 mm. The open cutting blades produce a clean cutting pattern with low conductor deformation.
A real plus is the balanced ergonomics and the low weight. With this battery cutter you can work fatigue-free and in any position. You have full tool control via the feed and return knobs with lever lock, with which you can control the cutting process at any time. A new feature is the option of changing the tool to automatic return with integrated opening width adjustment. After reaching the maximum cutting force, the cutting blades return to their starting position with automatic return. You can use a rotary knob to determine how far the cutting blade should open, allowing you to work even more efficiently. You always have full control over your tool. The tool is compatible with 18 V lithium ion batteries from Makita.

Areas of application are subject to change.

Technical specifications

Opening width:	33 mm
Battery voltage:	Makita 18 V
Information:	Compatible with 18 V Makita Batteries
Weight without battery:	2.8 kg
Dimensions LxWxH:	117 x 364 x 192 mm
Construction form:	Straight
Head:	open
