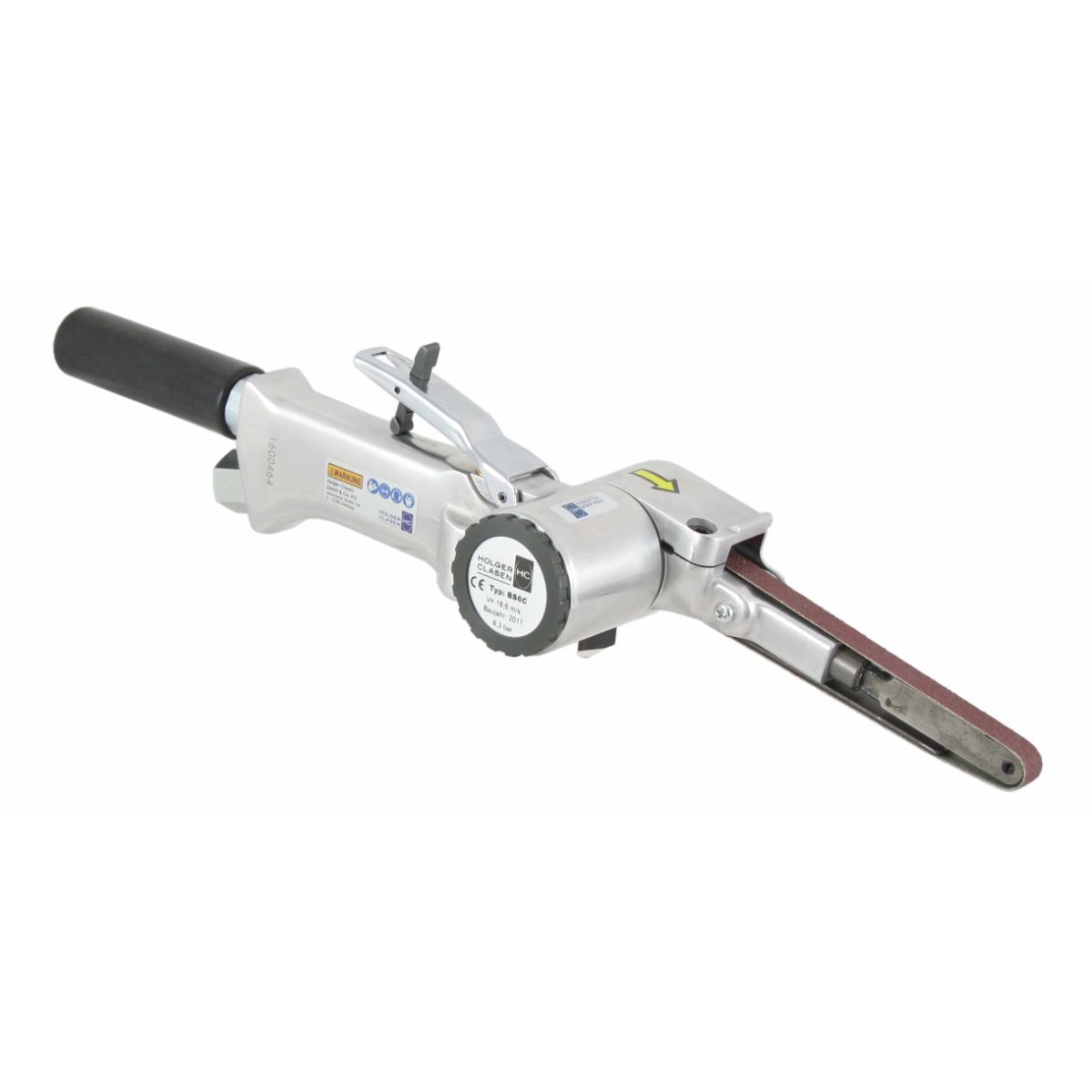

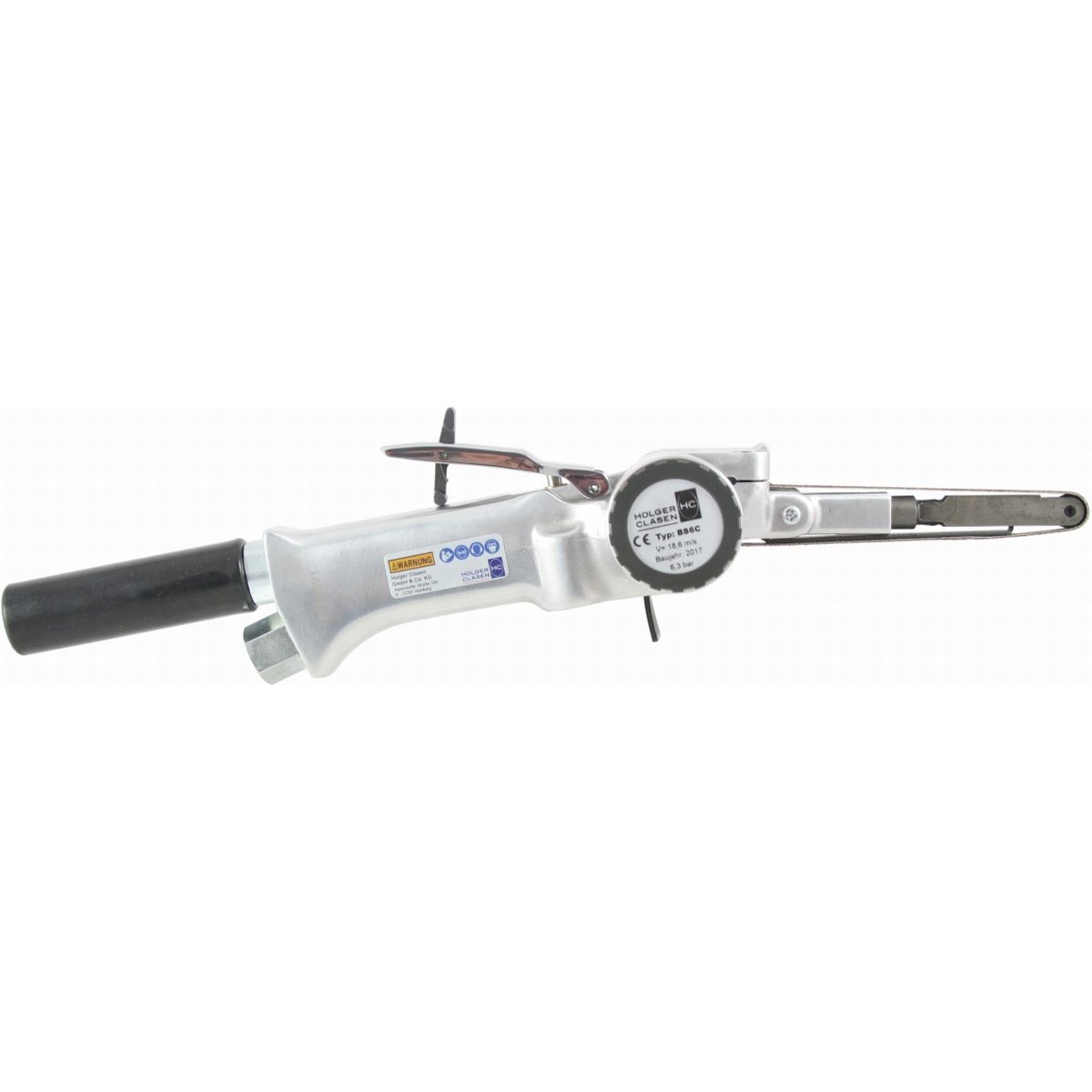

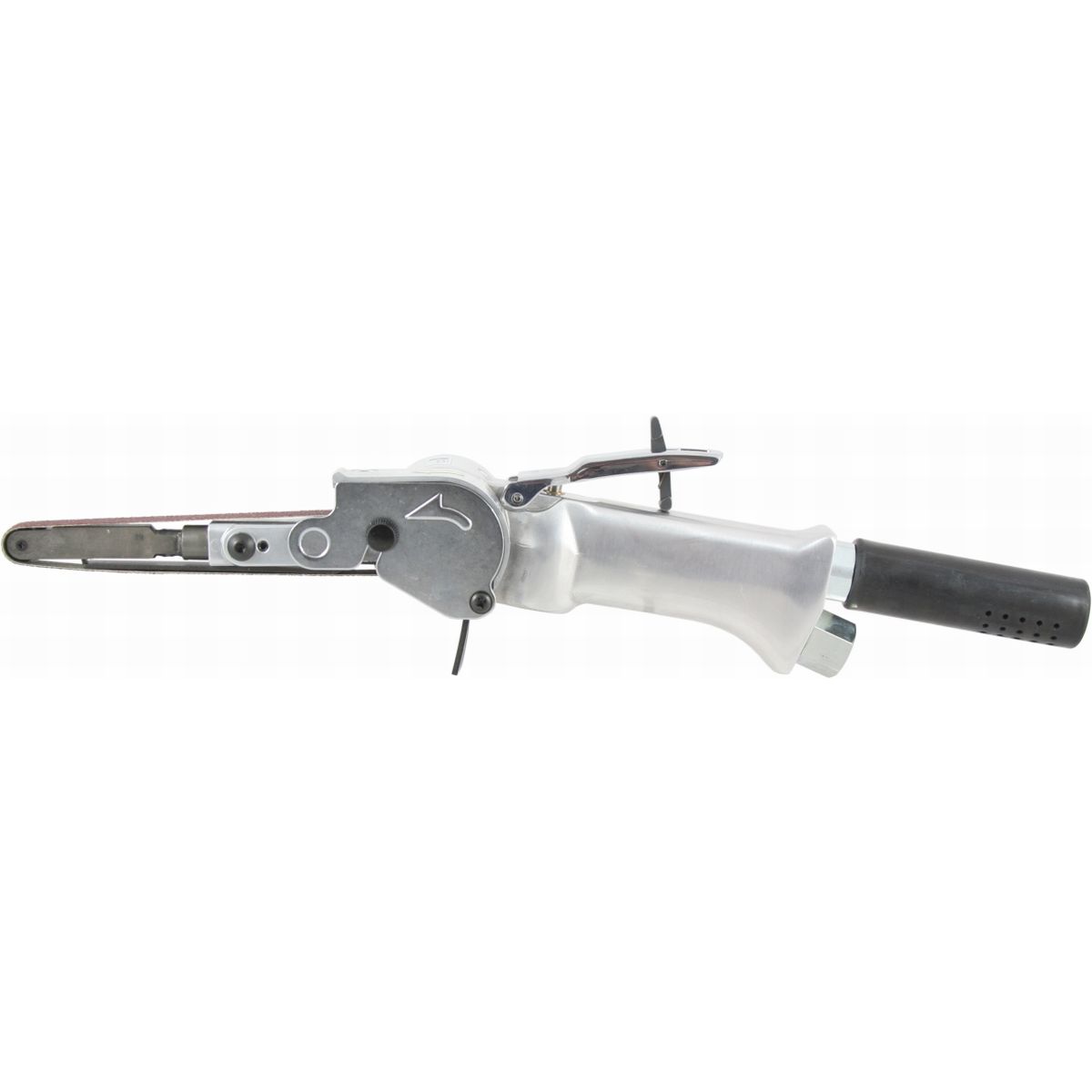

BS6C Belt Sander
| Belt size W x L: | 6 x 330 mm |
|---|---|
| Direction of rotation: | Rechtslauf |
| Equipment: | both-sided idle pulley |
| Current: | Pneumatic |
Product number:
13112000
Ergonomic
Light-weight/small
Quick change of accessory
BS6C Belt Sander
Applications

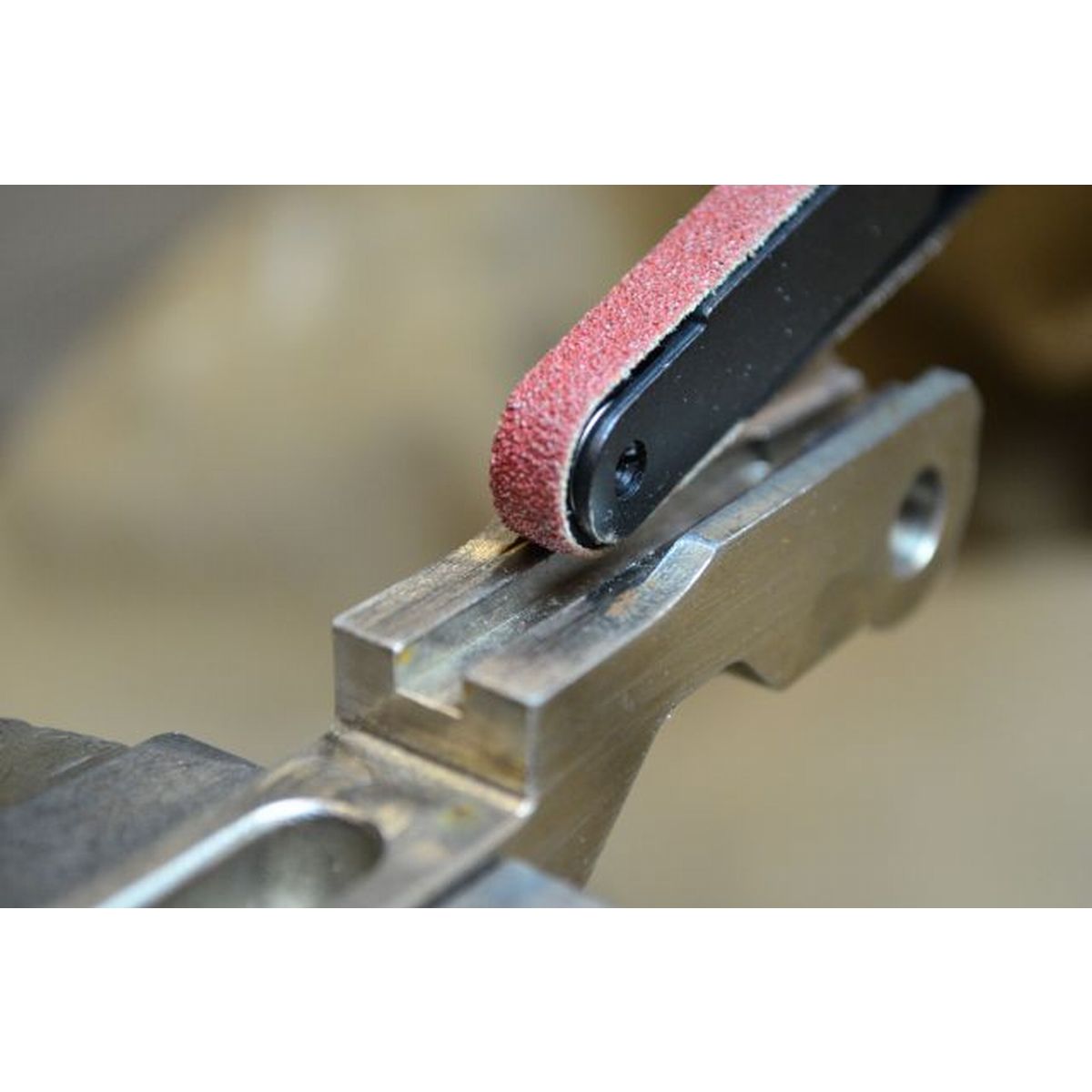

The air belt grinder BS6C is small, light, narrow and therefore ideal for grinding, pre-grinding, deburring and rounding of workpieces in confined spaces. But this air belt grinder is also suitable for refining surfaces or derusting. Depending on the abrasive belt equipment, you can process unalloyed steels, non-ferrous metals such as aluminium, brass or bronze, cast iron, steel alloys but also stainless steel (non-woven abrasive belt).
- - Small and light
- - For working in confined spaces
- - Reaches well deep lying areas
- - Ergonomic, narrow design
- - Belt width: 6 mm
Air belt grinder BS6C - narrow for confined spaces
The air belt grinder BS 6C is our smallest belt grinder with a belt width of 6 mm. This makes it ideal for machining workpieces in confined spaces or in recessed areas. For a perfect adaptation to the workpiece, you can rotate the grinding arm 360° and thus have perfect contact with the workpiece in any position. If you need to change the grinding belt, you can do so quickly and easily without additional tools thanks to the grinding arm lock. The scope of delivery includes an additional offset bracket. You can attach this to the grinding arm if you want to work on curved surfaces. The grinding belt is given more room to adapt to the workpiece. The dust collector protects you from abrasive particles whirling around. You can easily change the speed with a simple turn of a screwdriver. The air belt grinder runs clockwise, reversible models are the BSR10B and the BSR20. Thanks to its ergonomic design, low weight and low vibration values, this narrow belt sander is a high-quality, durable industrial tool for daily use with which you can work fatigue-free. In the accessories you will also find high-quality grinding belts for best grinding results. You can choose between corundum, zirconium corundum and non-woven abrasive belts.| Speed: | 17000 min-1 |
|---|---|
| Belt speed: | 18.6 m/s |
| Belt size W x L: | 6 x 330 mm |
| Direction of rotation: | Rechtslauf |
| Start: | Valve lever |
| Equipment: | both-sided idle pulley |
| Dimensions LxWxH: | 372 x 83 x 96 mm |
| Weight: | 0.9 kg |
| Recommended hose Ø: | 9 mm |
| Air consumption: | 6.7 l/s |
| Sound pressure level: | 78 dB(A) |
| Sound power level: | 89 dB(A) |
| Current: | Pneumatic |
| Working pressure: | 6.3 bar |
| Inlet air connection: | G 1/4" |
| Vibration: | < 2.5 m/s² |
