CF110/2,2 Precision hand file
| Strokes: | 11000 min-1 |
|---|---|
| Stroke length: | 2.2 mm |
| Chuck: | Round shaft Ø 3 mm |
| Current: | Pneumatic |
Product number:
67122000
Light-weight/small
Low-vibration type
CF110/2,2 Precision hand file
Applications

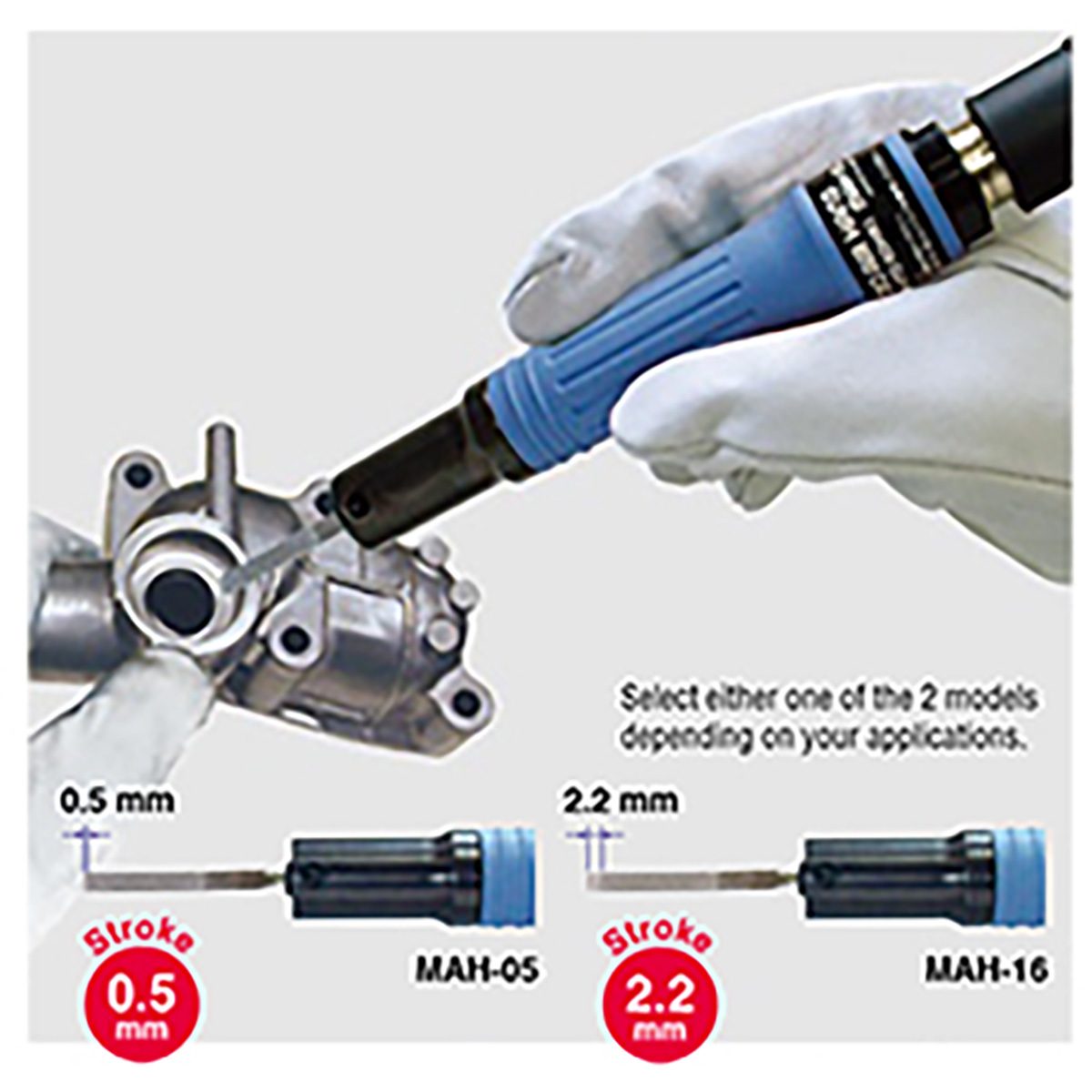

Pneumatic precision hand files for deburring, filing, fine grinding and lapping; in mould making, fixture and apparatus construction.
Especially light-weight and low-noise pneumatic hand file reduces time consuming manual hand filing operations.
Ideally suitable for precision filing works thanks to short stroke of 2.2 mm.
For working steel, aluminum, brass, wood and other materials.
Ø 3 mm round shaft.
Fatigue free working thanks to low vibration values ( 2.5 m/s2).
Workers protection by exhaust air guide (hose-in-hose).
Technical specifications
Ideally suitable for precision filing works thanks to short stroke of 2.2 mm.
For working steel, aluminum, brass, wood and other materials.
Ø 3 mm round shaft.
Fatigue free working thanks to low vibration values ( 2.5 m/s2).
Workers protection by exhaust air guide (hose-in-hose).
| Strokes: | 11000 min-1 |
|---|---|
| Stroke length: | 2.2 mm |
| Chuck: | Round shaft Ø 3 mm |
| Start: | Schiebeventil |
| Construction form: | Straight |
| Housing Ø: | 21 mm |
| Length [mm]: | 176 |
| Weight: | 0.4 kg |
| Air consumption: | 1.17 l/s |
| Sound pressure level: | 80 dB(A) |
| Sound power level: | 91 dB(A) |
| Vibration: | 1.8 m/s² |
| Current: | Pneumatic |
| Working pressure: | 6.3 bar |
| Inlet air connection: | G 1/4" |
