DG30/50 Drilling machine
| Power [W]: | 300 |
|---|---|
| Speed: | 500 / min |
| Construction form: | Straight |
| Current: | Pneumatic |
Product number:
42112400
Ölfreier Betrieb möglich
DG30/50 Drilling machine
Applications
The straight pneumatic drilling machine DG30/50 is inline shaped, an air powered tool for axial drilling applications. It is used in any type of industrial company as well as in workshops and for maintenance.
Straight air drilling machine with 300 W force
Reliable compressed air drill with a favourable weight/performance ratio.The drill chuck is interchangeable for different applications.
The low speed start is best suited for better drill placement.
The drills have a long service life with constantly high performance.
Pneumatic drills in bar form are recommended for vertical drilling.
| Power [W]: | 300 |
|---|---|
| Speed: | 500 / min |
| Clamping Range Ø: | 1 - 10 mm |
| Construction form: | Straight |
| Start: | Valve lever |
| Direction of rotation: | Rechts |
| Weight [kg]: | 1.09 |
| Housing Ø: | 40 mm |
| Length [mm]: | 255 |
| Recommended hose Ø: | 9 mm |
| Air consumption: | 9 l/s |
| Sound pressure level: | 91 dB(A) |
| Current: | Pneumatic |
| Working pressure: | 6.3 bar |

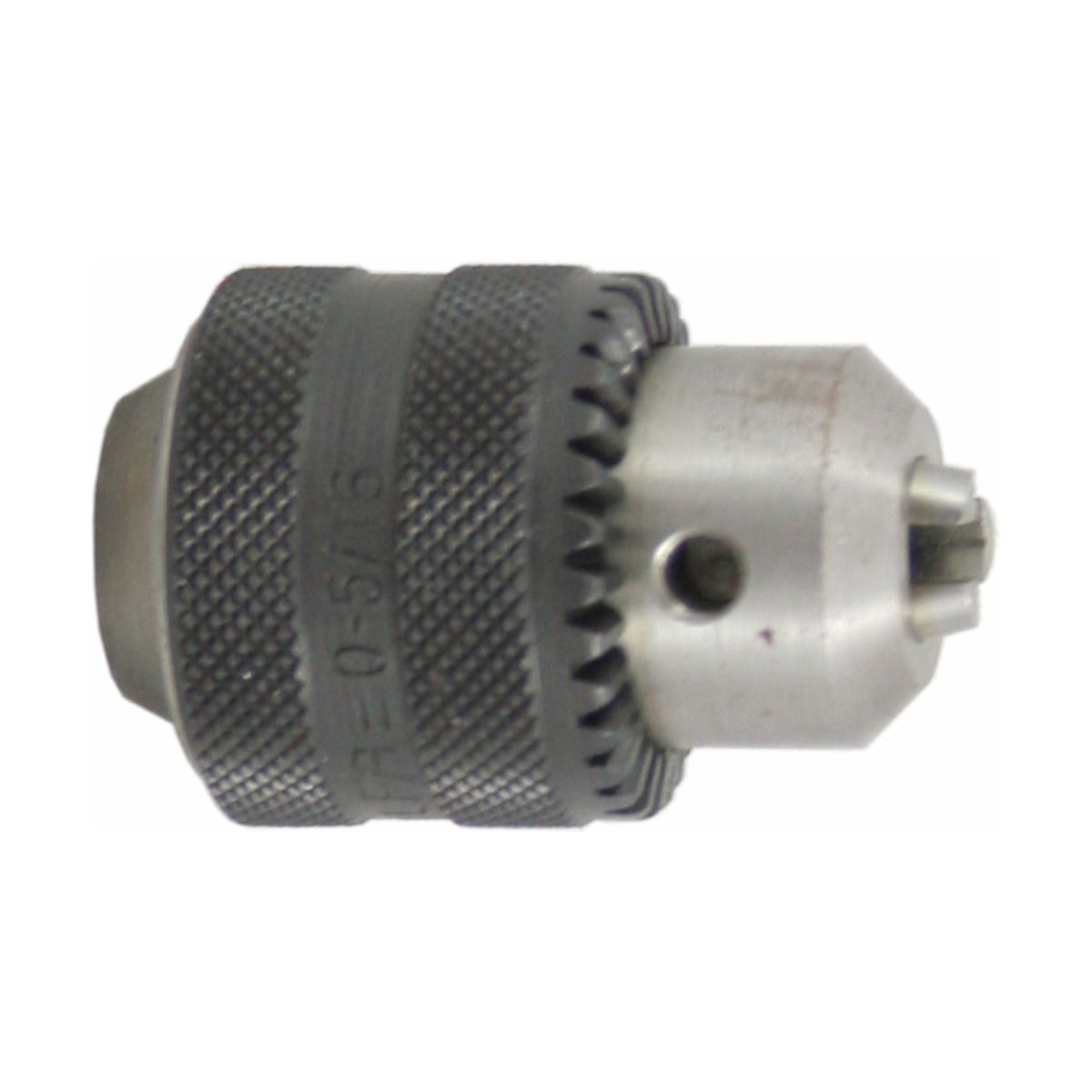

| Chuck: | Self-locking chuck (3/8" x 24 UNF) |
| Inlet air connection: | G 1/4" |
| Vibration: | < 2.5 m/s² |
