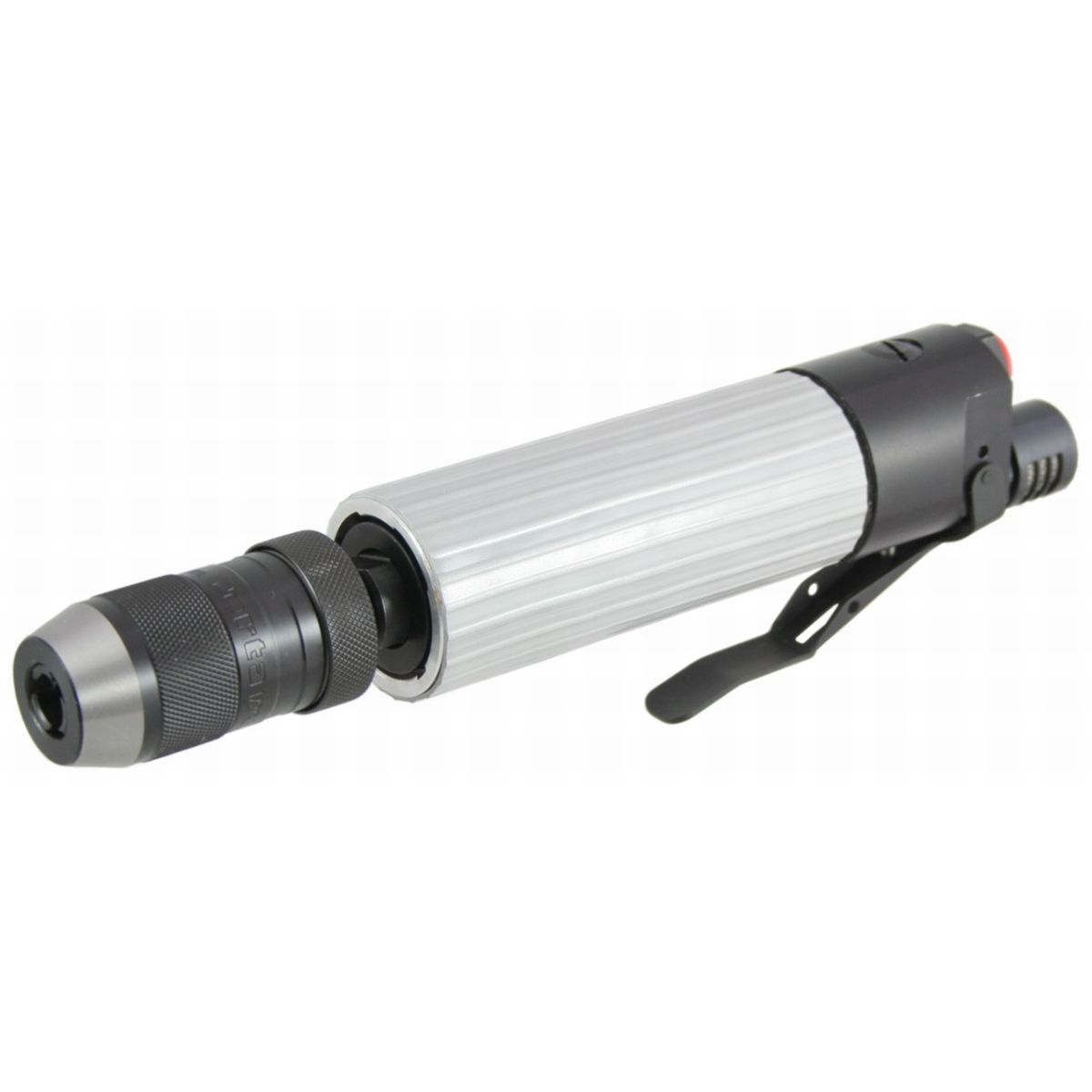

DG40/260 Drilling machine
| Power [W]: | 400 |
|---|---|
| Speed: | 2600 / min |
| Construction form: | Straight |
| Current: | Pneumatic |
Product number:
42103600
Ölfreier Betrieb möglich
DG40/260 Drilling machine
Applications
The pneumatic drilling machines DG are inline shaped, air powered drilling tools for axial drilling applications. They are used in any type of industrial company as well as in workshops and for maintenance.
Air drilling machine - professional tool for the industry
Reliable compressed air drills with a favourable weight/performance ratio.The drill chuck is interchangeable for different applications.
The low speed start is best suited for better drill placement.
The drills have a long service life with constantly high performance.
Pneumatic drills in bar form are recommended for vertical drilling.
| Power [W]: | 400 |
|---|---|
| Speed: | 2600 / min |
| Clamping Range Ø: | 1 - 10 mm |
| Construction form: | Straight |
| Start: | Valve lever |
| Direction of rotation: | Rechts |
| Weight [kg]: | 1.33 |
| Housing Ø: | 46 mm |
| Length [mm]: | 270 |
| Recommended hose Ø: | 9 mm |
| Air consumption: | 11 l/s |
| Sound pressure level: | 77 dB(A) |
| Current: | Pneumatic |
| Working pressure: | 6.3 bar |
| Chuck: | Self-locking chuck (1/2" x 20 UNF) |
| Inlet air connection: | G 1/4" |
| Vibration: | < 2.5 m/s² |
