DN10/2 (JC-16) Needle scaler
| Stroke: | 22 mm |
|---|---|
| Equipment: | 2 x 29 needles (Ø 2 x 150 mm) |
| Current: | Pneumatic |
| IMPA: | 590461 |
Product number:
82120000
Light-weight/small
Quick change of accessory

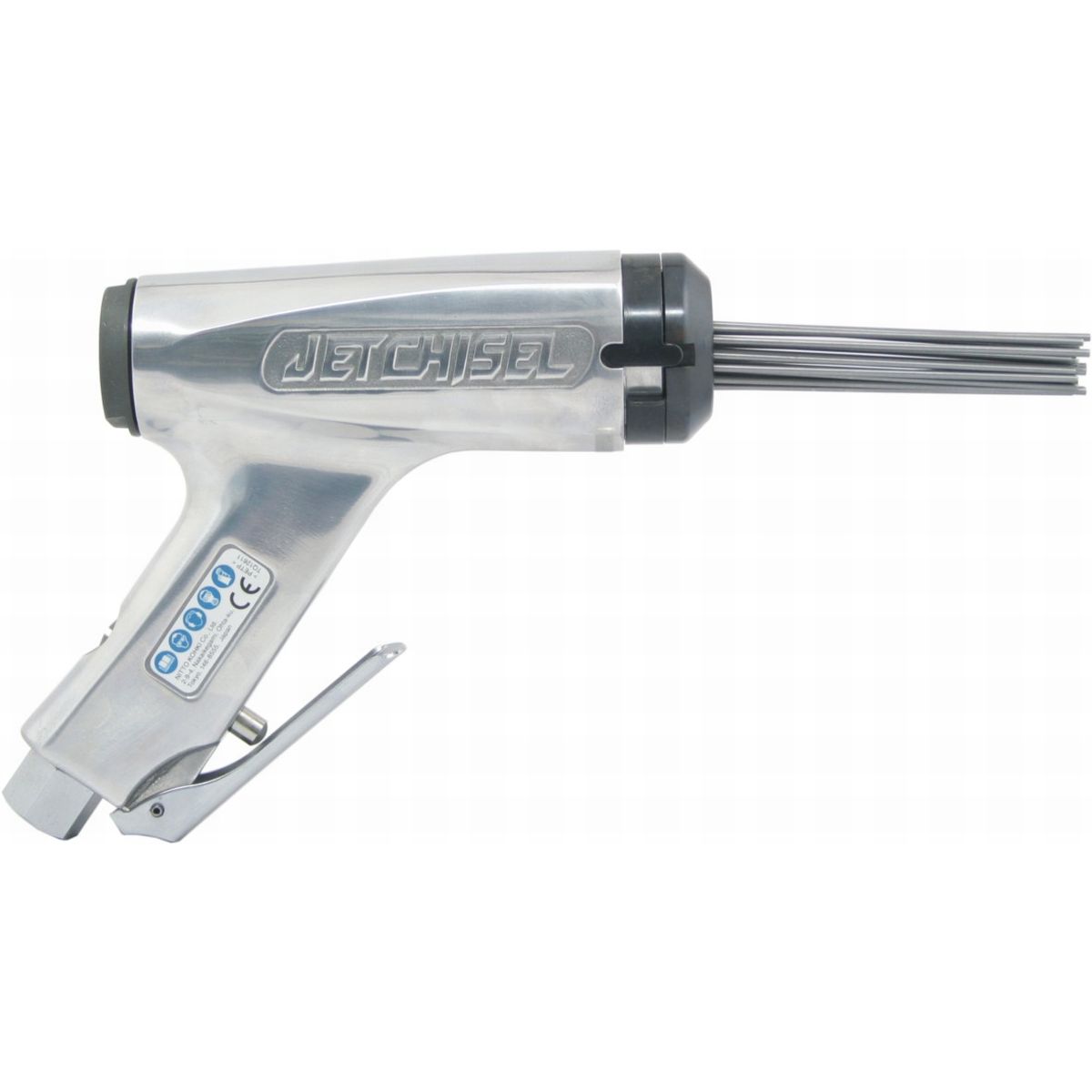

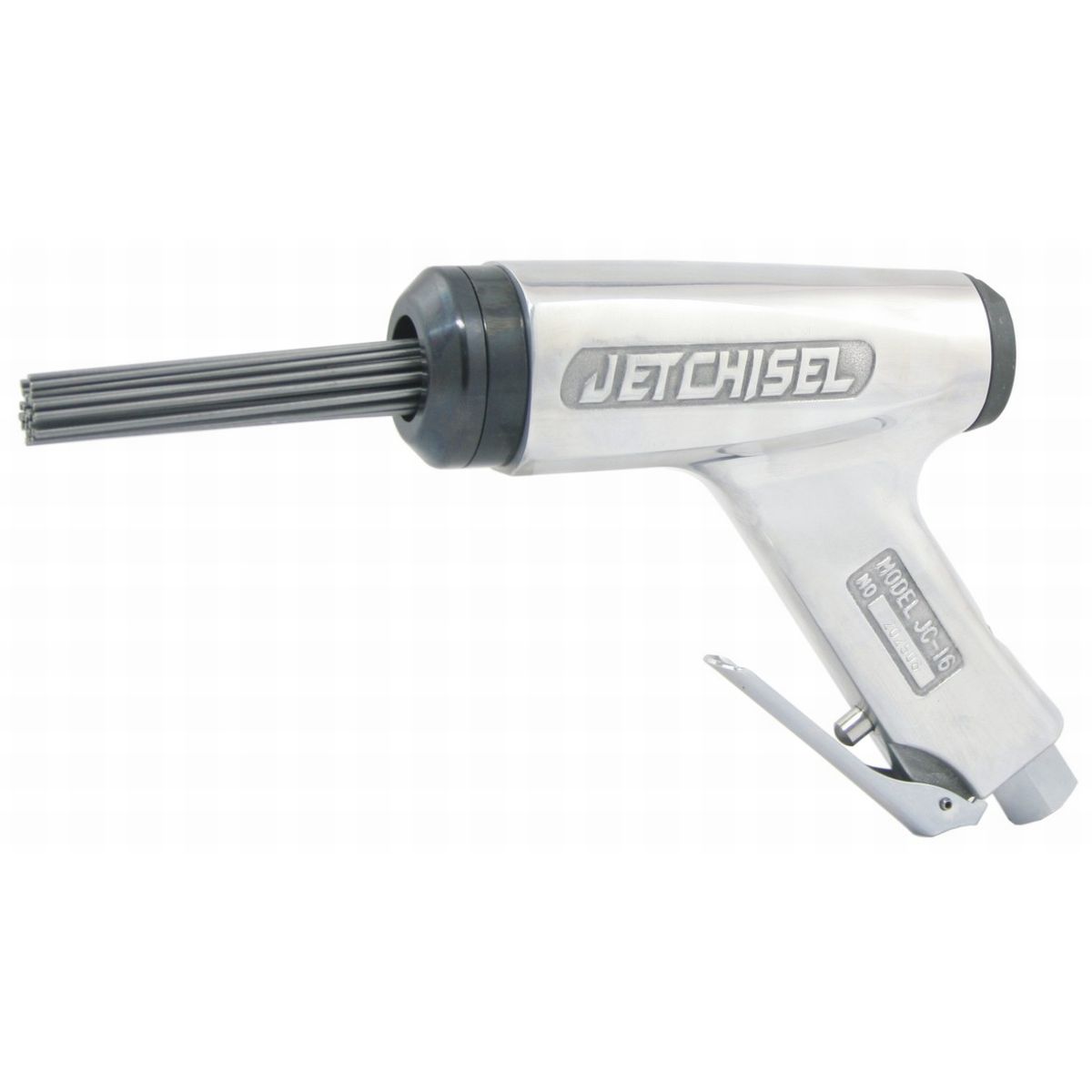

DN10/2 (JC-16) Needle scaler
Applications
The air jet chisel DN 10/2 (JC-16) is designed for derusting and cleaning small surfaces of flying rust, paint, mussel coating, slag and much more. The air jet chisel is used in shipping, shipyards, for small-scale corrosion protection work, e.g. on masts or containers, or in mechanical engineering and concrete repair.
Short and light
High-quality tool, high-quality needles
equipped with 29 standard needles (Ø 2 x 150 mm)
29 spare needles are included in scope of delivery
Needle for stainless steel available as an option
Stroke: 22 mm
Long service life with low maintenance costs
Quick change of replacement needles
Technical specifications
High-quality tool, high-quality needles
equipped with 29 standard needles (Ø 2 x 150 mm)
29 spare needles are included in scope of delivery
Needle for stainless steel available as an option
Stroke: 22 mm
Long service life with low maintenance costs
Quick change of replacement needles

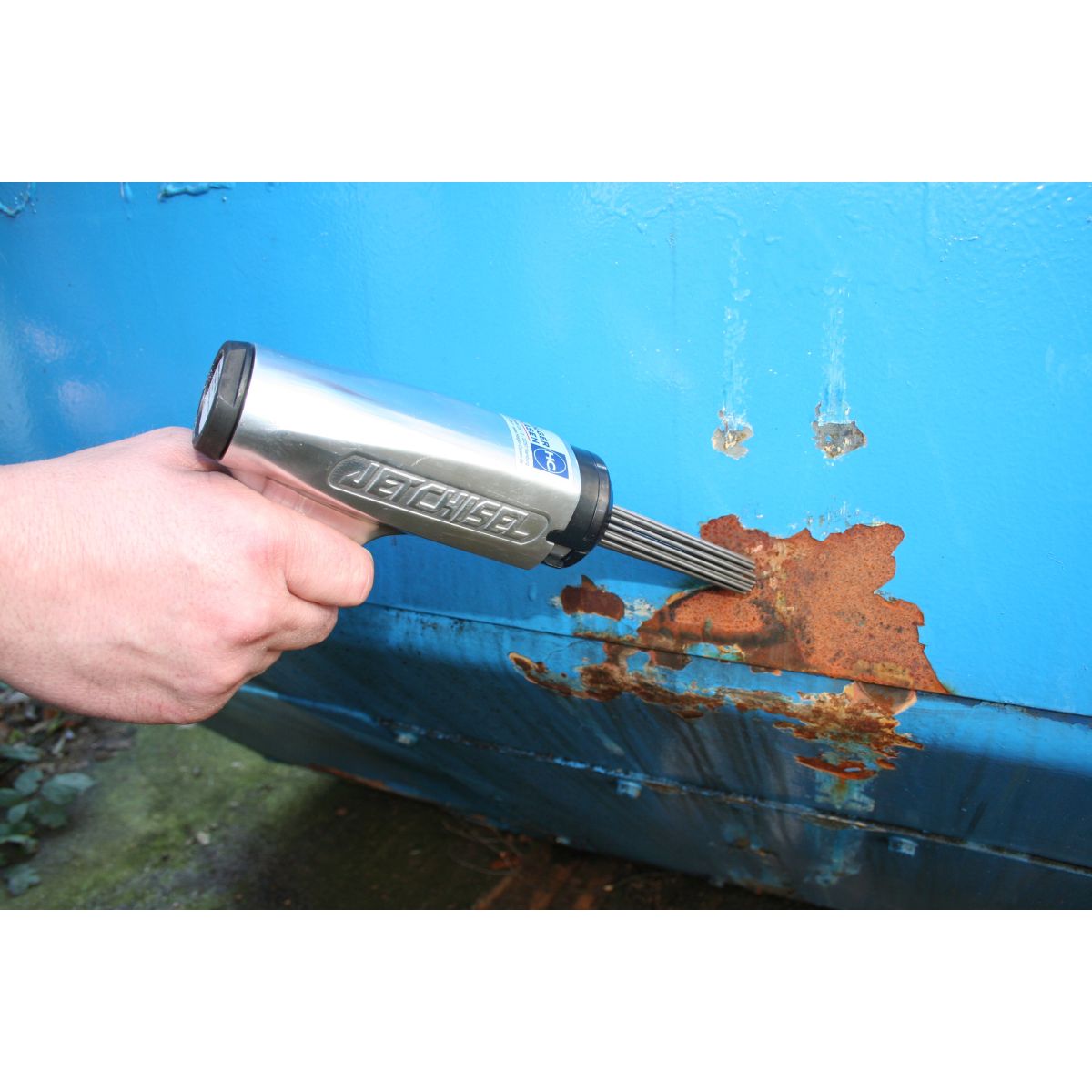

Air jet chisel DN10/2 (JC-16) - small, but fine for derusting small surfaces
The air jet chisel DN 10/2 (JC-16) our smallest needle scaler in pistol form, which is opitmal designed for horizontal and/or small area cleaning work. The low weight of 2.1 kg and the short design of 158 mm support working in confined spaces. The jet chisel is equipped with 29 standard needles (Ø 2 x 150 mm) which reliably remove paint, deposits and fly rust from metal surfaces. Special stainless steel needles are available as accessories for processing stainless steel. The needle change is quick and easy. All you have to do is pull the locking ring off the cover and you can remove the needle carrier and needles from the tool and replace the worn needles. With 3.8 m/s2, the needle pistol is also low-vibration for a beating tool, only the DN3000A is even lower in vibration values. The 29 needles adapt perfectly to any surface and can therefore also work on uneven surfaces such as checker plates or corners and angles. Our compressed air needle gun has a long service life, is low-maintenance and runs reliably for a long time thanks to the high quality of the needles - a reliable partner for derusting work.| Blows: | 4000 min-1 |
|---|---|
| Stroke: | 22 mm |
| Construction form: | Pistol |
| Start: | Valve lever |
| Equipment: | 2 x 29 needles (Ø 2 x 150 mm) |
| Length [mm]: | 158 |
| Height: | 150 mm |
| Weight [kg]: | 1.4 |
| Inlet air connection: | R 3/8" |
| Recommended hose Ø: | 9 mm |
| Air consumption: | 2.5 l/s |
| Current: | Pneumatic |
| Working pressure: | 6.3 bar |
| Information: | Length without Needles |
| IMPA: | 590461 |
