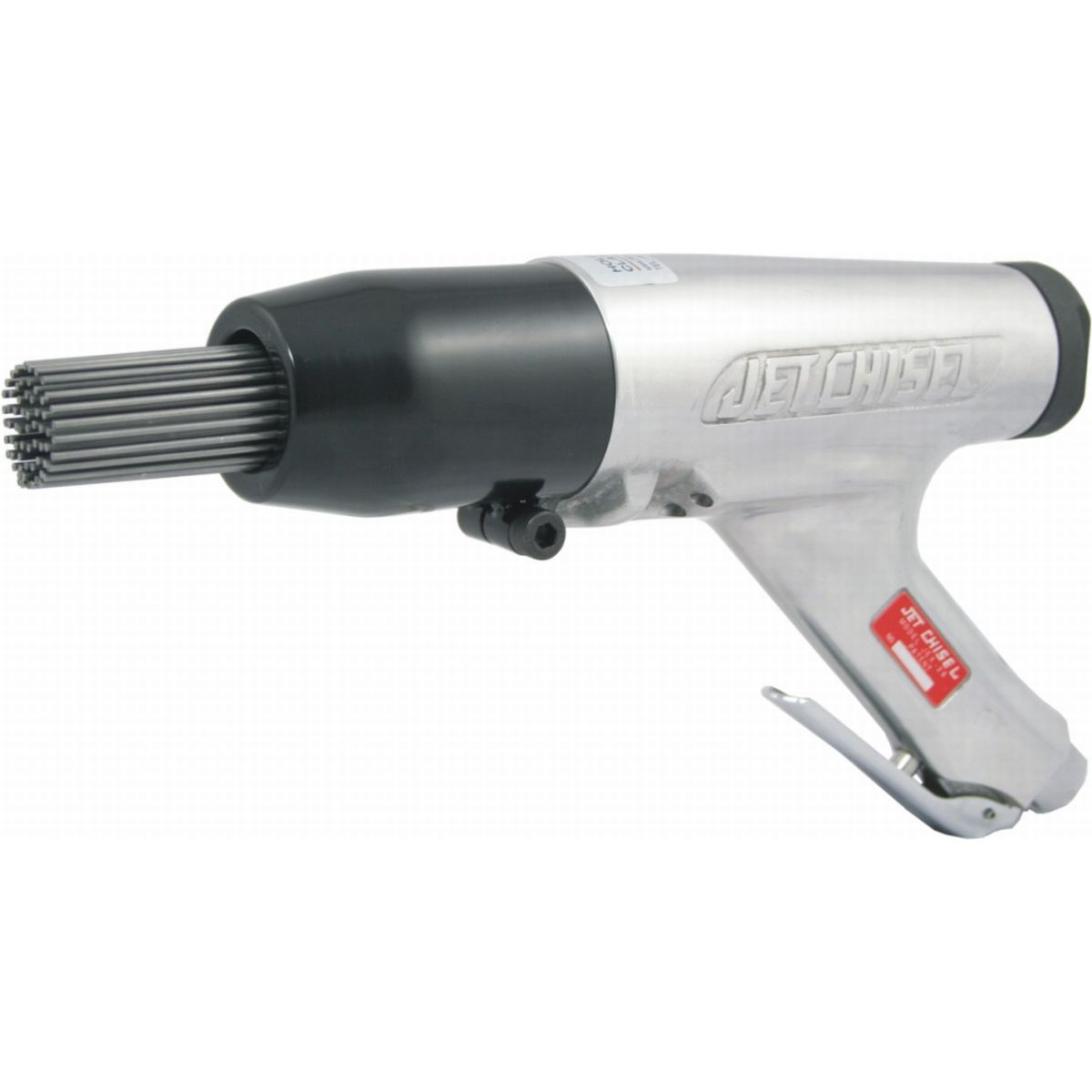

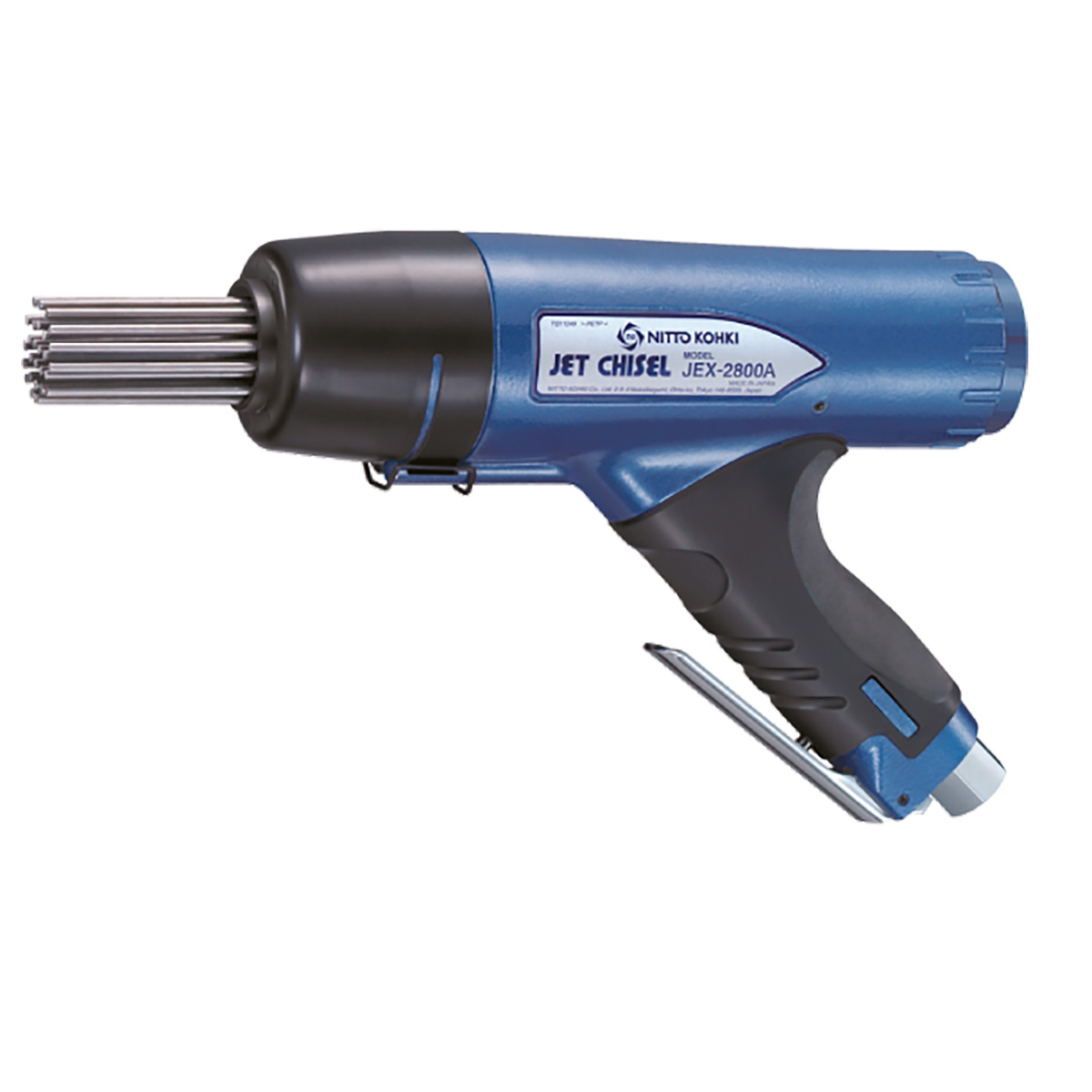

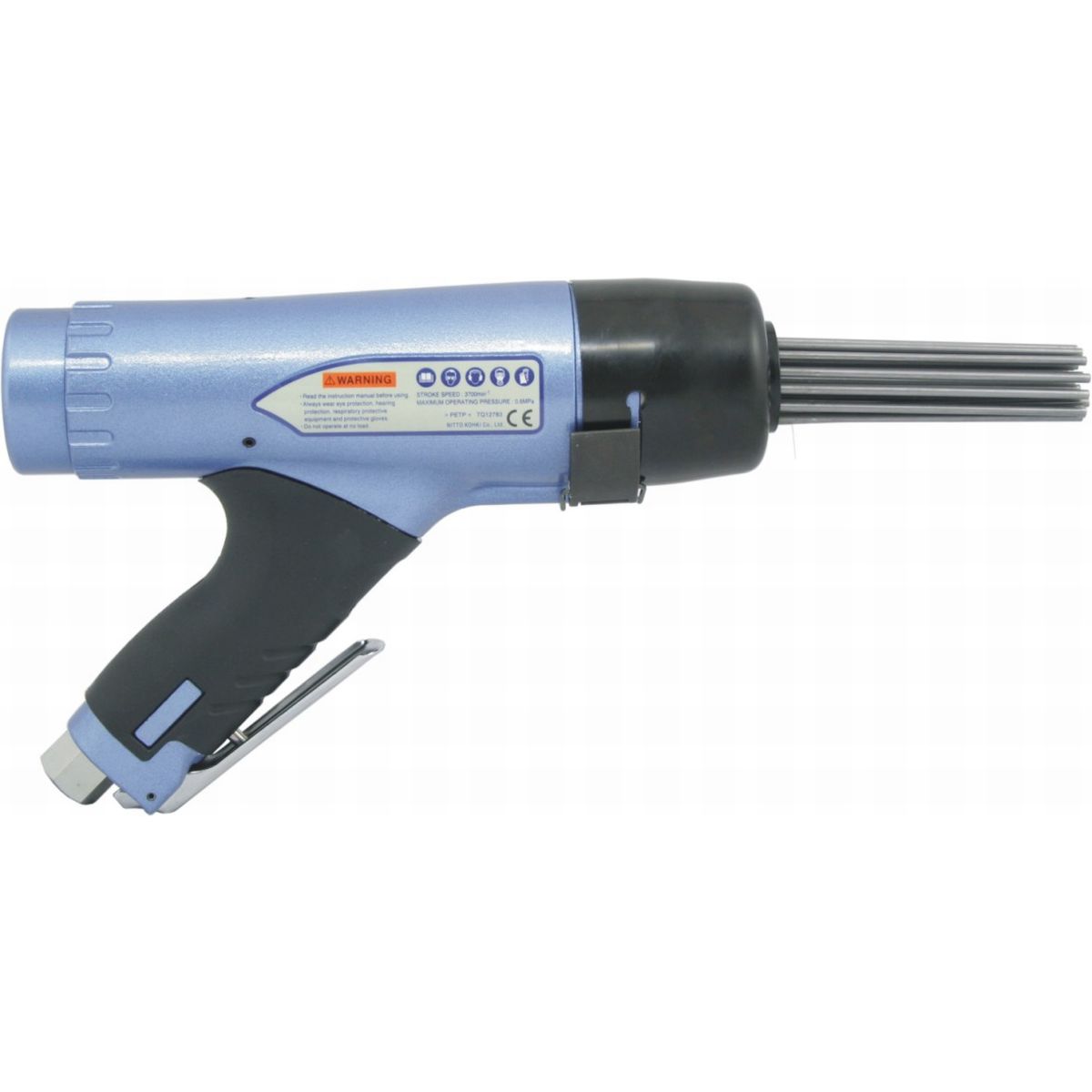

DN3000 A (JEX-2800A) Needle scaler - low-vibration type
| Stroke: | 30 mm |
|---|---|
| Equipment: | 23 needles (Ø 3 x 180 mm), needles (Ø 4 x 180 mm) |
| Current: | Pneumatic |
| IMPA: | 590470 |
Product number:
82155000
Low-vibration type
Quick change of accessory
DN3000 A (JEX-2800A) Needle scaler - low-vibration type
Applications
The air needle scaler DN 3000 A (JEX-2800A) is a low-vibration, powerful and versatile tool for derusting , proven for derusting and cleaning of small surfaces from rust film, paint, mussel coating, slag and much more. The needle scaler is used in shipping, shipyards, for small-scale corrosion protection work, e.g. on masts or containers, or in mechanical engineering.
Low-vibration type
Flexible and powerful
High-quality tool, high-quality needles
Equipped with 23 standard needles (Ø 3 x 180 mm)
14 standard needles (Ø 4 x 180 mm) and needle supporter included
Conversion to Ø 2 mm needles possible
Optional needle available from 180mm to 800mm length
Additional needle carrier may be necessary
Needles available for machining stainless steel
Spark free needles available
Stroke: 30 mm
Long service life with low maintenance
Quick change of replacement needles
Technical specifications
Flexible and powerful
High-quality tool, high-quality needles
Equipped with 23 standard needles (Ø 3 x 180 mm)
14 standard needles (Ø 4 x 180 mm) and needle supporter included
Conversion to Ø 2 mm needles possible
Optional needle available from 180mm to 800mm length
Additional needle carrier may be necessary
Needles available for machining stainless steel
Spark free needles available
Stroke: 30 mm
Long service life with low maintenance
Quick change of replacement needles
Air needle scaler DN3000A (JEX-2800A) - no comparison to cheap tools - powerful, sturdy, long-lasting
The air needle scaler DN 3000A (JEX-2800A) is universally and fatigue-free usable and with 30mm stroke our most powerful needle scaler in pistol form, optimal for derusting with a hand tool. The weight of 3.1 kg as well as the sturdy design can be perfectly staged in use. Thanks to extensive accessories, the use of Ø 2 mm, Ø 3 mm or Ø 4 mm needles is possible. You can process all common materials with the standard needles, special VA needles are available for stainless steel and we can even offer you spark-free needles made of copper-berryllium. The lengths range from 180mm to 800mm. The needle scaler is equipped with 23 standard needles (Ø 3 x 180 mm), which reliably remove paint, deposits and flash rust from metal surfaces. A needle supporter and 14 standard needles (Ø 4 x 180 mm) are included. For the conversion to Ø 2 mm needles, you need a suitable needle supporter, and the conversion or needle change in case of wear is made quick and easy. All you have to do is loosen one screw on the housing, remove the cover and you can remove the needle carrier and needles from the tool and replace them. Thanks to the extensive range of accessories, the needle scaler is very adaptable to the working environment and can therefore be used universally. The needles adapt perfectly to any surface and can therefore also work on uneven surfaces such as checker plates, deep joints or corners and angles. Our air needle scalerhas a long service life, is low-maintenance and runs reliably for a long time thanks to its high quality, also of the needles - a reliable partner for fatigue-free working in corrosions protection.| Blows: | 3700 min-1 |
|---|---|
| Stroke: | 30 mm |
| Construction form: | Pistol |
| Start: | Valve lever |
| Equipment: | 23 needles (Ø 3 x 180 mm), needles (Ø 4 x 180 mm) |
| Length [mm]: | 247 |
| Height: | 173 mm |
| Weight [kg]: | 3.1 |
| Inlet air connection: | R 3/8" |
| Recommended hose Ø: | 9 mm |
| Air consumption: | 7.1 l/s |
| Current: | Pneumatic |
| Working pressure: | 6.3 bar |
| Information: | Length without Needles |
| IMPA: | 590470 |
