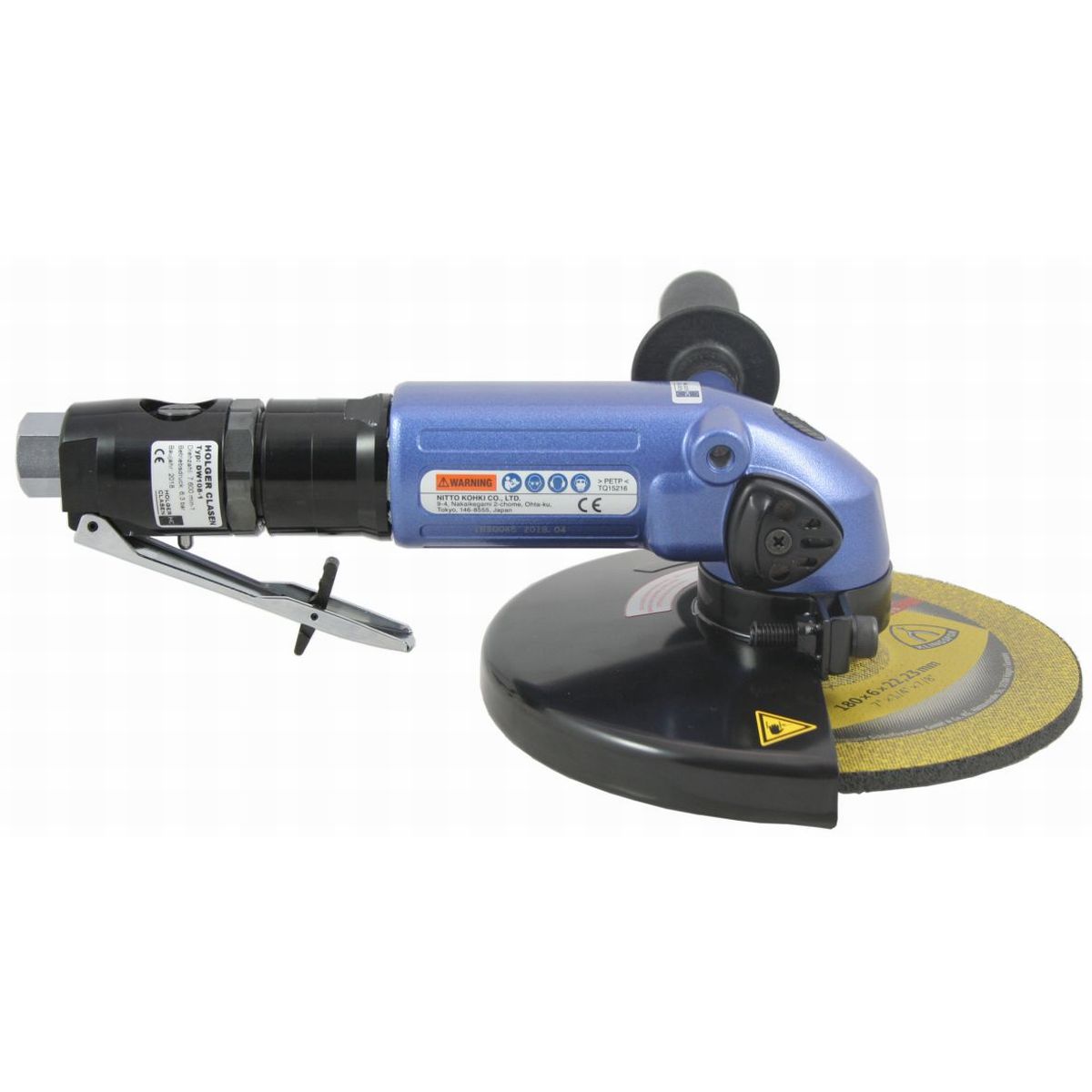

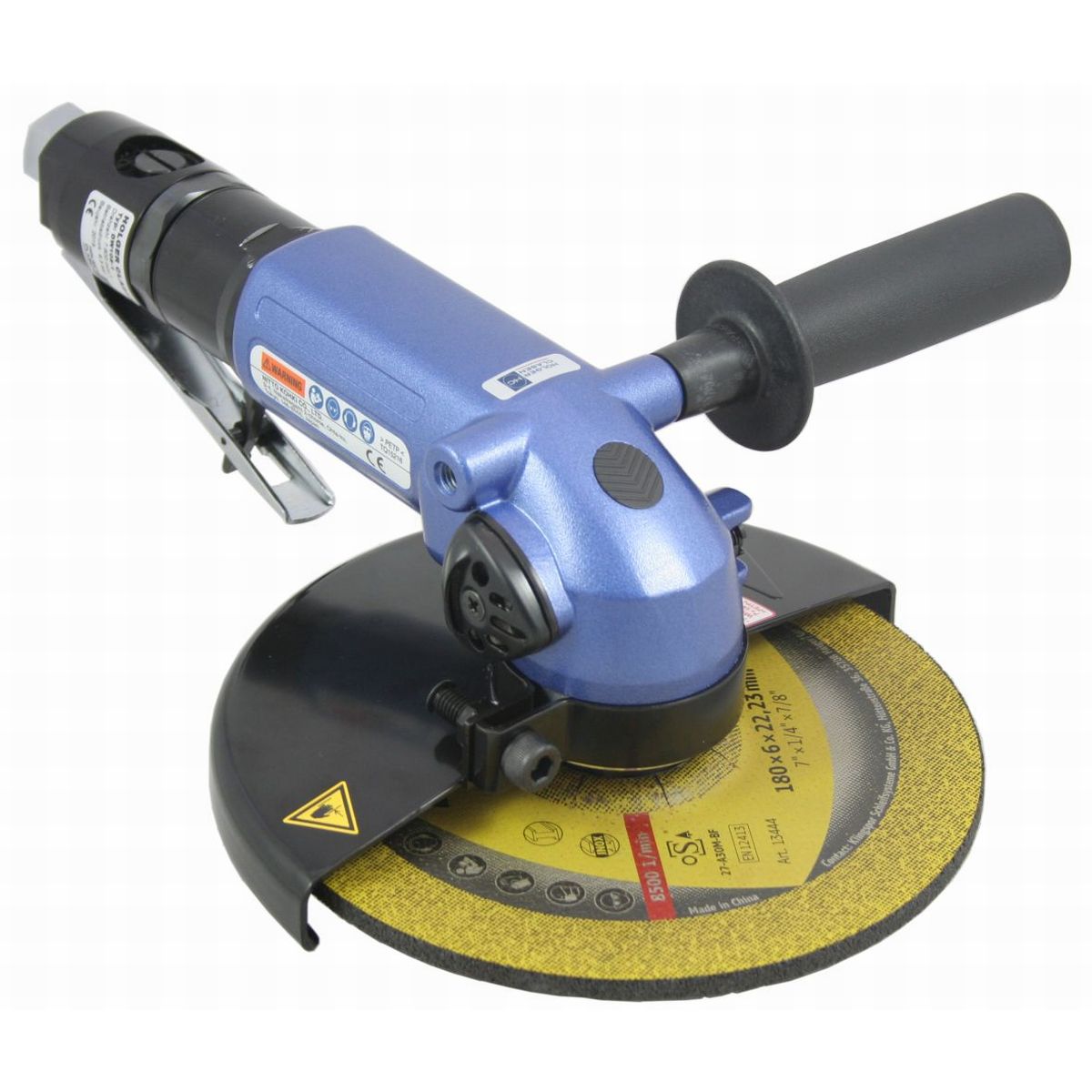

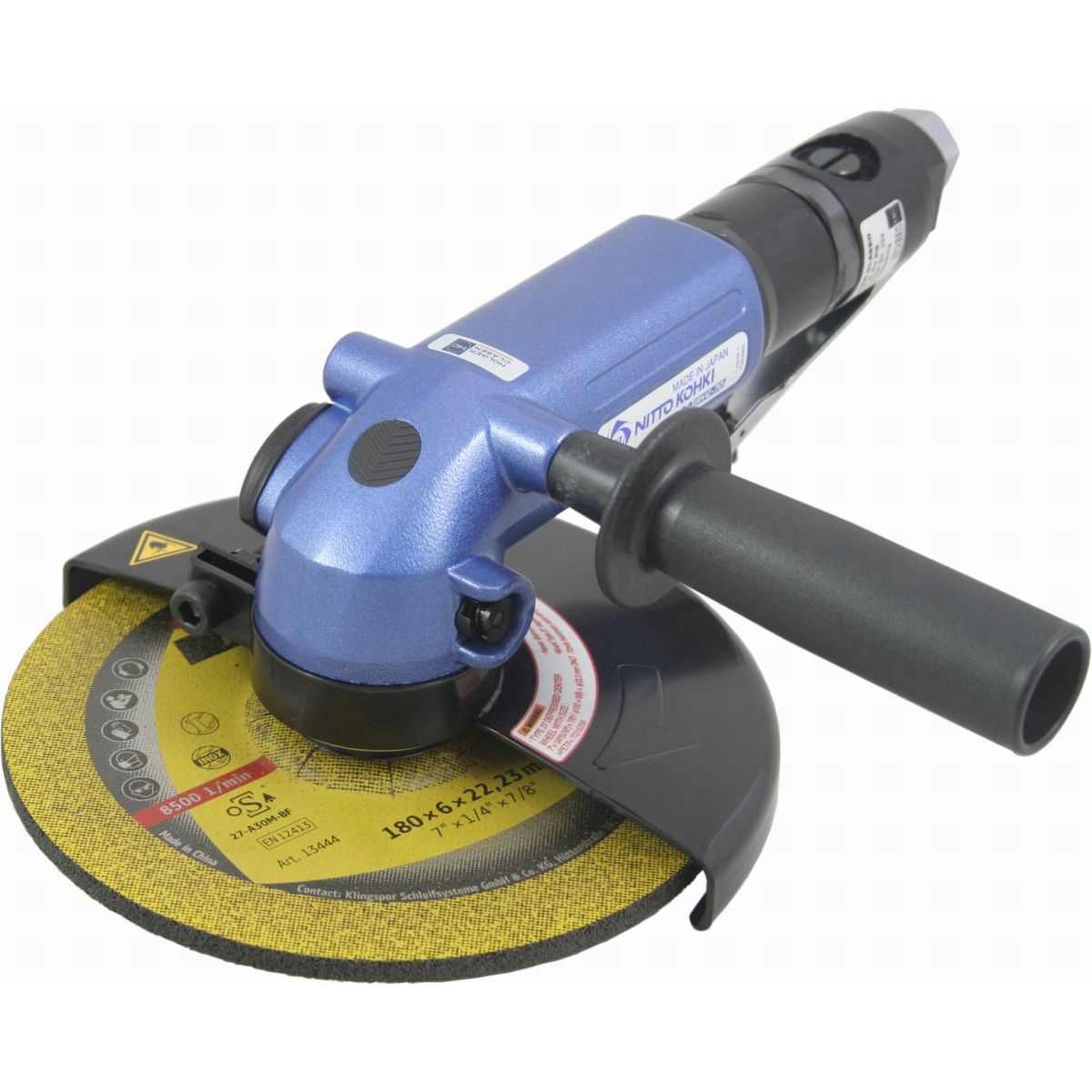

DW108-1 Angle grinder
| Power [W]: | 1100 |
|---|---|
| Speed: | 7600 / min |
| Wheel Ø: | 180 mm |
| Chuck: | Clamping chuck (Ø 22 mm) |
| Current: | Pneumatic |
| IMPA: | 590302 |
Product number:
12106800
Quick change of accessory
Two-hand operation
DW108-1 Angle grinder

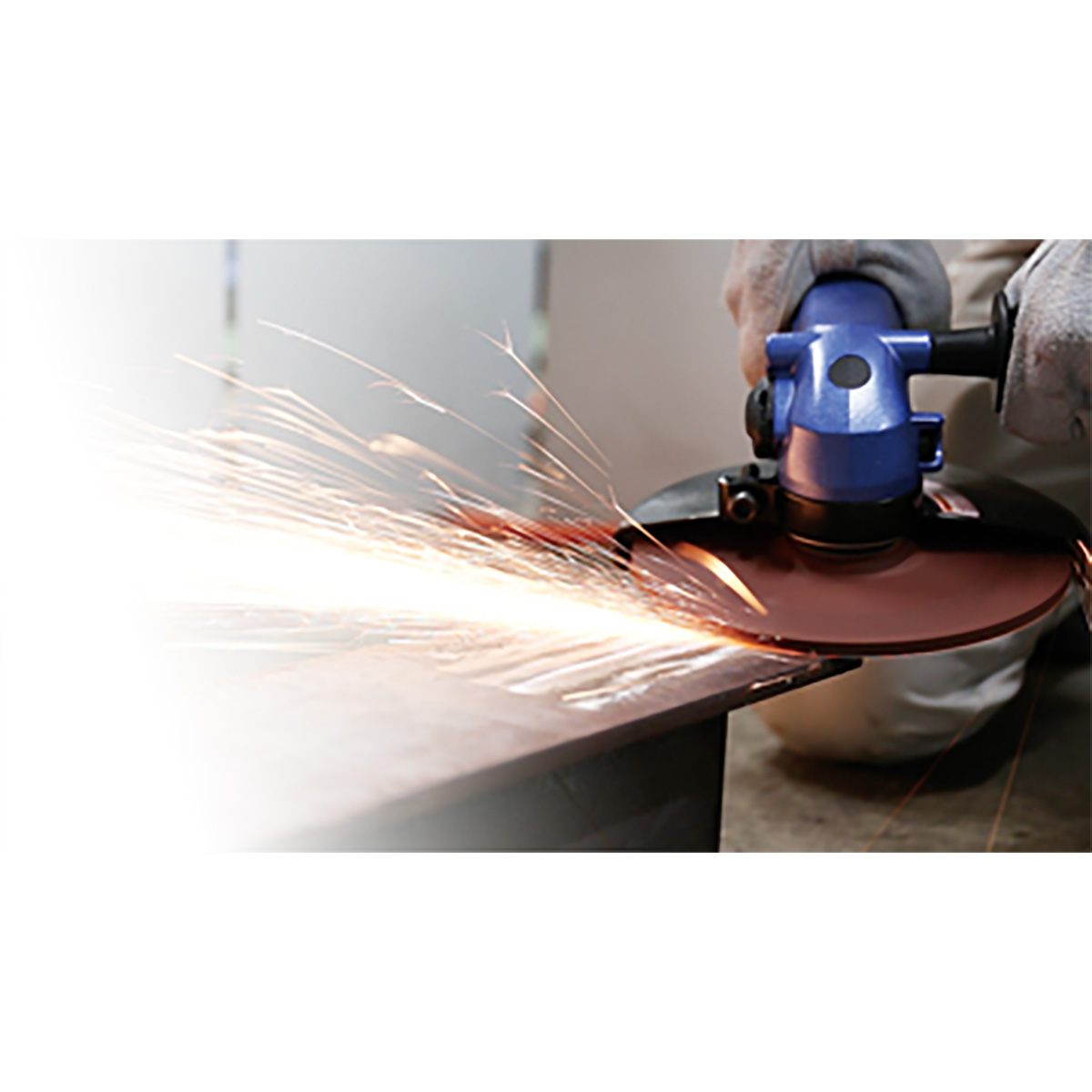

Applications
The pneumatic angle grinder DW108-1 is a very powerful und durable grinding tool with centrifugal governor for working large-sized surfaces (for discs Ø 180 mm). The angle grinder is versatile, reliable and intended for scrubbing, cutting, grinding, deburring and brushing cast iron, steel, VA, aluminum and other metal, stone, plastics and wood.
Power: 1100 WattSpeed: 7,600 min-1
Ideal for working in tight spaces thanks to flattened angle head.
Centrifugal governor provides constant speed, even under load.
With steplessly adjustable protective cover.
Standardized Ø 22 mm chuck for max. Ø 180 mm disc.
Spindle lock for easy changing of accessory.
Technical specifications
Pneumatic Angle Grinder DW108-1 for 180mm Cutting and Grinding Wheels
Improved silencer with directed exhaust air guide.Ideal for working in tight spaces thanks to flattened angle head.
Centrifugal governor provides constant speed, even under load.
With steplessly adjustable protective cover.
Standardized Ø 22 mm chuck for max. Ø 180 mm disc.
Spindle lock for easy changing of accessory.
| Power [W]: | 1100 |
|---|---|
| Speed: | 7600 / min |
| Wheel Ø: | 180 mm |
| Chuck: | Clamping chuck (Ø 22 mm) |
| Start: | Ventilhebel unten |
| Handling: | Two-hand operation |
| Connection handle: | M8 |
| Length [mm]: | 270 |
| Height: | 103 mm |
| Sound power level: | 103 dB(A) |
| Weight [kg]: | 2.5 |
| Recommended hose Ø: | 13 mm |
| Air consumption: | Leerlauf 11.7 l/s / Last 15.8 l/s |
| Sound pressure level: | 92 dB(A) |
| Current: | Pneumatic |
| Working pressure: | 6.3 bar |
| IMPA: | 590302 |
| Equipment: | Centrifugal governor,spindle lock |
| Inlet air connection: | G 3/8" |
| Vibration: | (Gehäuse / Griff) 2.3 / 8.2 m/s² |
