DW108-A150-1 Angle grinder
| Power [W]: | 1100 |
|---|---|
| Speed: | 7600 / min |
| Chuck: | M14 |
| Dust extraction: | external dust extraction |
| Current: | Pneumatic |
Product number:
18201500
Quick change of accessory
Two-hand operation
DW108-A150-1 Angle grinder
Applications

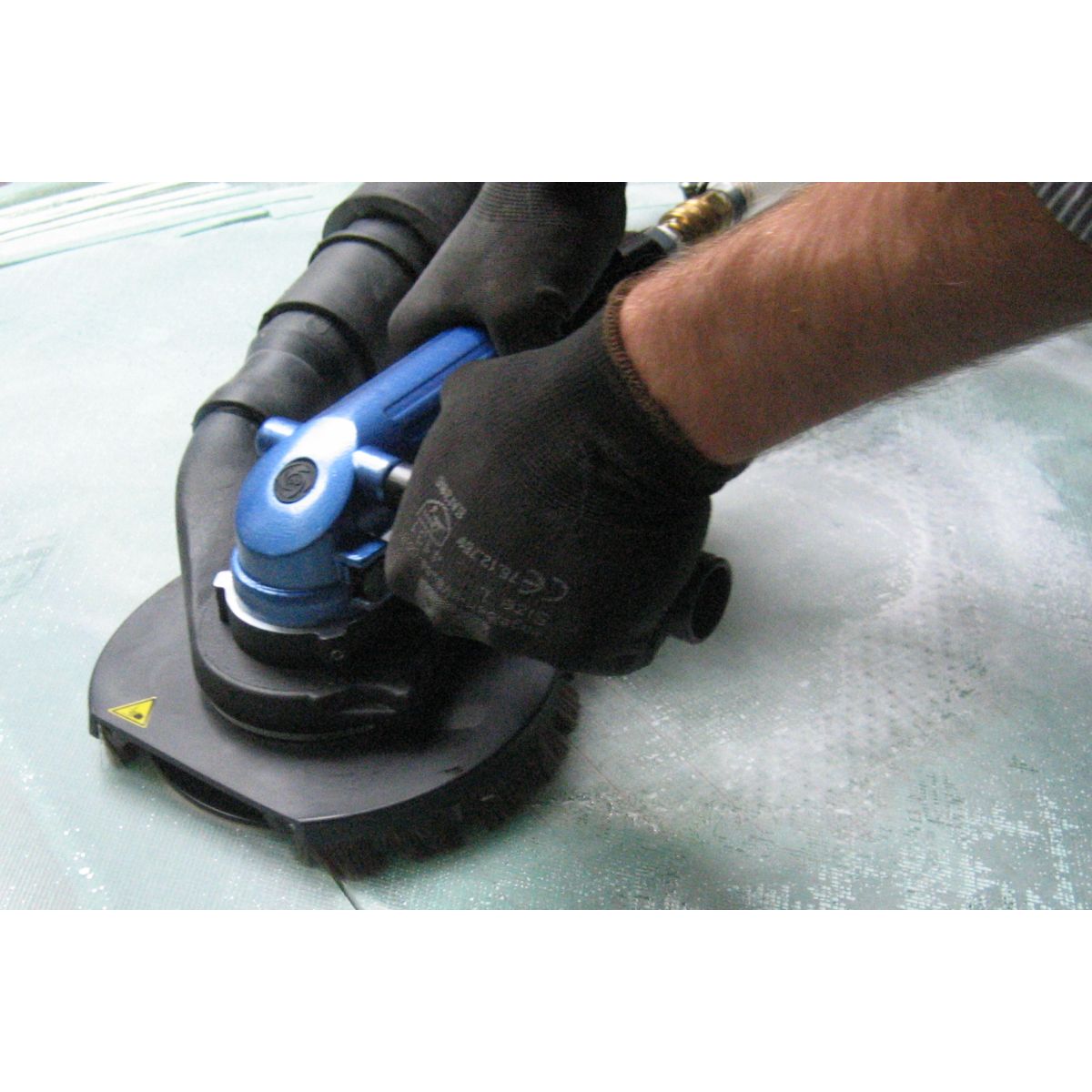

The pneumatic angle grinder DW108-A180-1 with dust extraction is designed for grinding with high material removal, the uneven dust is discharged into an external dust extraction. The effective suction hood of open design provides a dust-free working environment and is suitable for grinding accessories with Ø 150 mm. This angle grinder with suction is very popular for machining GRP and CRP, e.g. in rotor blade production.
Air powered angle grinder with efficient dust extraction right on site.
Precise handling thanks to the tool‘s small housing diameter and low weight.
Spindle lock facilitates quick disc change without the need for special tools.
Centrifugal governor provides consistent speed under load.
No tiring due to low-vibration motor.
Long service life due to sturdy gear and bearings.
Protective cover can be adjusted steplessly through 360°.
The flattened angle head guarantees access to work spaces that are difficult to reach.
Technical specifications
Precise handling thanks to the tool‘s small housing diameter and low weight.
Spindle lock facilitates quick disc change without the need for special tools.
Centrifugal governor provides consistent speed under load.
No tiring due to low-vibration motor.
Long service life due to sturdy gear and bearings.
Protective cover can be adjusted steplessly through 360°.
The flattened angle head guarantees access to work spaces that are difficult to reach.
| Power [W]: | 1100 |
|---|---|
| Speed: | 7600 / min |
| Plate Ø: | 150 mm |
| Wheel Ø: | 150 mm |
| Chuck: | M14 |
| Start: | Ventilhebel unten |
| Handling: | Two-hand operation |
| Connection handle: | M8 |
| Dust extraction: | external dust extraction |
| Connection dust extraction: | Ø 38 mm |
| Weight [kg]: | 2.5 |
| Recommended hose Ø: | 13 mm |
| Air consumption: | Leerlauf 11.7 l/s / Last 15.8 l/s |
| Current: | Pneumatic |
| Working pressure: | 6.3 bar |
| Equipment: | Centrifugal governor,spindle lock |
| Inlet air connection: | G 3/8" |
