DW40/50 Angle drilling machine
| Power: | 400 W |
|---|---|
| Speed: | 500 min-1 |
| Current: | Pneumatic |
Product number:
44107400
Ölfreier Betrieb möglich
DW40/50 Angle drilling machine
Applications
Pneumatic angle drilling machine for work in hard-to-reach places. The angle drilling machine is used in all industrial areas as well as workshops and plant repairs.
Air angle drilling machine - you are buying a professional tool for the industry
Reliable pneumatic drilling machine with excellent power to weight ratio.Small head dimension allows working in narrow spaces.
Special chuck for pneumatic tools and high-precise collet chucks provide efficient use.
Long tool life at high power.
The angle drilling machine has a 90 degree angle head, suitable for your application.
| Power: | 400 W |
|---|---|
| Speed: | 500 min-1 |
| Clamping Range Ø: | 1 - 10 mm |
| Start: | Valve lever |
| Direction of rotation: | Right |
| Weight: | 1.9 kg |
| Housing Ø: | 46 mm |
| Length: | 350 mm |
| Height: | 103 mm |
| Recommended hose Ø: | 9 mm |
| Air consumption: | 10 l/s |
| Sound pressure level: | 80 dB(A) |
| Current: | Pneumatic |
| Working pressure: | 6.3 bar |

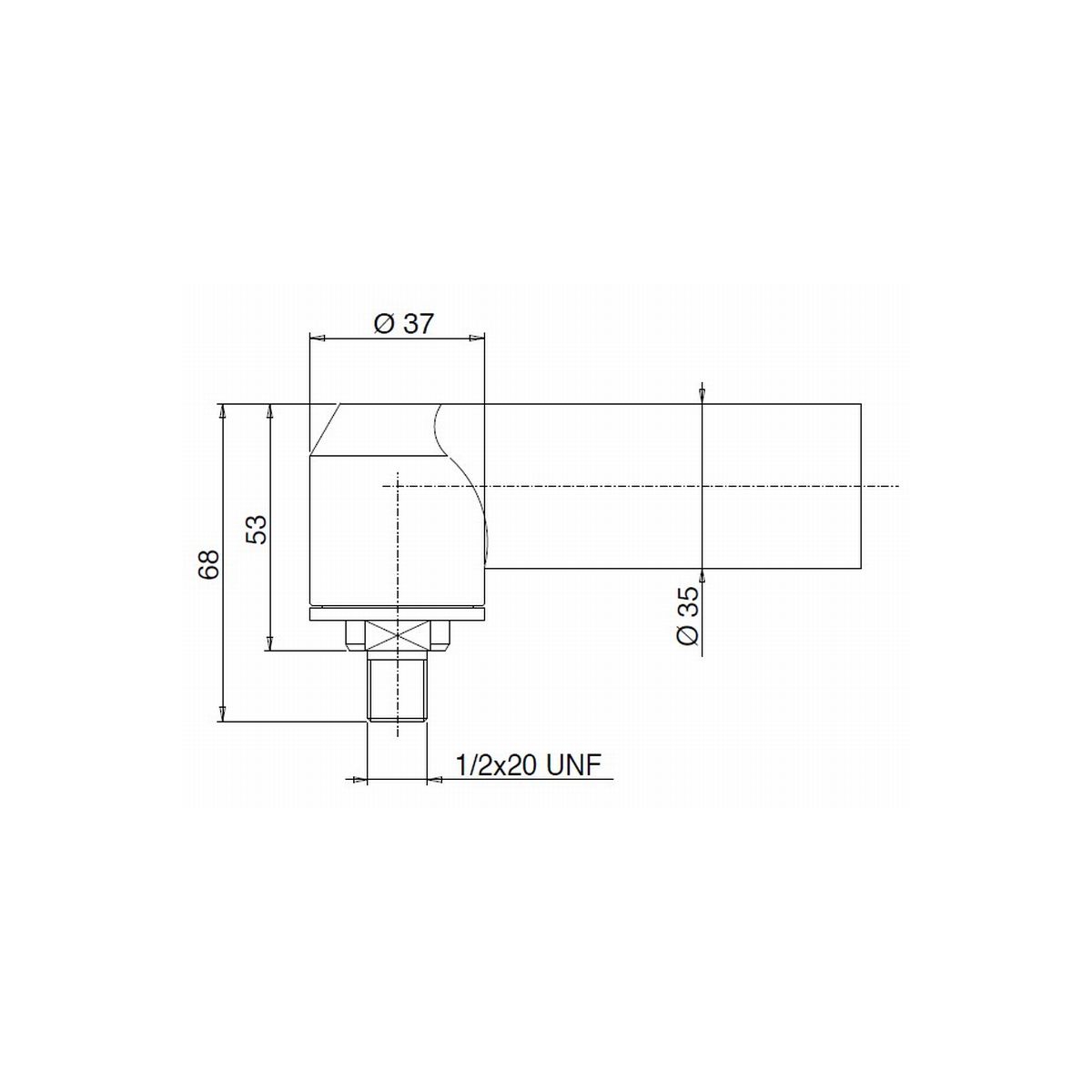

| Chuck: | Keyed chuck (1/2" x 20 UNF) |

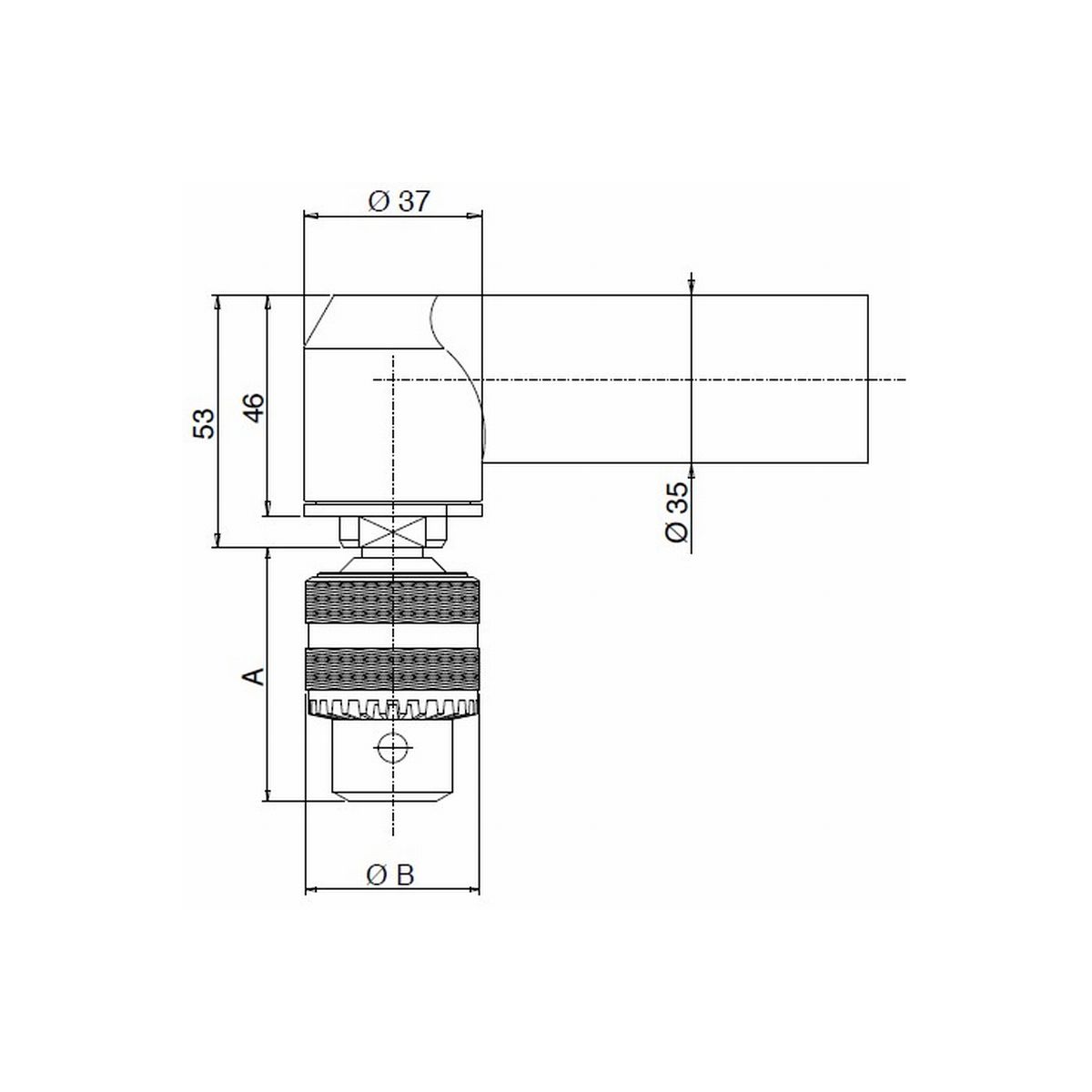

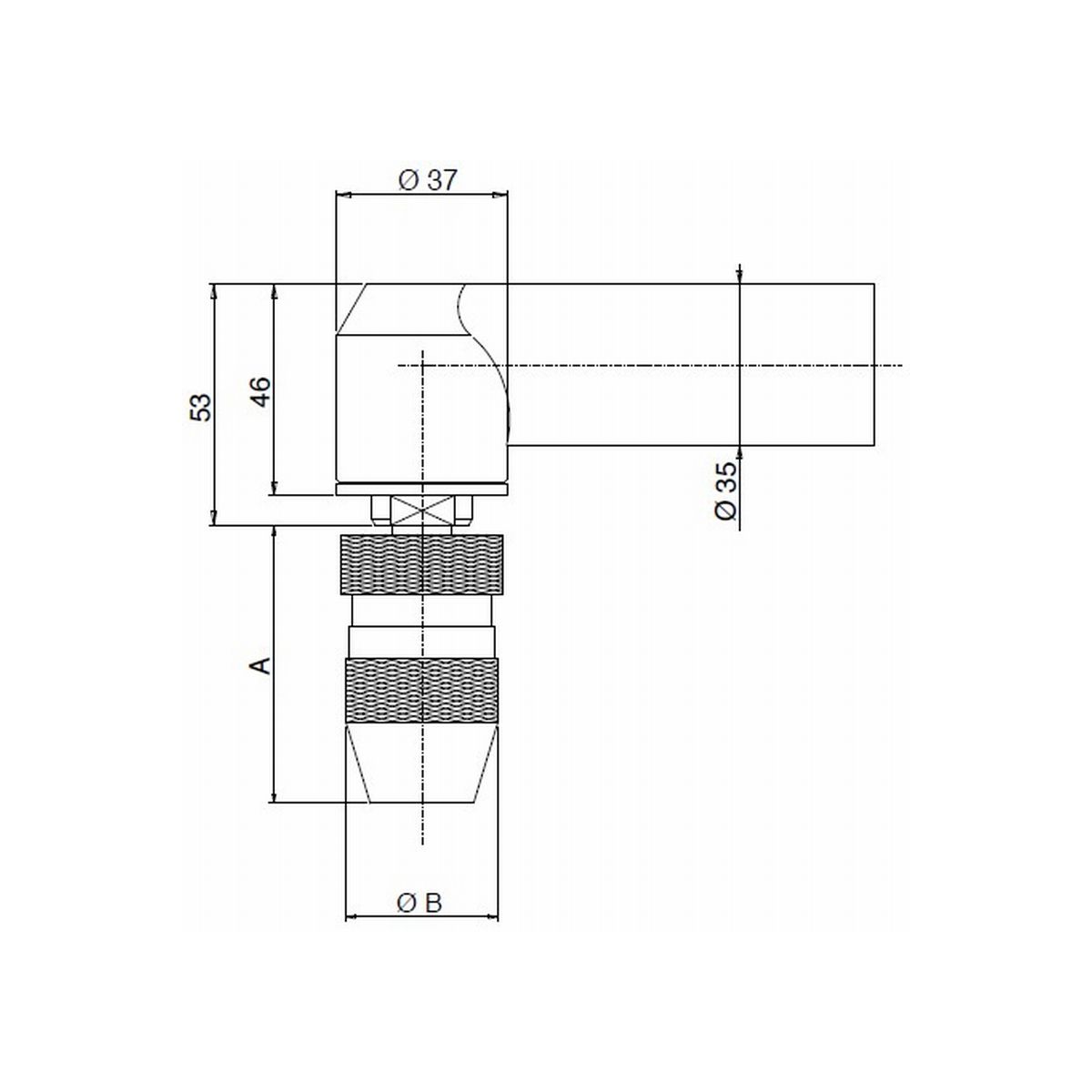

| Construction form: | 90° angle head |
| Inlet air connection: | G 1/4" |
| Vibration: | < 2.5 m/s² |
