EPC50-A Hand-hydraulic crimping tool % Action %
€460.00 *
| Crimping force: | 50 kN |
|---|---|
| Crimping range DIN Cu: | 10 - 240 mm² |
| Crimping range DIN Al: | 10 - 240 mm² |
Product number:
76540000
In stock:
3 ( * while supplies last )
With case
Spring clip press inserts
Trunnion press inserts
EPC50-A Hand-hydraulic crimping tool % Action %
Applications

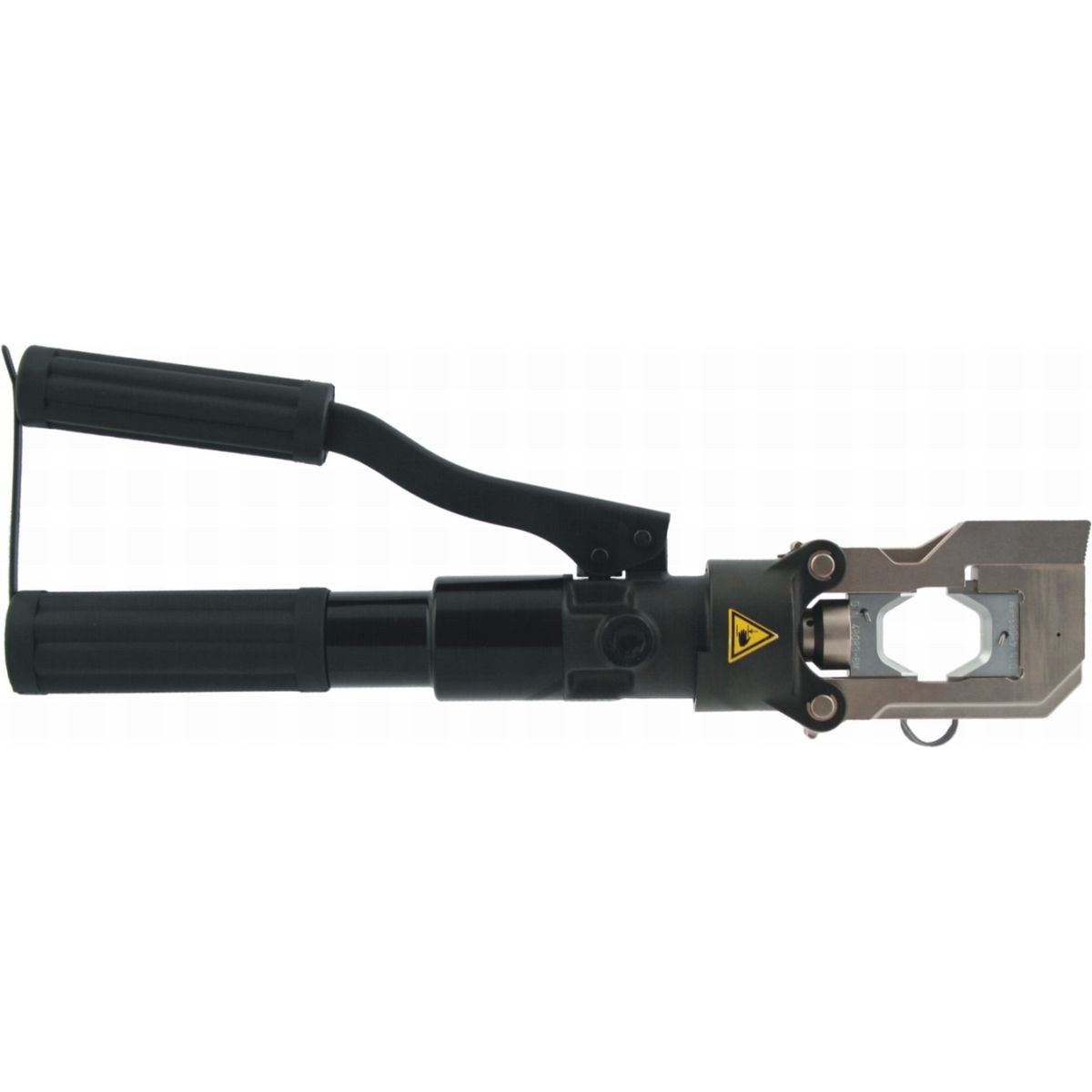

The hand-held hydraulic hand press EPC50-A is used for crimping cable lugs and connectors of up to 240 mm2 according to DIN. It is used by transportation companies, energy supply companies, power stations and their service providers, as well as in switch cabinet construction and industrial cable assembly.
Crimping force: 50 kN
Crimping Dies: Spring (F) / Pin (Z)
The narrow, pivoting head allows easy crimping even in confined spaces
The hydraulic press is easy to handle, safe and light-weight
Useable with spring or pin crimping dies.
Technical specifications
Crimping Dies: Spring (F) / Pin (Z)
Hand-held hydraulic hand press EPC50-A - small, lightweight, powerful
Powerful market entry tool for use in hydraulic crimping technologyThe narrow, pivoting head allows easy crimping even in confined spaces
The hydraulic press is easy to handle, safe and light-weight
Useable with spring or pin crimping dies.
| Crimping force: | 50 kN |
|---|---|
| Crimping dies Series: | Feder (F) und Zapfen (ZA) |
| Crimping range DIN Cu: | 10 - 240 mm² |
| Crimping range DIN Al: | 10 - 240 mm² |
| Weight: | 2.0 kg |
| Length [mm]: | 370 |
| Head: | closed |
| Lock type: | Snap fit |
