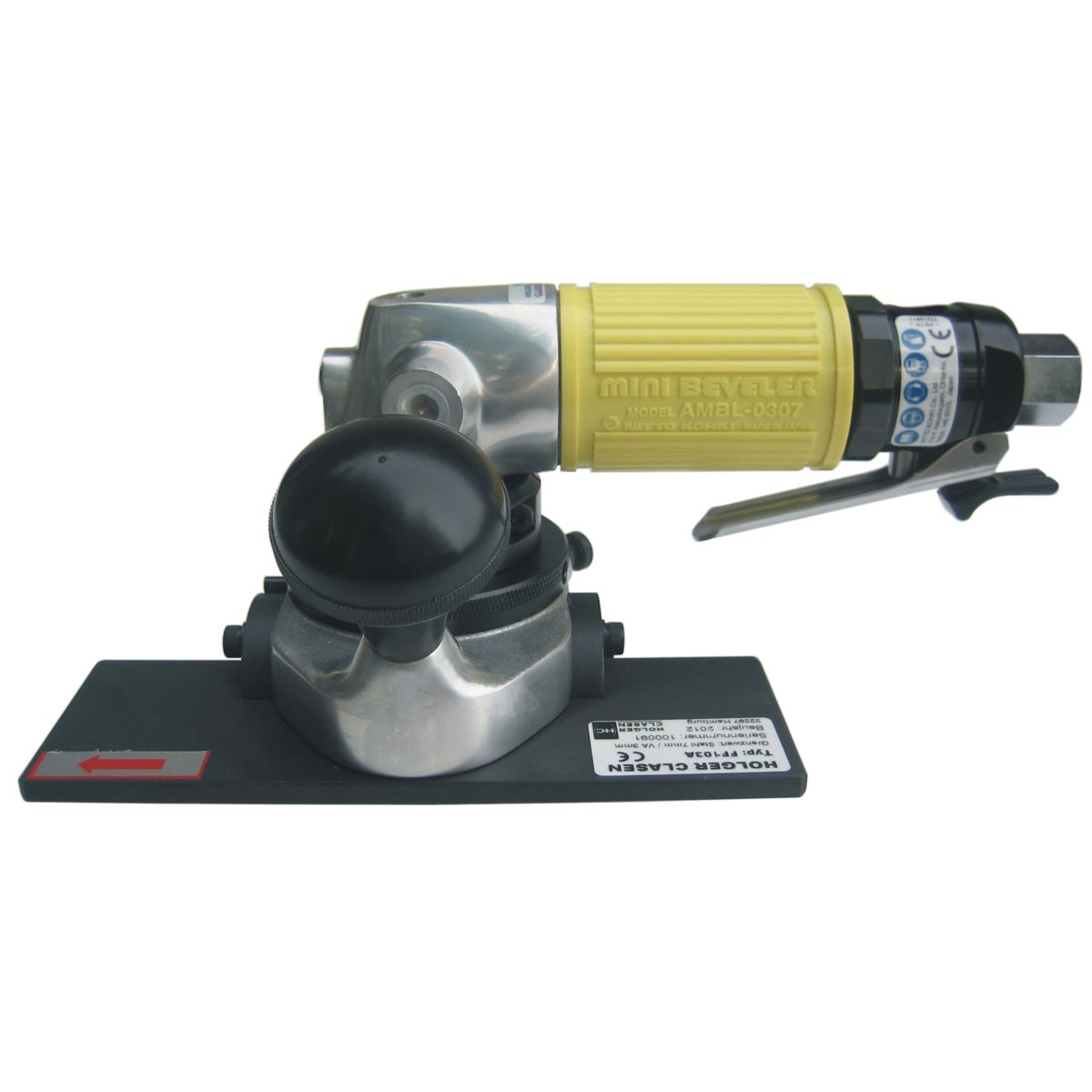

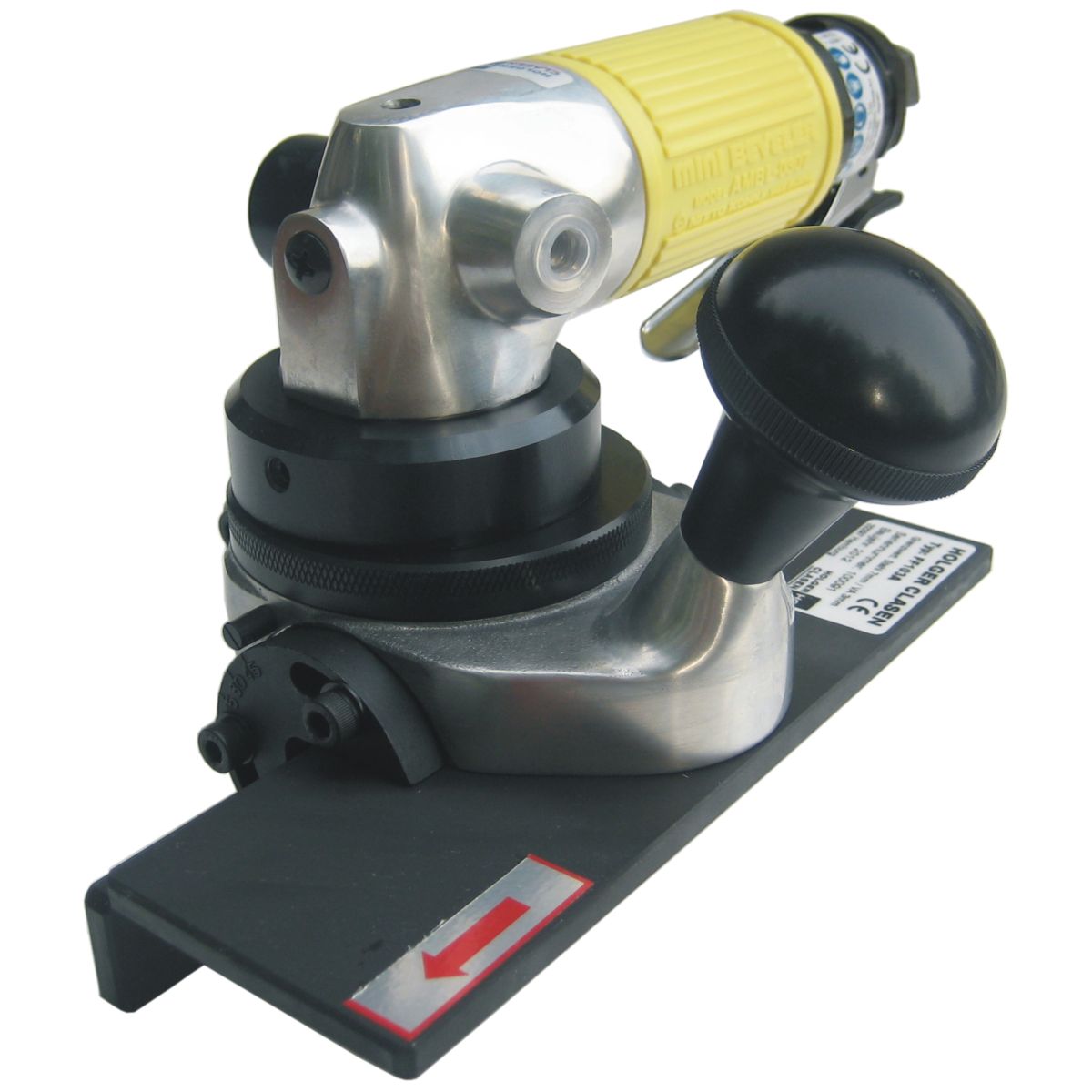

FF103A Edge milling tool
| Speed: | 14000 min-1 |
|---|---|
| Sheet thickness min.: | 5 mm |
| Chamfering width max.: | 7 mm |
| Current: | Pneumatic |
Product number:
64140000
Two-hand operation
FF103A Edge milling tool
Applications
The pneumatic edge milling tool FF103A is for chamfering and milling work pieces made of mild steel and stainless steel; the milling tool is for usage in machine and plant engineering, sheet metal and apparatus construction, special engineering, tube beveling as well as in container and ship building.
The chamfer width and chamfer angle of the beveling machine can be adjusted precisely and reproducible.
Precise working thanks to great support edge.
The indexable insert of the pneumatic edge milling tool is simple to change and to adjust (4-side blade).
Good cost power ratio.
Pipe outer edge can be also processed with standard accessory.
Technical specifications
Precise working thanks to great support edge.
The indexable insert of the pneumatic edge milling tool is simple to change and to adjust (4-side blade).
Good cost power ratio.
Pipe outer edge can be also processed with standard accessory.
| Speed: | 14000 min-1 |
|---|---|
| Start: | Valve lever |
| Sheet thickness min.: | 5 mm |
| Chamfering width max.: | 7 mm |
| Radius: | 2 - 4 mm |
| Dimensions LxWxH: | 300 x 130 x 120 mm |
| Weight: | 2.9 kg |
| Recommended hose Ø: | 9 mm |
| Air consumption: | 15 l/s |
| Current: | Pneumatic |
| Working pressure: | 6.3 bar |
| Chamfer angle: | 15 - 45° |
| Inlet air connection: | G 3/8" |
