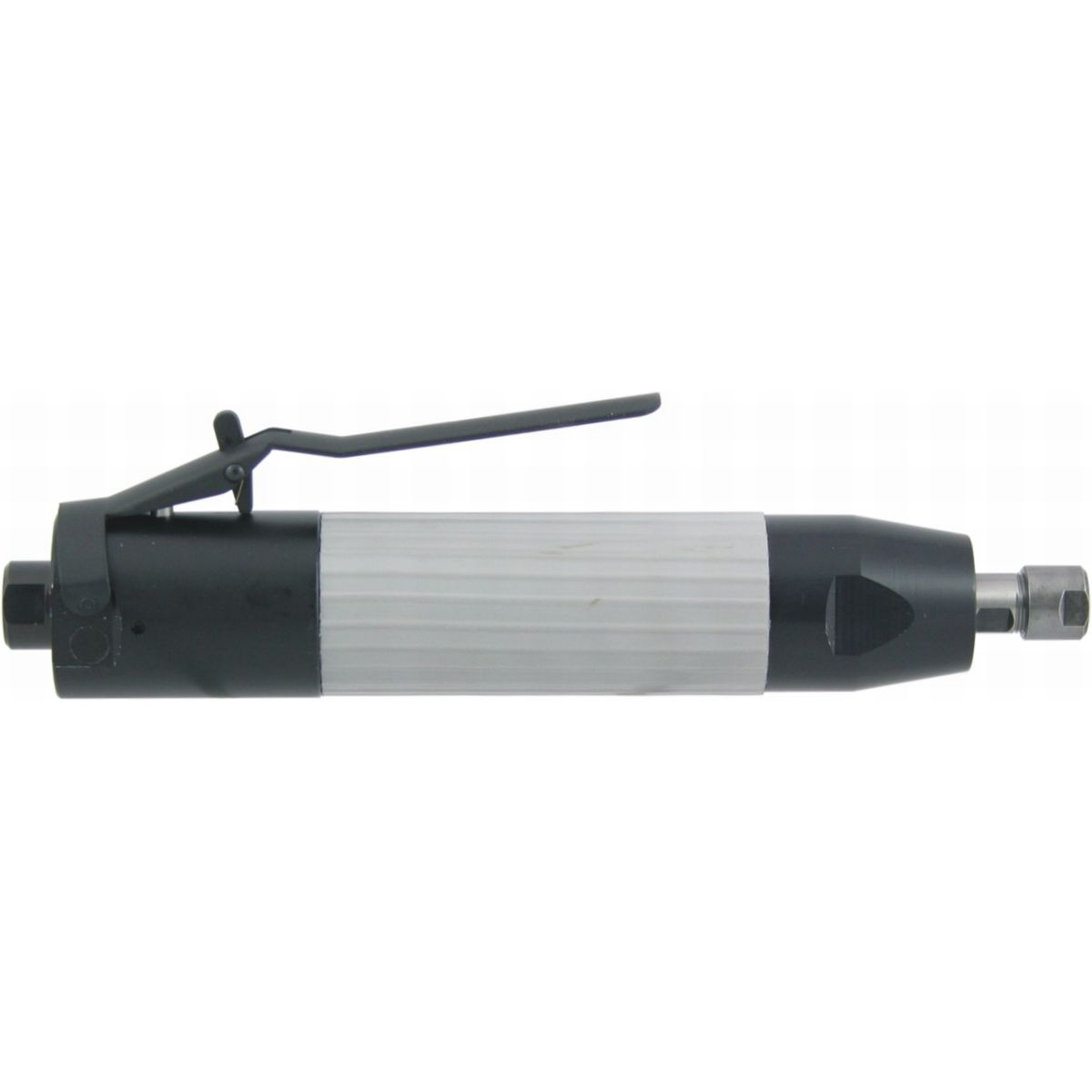

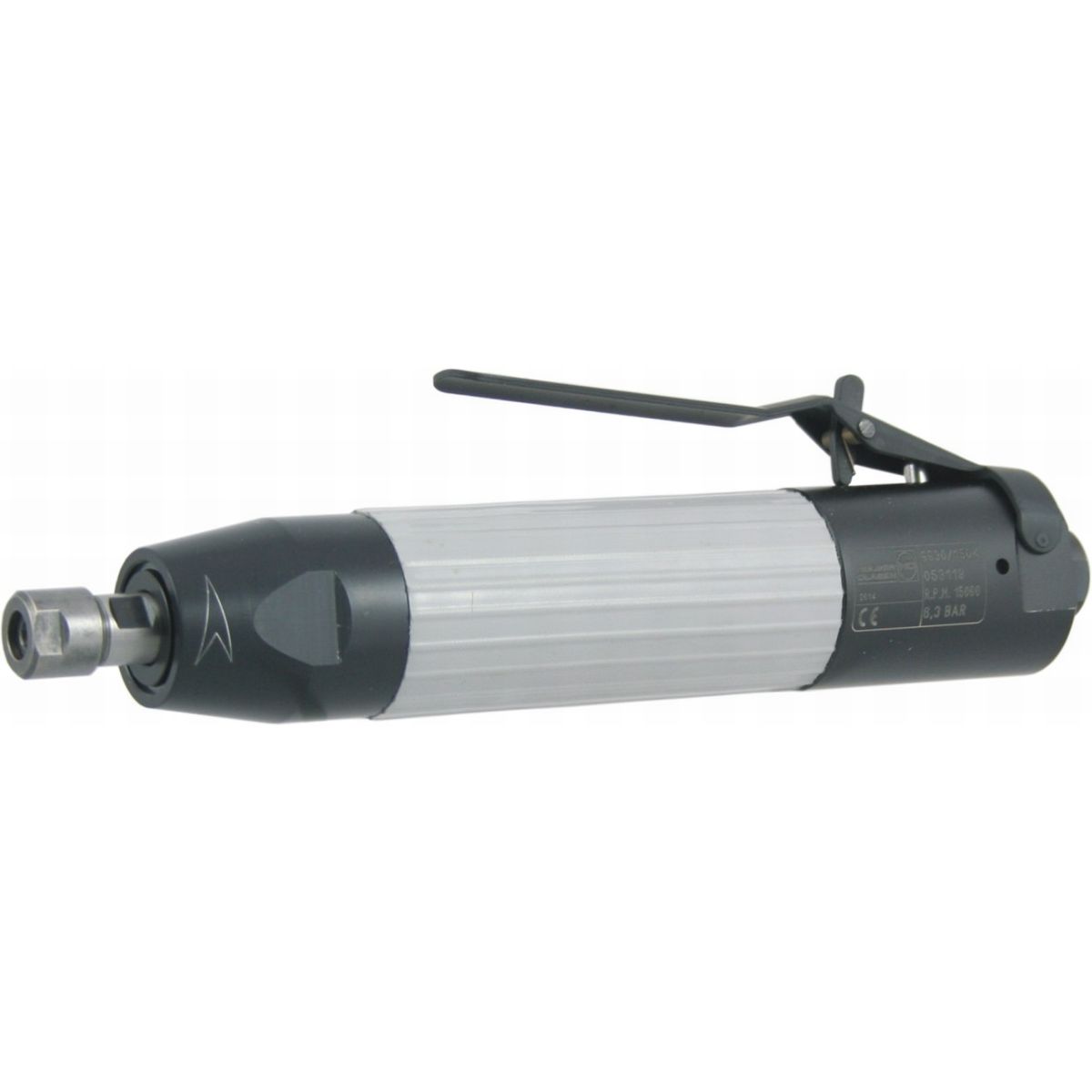

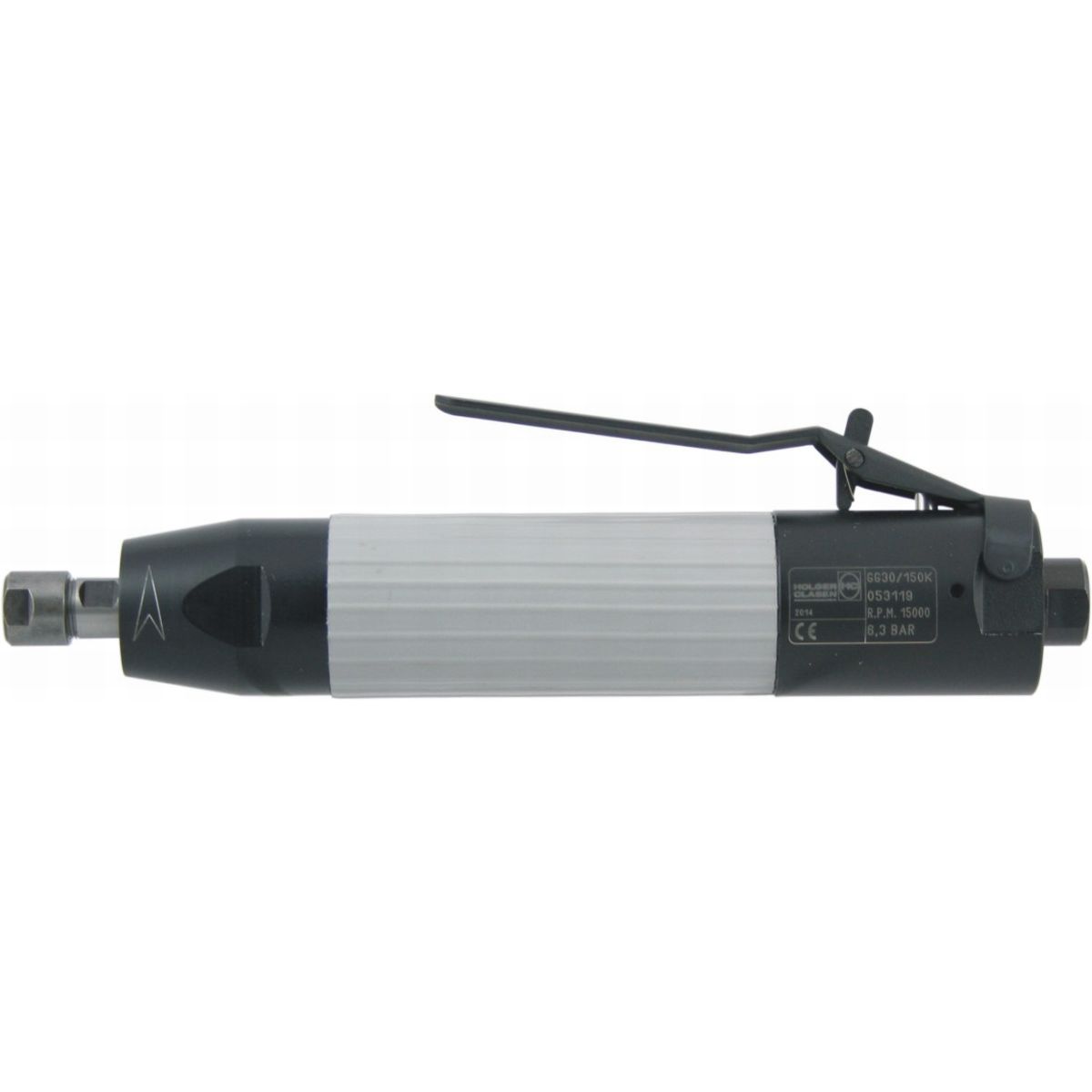

GG30/150 K Straight grinder
| Power [W]: | 300 |
|---|---|
| Speed: | 15000 / min |
| Chuck: | Collet chuck ER11 (Ø 6 mm) |
| Current: | Pneumatic |
Product number:
10135000
Low-vibration type
GG30/150 K Straight grinder
Applications
The pneumatic short grinder GG30/150K with centrifugal governo is powerful, durable and designed for various milling and grinding jobs. The short grinder is popular for use in many industries: modul making, machine building, container building, in foundries and in the plastics industry.
Smooth running and low vibration.
The air powered short grinder is equipped with a standardized collet chuck Ø 6 mm.
The grinder is optimized for absorption of radial and axial forces
The centrifugal governor provides consistent speed under load.
Long service-life and low maintenance make it your first choice for industrial applications.
The long valve lever is optimal for comfortable starting.
Technical specifications
The air powered short grinder is equipped with a standardized collet chuck Ø 6 mm.
The grinder is optimized for absorption of radial and axial forces
The centrifugal governor provides consistent speed under load.
Long service-life and low maintenance make it your first choice for industrial applications.
The long valve lever is optimal for comfortable starting.
| Power [W]: | 300 |
|---|---|
| Speed: | 15000 / min |
| Chuck: | Collet chuck ER11 (Ø 6 mm) |
| Clamping Range Ø: | 0.5 - 7.0 mm |
| Start: | Valve lever |
| Construction form: | Straight |
| Equipment: | centrifugal governor |
| Exhaust air: | back side |
| Accessory max. Ø: | 30 mm |
| Housing Ø: | 40 mm |
| Length [mm]: | 230 |
| Weight [kg]: | 0.6 |
| Air consumption: | 9.0 l/s |
| Sound pressure level: | 78 dB(A) |
| Current: | Pneumatic |
| Working pressure: | 6.3 bar |
| Inlet air connection: | G 1/4" |
