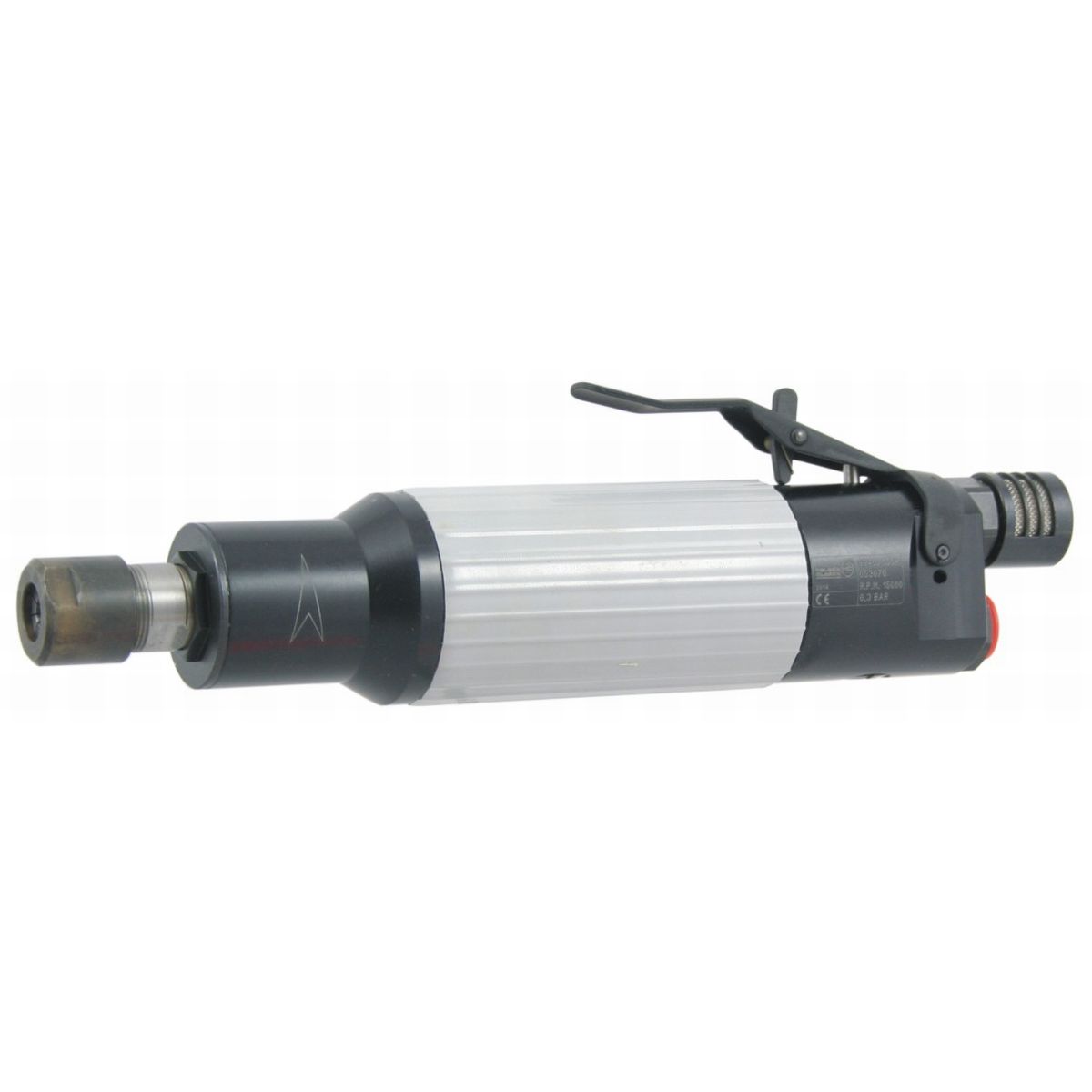

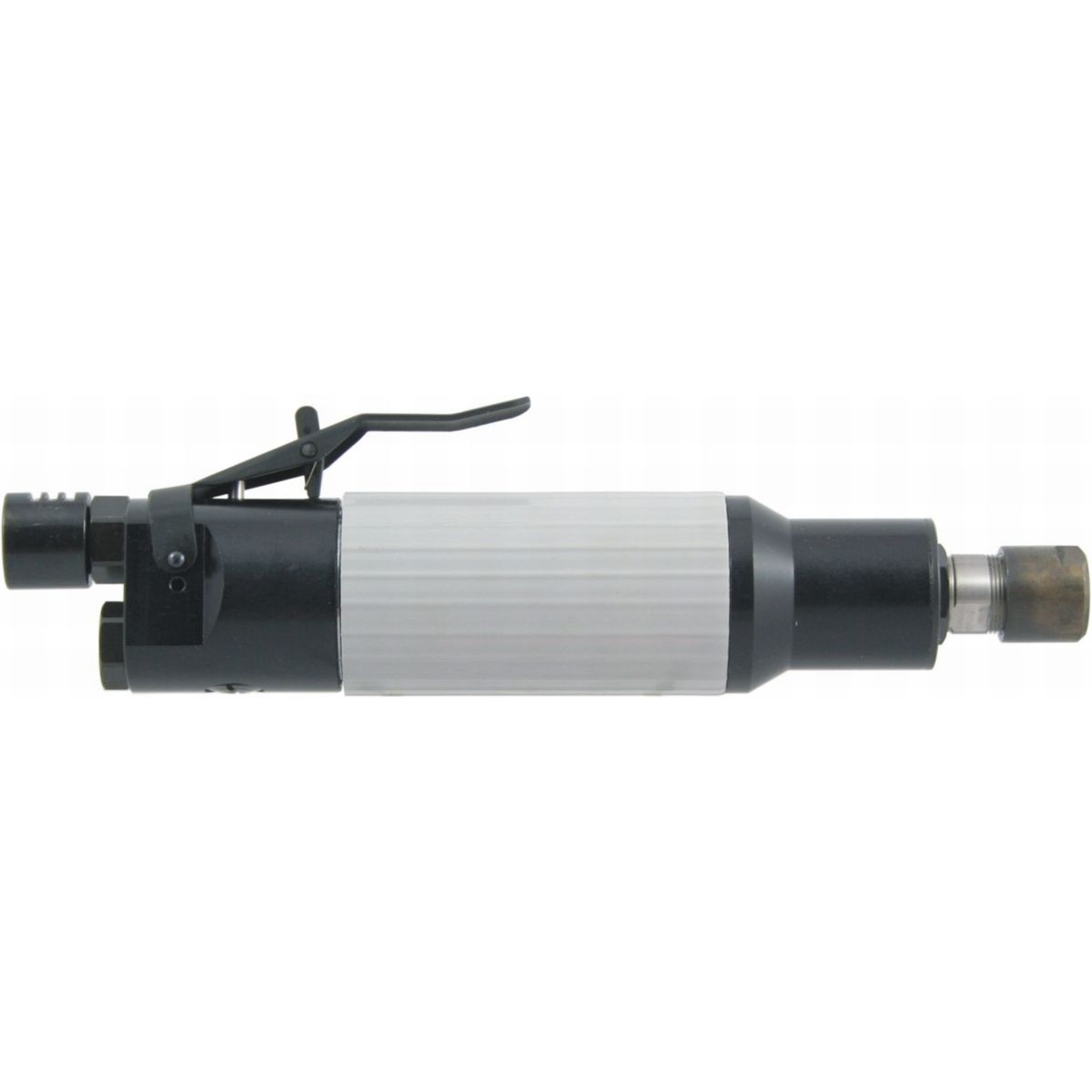

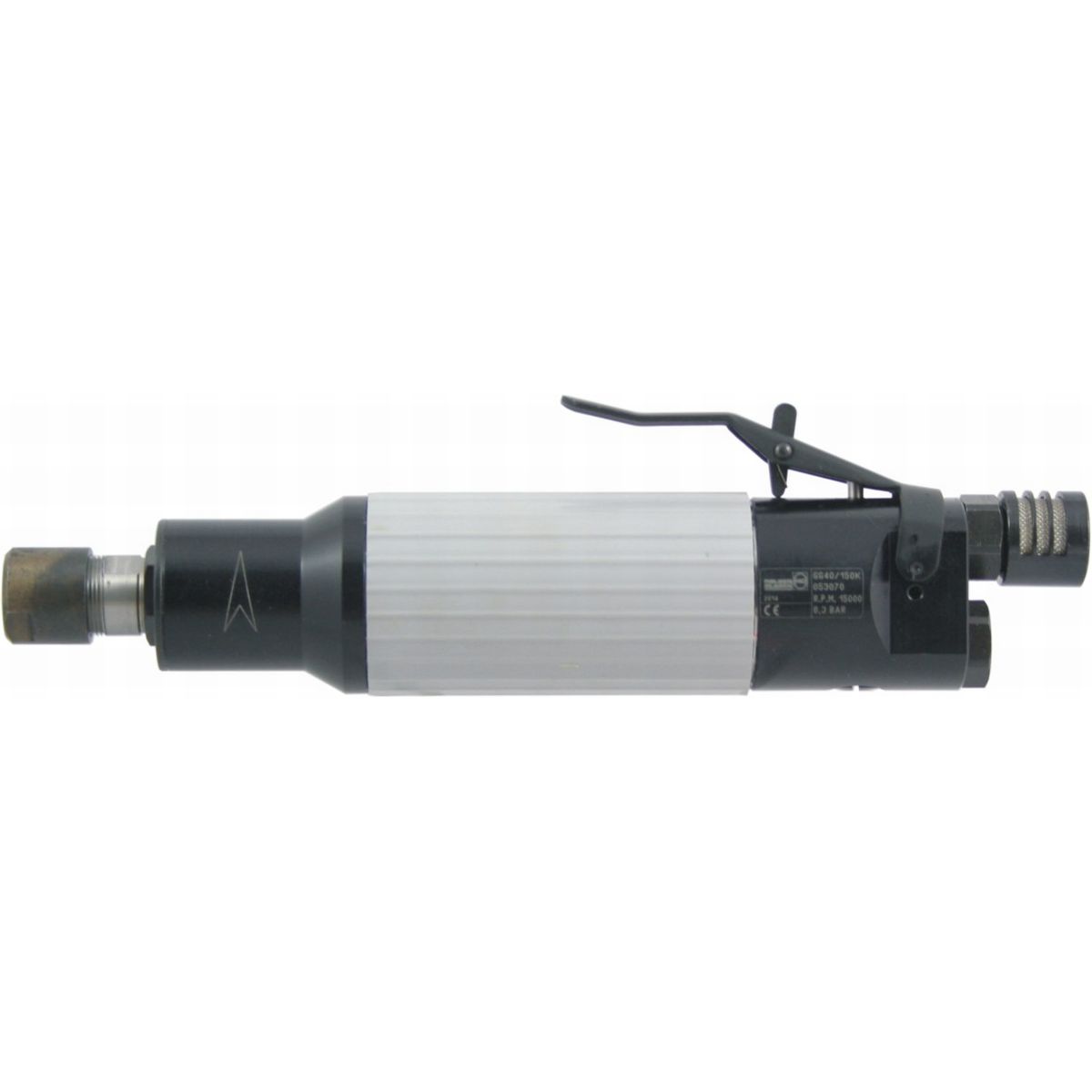

GG40/150 K Straight grinder
| Power [W]: | 400 |
|---|---|
| Speed: | 15000 / min |
| Chuck: | Collet chuck ER16 (Ø 6 mm) |
| Current: | Pneumatic |
Product number:
10147000
Low-vibration type
GG40/150 K Straight grinder
Applications

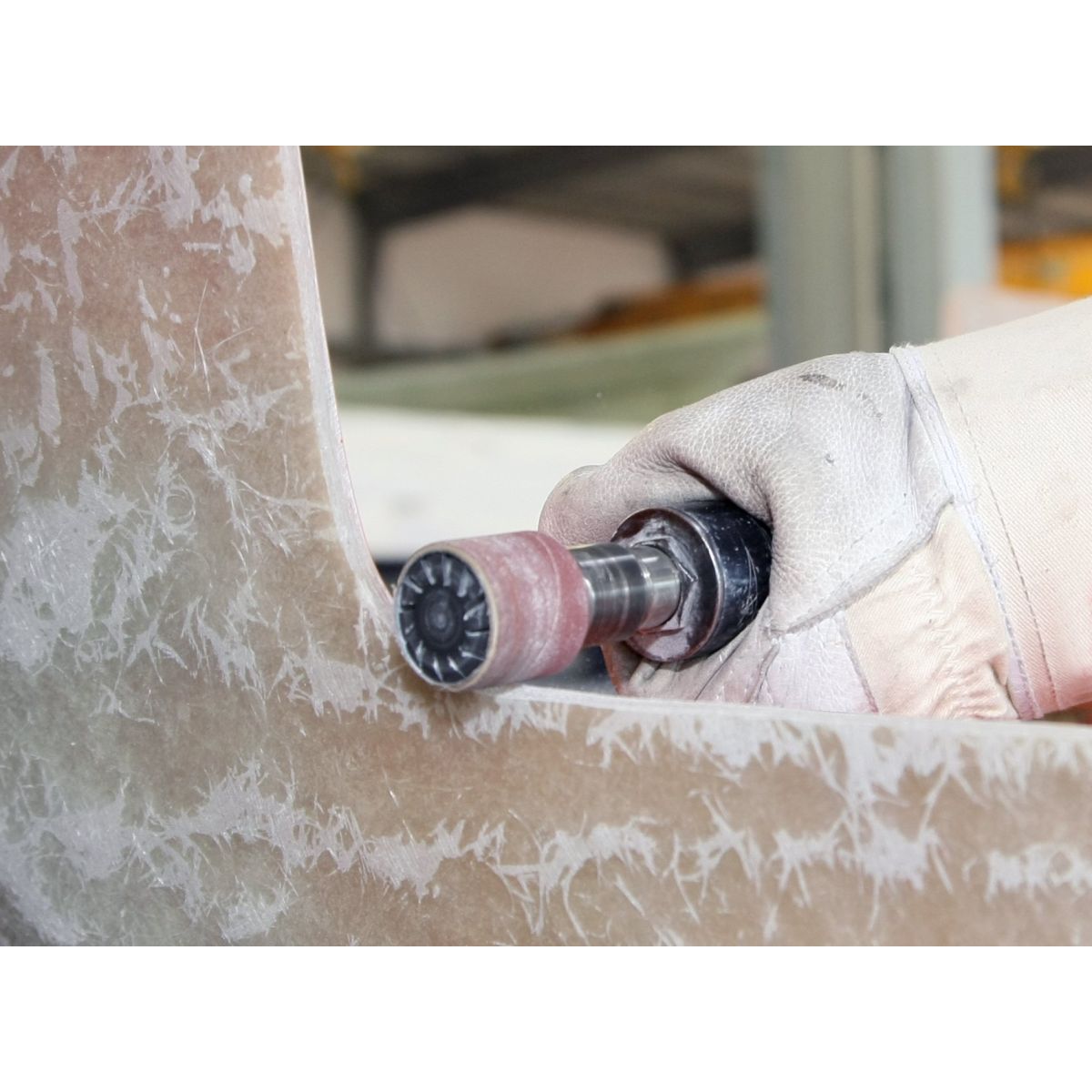

The air die grinder GG40/150K is durable and the most powerful tool for efficient work and high removal rate.The inline shaped, air-powered die grinder is popular for use in many industries: modul making, machine building, container building, in foundries and in the plastics industry.
Smooth running and low vibration.Standardized collet chuck Ø 6 mm.The air die grinder is optimized for absorption of radial and axial forces.Long service-life and low maintenance.The most powerful HOLGER CLASEN air die grinder for efficient work and high removal rate.
Technical specifications
| Power [W]: | 400 |
|---|---|
| Speed: | 15000 / min |
| Chuck: | Collet chuck ER16 (Ø 6 mm) |
| Clamping Range Ø: | 0.5 - 10.0 mm |
| Start: | Valve lever |
| Construction form: | Straight |
| Equipment: | integratable |
| Exhaust air: | back side |
| Accessory max. Ø: | 50 mm |
| Housing Ø: | 48 mm |
| Length [mm]: | 235 |
| Weight [kg]: | 1.1 |
| Air consumption: | 10.0 l/s |
| Sound pressure level: | 81 dB(A) |
| Current: | Pneumatic |
| Working pressure: | 6.3 bar |
| Inlet air connection: | G 1/4" |
