GW21 A/190-1 Angle grinder
| Power [W]: | 210 |
|---|---|
| Speed: | 19000 / min |
| Wheel Ø: | 58 mm |
| Current: | Pneumatic |
| IMPA: | 590305 |
Product number:
12110500
Light-weight/small

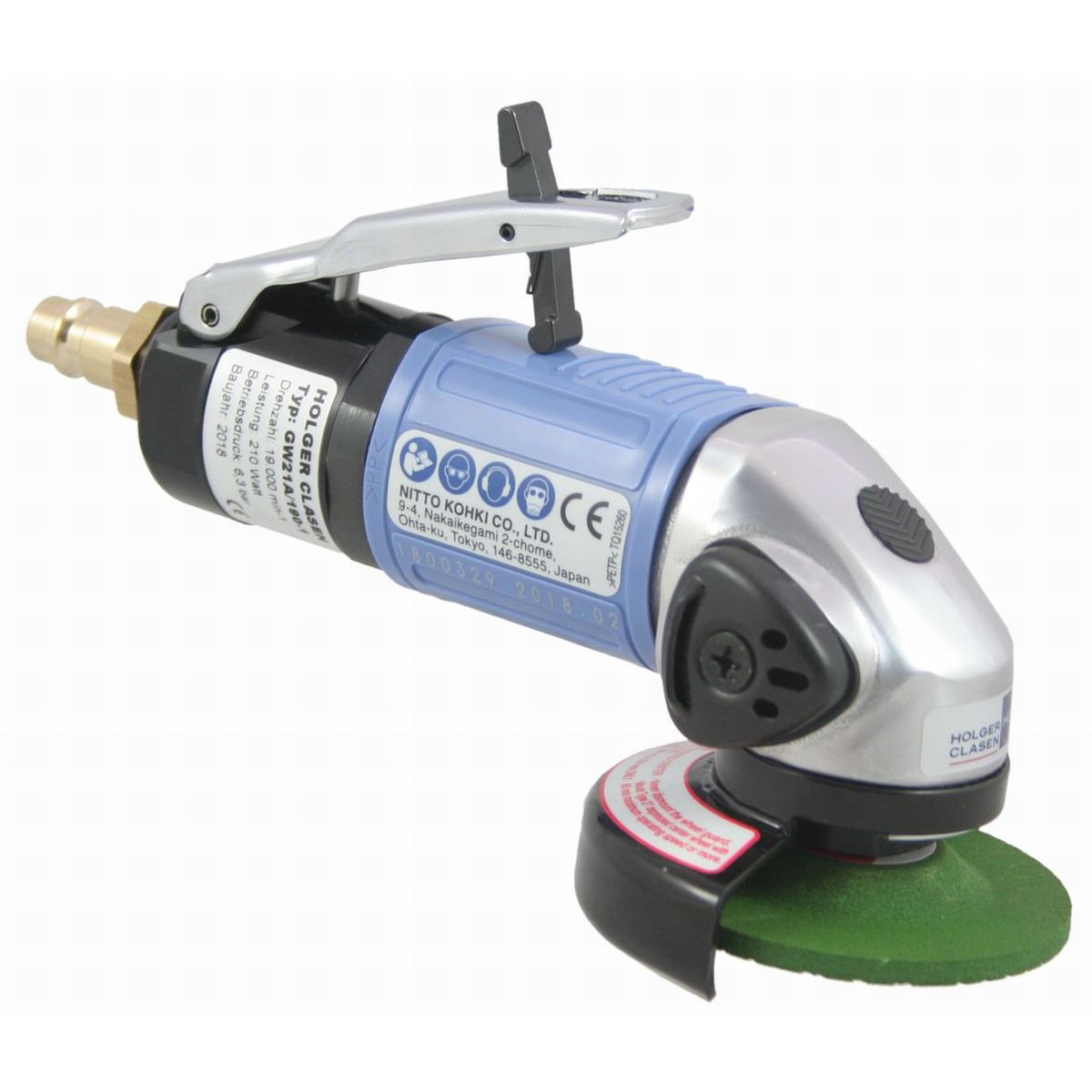

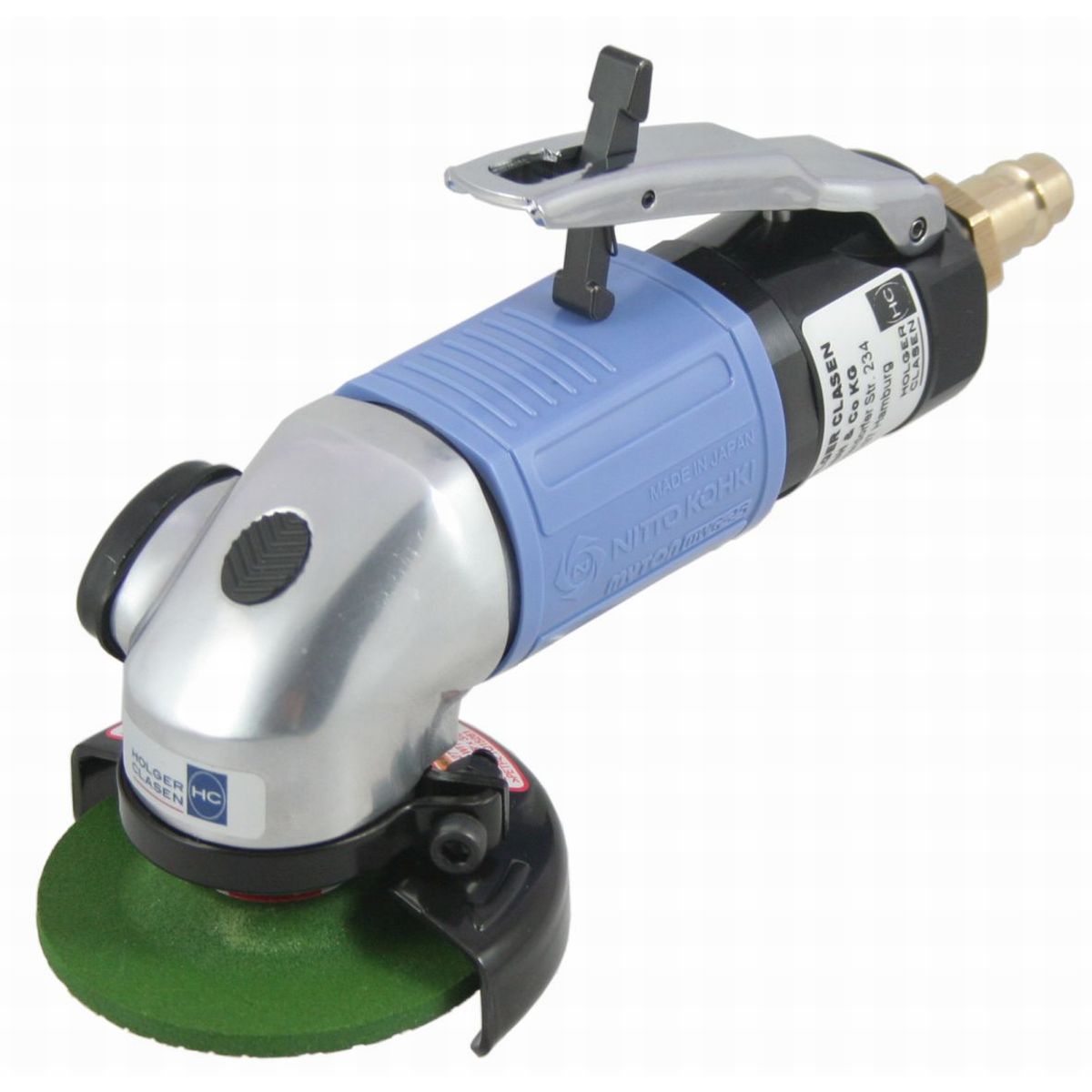

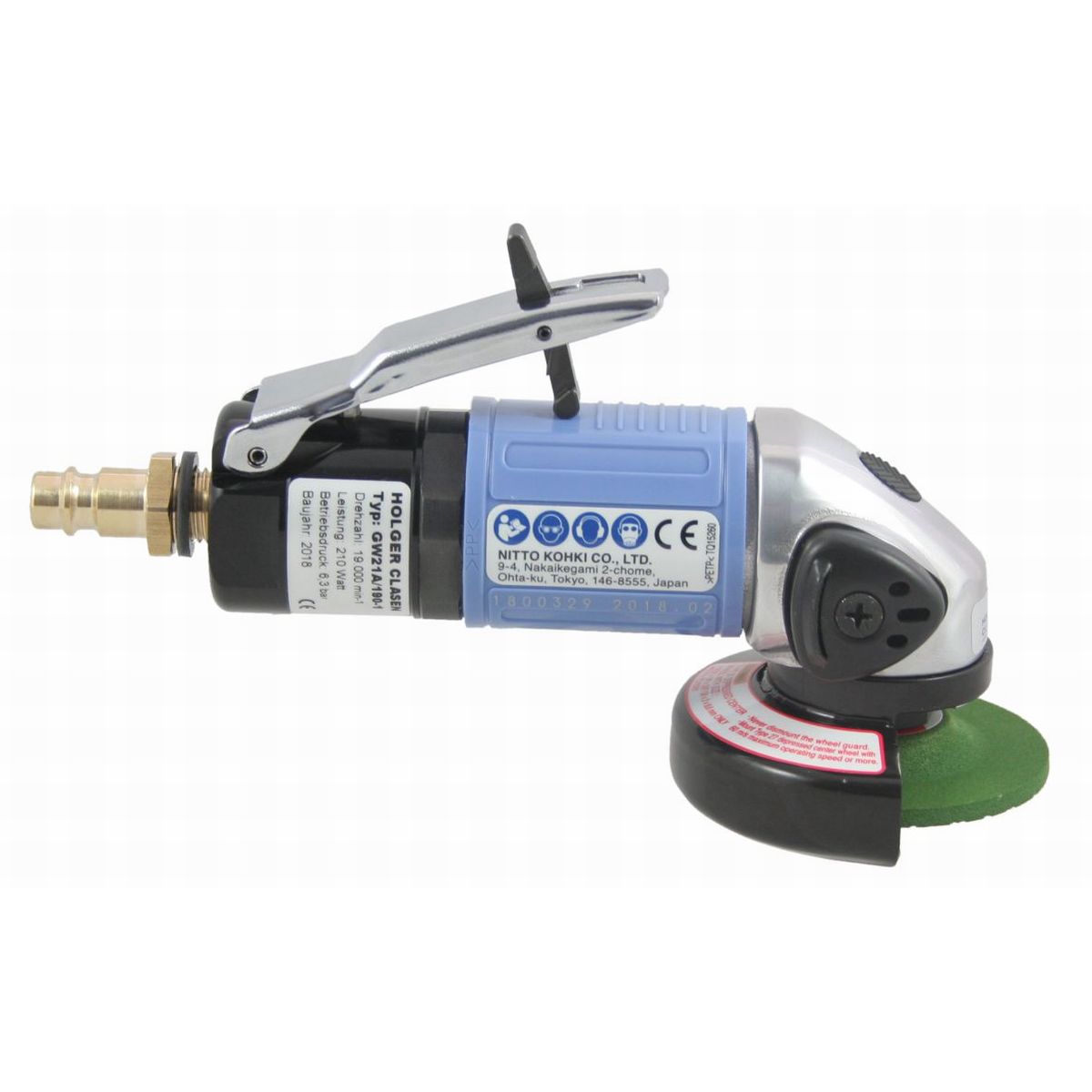

GW21 A/190-1 Angle grinder
Applications
The Mini pneumatic angle grinder GW21A/190-1 is the smallest angle grinder of its kind for grinding wheels with Ø 58 mm. The angle grinder can also be used as cut-off grinder. This makes it suitable for machining small surfaces or, thanks to the flat angle head, for working in confined spaces. This angle grinder is used in mechanical engineering, shipping and the automotive industry.
Power 210 W
Speed 19,000 min-1
Clamping chuck Ø 9.6 mm (3/8")
Grinding discs for steel Ø 58 mm
Cutting wheels for steel Ø 63 mm
This is supported by the flattened angle head.
At a speed of 19,000 rpm, the mini pneumatic angle grinder ensures proper material removal, and is therefore popular in mechanical engineering, shipping and the automotive industry.
With the clamping chuck Ø 9.6 mm (3/8") rough grinding discs for steel up to Ø 58 mm or cutting wheels for steel up to Ø 63 mm can be assembled.
The protective hood is infinitely adjustable and can therefore be optimally adapted to your application.
Use this handy, small grinding tool with a very good power-to-weight ratio for fatigue-free working.
Technical specifications
Speed 19,000 min-1
Clamping chuck Ø 9.6 mm (3/8")
Grinding discs for steel Ø 58 mm
Cutting wheels for steel Ø 63 mm
Mini Pneumatic Angle Grinder GW21/190-1 - ideal for little things
The pneumatic angle grinder is ideal for machining small surfaces in confined spaces thanks to its small dimensions and low weight.This is supported by the flattened angle head.
At a speed of 19,000 rpm, the mini pneumatic angle grinder ensures proper material removal, and is therefore popular in mechanical engineering, shipping and the automotive industry.
With the clamping chuck Ø 9.6 mm (3/8") rough grinding discs for steel up to Ø 58 mm or cutting wheels for steel up to Ø 63 mm can be assembled.
The protective hood is infinitely adjustable and can therefore be optimally adapted to your application.
Use this handy, small grinding tool with a very good power-to-weight ratio for fatigue-free working.
| Power [W]: | 210 |
|---|---|
| Speed: | 19000 / min |
| Wheel Ø: | 58 mm |
| Start: | Valve lever top |

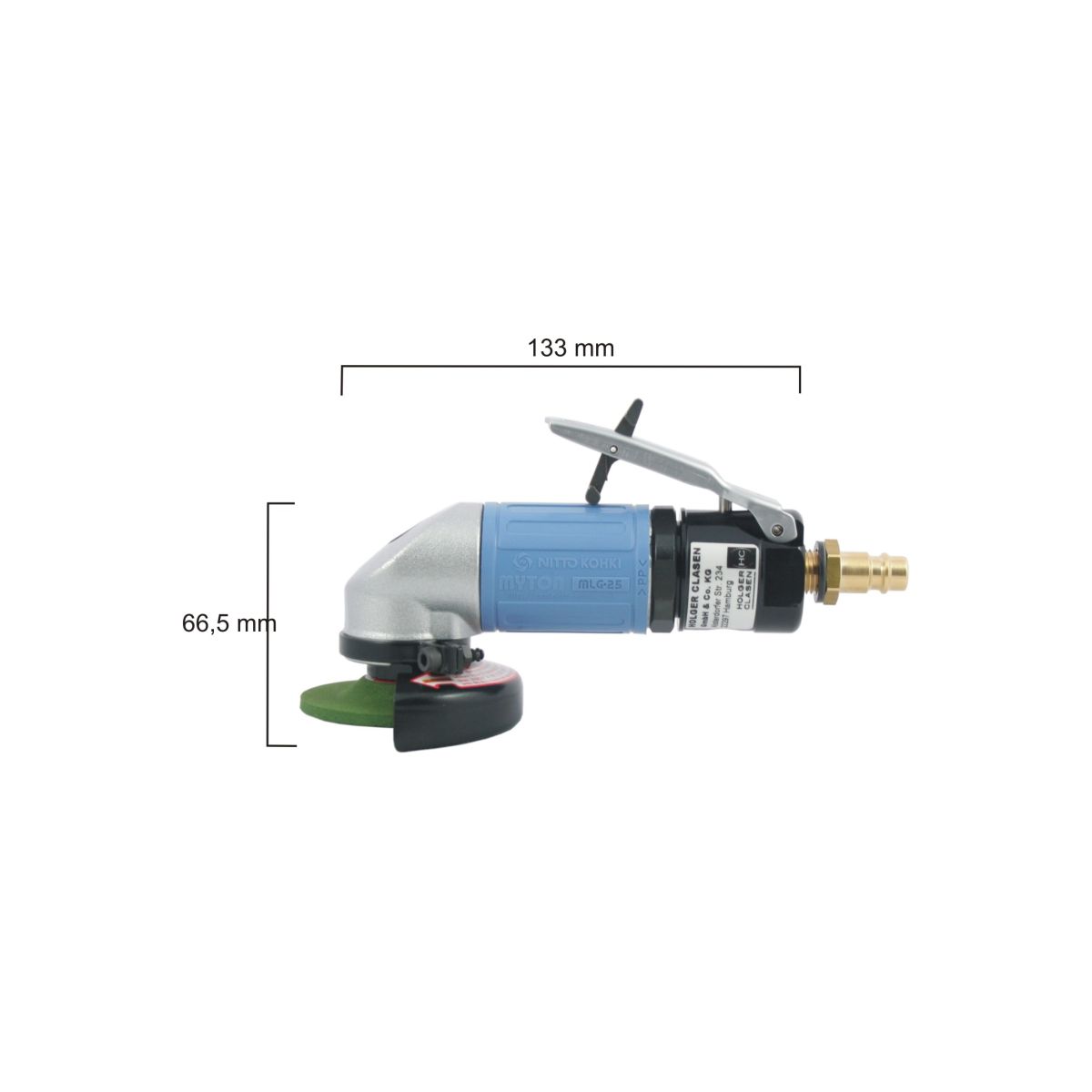

| Length [mm]: | 133 |
| Height: | 66.5 mm |
| Housing Ø: | 38 mm |
| Weight [kg]: | 0.6 |
| Recommended hose Ø: | 9 mm |
| Air consumption: | 7.0 l/s |
| Sound pressure level: | 90 dB(A) |
| Sound power level: | 95 dB(A) |
| Vibration: | 1.8 m/s² |
| Current: | Pneumatic |
| Working pressure: | 6.3 bar |
| IMPA: | 590305 |
| Chuck: | Clamping chuck Ø 9.6 mm (3/8") |
| Inlet air connection: | G 1/4" |
