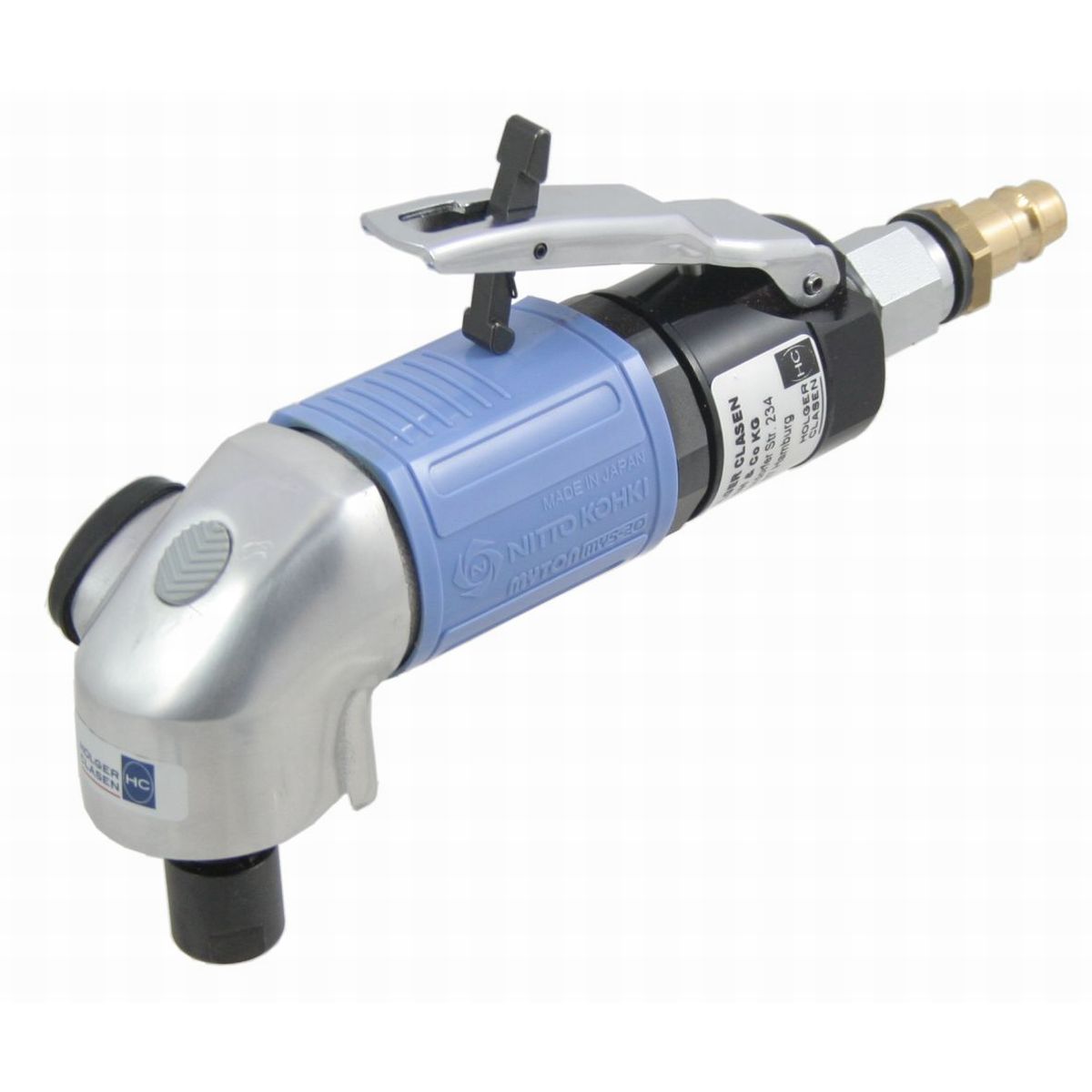

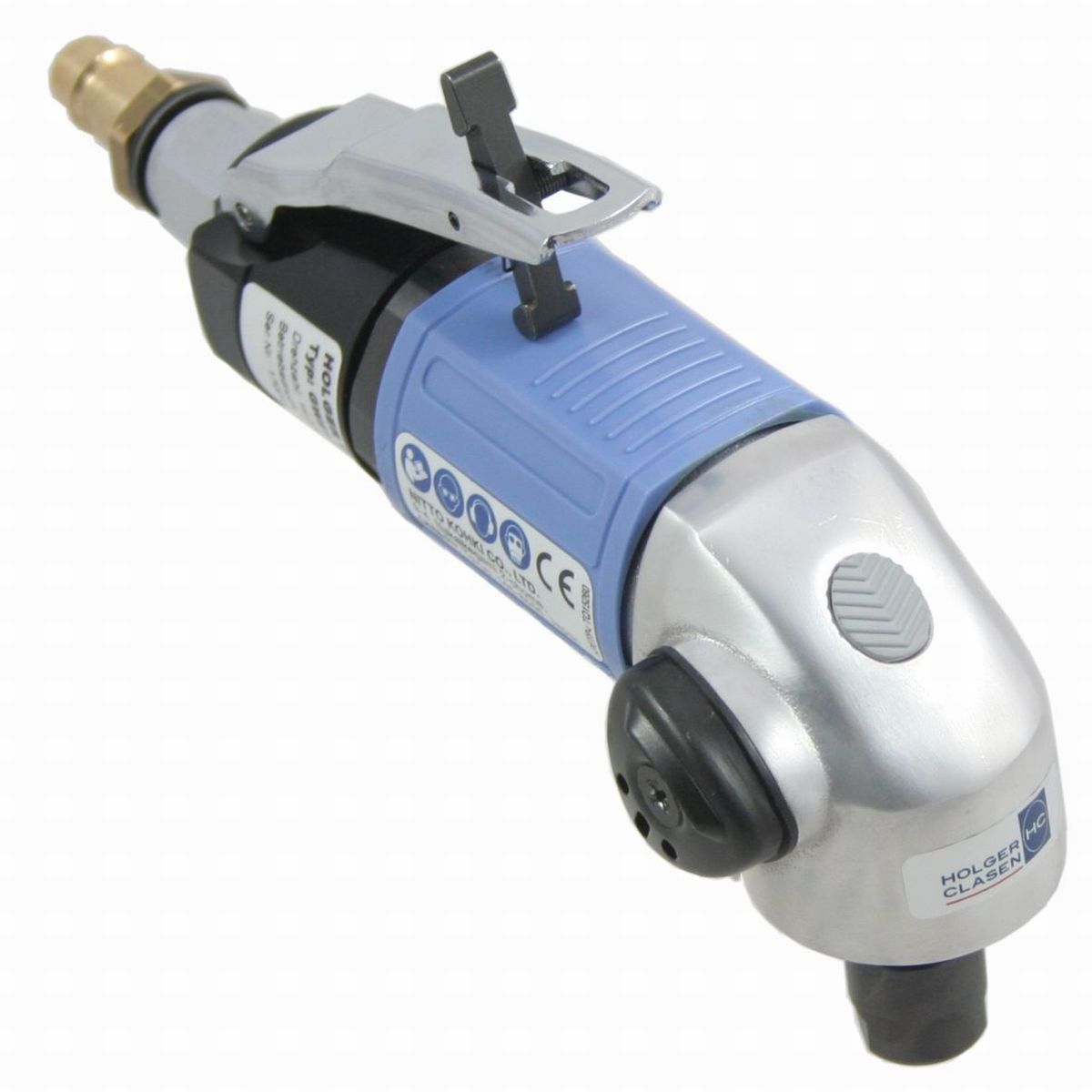

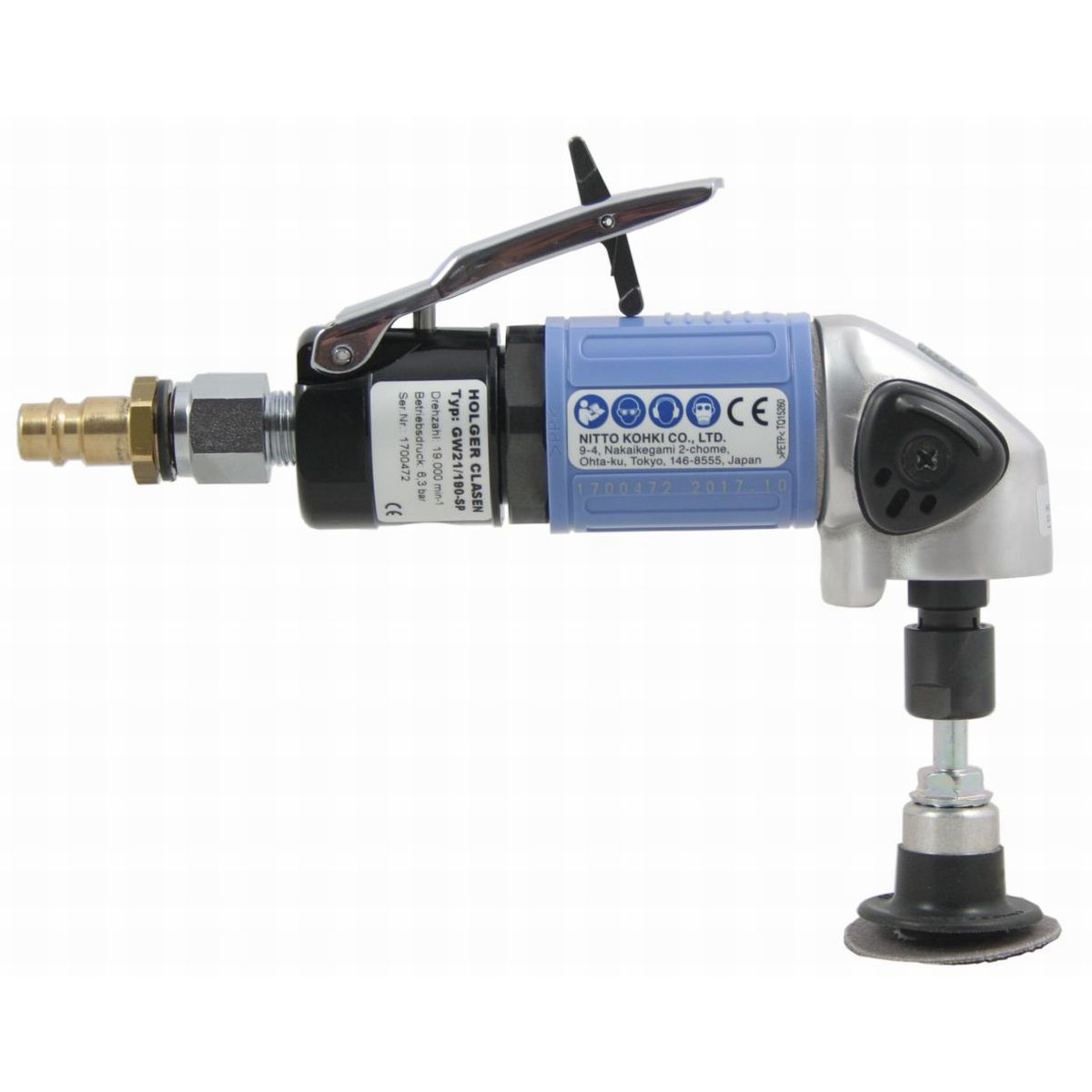

GW21/190-SP Angle grinder
| Power [W]: | 210 |
|---|---|
| Speed: | 19000 / min |
| Wheel Ø: | 50 mm |
| Chuck: | Collet chuck (Ø 6 mm) |
| Current: | Pneumatic |
Product number:
12110600
Light-weight/small
GW21/190-SP Angle grinder
Applications
The Mini air angle grinder GW21/190-SP with collet chuck Ø 6 mm is the smallest angle grinder of its kind for support plates with max. disc Ø 50 mm. The angle grinder is therefore designed for grinding and polishing with grinding wheels. This makes it suitable for machining small surfaces or, thanks to the flat angle head, for working in confined spaces. This angle grinder is used in mechanical engineering, shipping and the automotive industry.
Power 210 W
Speed 19,000 min-1
Collet chuck Ø 6 mm
support plate for grinding wheels max. Ø 50 mm
Directional silencer with adjustable exhaust air routing
This is supported by the flattened angle head.
At a speed of 19,000 rpm, the angle grinder ensures good stock removal and good grinding and polishing results.
This is why it is used in mechanical engineering, shipping and the automotive industry.
With the collet chuck holder Ø 6 mm support plates for grinding wheels up to max. Ø 50 mm can be assembled.
The silencer is directed with an adjustable exhaust air duct and can thus be adapted to your application.
Use this handy, small grinding or polishing tool with a very good power-to-weight ratio - for fatigue-free work.

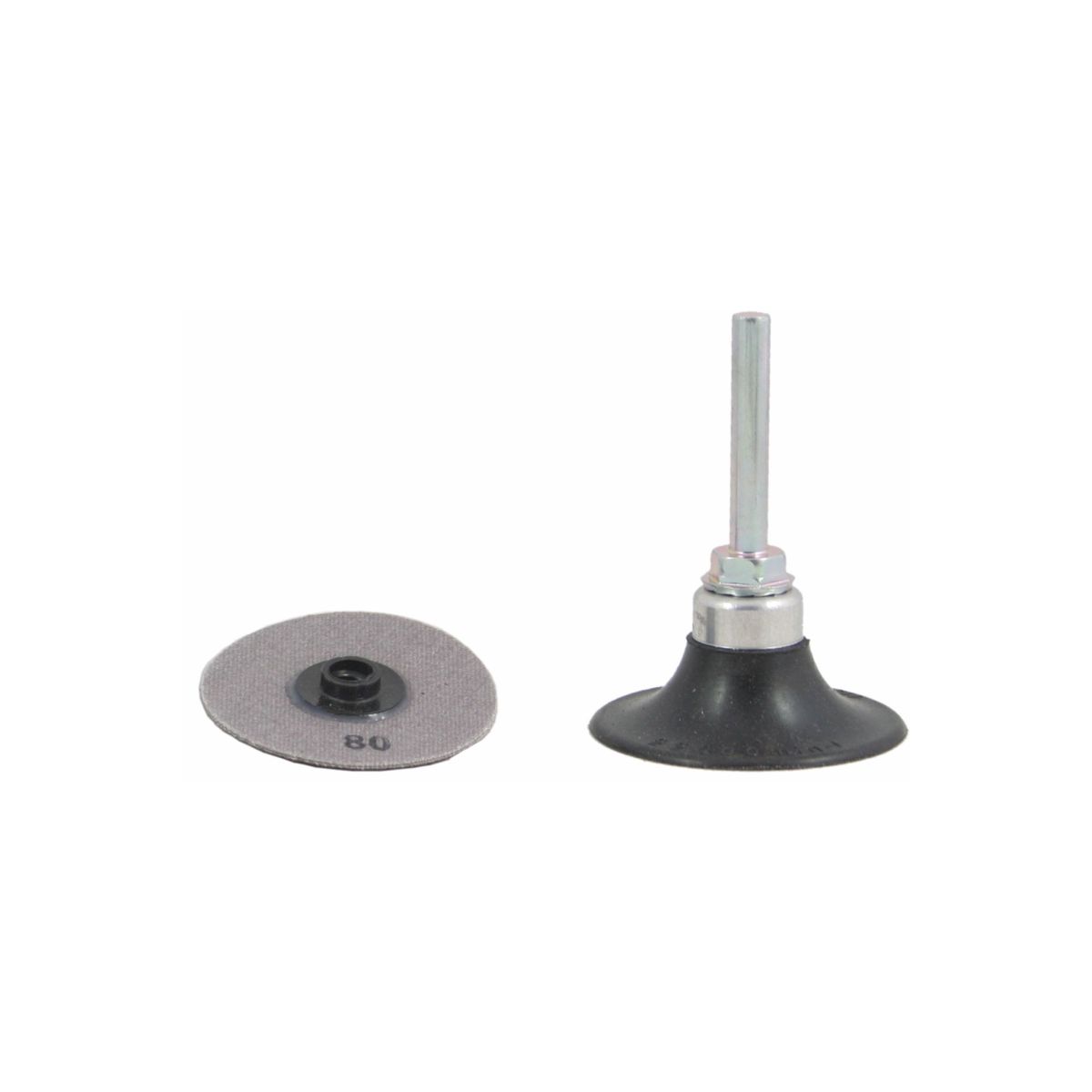

Three grinding discs 1", 1 1/2" and 2" as well as two suitable corundum grinding wheels each in grain sizes 60, 80, 100 and 120 are included in the scope of delivery.
Technical specifications
Speed 19,000 min-1
Collet chuck Ø 6 mm
support plate for grinding wheels max. Ø 50 mm
Directional silencer with adjustable exhaust air routing
Mini Air Angle Grinder GW21/190-SP - ideal for little things
The air angle grinder is ideal for machining small surfaces in confined spaces thanks to its small dimensions and low weight.This is supported by the flattened angle head.
At a speed of 19,000 rpm, the angle grinder ensures good stock removal and good grinding and polishing results.
This is why it is used in mechanical engineering, shipping and the automotive industry.
With the collet chuck holder Ø 6 mm support plates for grinding wheels up to max. Ø 50 mm can be assembled.
The silencer is directed with an adjustable exhaust air duct and can thus be adapted to your application.
Use this handy, small grinding or polishing tool with a very good power-to-weight ratio - for fatigue-free work.
Three grinding discs 1", 1 1/2" and 2" as well as two suitable corundum grinding wheels each in grain sizes 60, 80, 100 and 120 are included in the scope of delivery.
| Power [W]: | 210 |
|---|---|
| Speed: | 19000 / min |
| Wheel Ø: | 50 mm |
| Chuck: | Collet chuck (Ø 6 mm) |
| Clamping Range Ø: | 6 mm |
| Start: | Valve lever top |
| Weight [kg]: | 0.6 |
| Recommended hose Ø: | 9 mm |
| Air consumption: | 7.0 l/s |
| Sound pressure level: | 82 dB(A) |
| Sound power level: | 93 dB(A) |
| Vibration: | 3.3 m/s² |
| Current: | Pneumatic |
| Working pressure: | 6.3 bar |
| Inlet air connection: | G 1/4" |
