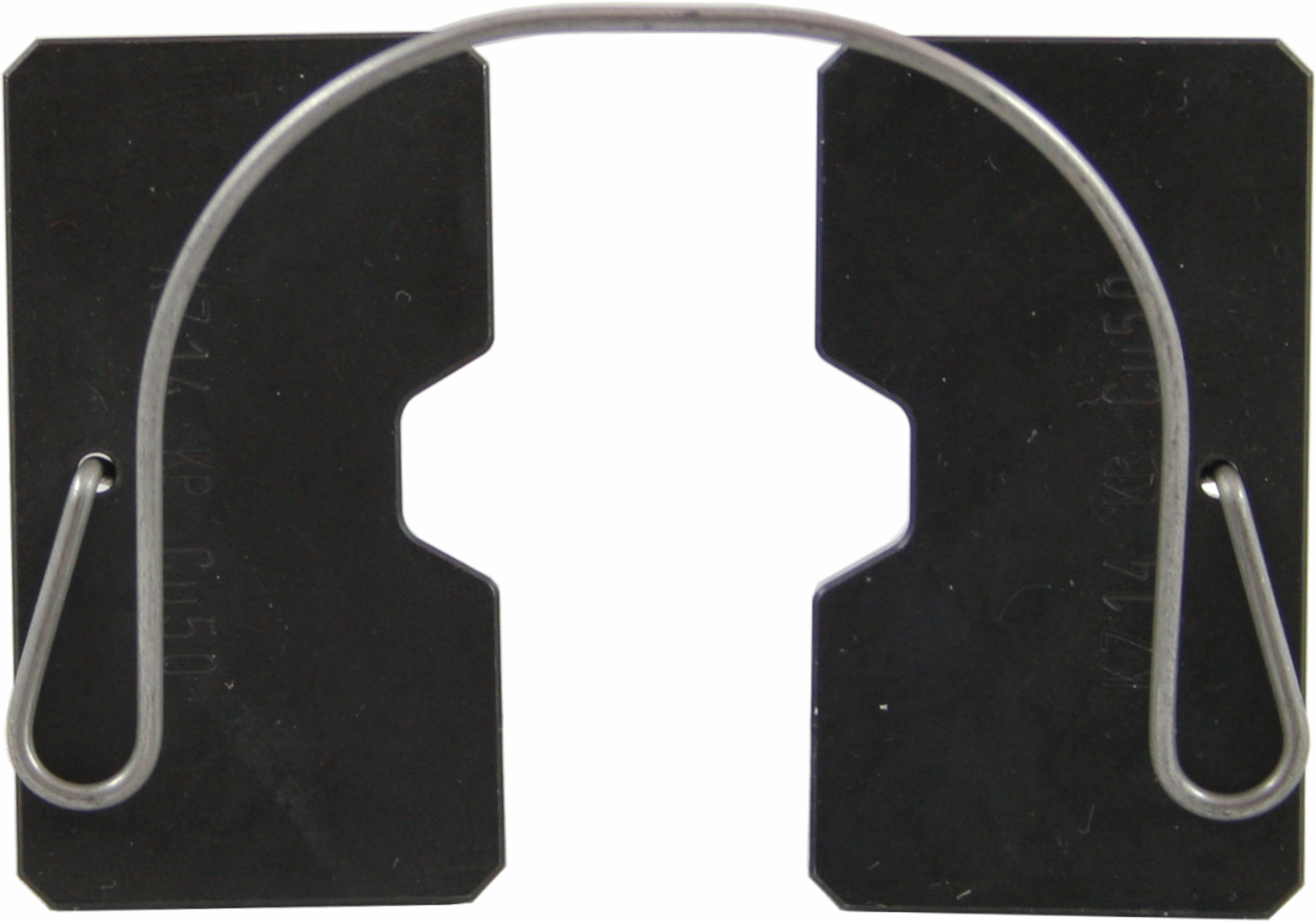

K22/5-FG Hexagonal-crimping-die
| Shape: | Spring large (FG) |
|---|---|
| Crimping contour: | Sechskant nach DIN 48083 |
| Index: | 22 |
| Crimping width: | 5 mm |
Product number:
76900333
Spring clip press inserts
K22/5-FG Hexagonal-crimping-die
Applications
K22: 150 mm2 copper non tension and 120 mm2 full tension, as well as 95-120 mm2 aluminium non tension and 95 mm2 full tension. 95/15 mm2 Al-sleeve (ACSR).
| Shape: | Spring large (FG) |
|---|---|
| Suitable for: | crimping cable lugs, connectors, Al-sleeves |
| Crimping contour: | Sechskant nach DIN 48083 |
| Index: | 22 |
| Crimping width: | 5 mm |
