KombiMax-C5F/C14 Battery-Combi-Set, Comfort series
| Opening width: | Schneider: 50 mm |
|---|---|
| Suitable for: | fine and very fine stranded cable |
| Crimping force: | 140 kN |
| Crimping range DIN Cu: | 10 - 400 mm² |
| Crimping range DIN Al: | 10 - 400 mm² |
| Battery voltage: | Makita 18 V |
Product number:
75121400
With case
18 V Makita-kompatibel
C-shaped crimping dies
KombiMax-C5F/C14 Battery-Combi-Set, Comfort series
Applications
Well prepared for your cable assembly with the Comfort Series: a cordless cutter and a cordless crimper - compatible with 18 V Makita rechargeable batteries - stowed away in a case, ready to hand. The set includes the RS-C5-F battery-powered cutting tool, the PressMax-C14 battery-powered crimping tool, a carrying strap and a crimping die box, all compactly stored in the carrying case.

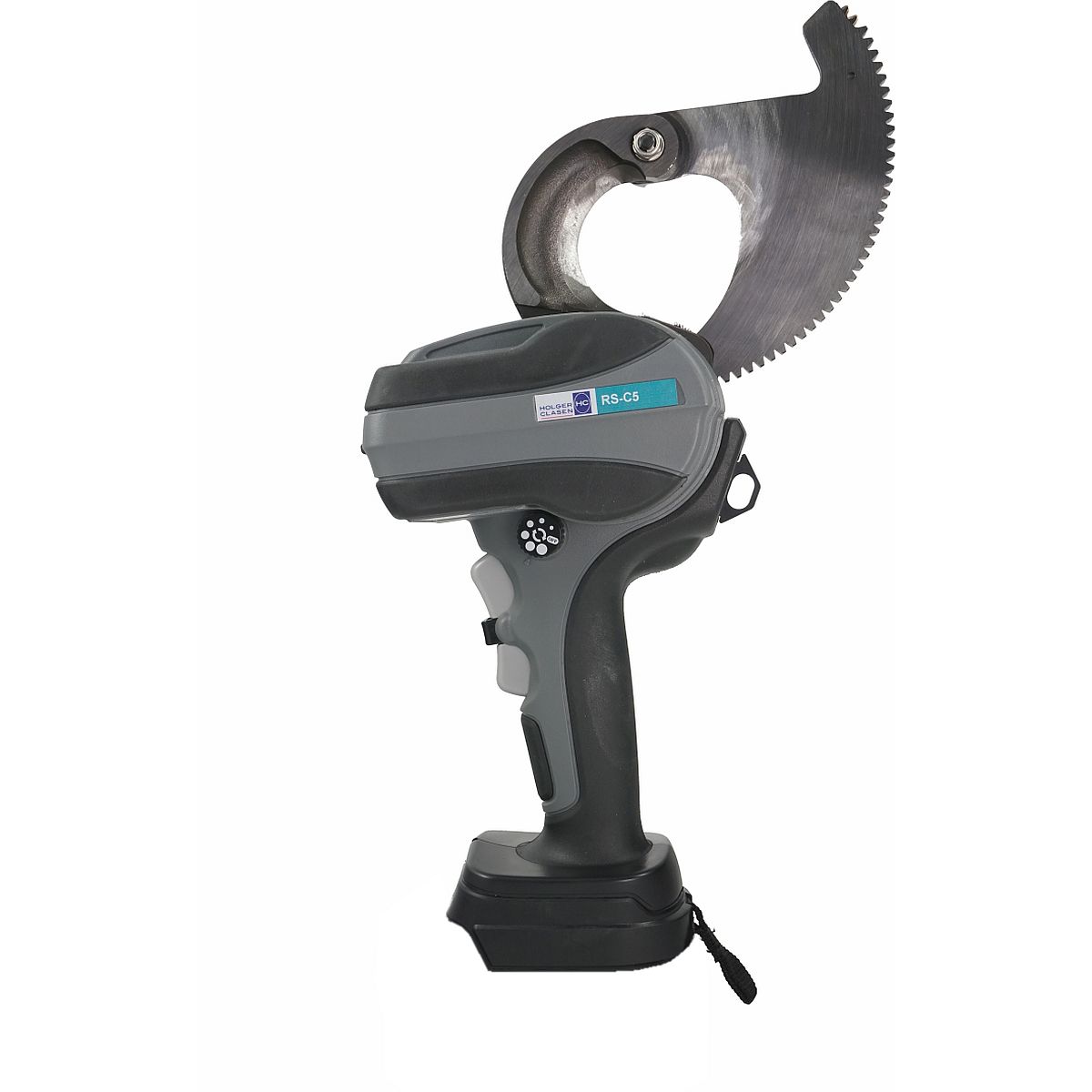

Battery cable cutter RS-C5-F for fine stranded conductors - lightweight, handy and powerful:

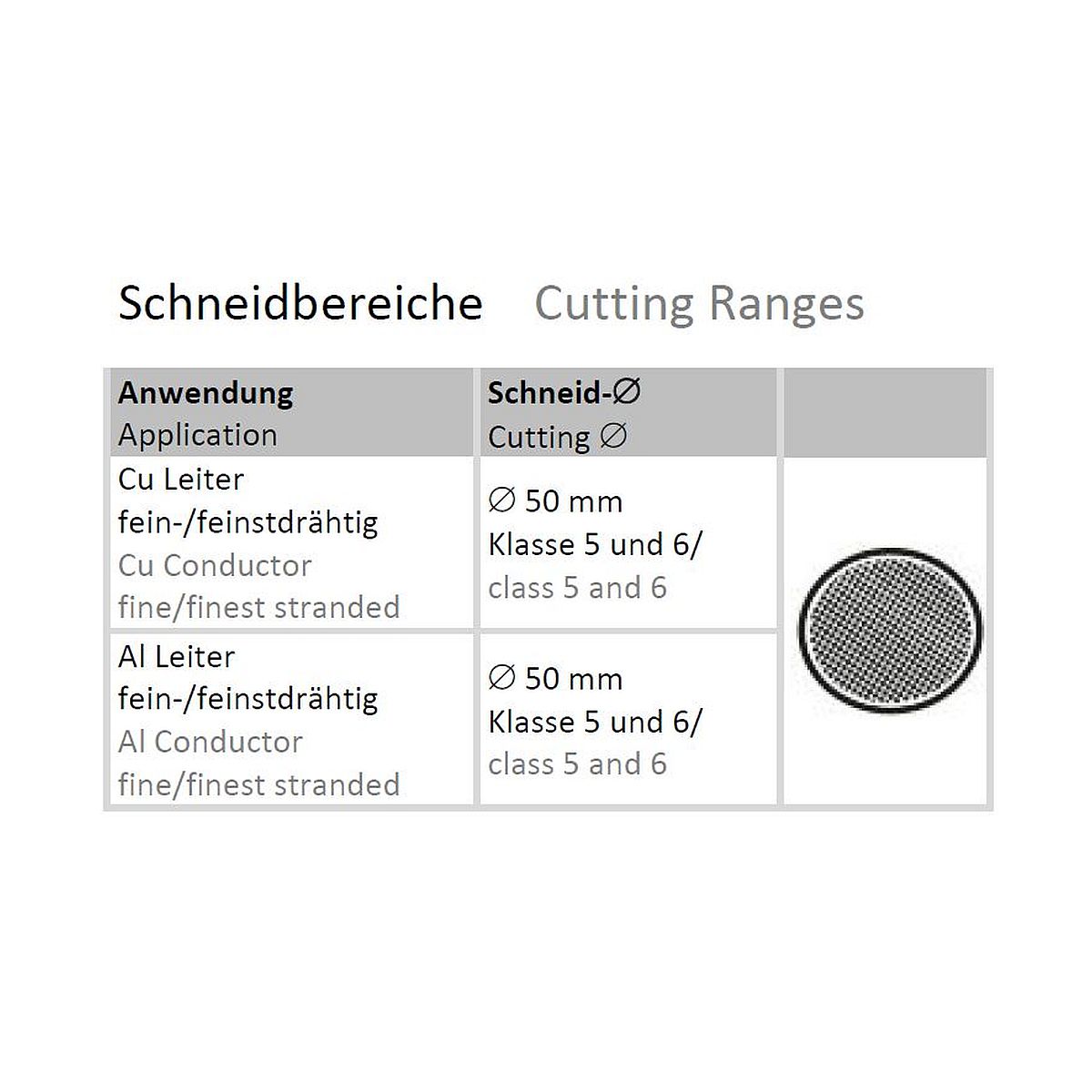

- Cuts fine and very fine stranded Al or Cu conductors DIN VDE 0295 class 5 and 6 up to Ø 50 mm
- Particularly ergonomic, can be operated with one hand
- The sickle-shaped cutting geometry with ratchet produces a very precise, clean cut with little material deformation. - Only 2.1 kg tool weight
- Conversion of manual or automatic return for full tool control
- Freely selectable opening width setting
- with LED working area illumination
- Battery voltage: 18 V (compatible with Makita)

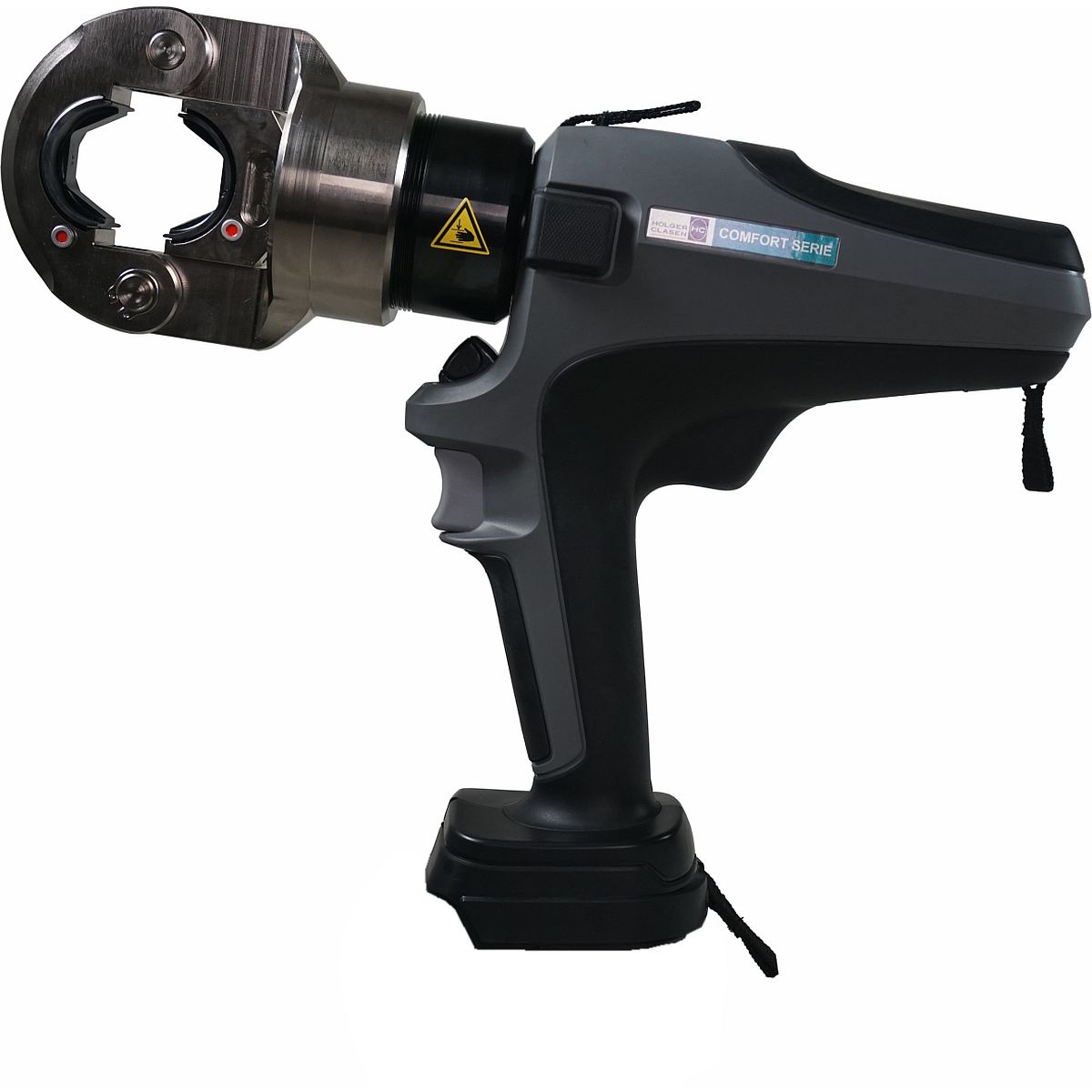

Battery-powered hydraulic crimper PressMax-C14 – versatile, efficient and powerful
- Crimping force: 140 kN- Other contours: Pre-rounding, arbor, double arbor, H-clamps, double crimping, trapezoidal
- Crimping range DIN hexagonal: Cu 10 - 400 mm2 / Al 10 - 400 mm2
- Wide crimping possible
- Weight: 4.8 kg
- Crimping Dies: C-shaped (C)
- Conversion of manual or automatic return for full tool control
- Lever lock return
- Battery voltage: 18 V (compatible with Makita)
- 2-step hydraulic
- 180° rotatable crimping head
- Closed crimping head with safety lock and crimping die safety pins offers high safety in crimping process
- Well-balanced, ergonomic design
- LED workfield illumination
Not included: Battery Makita BL1850B with 5 Ah, Makita Battery charger DC18RC
Optional: Even more compatibility with HC battery adapters for 18 V Bosch, Milwaukee or Dewalt batteries
Areas of application are subject to change.
| Opening width: | Schneider: 50 mm |
|---|---|
| Suitable for: | fine and very fine stranded cable |
| Crimping force: | 140 kN |
| Crimping dies Series: | C-shaped (C) |
| Crimping range DIN Cu: | 10 - 400 mm² |
| Crimping range DIN Al: | 10 - 400 mm² |
| Battery voltage: | Makita 18 V |
| Dimensions LxWxH: | Crimping tool: 356 x 82 x 300 mm - Cutting tool: 117 x 197 x 330 mm |
| Weight without battery: | Crimping tool: 4.8 kg - Cutting tool: 2.1 kg |
| Head: | Crimping tool: closed - Cutting tool: closed |
Battery and charger must be ordered separately.
