KombiMax-C7/C12 Battery-Combi-Set, Comfort series
| Opening width: | Cutting tool: 65 mm |
|---|---|
| Crimping force: | 120 kN |
| Crimping range DIN Cu: | 10 - 300 mm² |
| Crimping range DIN Al: | 10 - 300 mm² |
| Battery voltage: | Makita 18 V |
Product number:
75181200
With case
18 V Makita-kompatibel
C-shaped crimping dies
KombiMax-C7/C12 Battery-Combi-Set, Comfort series
Applications
Well prepared for your cable assembly with the Comfort Series: a cordless cutter and a cordless crimper - compatible with 18 V Makita rechargeable batteries - stowed away in a case, ready to hand. The set includes the RS-C7 battery-powered cutting tool, the PressMax-C12 battery-powered crimping tool, a carrying strap and a crimping die box, all compactly stored in the carrying case.

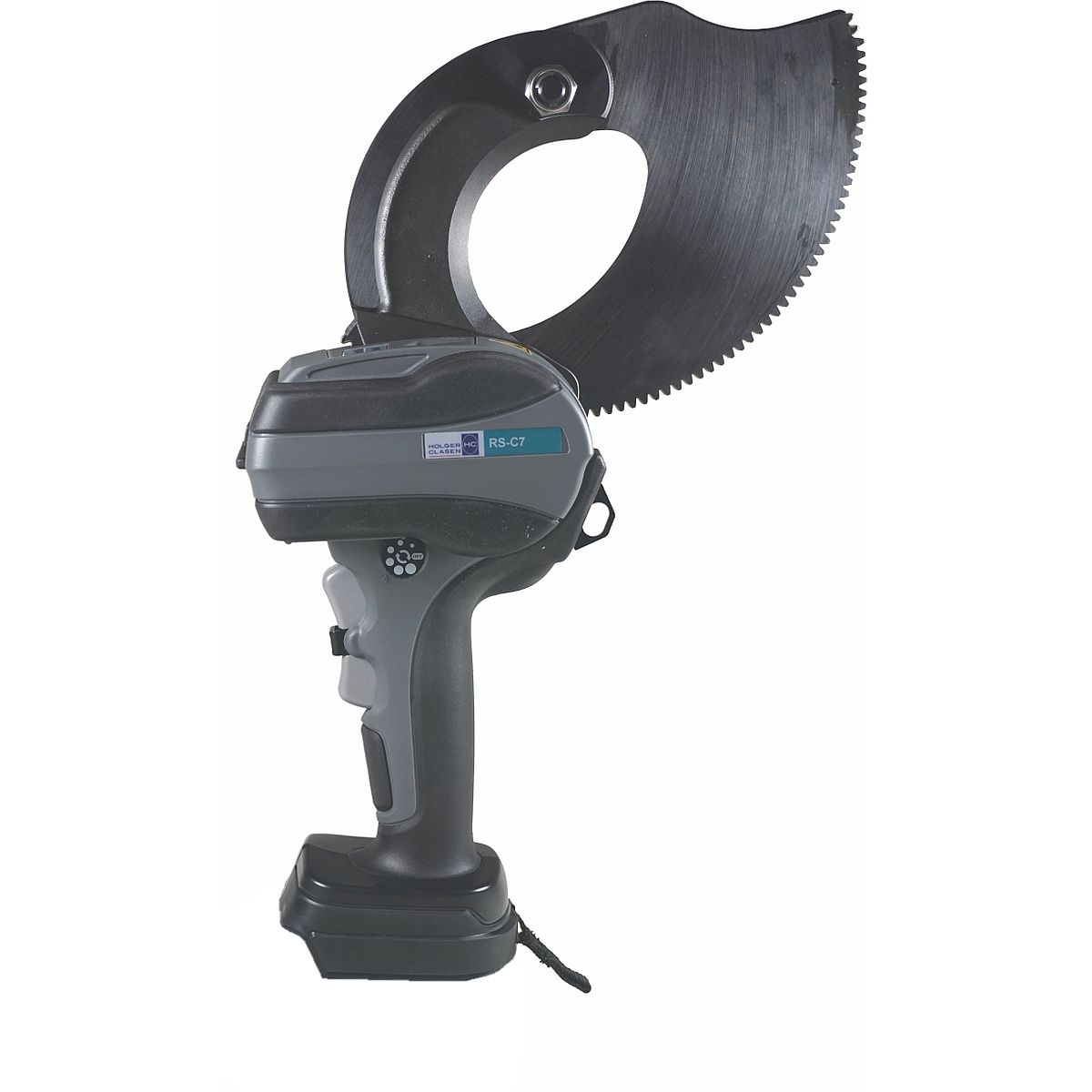

Battery cable cutter RS-C7 - lightweight, handy and powerful:
- Cuts Cu- And Al-stranded conductors up to Ø 65 mm and energy cable, e.g.,. Cu NYY 4 x 185 mm2 (1 x 800 mm2) or Al NAYY 4 x 240 mm2 (1 x 1,000 mm2)
- Particularly ergonomic, can be operated with one hand
- The sickle-shaped cutting geometry with ratchet produces a very precise, clean cut with little material deformation. - Only 2.8 kg tool weight
- Conversion of manual or automatic return for full tool control
- Freely selectable opening width setting
- with LED working area illumination
- Battery voltage: 18 V (compatible with Makita)

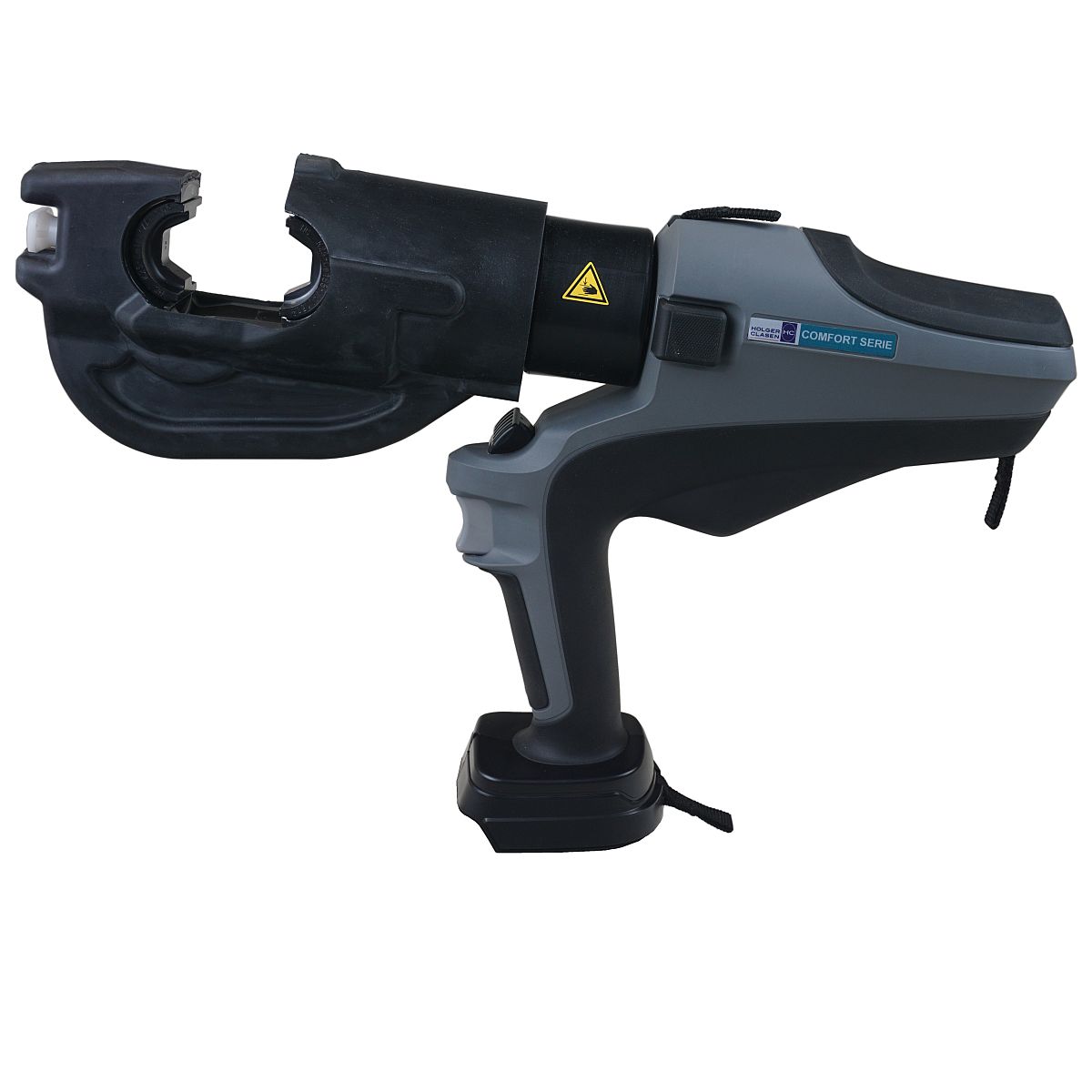

Battery-operated hydraulic pressing tool PressMax-C12 – versatile thanks to 42 mm stroke, powerful
- Crimping force: 120 kN- Other contours: Pre-rounding, arbor, double arbor, H-clamps, double crimping, trapezoidal
- Crimping range DIN hexagonal: Cu 10 - 300 mm2 / Al 10 - 300 mm2
- Weight: 6.9 kg
- Crimping Dies: C-shaped (C)
- Conversion of manual or automatic return for full tool control
- Lever lock return
- Battery voltage: 18 V (compatible with Makita)
- 2-step hydraulic
- 180° rotatable crimping head
- Open crimping head with crimping die safety pins offers high safety in crimping process even in confined spaces
- LED workfield illumination
Not included: Battery Makita BL1850B with 5 Ah, Makita Battery charger DC18RC
Optional: Even more compatibility with HC battery adapters for 18 V Bosch, Milwaukee or Dewalt batteries
Areas of application are subject to change.
| Opening width: | Cutting tool: 65 mm |
|---|---|
| Crimping force: | 120 kN |
| Crimping dies Series: | C-shaped (C) |
| Crimping range DIN Cu: | 10 - 300 mm² |
| Crimping range DIN Al: | 10 - 300 mm² |
| Battery voltage: | Makita 18 V |
| Dimensions LxWxH: | Crimping tool: 436 x 92 x 286 mm - Cutting tool: 117 x 232 x 356 mm |
| Weight without battery: | Crimping tool: 6.9 kg - Cutting tool: 2.8 kg |
| Head: | Crimping tool: open - Cutting tool: closed |
Battery and charger must be ordered separately.
