MD125/23-LK75 Double rotor air motor
| Power: | 1.25 kW |
|---|---|
| Useful speed: | 0 - 225 min-1 |
| Direction of rotation: | Reversible |
| Chuck: | Shaft-hub-connection Ø 19 j6 |
| Current: | Pneumatic |
Product number:
54321000
High tool life
MD125/23-LK75 Double rotor air motor
Applications
Air motors with double rotors (gear wheels) - drive technology intended to be assembled into other machines. These air motors are high operating safe, sturdy and direction of rotation is returnable.
Motor from manufacturer with 1.25 kW power
Useful Speed: 0 - 230 min-1Convincing through easy control and high starting safety
Operation in clockwise/counterclockwise rotation
Flexibility through optimum speed range
The air motor with double rotors impresses with its very long service life.
High starting torque
ATEX models II 2 GDcT4 - T6 or other special versions are available on request.

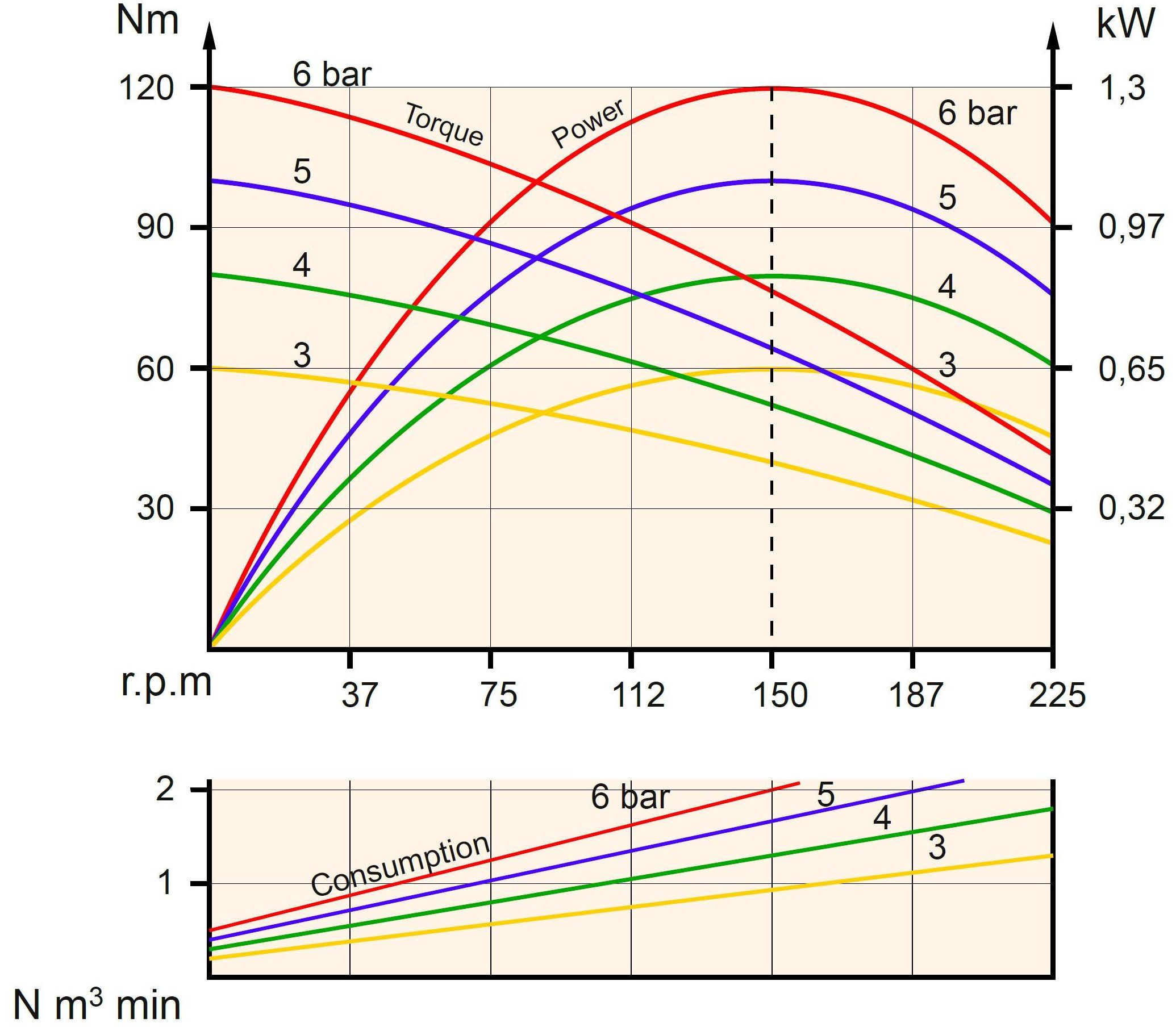

| Power: | 1.25 kW |
|---|---|
| Useful speed: | 0 - 225 min-1 |
| Optimal speed: | 30 - 145 min-1 |
| Starting Torque: | 113 Nm |
| Direction of rotation: | Reversible |
| Chuck: | Shaft-hub-connection Ø 19 j6 |
| Construction form: | IEC-flange pitch circle 75 mm |
| Weight: | 5.80 kg |
| Length [mm]: | 271 |
| Housing Ø: | 88 mm |
| Shaft length: | 40 mm |
| Dimension A: | 75 mm |
| Dimension B: | 90 mm |
| Dimension C: | 60 mm |
| Dimension D: | 2.5 mm |
| Dimension E: | M5 |
| Min. Ø Inlet Air Motor / Pipe: | 10 / 11 mm |
| Min. Ø Exhaust Air Motor / Pipe: | 12 / 13 mm |
| Current: | Pneumatic |
| Max. Working pressure: | 6.0 bar |
| Inlet air connection: | G 1/2" (G 3/8") |
