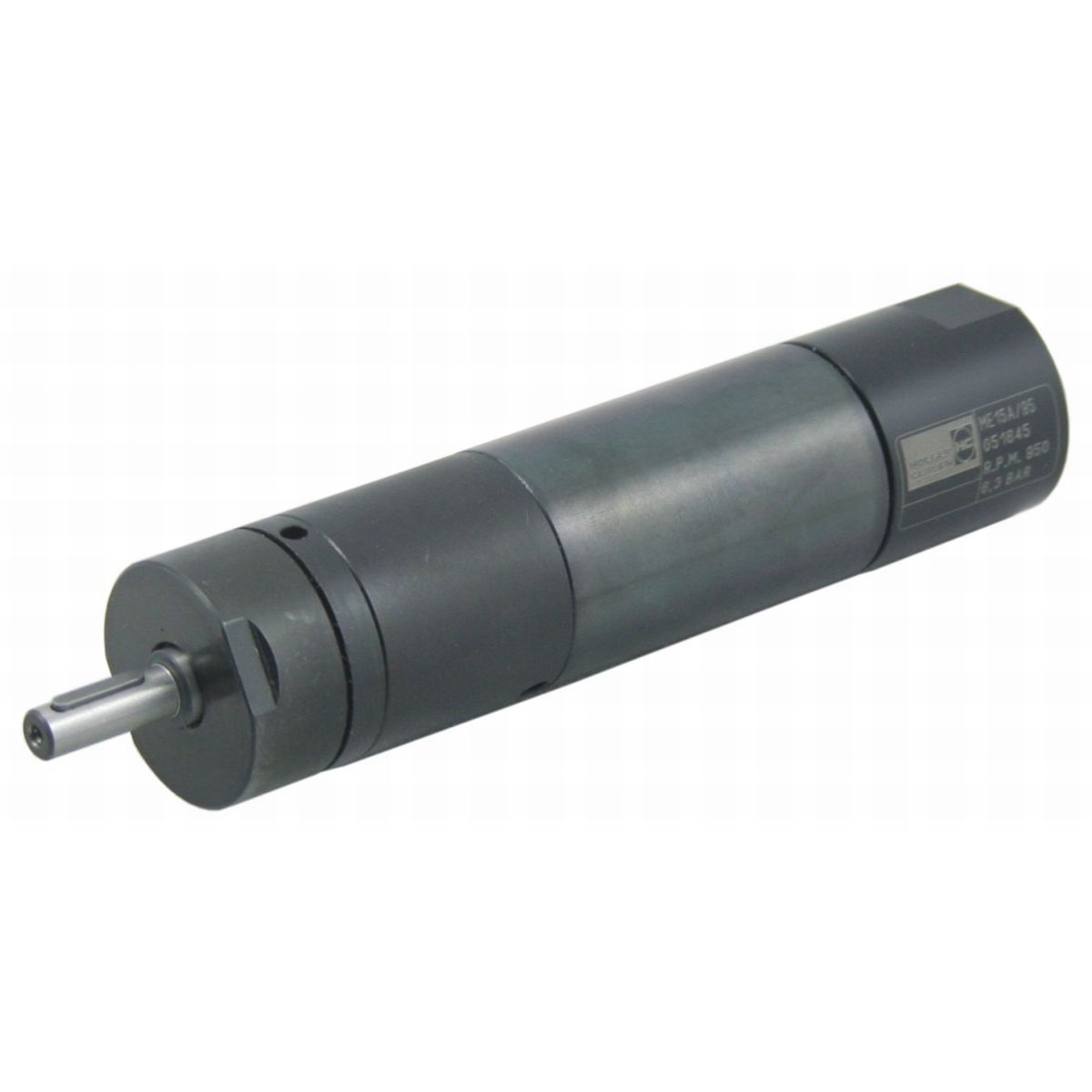

ME15 A/260-5/16 Air vane motor
| Power [kW]: | 0.15 |
|---|---|
| Free speed: | 2600 / min |
| Direction of rotation: | Rechts |
| Current: | Pneumatic |
Product number:
53114300
Ölfreier Betrieb möglich
Low-vibration type
ME15 A/260-5/16 Air vane motor
Applications
This air motor with vane drive is intended for installation in machines, e.g. as drive units on conveyor belts, in machine tools, feed or entrainment devices, in the food or packaging industry, on production lines or for installation in hand-guided special machines.
Air motor with lamellar drive ME15A/260-5/16 - Drives for professionals
Load speed: 1,250 min-1Power: 150 W
The 0.15 kW air motor can be operated oil-free.
The slat drive is low-noise and low-vibration, precise in control and is operated in clockwise rotation.
The output is a 5/16" thread.
The motor is extremely low-maintenance, has a long service life and wear parts can be replaced quickly and easily.
On request, special models such as those made of ceramic or stainless steel as well as air motors are available as ATEX versions for special requirements regarding environment, hygiene and safety.
| Power [kW]: | 0.15 |
|---|---|
| Free speed: | 2600 / min |
| Speed under Load: | 1250 / min |
| Starting Torque: | 1.60 Nm |
| Torque at max. Power: | 1.10 Nm |
| Direction of rotation: | Rechts |
| Construction form: | Straight |
| Weight [kg]: | 0.32 |
| Length [mm]: | 110 |
| Housing Ø: | 29 mm |
| Shaft length: | 15.7 mm |
| Recommended hose Ø: | 6 mm |
| Air consumption: | 4.4 l/s |
| Current: | Pneumatic |
| Working pressure: | 6.3 bar |
| Max. Working pressure: | 7.0 bar |
| Information: | The figures shown are measured at a pressure of 6.3 bar (ISO 2787), the recommended working pressure. |
| Chuck: | Thread 5/16" x 24 UNF |
| Inlet air connection: | G 1/8" |
| Exhaust air connection: | G 1/8" |
