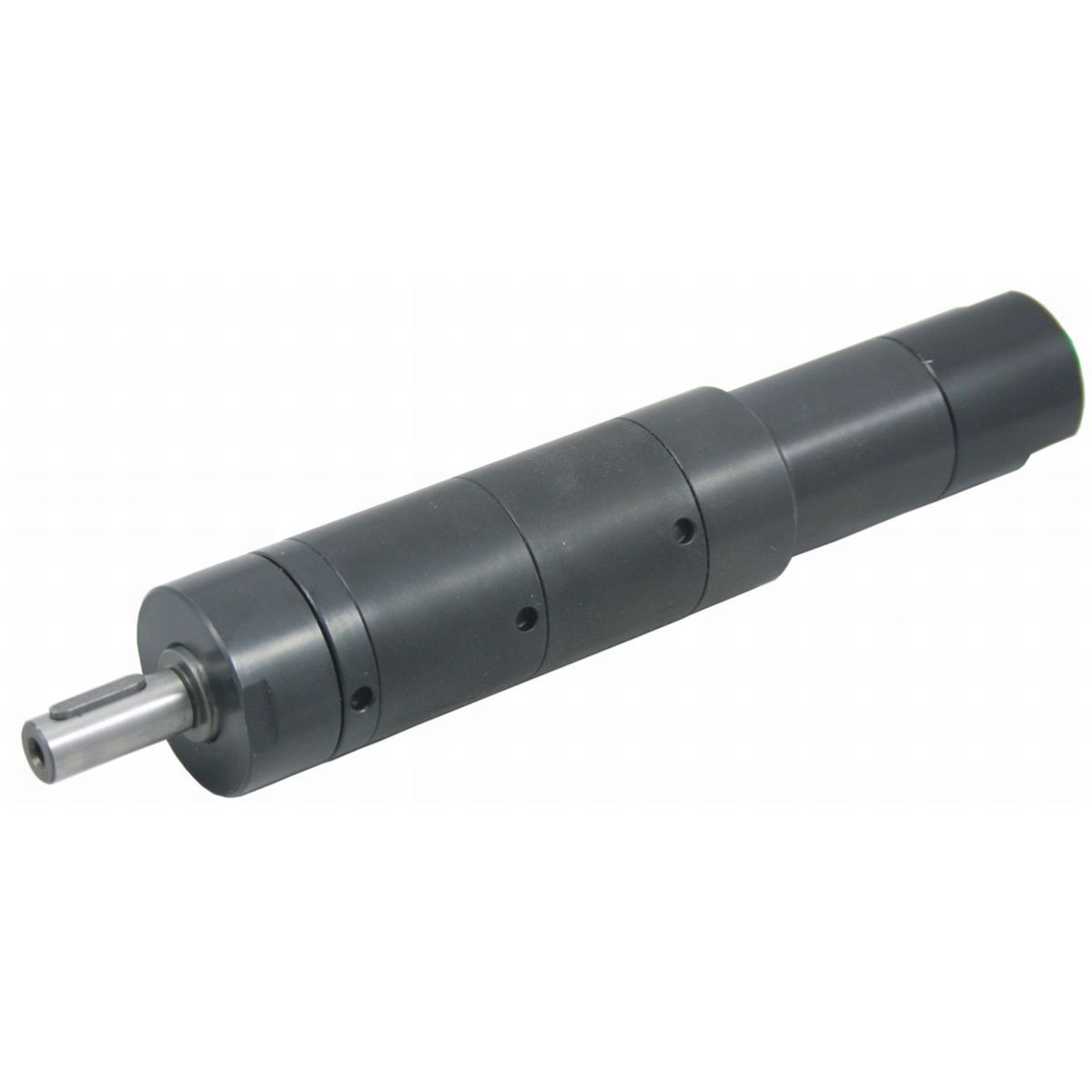

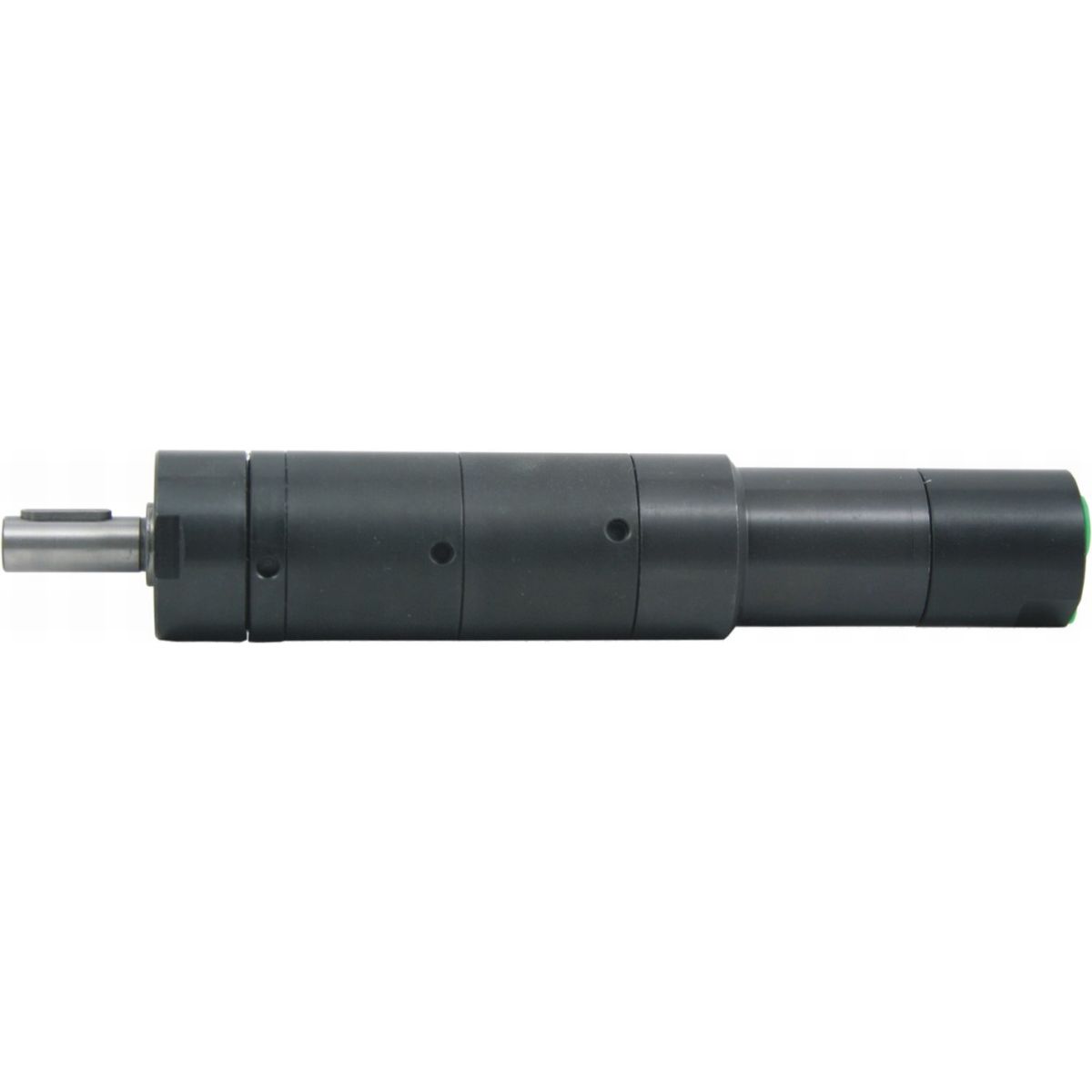

ME20 A/105-3/8 Air vane motor
| Power [kW]: | 0.20 |
|---|---|
| Free speed: | 1050 / min |
| Direction of rotation: | Rechts |
| Current: | Pneumatic |
Product number:
53143300
Ölfreier Betrieb möglich
Low-vibration type
ME20 A/105-3/8 Air vane motor
Applications
This air motor with vane drive is intended for installation in machines, e.g. as drive units on conveyor belts, in machine tools, feed or entrainment devices, in the food or packaging industry, on production lines or for installation in hand-guided special machines.
Power: 200 W
Free Speed: 1050 min-1
Chuck: thread connection 3/8" x 24 UNF
The air vane motor has low-noise and low-vibration values, starts precisely and it runs in right drive.
They are equipped with a thread connection.
The durable air vane motors are low-maintenance, and wear parts can be changed fast and easily.
On request specific types are available: ceramic, stainless steel or motors with ATEX-certification; for high requirements to atmosphere, hygiene or safety.
Technical specifications
Free Speed: 1050 min-1
Chuck: thread connection 3/8" x 24 UNF
Air vane motor with thread ME20A/105-3/8 - power unit for professionals
The 0.2 kW air motor can be operated oilfree.The air vane motor has low-noise and low-vibration values, starts precisely and it runs in right drive.
They are equipped with a thread connection.
The durable air vane motors are low-maintenance, and wear parts can be changed fast and easily.
On request specific types are available: ceramic, stainless steel or motors with ATEX-certification; for high requirements to atmosphere, hygiene or safety.
| Power [kW]: | 0.20 |
|---|---|
| Free speed: | 1050 / min |

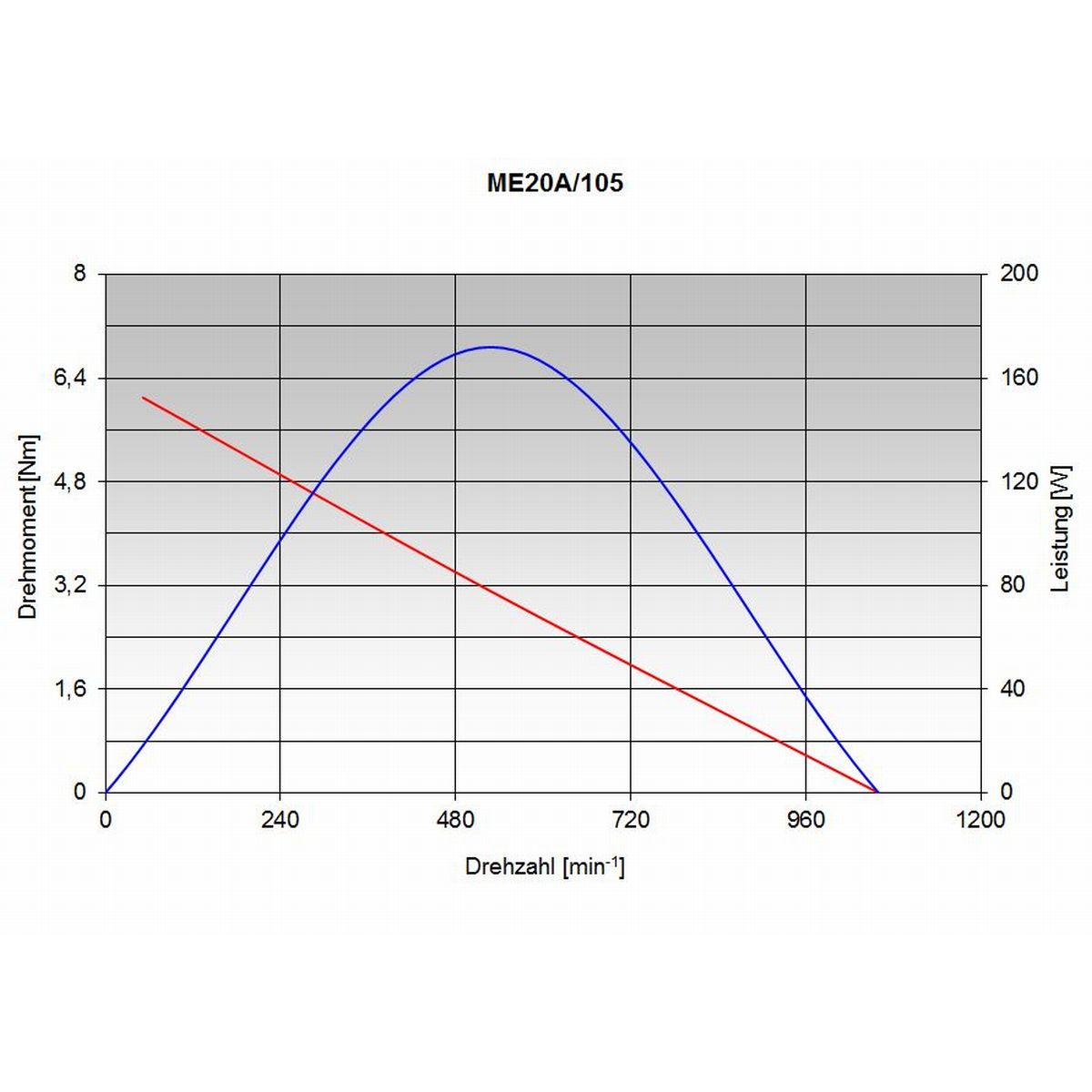

| Speed under Load: | 530 / min |
| Starting Torque: | 5.40 Nm |
| Torque at max. Power: | 3.10 Nm |
| Direction of rotation: | Rechts |
| Construction form: | Straight |
| Weight [kg]: | 0.54 |

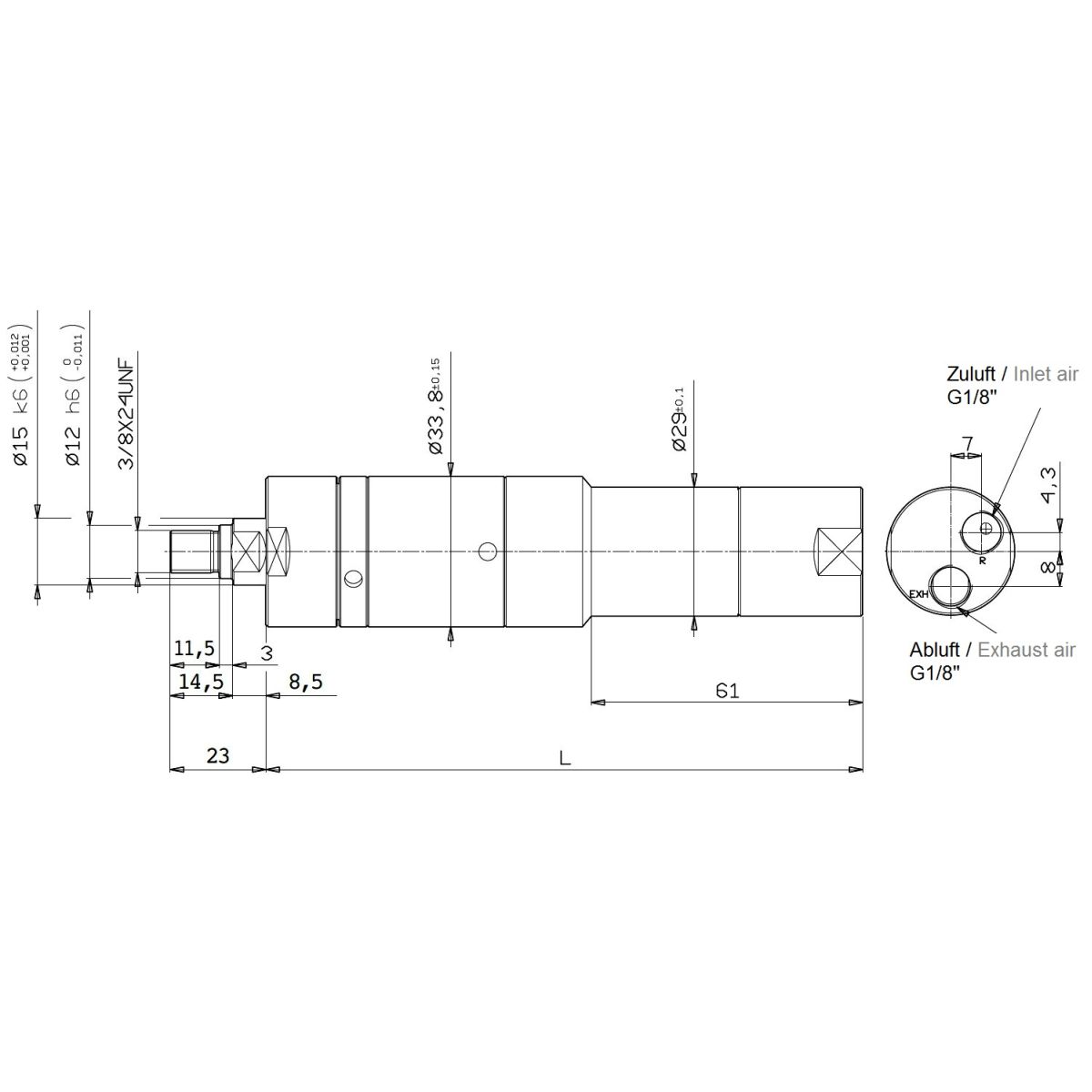

| Length [mm]: | 157 |
| Housing Ø: | 33.8 / 29 mm |
| Shaft length: | 23 mm |
| Recommended hose Ø: | 6 mm |
| Air consumption: | 5.3 l/s |
| Current: | Pneumatic |
| Working pressure: | 6.3 bar |
| Max. Working pressure: | 7.0 bar |
| Information: | The figures shown are measured at a pressure of 6.3 bar (ISO 2787), the recommended working pressure. |
| Chuck: | Thread 3/8" x 24 UNF |

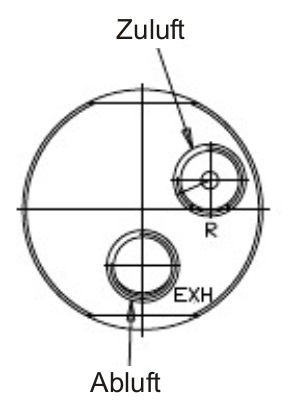

| Inlet air connection: | G 1/8" |
| Exhaust air connection: | G 1/8" |
