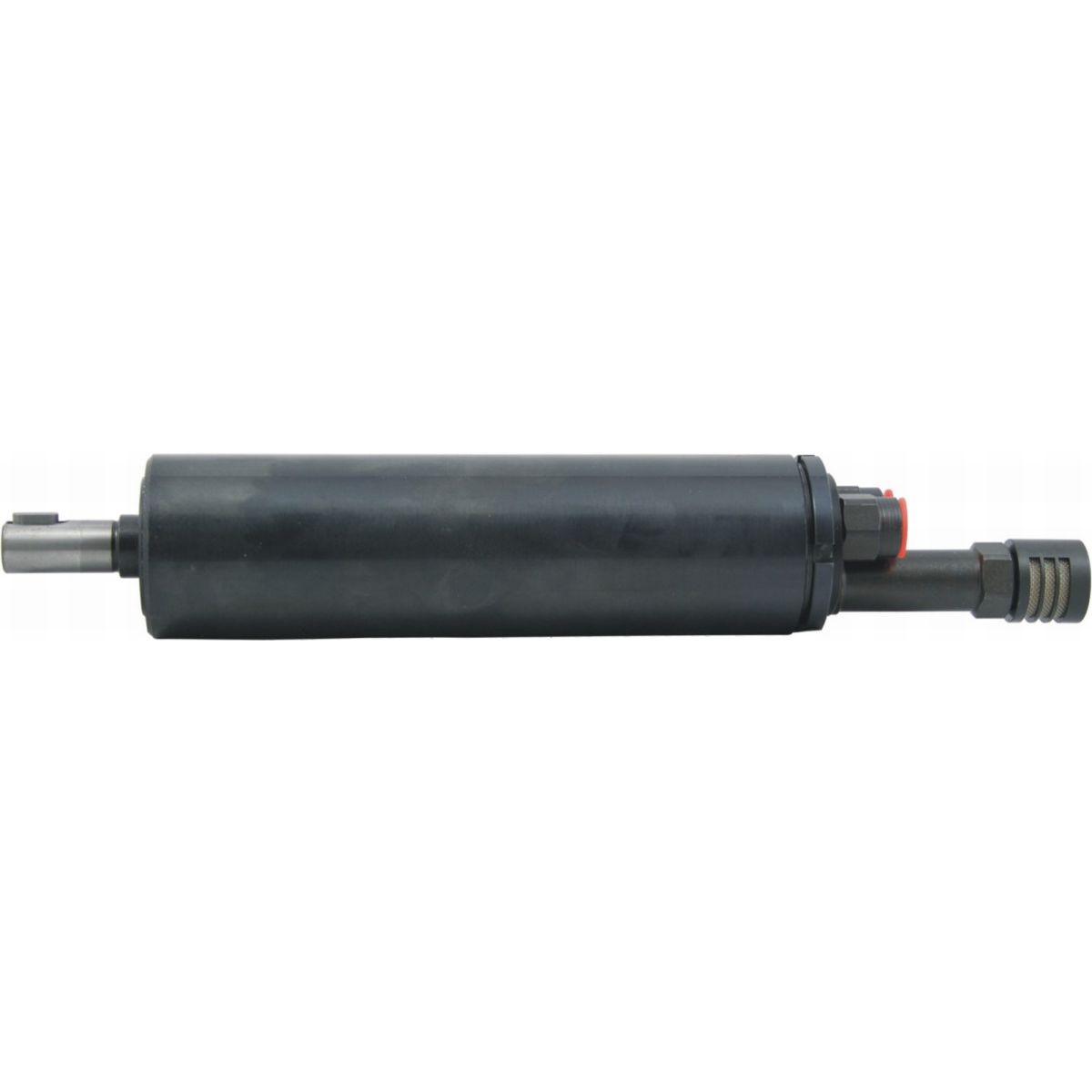

ME40/1500 U Air vane motor
| Power: | 0.375 kW |
|---|---|
| Free speed: | 15000 min-1 |
| Direction of rotation: | Reversible |
| Chuck: | Shaft-hub-connection Ø 14 h7 |
| Current: | Pneumatic |
Product number:
53164000
Ölfreier Betrieb möglich
Low-vibration type
ME40/1500 U Air vane motor
Applications
This air motor with vane drive is intended for installation in machines, e.g. as drive units on conveyor belts, in machine tools, feed or entrainment devices, in the food or packaging industry, on production lines or for installation in hand-guided special machines.
Power: 375 W
Free Speed: 15000 min-1
The air vane motors have low-noise and low-vibration values, start precisely and they are reversible.
They are equipped with a shaft-hub connection according to DIN 6885 form A.
The motors can optionally be equipped with shaft Ø 13 mm or thread 3/8" x 24 UNF.
The durable air vane motors are low-maintenance, and wear parts can be changed fast and easily.
Technical specifications
Free Speed: 15000 min-1
Air vane motor in Stainless steel type (optional) ME40/1500U - reversible, powerful and reliable
The 0.375 kW air motors can be operated oilfree.The air vane motors have low-noise and low-vibration values, start precisely and they are reversible.
They are equipped with a shaft-hub connection according to DIN 6885 form A.
The motors can optionally be equipped with shaft Ø 13 mm or thread 3/8" x 24 UNF.
The durable air vane motors are low-maintenance, and wear parts can be changed fast and easily.
| Power: | 0.375 kW |
|---|---|
| Free speed: | 15000 min-1 |
| Speed under Load: | 7500 min-1 |
| Starting Torque: | 0.90 Nm |
| Torque at max. Power: | 0.50 Nm |
| Direction of rotation: | Reversible |
| Chuck: | Shaft-hub-connection Ø 14 h7 |
| Construction form: | Straight |
| Weight: | 1.45 kg |
| Length [mm]: | 149 |
| Housing Ø: | 49 h7 mm |
| Recommended hose Ø: | 9 mm |
| Exhaust air: | Silencer Ø 23 x 68 mm |
| Air consumption: | 10 l/s |
| Current: | Pneumatic |
| Working pressure: | 6.3 bar |
| Max. Working pressure: | 7.0 bar |
| Information: | The figures shown are measured at a pressure of 6.3 bar (ISO 2787), the recommended working pressure. |
| Inlet air connection: | G 1/4" |
| Exhaust air connection: | G 3/8" |
